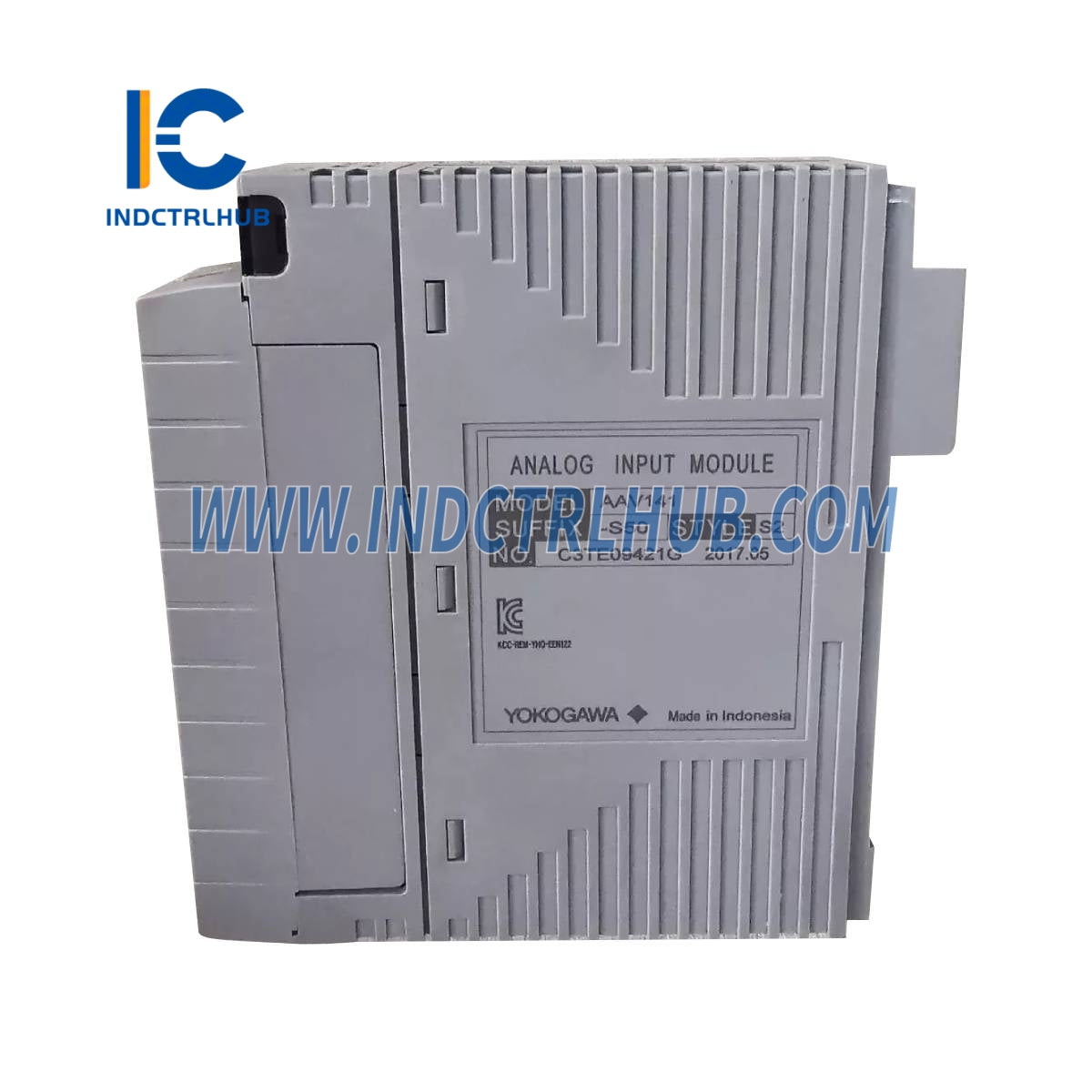

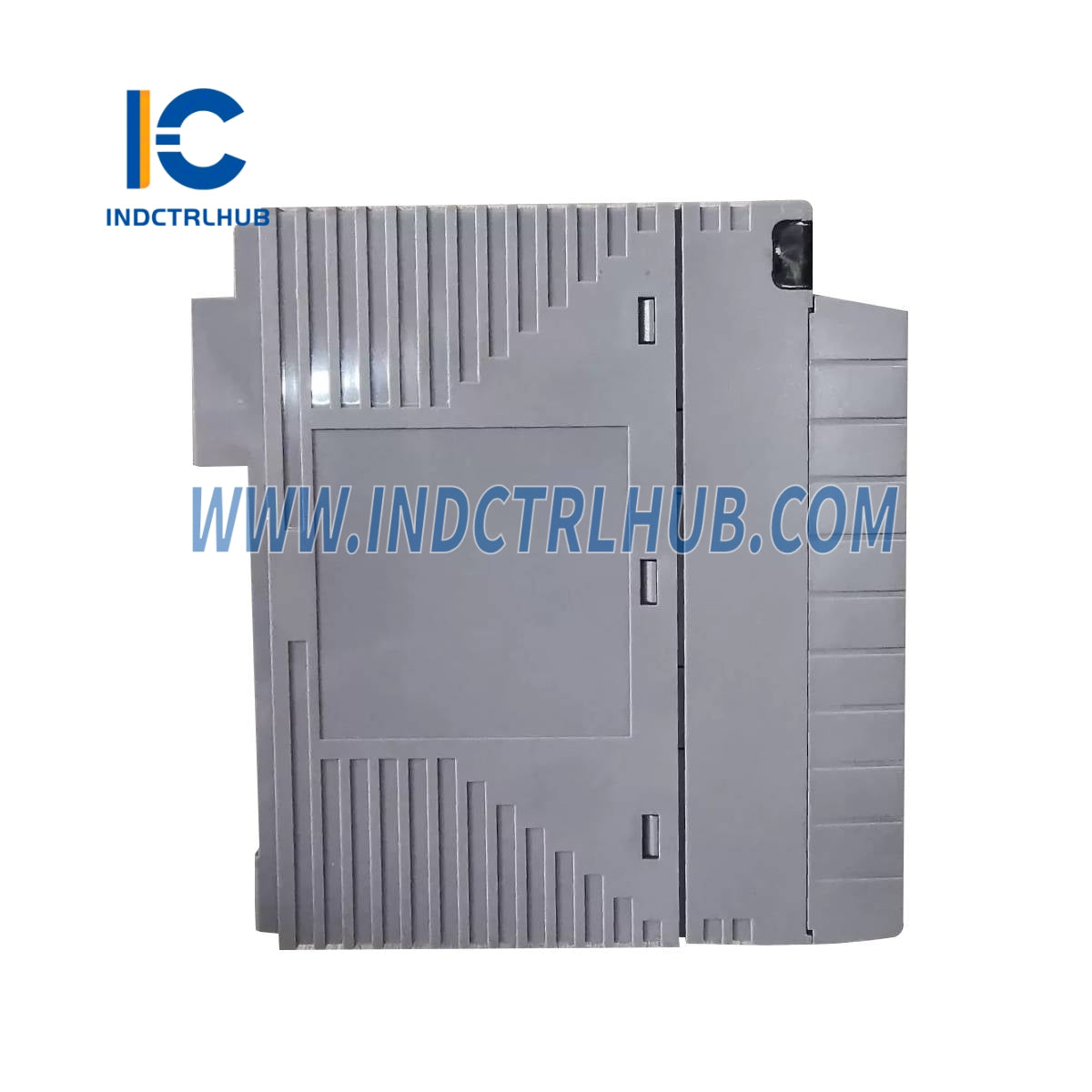

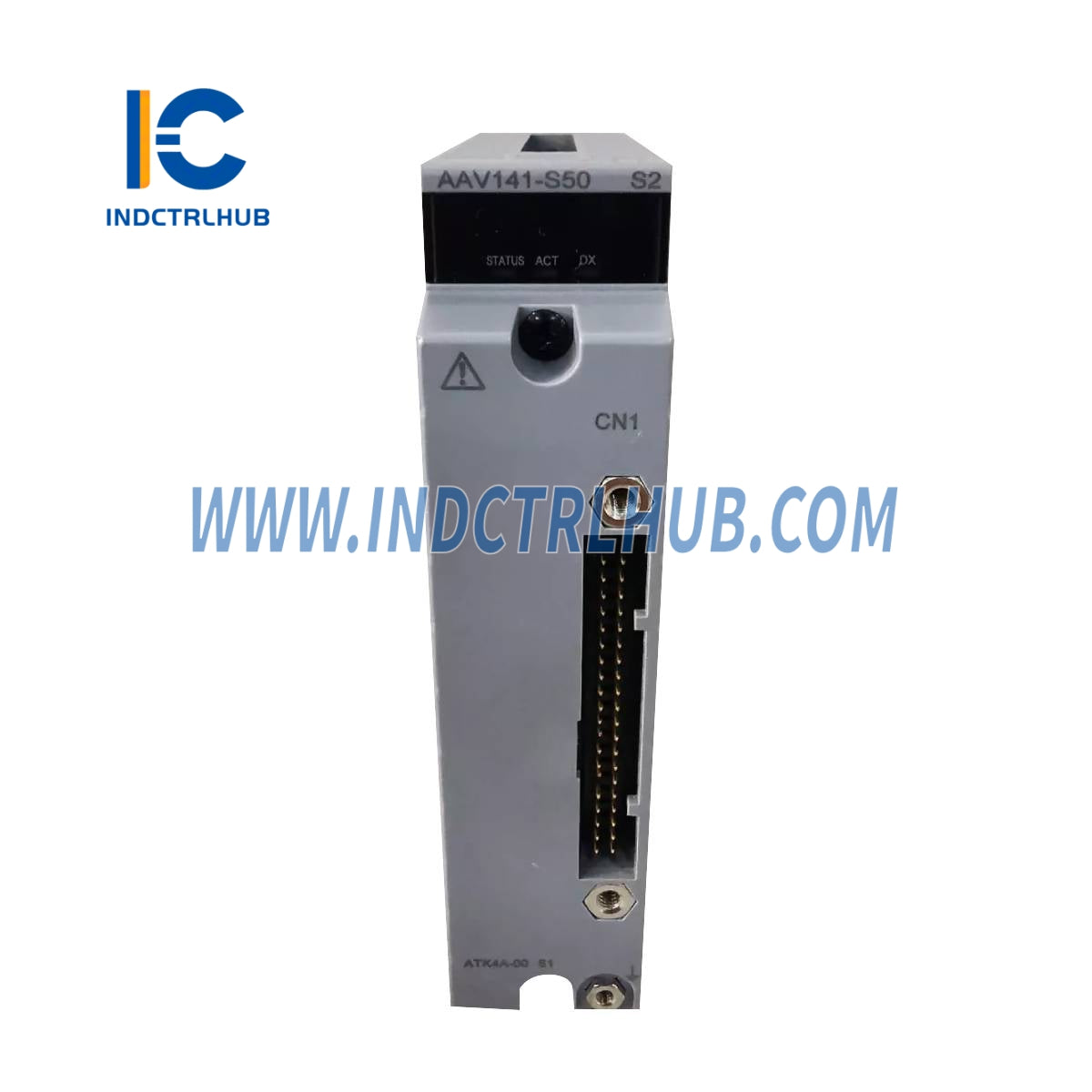

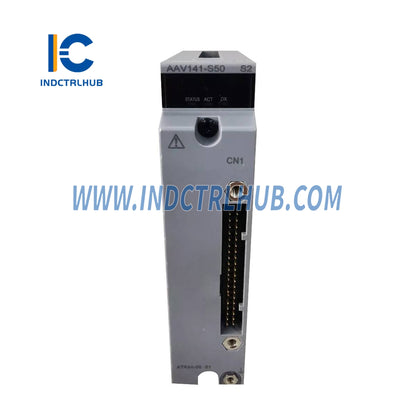

Yokogawa AAV141-S50 Analog Input Module
Yokogawa AAV141-S50 Analog Input Module
Manufacturer: Yokogawa
Product No.: AAV141-S50
Condition:1000 in stock
Product Type: Analog Input Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAV141-S50 |
|
Description |
Analog Input Module (1 to 5 V, 16-channel, Non-Isolated) |
_
_
__ Product Overview
The_Yokogawa AAV141-S50_is a 16-channel_non-isolated voltage input module_designed to accept standardized signals of_1 to 5 V DC_from 2-wire or 4-wire transmitters. Used in control systems for industries like power, chemical, and process automation, it supports dual-redundant configurations and provides high-density analog input with fast update rates. It does_not_support isolation between channels or from the system, making it ideal for specific applications where such isolation is not required.
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
AAV141 |
|
Input Channels |
16 channels, non-isolated (differential input) |
|
Input Signal |
1 to 5 V DC (±1 V allowable common mode voltage) |
|
Allowable Input Voltage |
±7.5 V |
|
Input Resistance (Power ON) |
1 MΩ or larger |
|
Input Resistance (Power OFF) |
340 kΩ or larger |
|
Accuracy |
±4 mV |
|
Data Update Period |
10 ms |
|
Step Response Time |
100 ms |
|
Transmitter Power Supply |
Not available |
|
Ambient Temperature Drift |
±4 mV/10 °C |
|
Maximum Current Consumption |
350 mA (5 V DC) |
|
Weight |
0.2 kg |
|
External Connections |
KS cable |
|
HART Communication |
Not available |
_
_
__ Suffix & Option Codes
|
Suffix Codes |
Description |
|---|---|
|
-S |
Standard type |
|
5 |
No explosion protection |
|
E |
With explosion protection |
|
0 |
Basic type |
|
3 |
ISA G3 and -20 to 70°C temperature option |
|
Option Codes |
Description |
|---|---|
|
/K4A00 |
KS Cable Interface Adapter [Model: ATK4A-00] |
|
/A4S00 |
Pressure Clamp Terminal Block for Analog [Model: ATA4S-00] |
|
/A4S10 |
Pressure Clamp Terminal Block for Analog (with surge absorber) [Model: ATA4S-10] |
|
/A4D00 |
Dual Pressure Clamp Terminal Block for Analog [Model: ATA4D-00] |
|
/A4D10 |
Dual Pressure Clamp Terminal Block for Analog (with surge absorber) [ATA4D-10] |
|
/CCC01 |
Connector Cover for MIL Cable [Model: ACCC01] |
_
