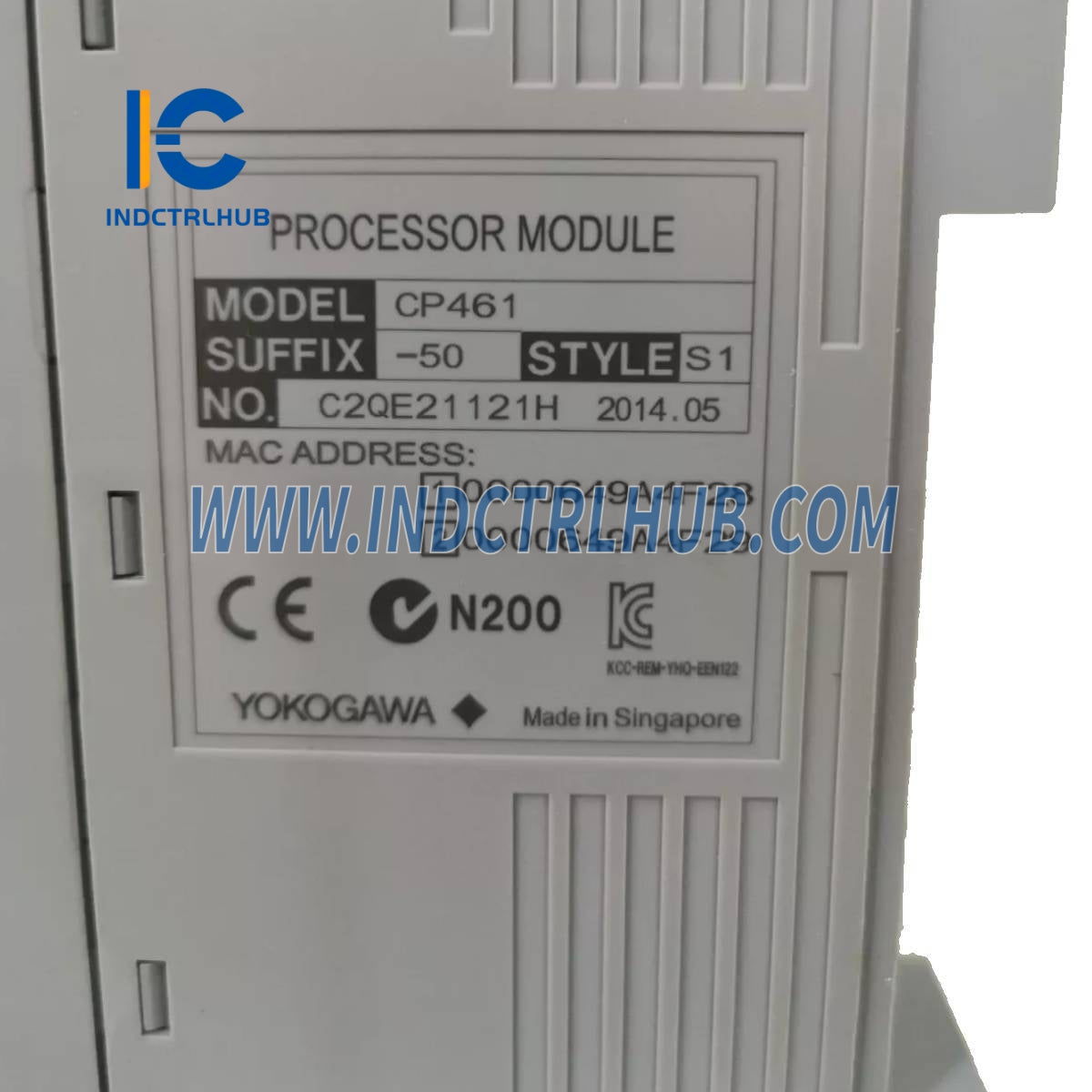

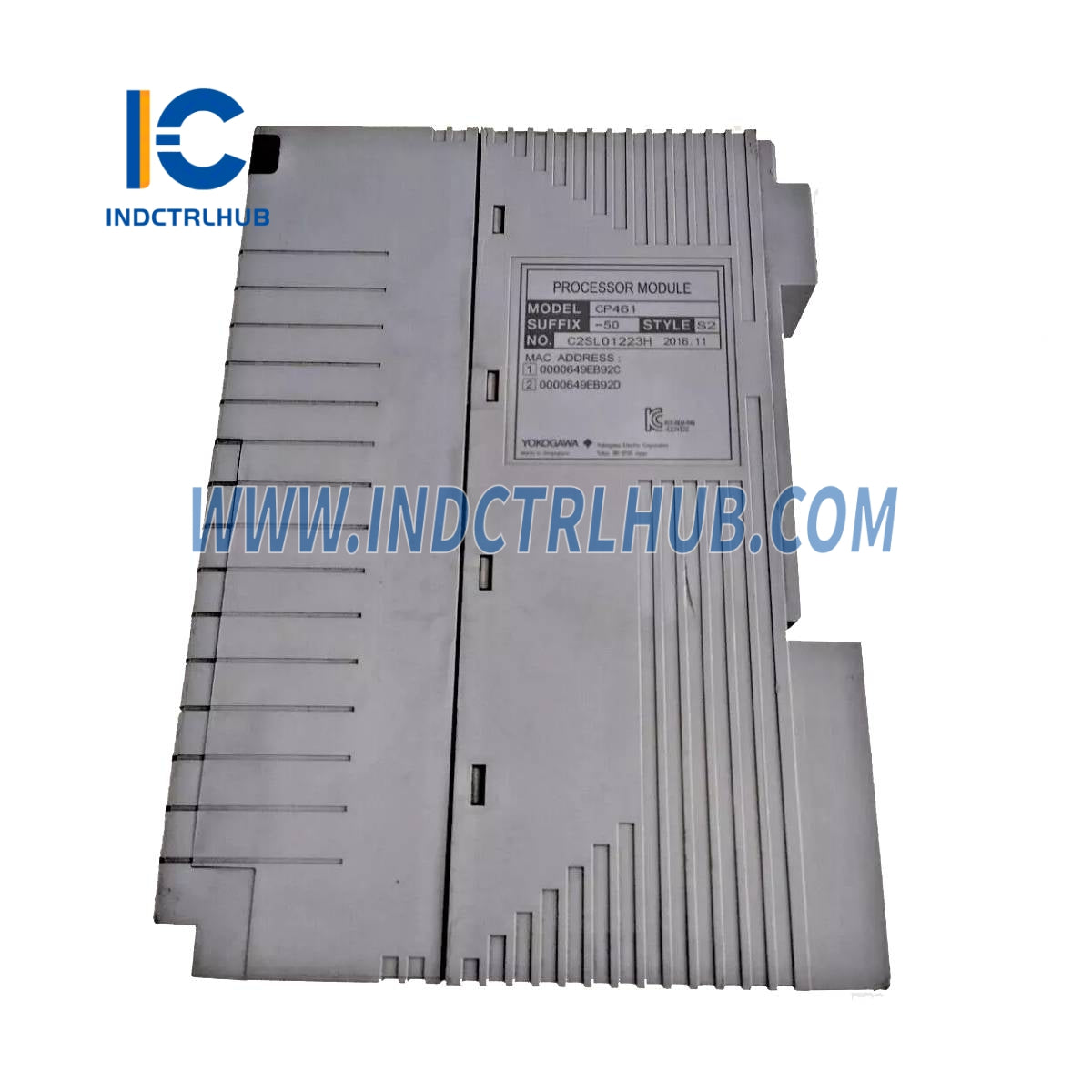

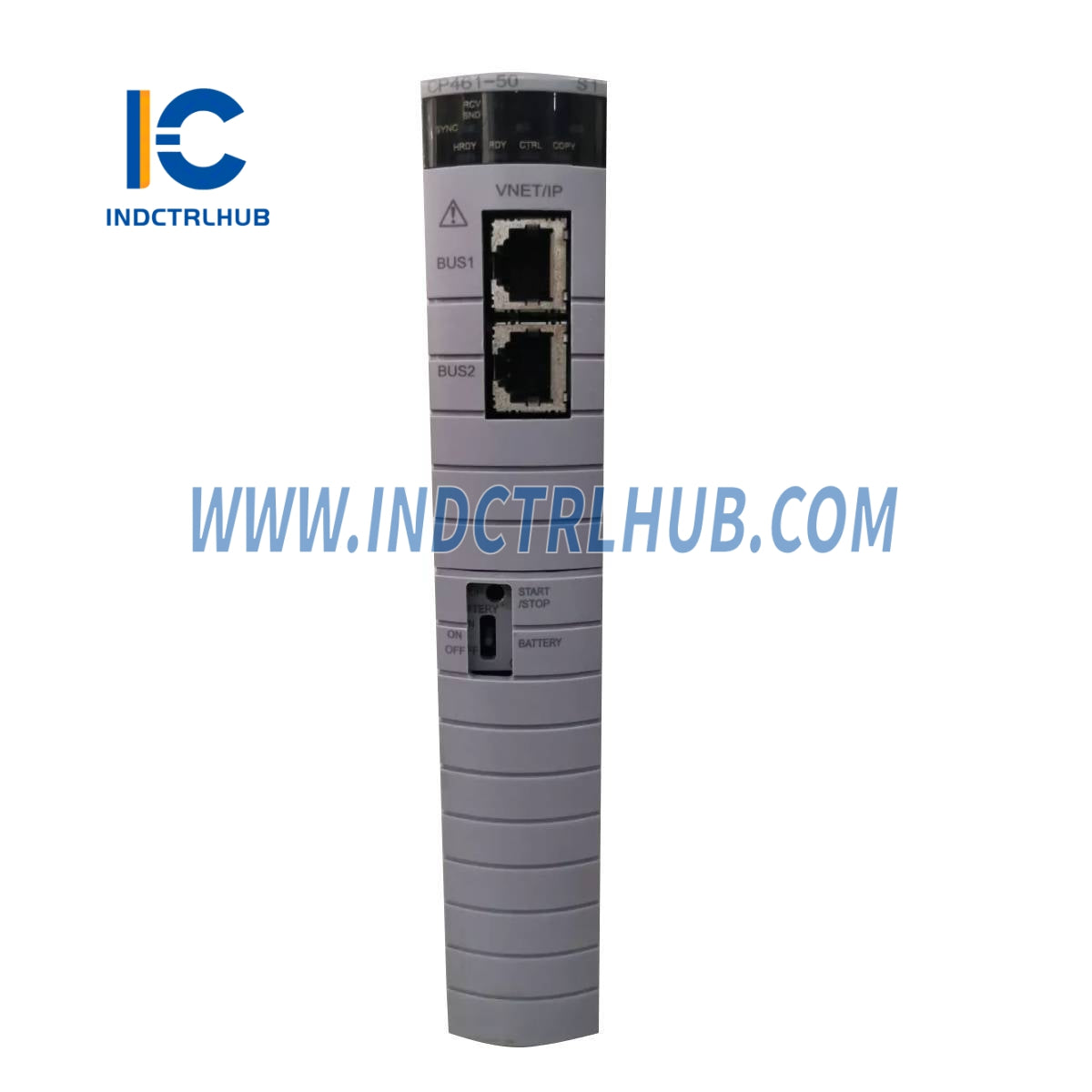

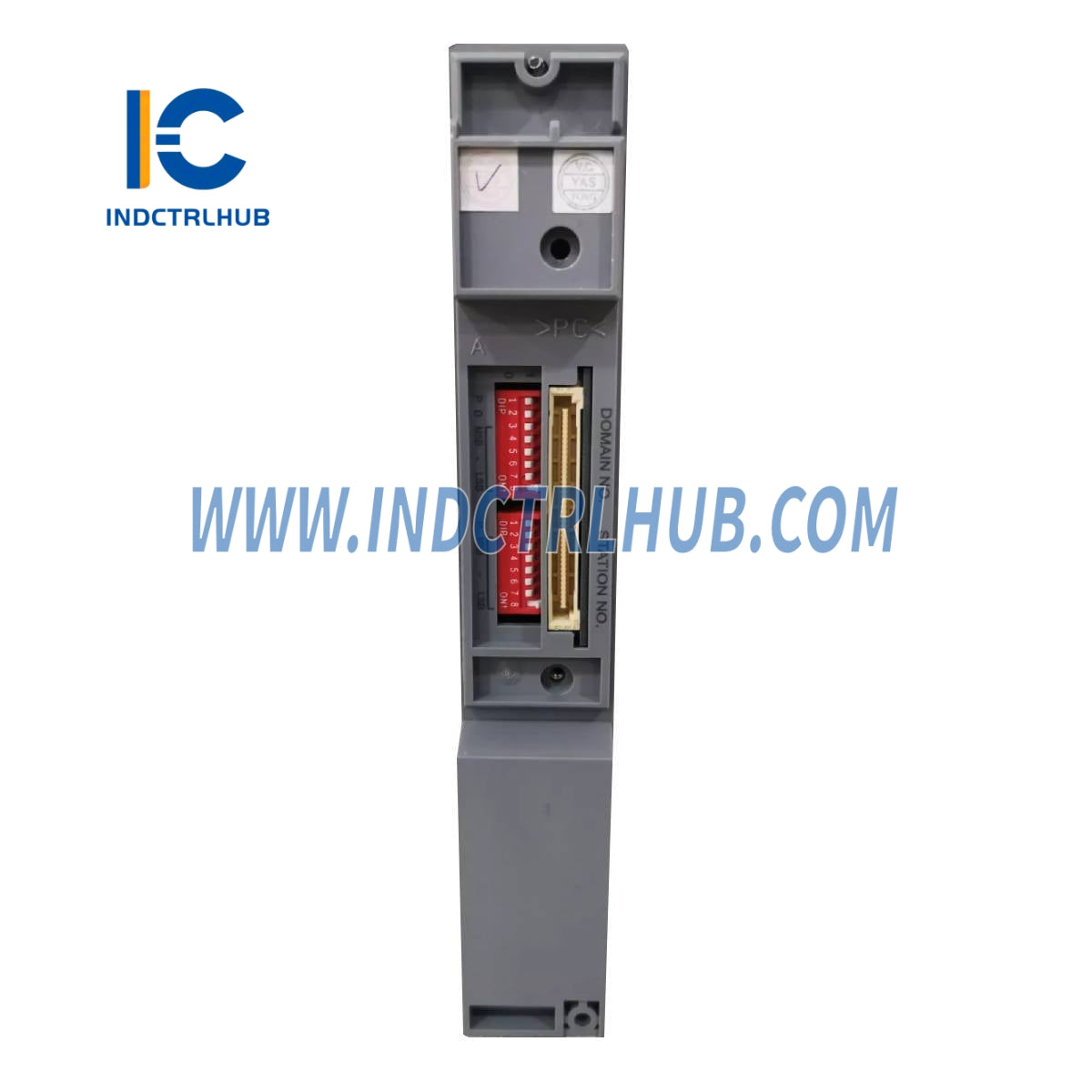

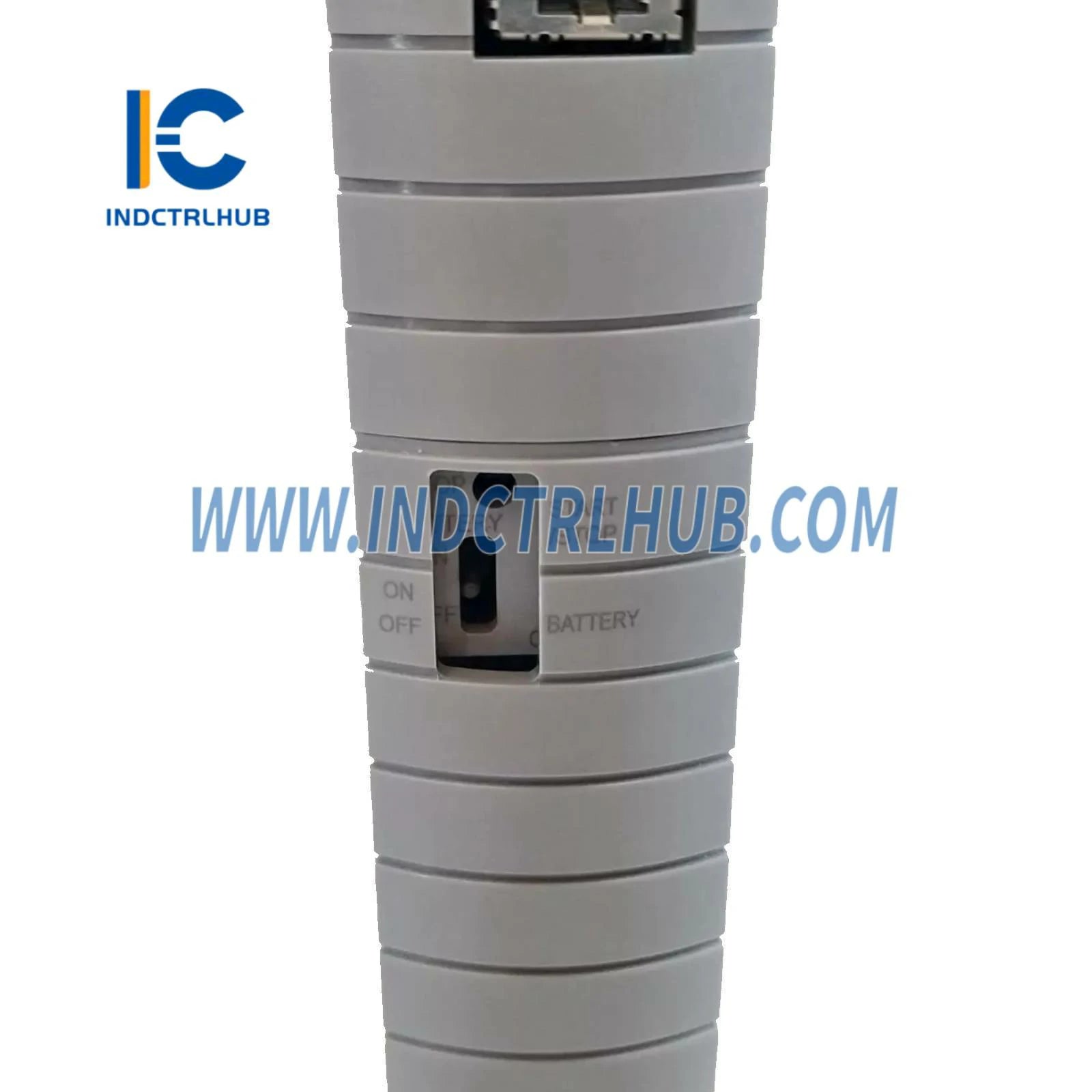

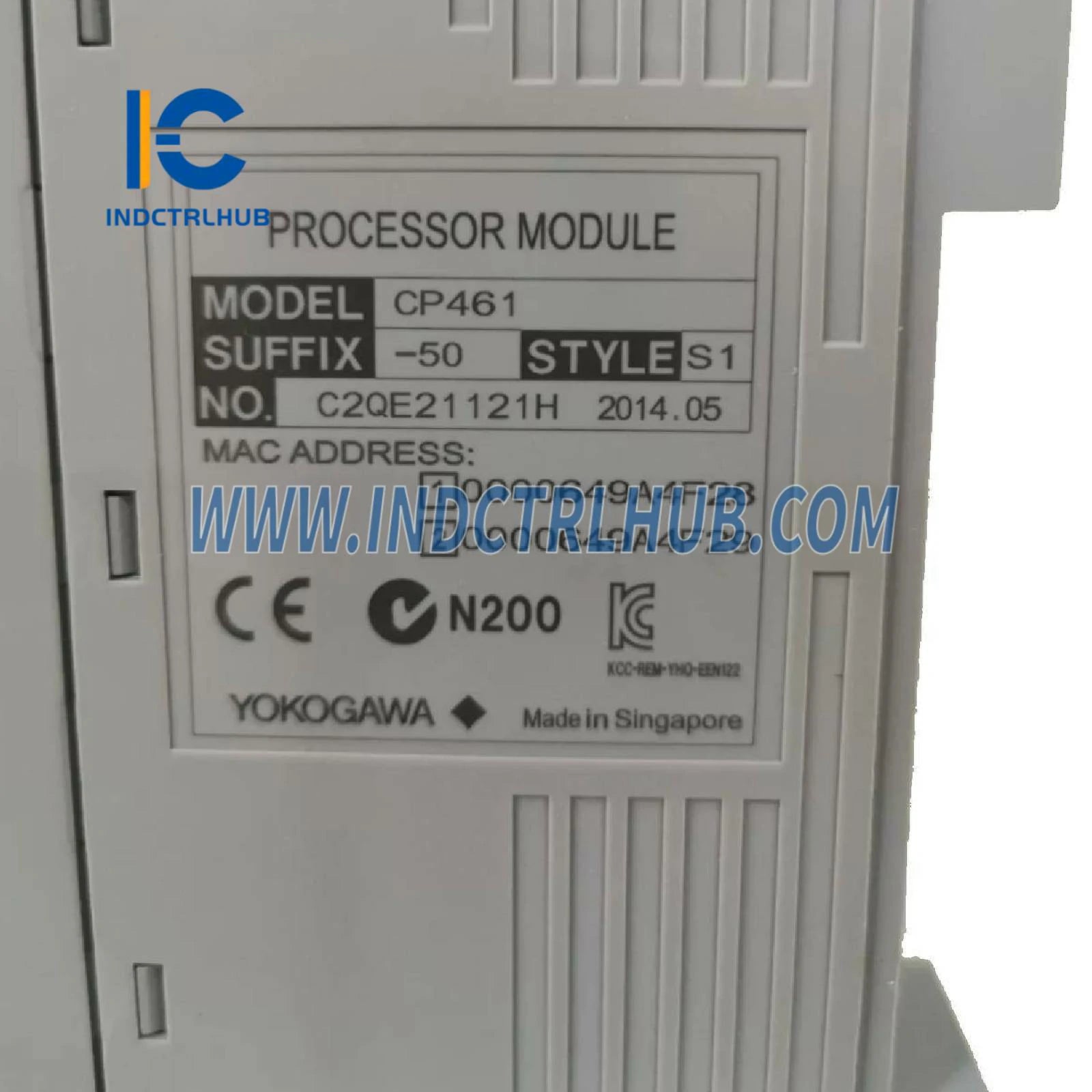

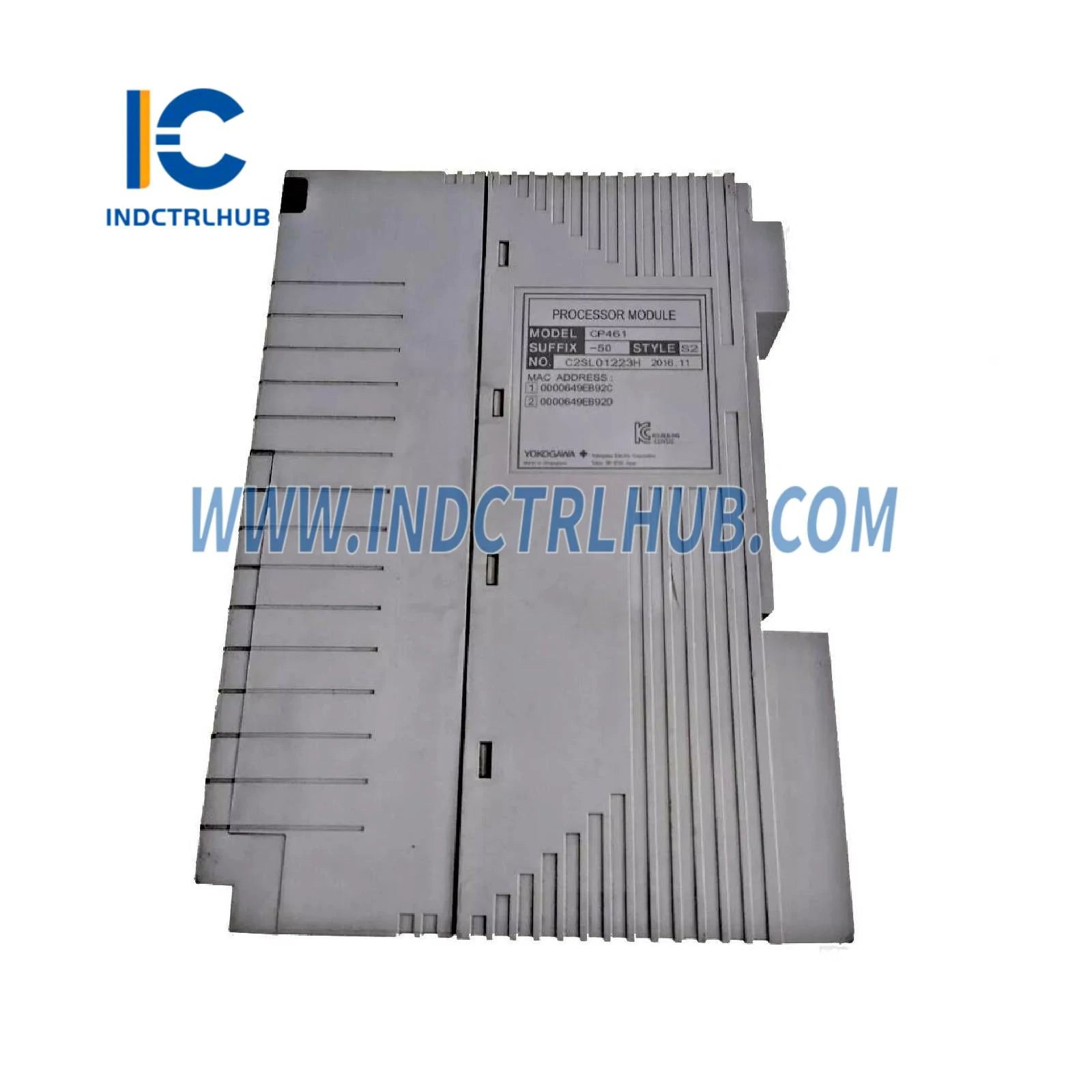

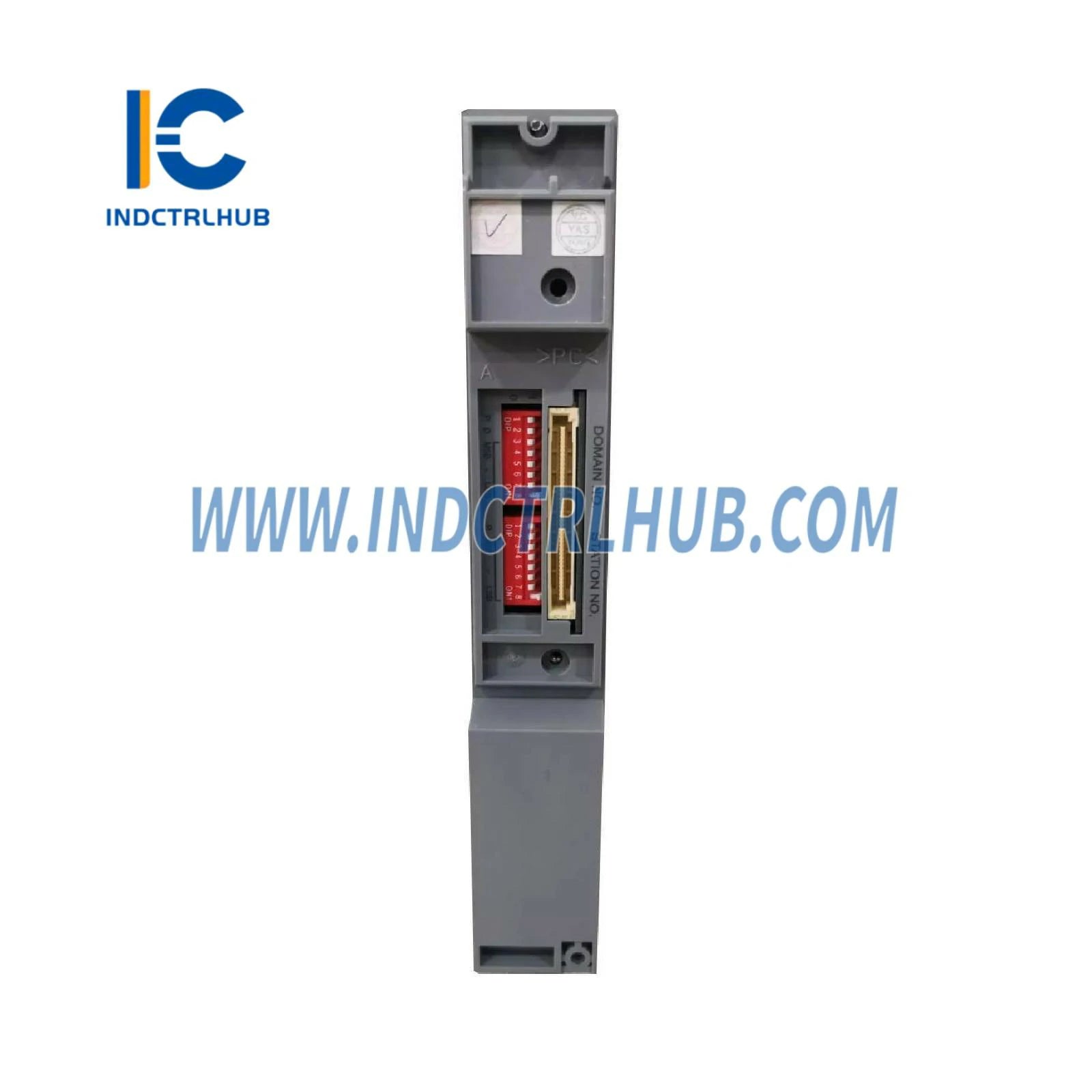

Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Yokogawa |
| Model/Part Number | CP461-50 |

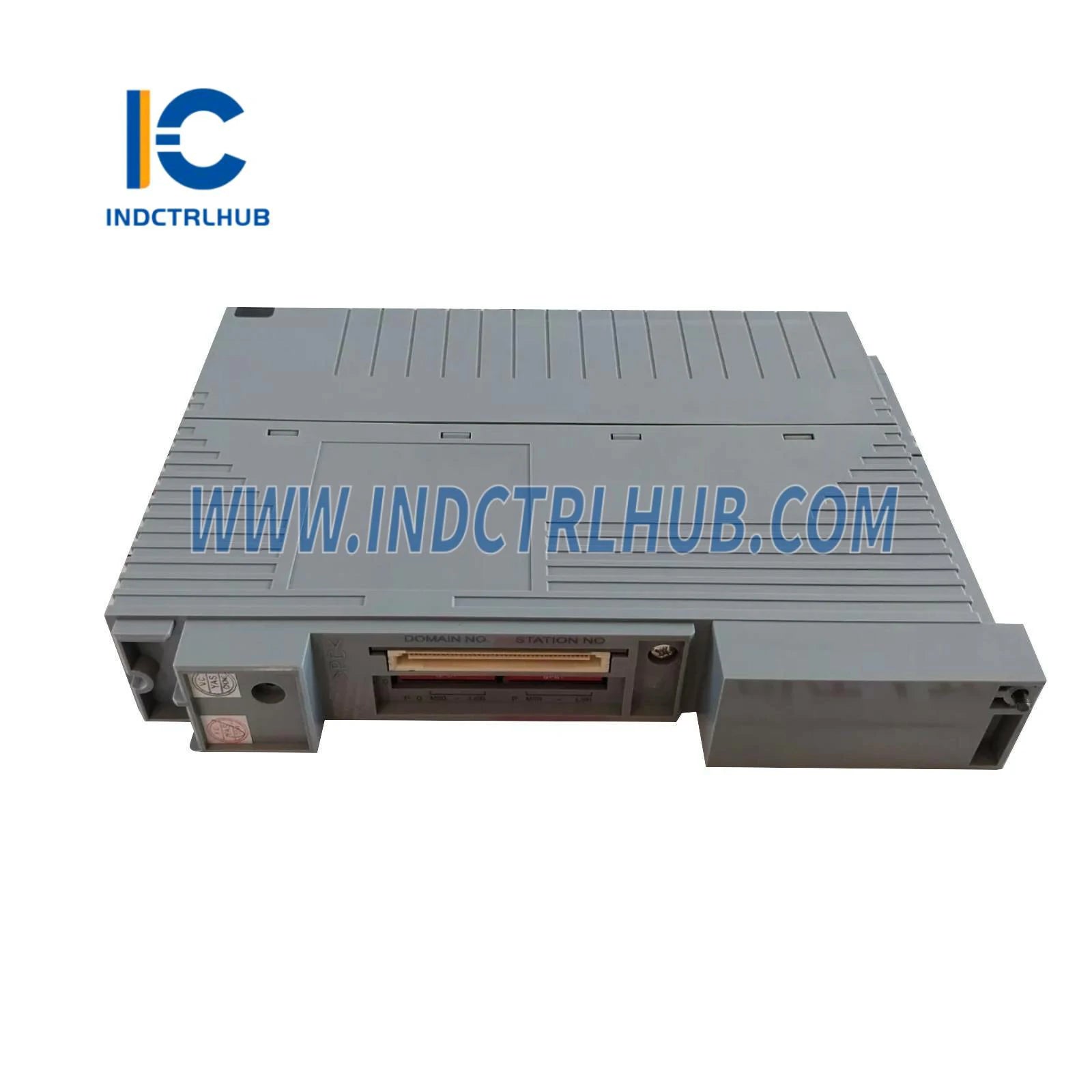

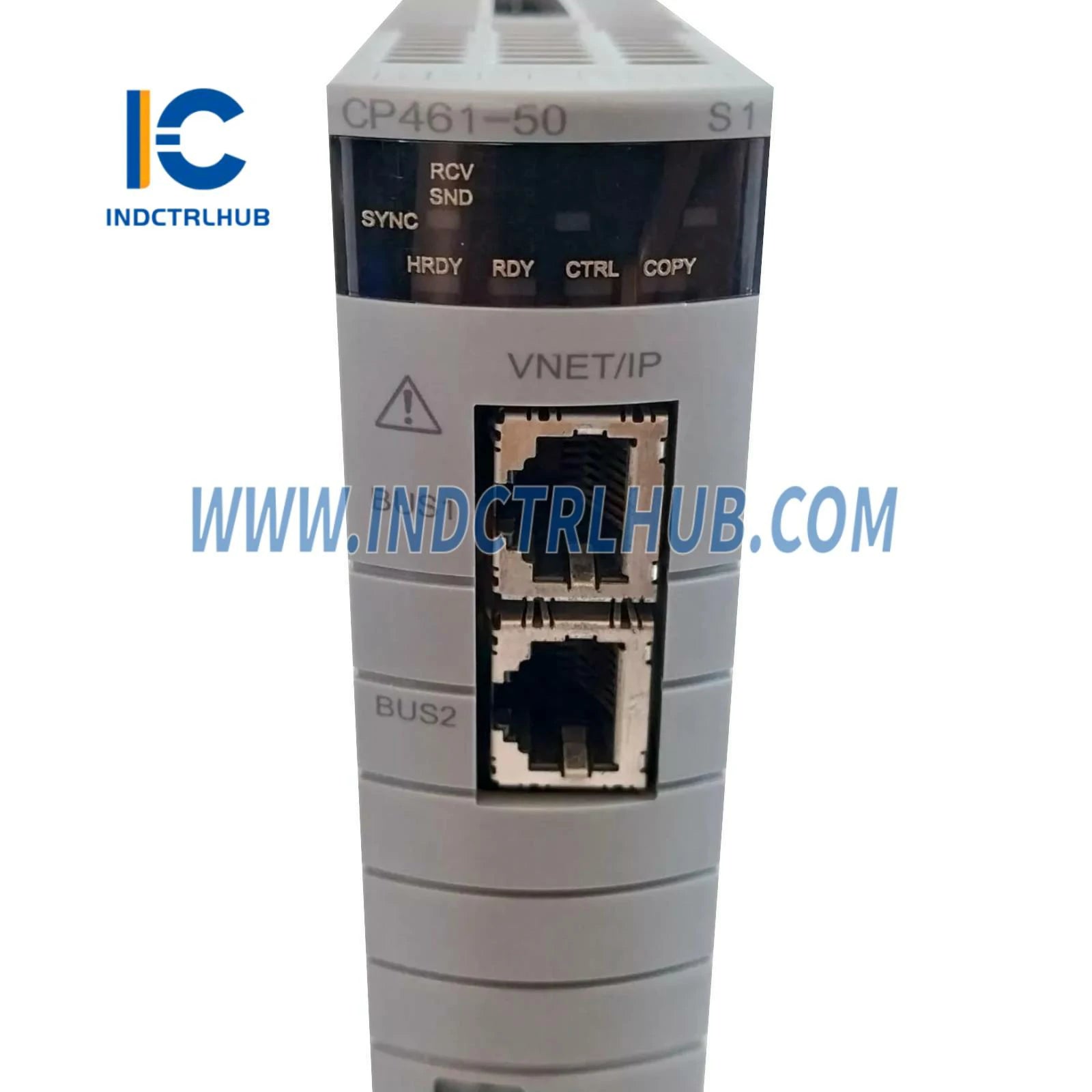

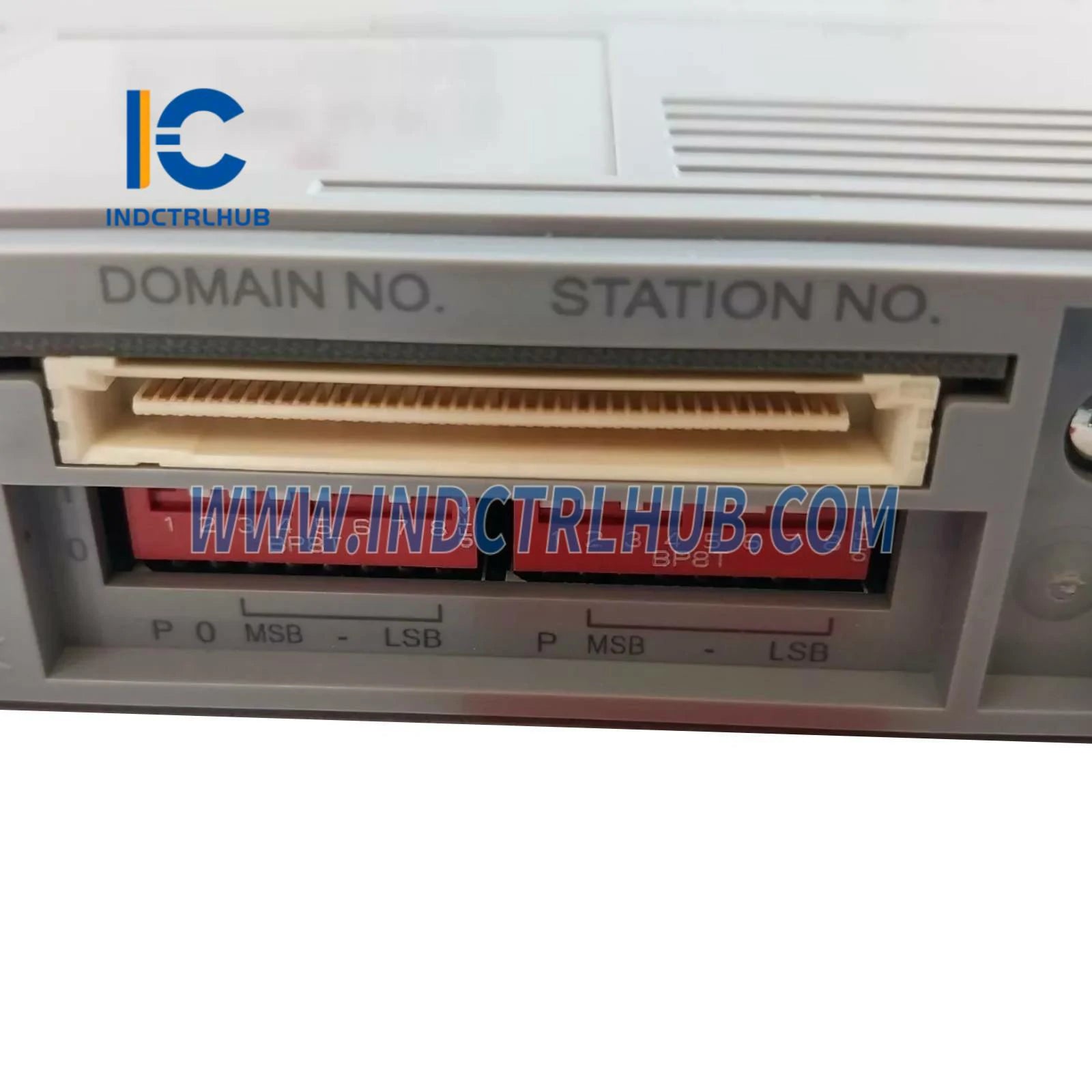

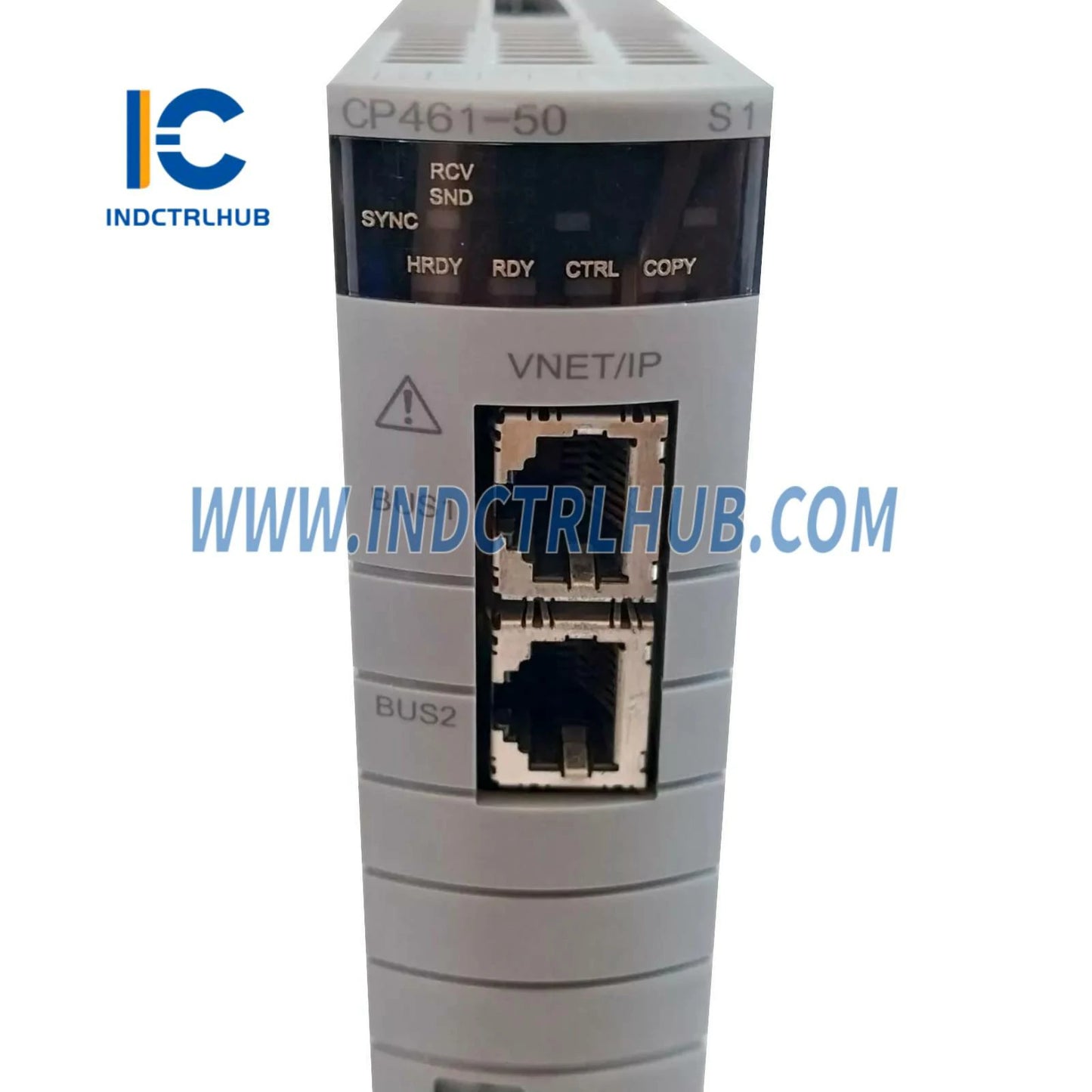

| Description | Processor Module designed for the CENTUM VP Distributed Control System (DCS) for AFV30x/AFV40x Field Control Stations |
| Key Features | High-performance CPU, supports dual-redundant configuration, integrates with Vnet/IP network for real-time control |
Technical Specifications
| Specification | Details |
|---|---|
| Model | CP461-50 |
| Suffix Codes | -5: Standard type with no explosion protection; -E: Standard type with explosion protection; 0: Basic type |
| Style | S1 |
| Dimensions | 15.2 cm x 5.1 cm x 20.3 cm (6.0" x 2.0" x 8.0") |
| Weight | Approx. 0.7 kg (1 lb 10.1 oz) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Country of Origin | Japan |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Interfaces with Field Control Unit (FCU) via Vnet/IP network; supports multiple I/O modules (max. 8) |
Functional Features
| Feature | Details |
|---|---|
| Processing Capability | High-performance CPU for real-time data processing and control |
| Redundancy | Supports dual-redundant configuration with two CP461-50 modules for high availability |
| System Integration | Designed for AFV30S/AFV30D/AFV40S/AFV40D Field Control Stations in CENTUM VP DCS |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | CP461-50 (Processor Module for CENTUM VP DCS, replacement for CP461-10) |
| Configuration | Supports up to 8 I/O modules; compatible with dual-redundant Vnet/IP setups |
