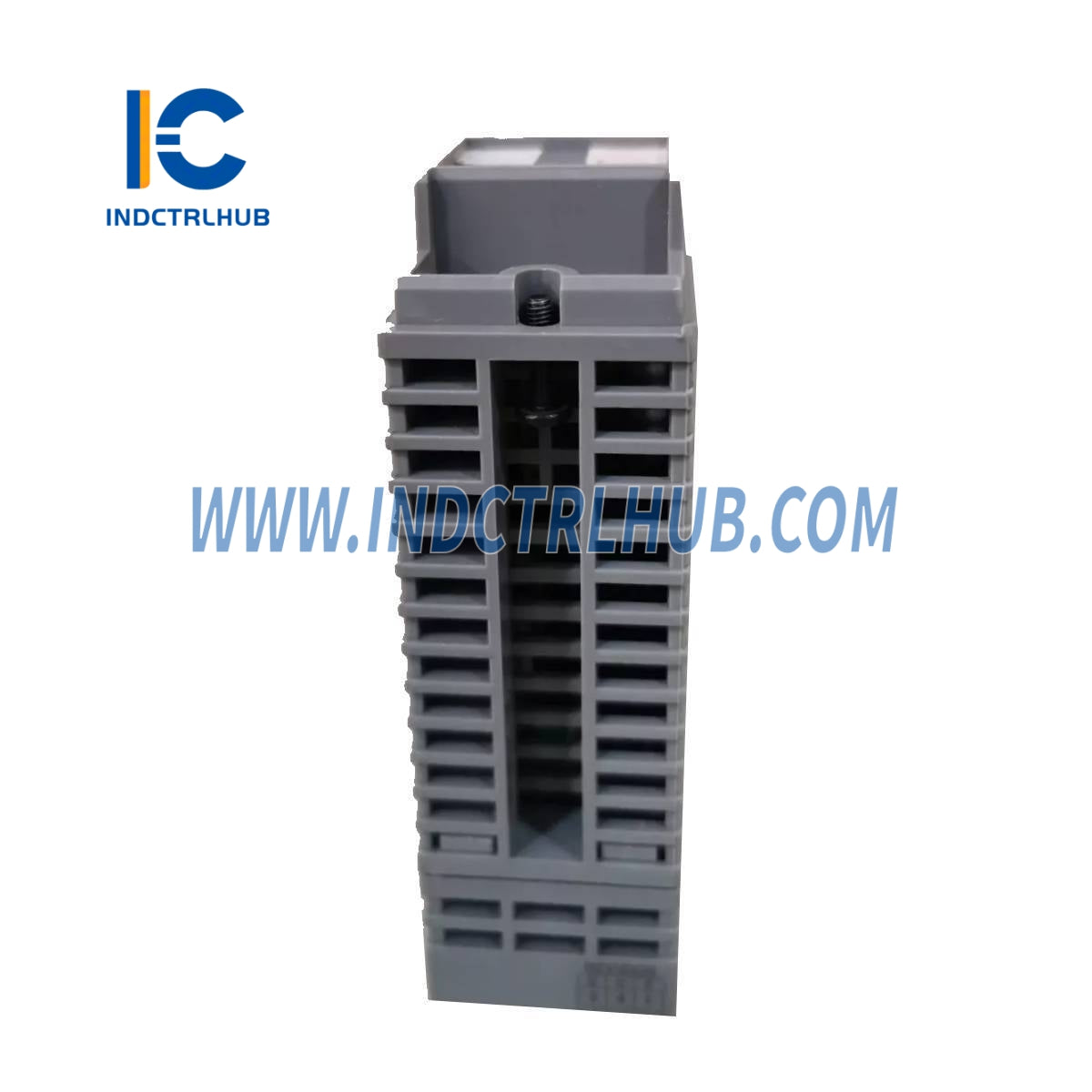

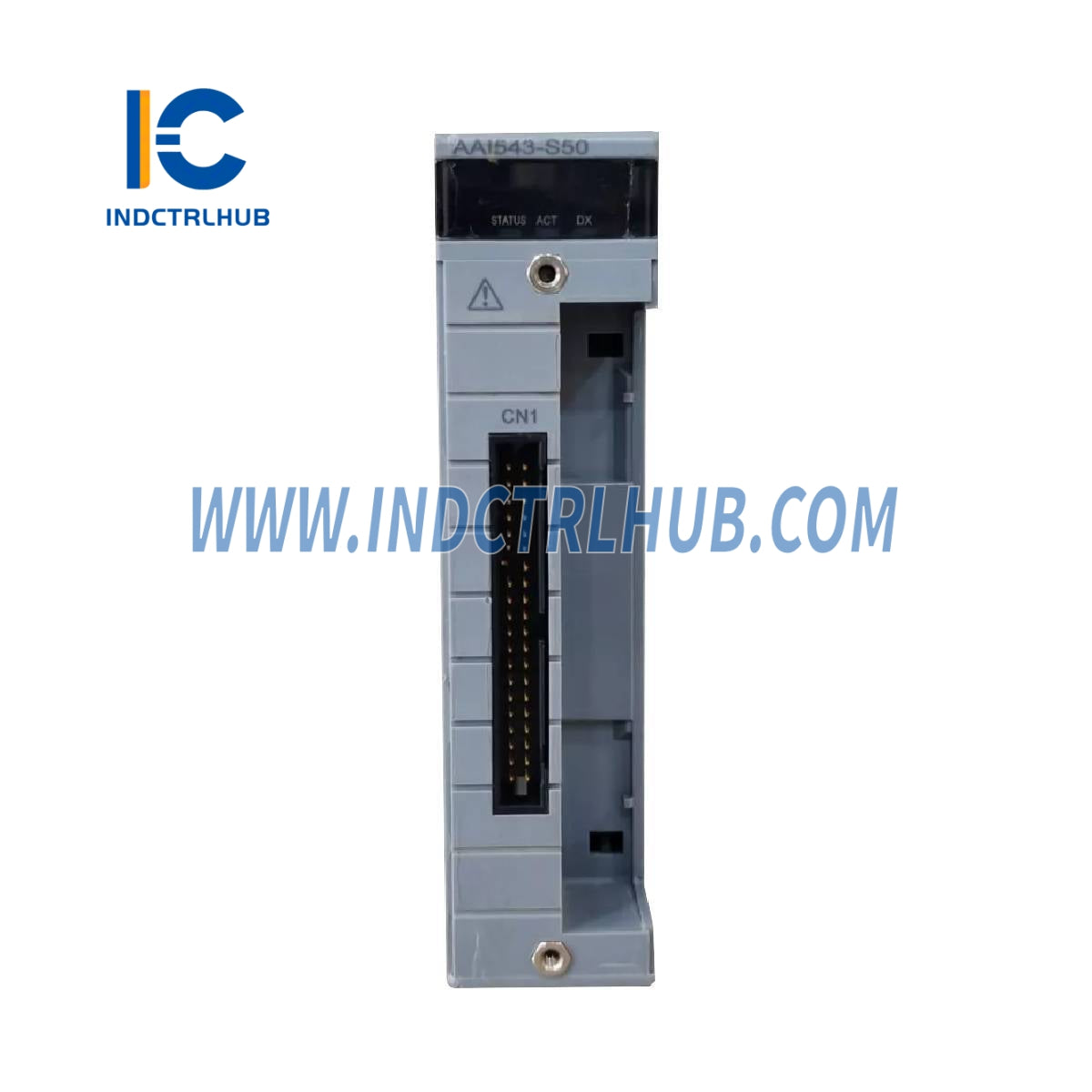

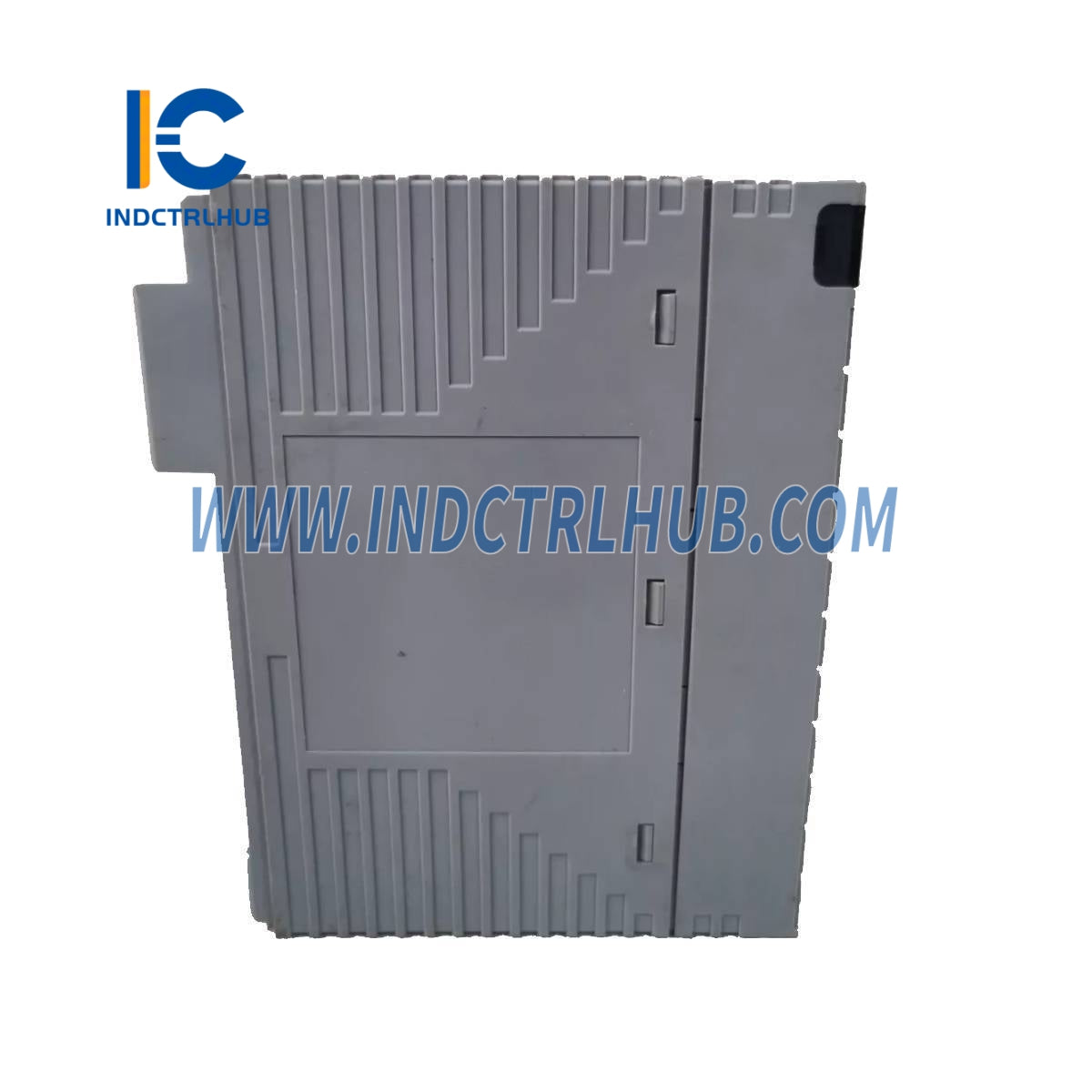

Yokogawa AAI543-S50/K4A00 Analog Output Module
Yokogawa AAI543-S50/K4A00 Analog Output Module
Manufacturer: Yokogawa
Product No.: AAI543-S50/K4A00
Condition:1000 in stock
Product Type: Analog Output Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAI543-S50/K4A00 |
|
Description |
Analog Output Module (4_20 mA, 16-channel, Isolated, Redundant Support, KS Cable Interface) |
_
_
__ Description
The_AAI543-S50/K4A00_module is a_16-channel isolated analog output module_that outputs_4_20 mA signals, designed for use in_dual-redundant configurations_with_standard switch-over response. This model includes a_KS Cable Interface Adapter_(option_/K4A00) for connection with the AEA4D Terminal Board.
_
_
__ Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
AAI543 |
|
Output Channels |
16, isolated, standard switch-over response in redundant setup |
|
Output Signal |
4 to 20 mA |
|
Withstanding Voltage |
1500 V AC (output _ system), 1 minute |
|
Allowable Load Resistance |
0 to 750 _ |
|
Circuit Open Detection |
< 0.65 mA |
|
Accuracy |
±48 µA |
|
Data Update Period |
10 ms |
|
Temperature Drift |
±16 µA per 10 _C |
|
Max Current Consumption |
230 mA (5 V DC), 540 mA (24 V DC) |
|
Weight |
0.4 kg |
|
External Communication |
Pressure clamp terminal, MIL connector, KS1 cable |
|
HART Communication |
Available (but not included in this -S model) |
_
_
__ Model Breakdown
|
Code |
Meaning |
|---|---|
|
-S |
Standard type (no HART communication) |
|
5 |
Standard switch-over response in redundant configuration |
|
0 |
Basic type (no ISA G3 or extended temperature range) |
|
/K4A00 |
With KS Cable Interface Adapter [ATK4A-00] |
_
_
__ Optional Accessories (Related)
|
Option Code |
Description |
|---|---|
|
/K4A00 |
KS Cable Interface Adapter [ATK4A-00] |
|
/A4S00 |
Pressure Clamp Terminal Block [ATA4S-00] |
|
/A4S10 |
Pressure Clamp Terminal Block with Surge Absorber [ATA4S-10] |
|
/A4D00 |
Dual Pressure Clamp Terminal Block [ATA4D-00] |
|
/A4D10 |
Dual Pressure Clamp Terminal Block with Surge Absorber [ATA4D-10] |
|
/CCC01 |
Connector Cover for MIL Cable [ACCC01] |
_
_
| Check below popular items for more information in_ | Industrial Control Hub | |||
| Brand | Description | _Price (USD)_ | Stock | Link |
| YOKOGAWA | EB511-11 S2 Bus Interface Module for Control Systems | 786_1786 | 330 | EB511-11 S2 Bus Interface Module |
| YOKOGAWA | EC401-50 ESB Bus Coupler Module for Network Connectivity | 220_1220 | 780 | EC401-50 ESB Bus Coupler Module |
| YOKOGAWA | SPW482-13 S1 Power Supply Module for DCS Systems | 429_1429 | 460 | SPW482-13 S1 Power Supply Module |
| YOKOGAWA | SB301 ESB Bus Interface Card for Control Systems | 500_1500 | 620 | SB301 ESB Bus Interface Card |
| YOKOGAWA | ASD533-S00 8-Channel Isolated Digital Output Module | 1000_2000 | 390 | ASD533-S00 Digital Output Module |
| YOKOGAWA | AAI835-H50/K4A00 Analog I/O Module for Mixed Signal Processing | 714_1714 | 740 | AAI835-H50/K4A00 Analog I/O Module |
| YOKOGAWA | AAV144-S50/A4S10 Analog Input Module for Voltage Signals | 1714_2714 | 510 | AAV144-S50/A4S10 Analog Input Module |
