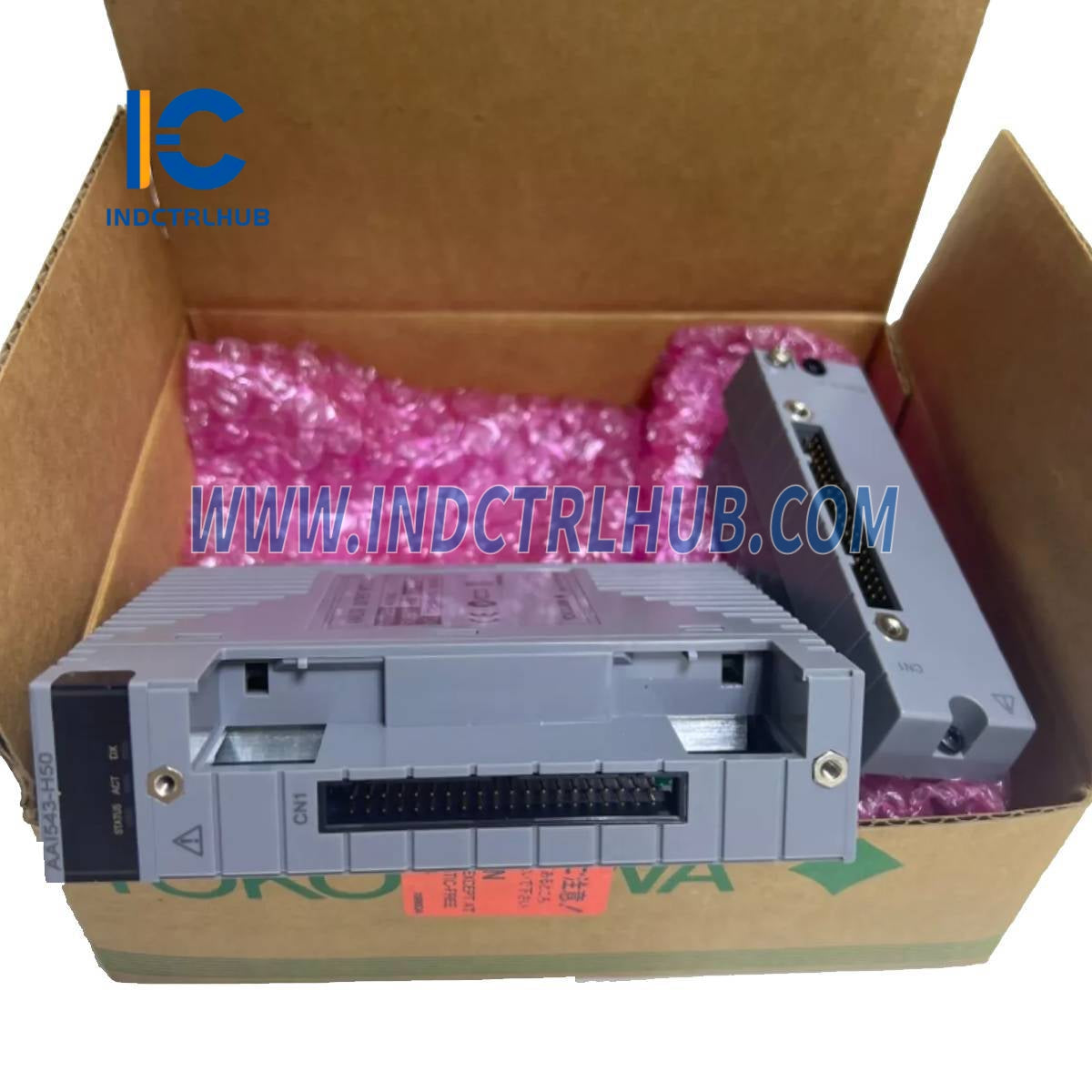

Yokogawa AAI543-H50/A4S10 Analog Output Module
Yokogawa AAI543-H50/A4S10 Analog Output Module
Manufacturer: Yokogawa
Product No.: AAI543-H50/A4S10
Condition:1000 in stock
Product Type: Analog Output Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAI543-H50/A4S10 |
|
Description |
Analog Output Module (4_20 mA, 16-channel, Isolated, HART, with Surge-Absorbing Terminal Block) |
_
_
__ Description Summary
The_AAI543-H50/A4S10_is a 16-channel isolated analog output module that provides 4_20 mA output signals. It supports_HART digital communication, operates with_standard switch-over response in redundant configurations, and includes a_surge-absorbing pressure clamp terminal block_(model: ATA4S-10) for enhanced protection in industrial environments.
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Number of Output Channels |
16 isolated channels |
|
Output Signal |
4 to 20 mA |
|
Redundancy Support |
Standard switch-over response in redundant configuration |
|
Withstanding Voltage |
1500 V AC (1 min) between output and system |
|
Allowable Load Resistance |
0 to 750 _ |
|
Circuit-Open Detection |
Less than 0.65 mA |
|
Accuracy |
±48 µA |
|
Data Update Period |
10 ms |
|
Temperature Drift |
±16 µA per 10 °C |
|
Max Current Consumption |
230 mA (5 V DC), 540 mA (24 V DC) |
|
Weight |
Approx. 0.4 kg |
|
External Communication |
Pressure clamp terminal, MIL connector cable, KS1 cable |
|
HART Communication |
Available (enabled by _-H_ suffix) |
_
_
__ Model and Suffix Code Breakdown
|
Model |
AAI543__ Analog Output Module (4 to 20 mA, 16-channel, Isolated) |
|---|---|
|
-H |
With HART digital communication |
|
5 |
Standard switch-over response (no explosion protection) |
|
0 |
Basic type |
|
/A4S10 |
Includes Pressure Clamp Terminal Block with Surge Absorber [Model: ATA4S-10] |
_
_
__ Optional Accessories (Already Included: /A4S10)
|
Option Code |
Description |
|---|---|
|
/K4A00 |
KS Cable Interface Adapter for AEA4D Terminal Board [ATK4A-00] |
|
/A4S00 |
Pressure Clamp Terminal Block [ATA4S-00] |
|
/A4D00 |
Dual Pressure Clamp Terminal Block [ATA4D-00] |
|
/A4D10 |
Dual Pressure Clamp Terminal Block with Surge Absorber [ATA4D-10] |
|
/CCC01 |
Connector Cover for MIL Cable [ACCC01] |
_
_
| Check below popular items for more information in_ | Industrial Control Hub | |||
| Brand | Description | _Price (USD)_ | Stock | Link |
| YOKOGAWA | ANB10D-415/CU2N/NDEL ESB Bus Node Unit for N-IO/FIO Systems | 2357_3357 | 410 | ANB10D-415/CU2N/NDEL Node Unit |
| YOKOGAWA | NFDV551-P11 24V DC Digital Output Module for DCS | 571_1571 | 680 | NFDV551-P11 Digital Output Module |
| YOKOGAWA | SAI533-H53/A4D00 Analog Output Module for 4-20mA Signals | 2214_3214 | 330 | SAI533-H53/A4D00 Analog Output Module |
| YOKOGAWA | AFF50D-H41101 Duplexed Field Control Unit for Redundant Systems | 929_1929 | 780 | AFF50D-H41101 Field Control Unit |
| YOKOGAWA | AAI543-H50/ATA4S-00 Analog Output Module for Current Signals | 929_1929 | 460 | AAI543-H50/ATA4S-00 Analog Output Module |
| YOKOGAWA | AAI835-H50 Analog I/O Module for Mixed Signal Processing | 714_1714 | 620 | AAI835-H50 Analog I/O Module |
| YOKOGAWA | AIP521 Control Bus Coupler Module for DCS | 429_1429 | 390 | AIP521 Control Bus Coupler Module |
