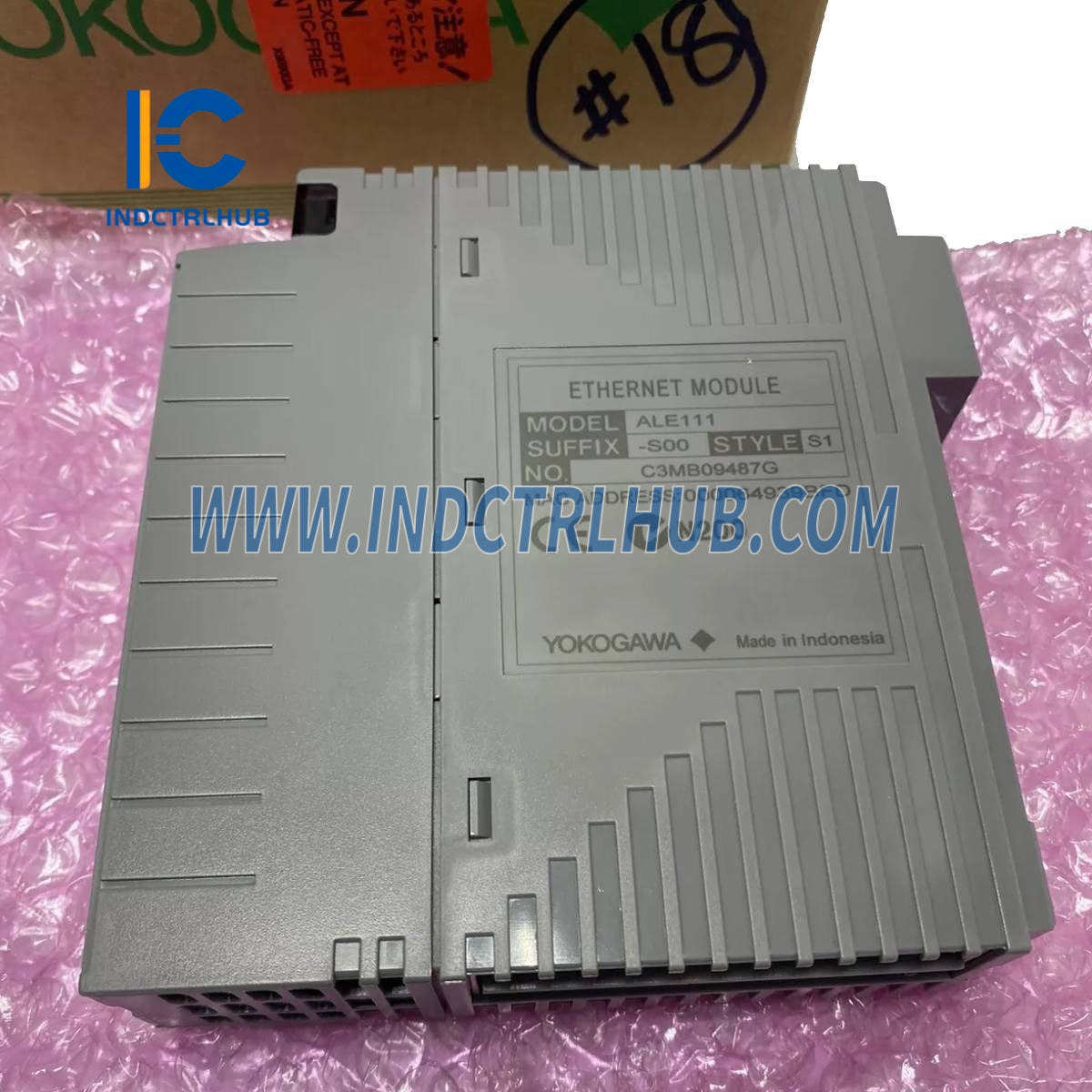

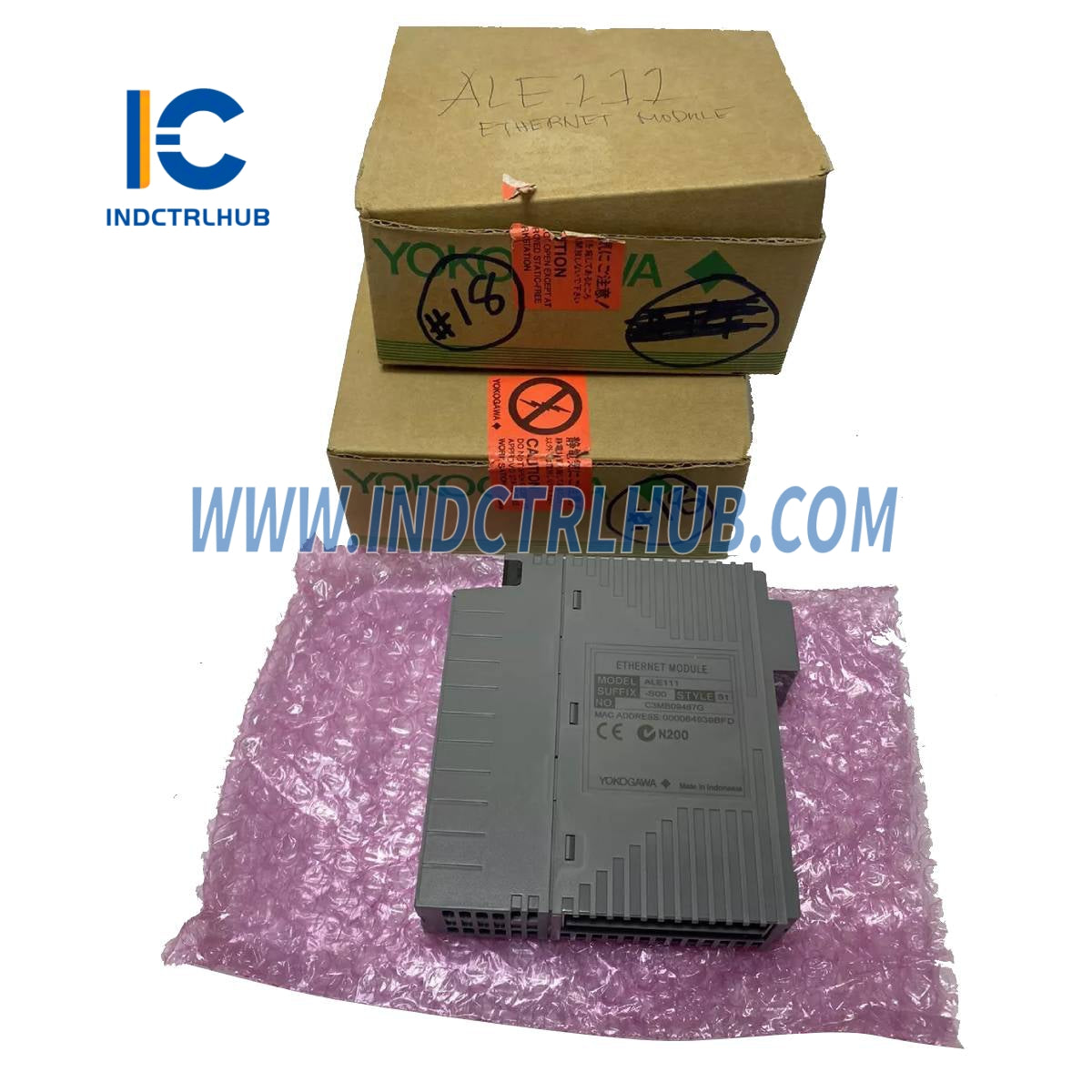

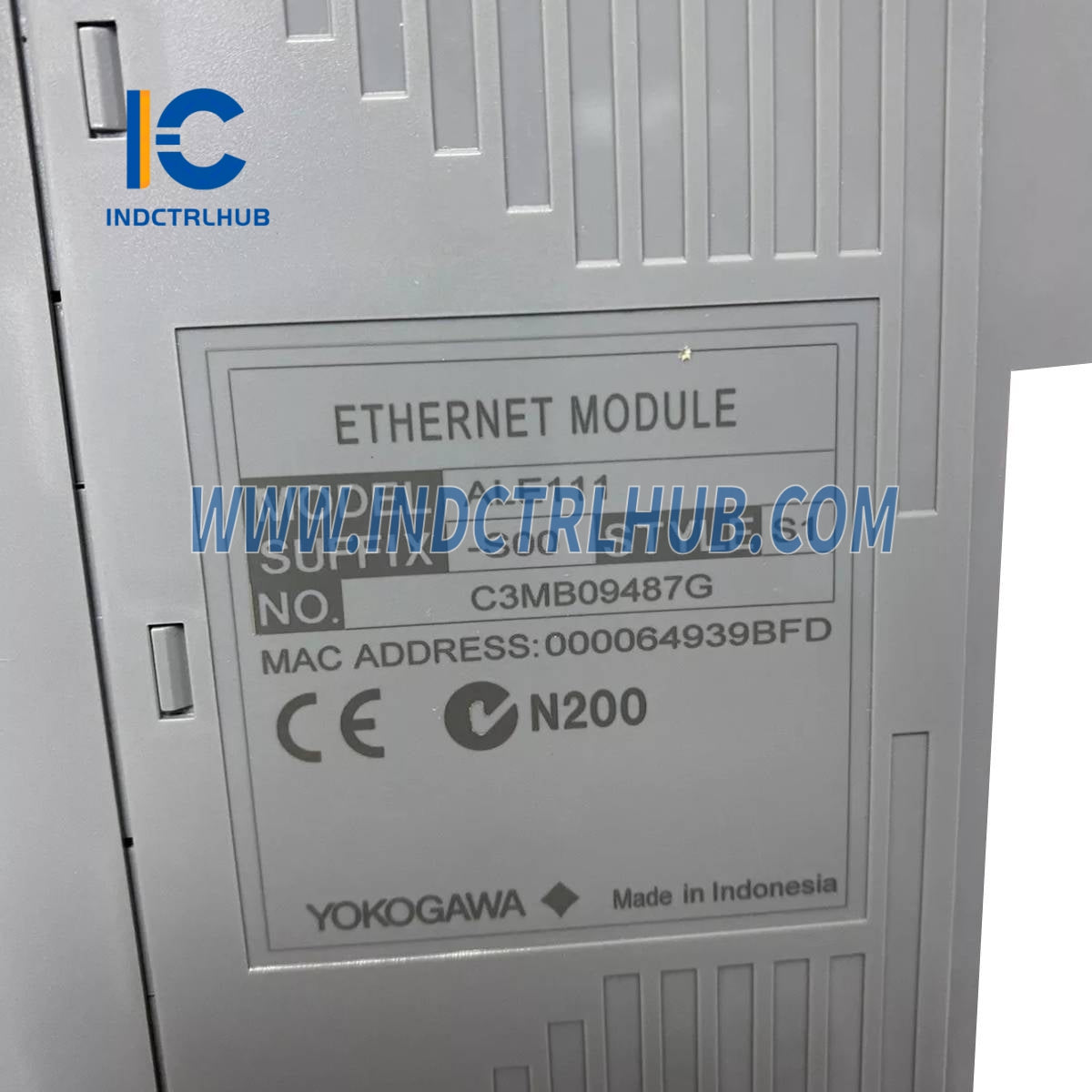

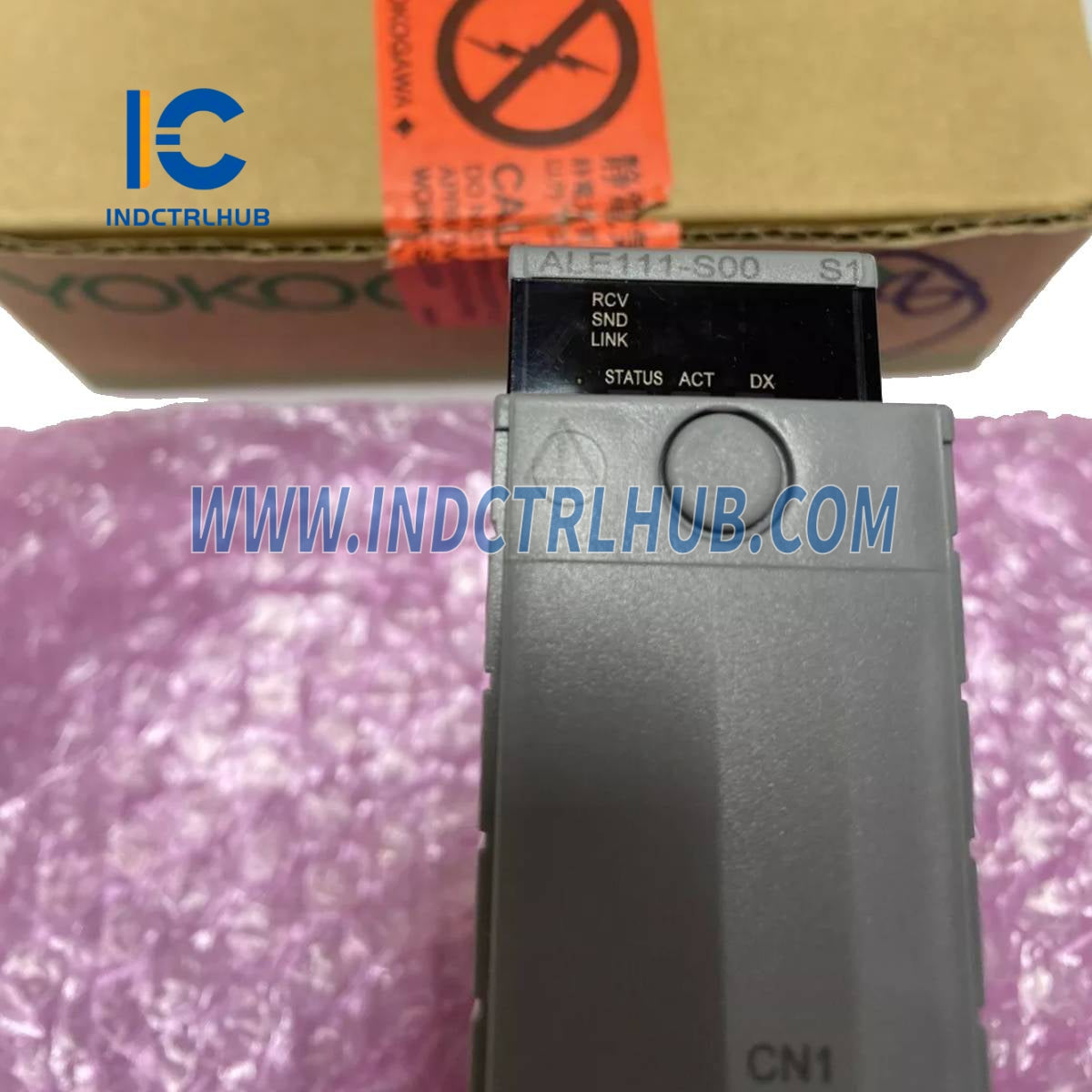

Yokogawa ALE111-S00 Ethernet Communication Module
Yokogawa ALE111-S00 Ethernet Communication Module
Manufacturer: Yokogawa
Product No.: ALE111-S00
Condition:1000 in stock
Product Type: Ethernet Communication Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
ALE111-S00 |
|
Description |
Ethernet Communication Module (Standard type, no explosion protection) |
_
_
__ Description
The_ALE111-S00_is an Ethernet Communication Module used to enable_Modbus slave communication_over a_10BASE-T (IEEE 802.3)_Ethernet physical interface. It is designed to be_non-intrusive to safety loops, ensuring safe system operations in critical environments. This module is typically installed on Yokogawa___SSC60,_SSC50, or_SNB10D_units.
_
_
__ Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
ALE111 |
|
Communication Standard |
IEEE 802.3 10BASE-T (Half-duplex) |
|
Communication Function |
Modbus slave |
|
Connection Method |
Point-to-point |
|
Connector Type |
RJ-45 |
|
Transmission Speed |
10 Mbps |
|
Transmission Cable |
100-ohm unshielded twisted-pair cable |
|
Maximum Transmission Distance |
100 m per segment |
|
Media Access Control |
CSMA/CD |
|
Installation Method |
Mountable on SSC60_, SSC50_, or SNB10D units |
|
Number of Ports |
1 port |
|
Current Consumption |
0.5 A |
|
Weight |
0.3 kg |
|
Interference with Safety Loop |
None (interference-free design) |
_
_
__ Suffix and Option Codes
|
Code |
Description |
|---|---|
|
-S00 |
Standard type, no explosion protection |
|
-S |
Standard type |
|
5 |
Without explosion protection |
|
E |
With explosion protection |
|
1 |
With ISA Standard G3 compliance |
_
_
