Product Description

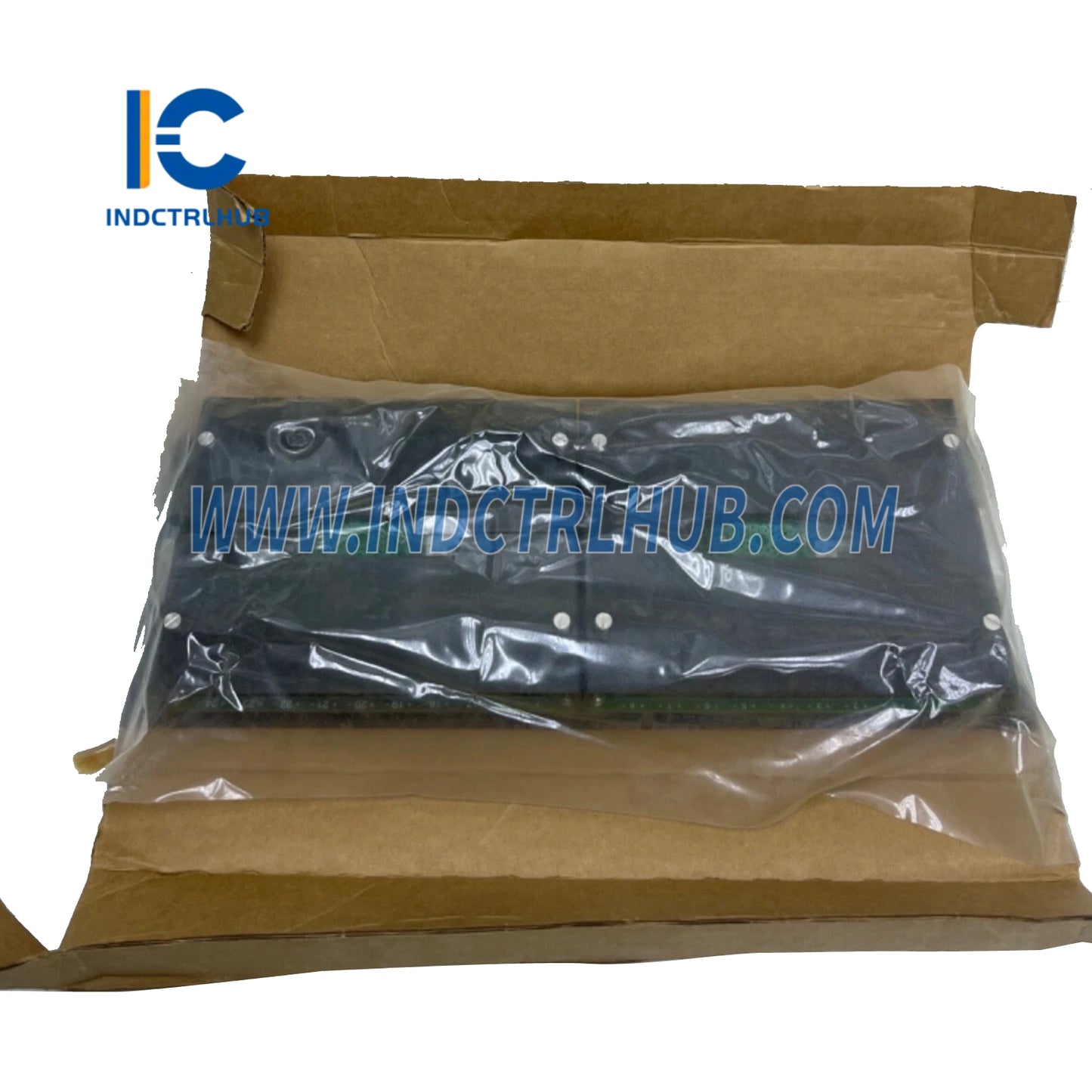

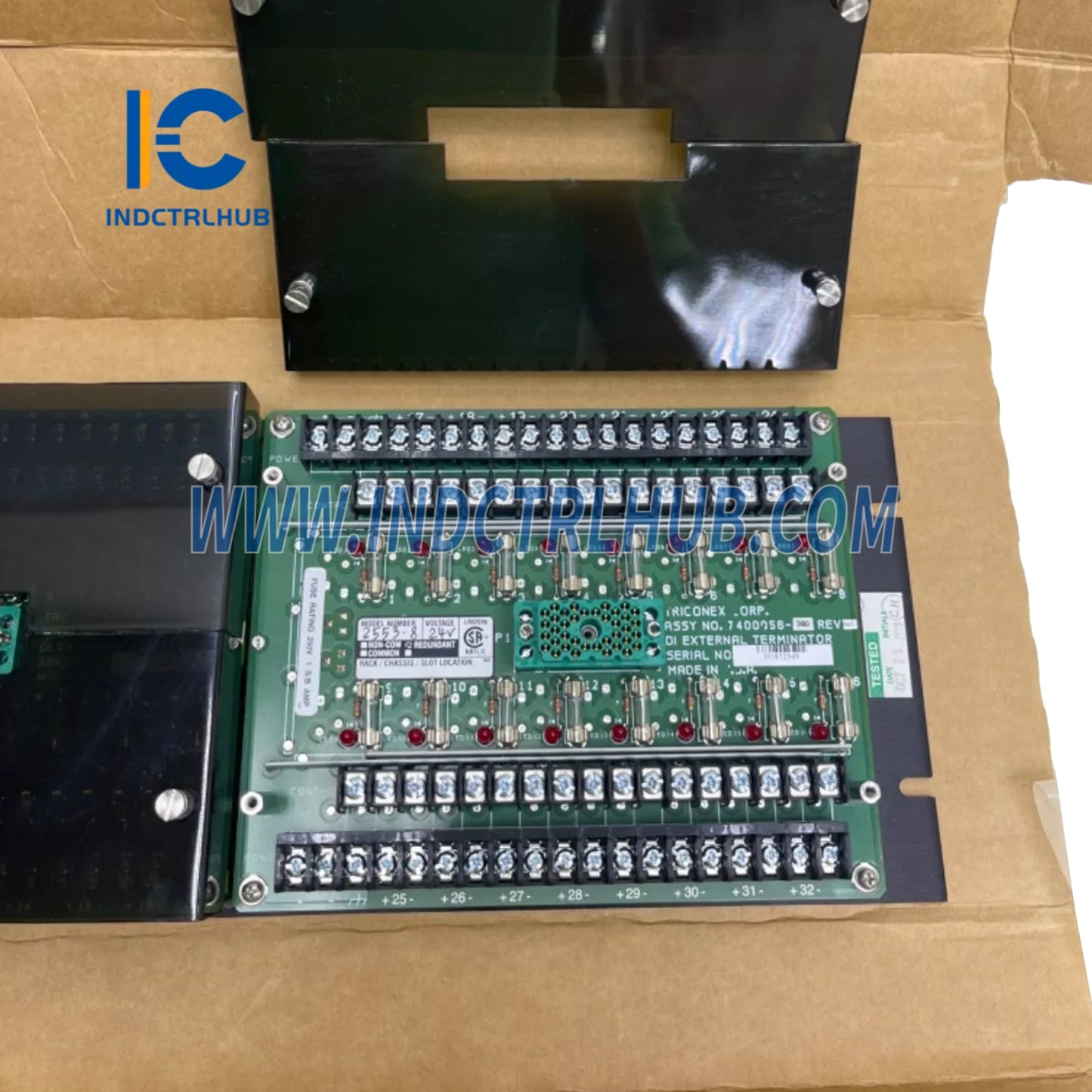

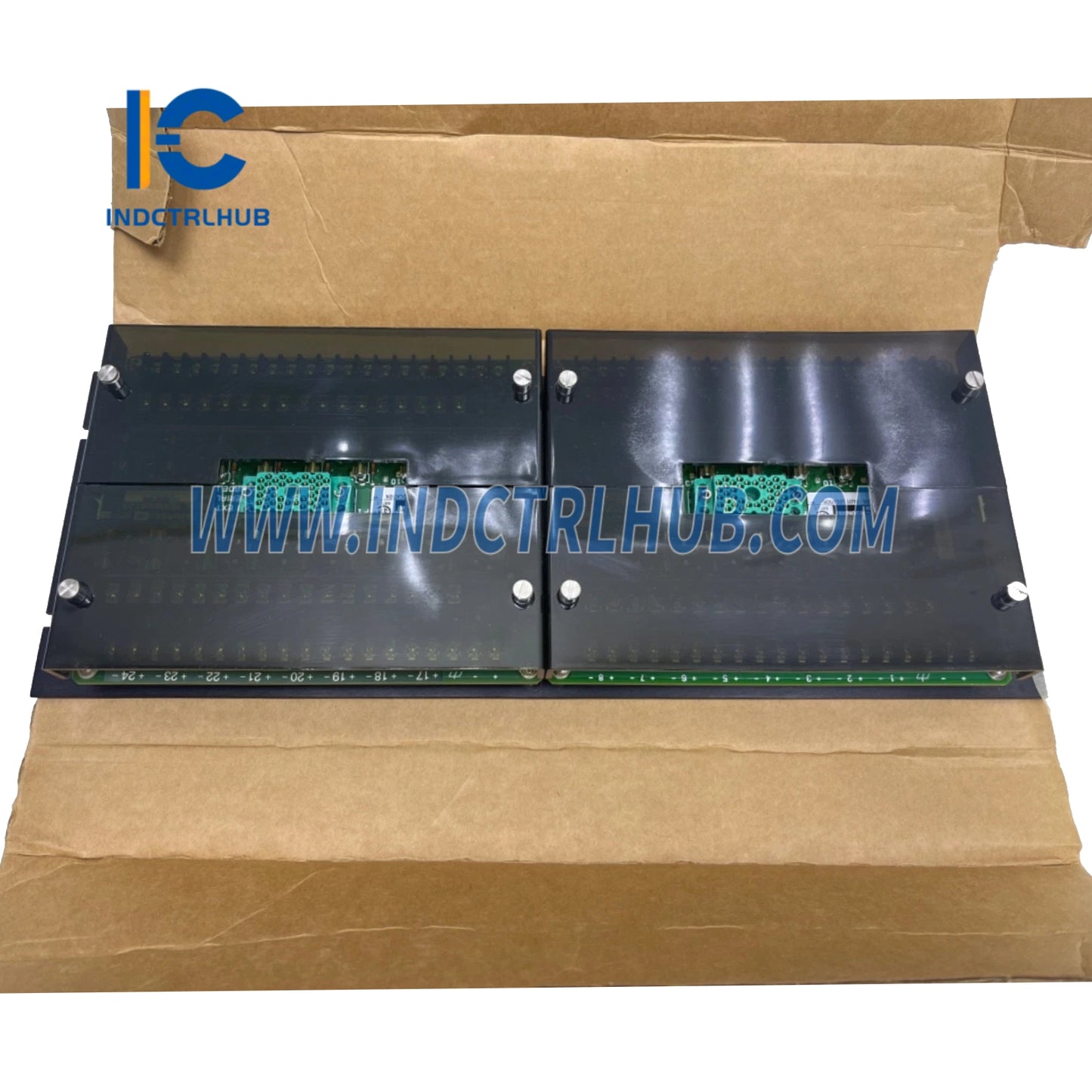

Triconex 7400056-380 Terminal Board
- Manufacturer: Triconex
- Model/Part Number: 7400056-380
- Description: Terminal Board for 2553-8 Digital Input Module
Overview
- The Triconex 7400056-380 Terminal Board connects field devices to a Triconex safety instrumented system (SIS). It supports the 2553-8 Digital Input Module, providing 32 isolated input channels for various signal types, including dry contact, wet contact, and pulse. The board ensures reliable signal transmission in safety-critical applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 7400056-380 |
| Series | Triconex Other Modules |
| Type | Terminal Board |
| Description | Connects field devices to 2553-8 Digital Input Module |
| Weight | 1.2 kg |
| Voltage | 24 VDC |
| Input Channels | 32 isolated channels |
| Signal Types | Dry contact, wet contact, pulse |
| Connection Type | Screw terminals |
| Maximum Current | 10 A |
| Operating Temperature | -20°C to +70°C |
Additional Information
- Functionality: The terminal board features hot-swappable modules and high-integrity communication protocols, enhancing system safety and reducing downtime. It includes diagnostic capabilities for fault detection.
- Environmental Durability: The board uses robust materials to ensure reliable operation in harsh industrial environments.
- Integration: The board integrates seamlessly with Triconex SIS, supporting flexible configurations for safety-critical applications.
