Product Description
Product Overview

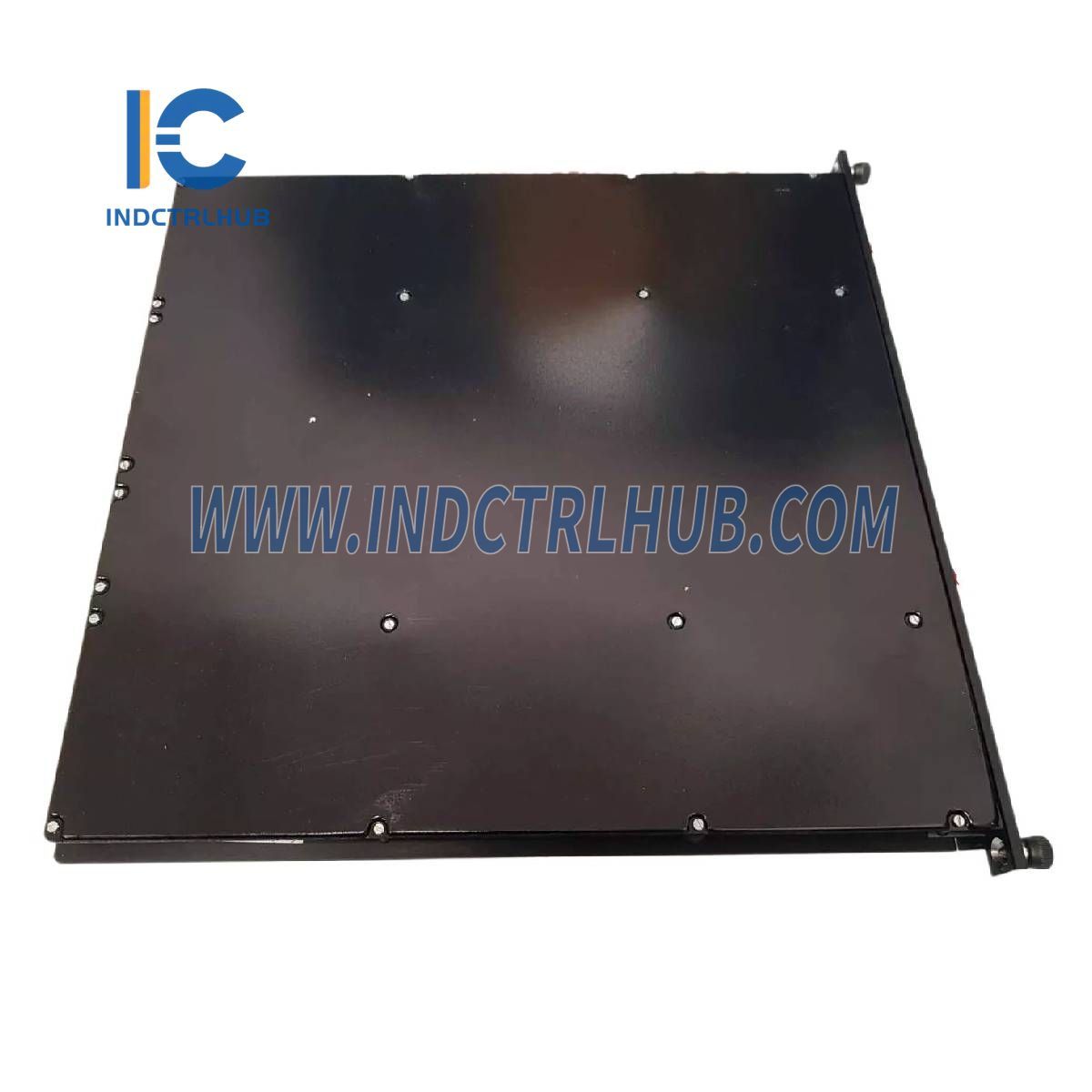

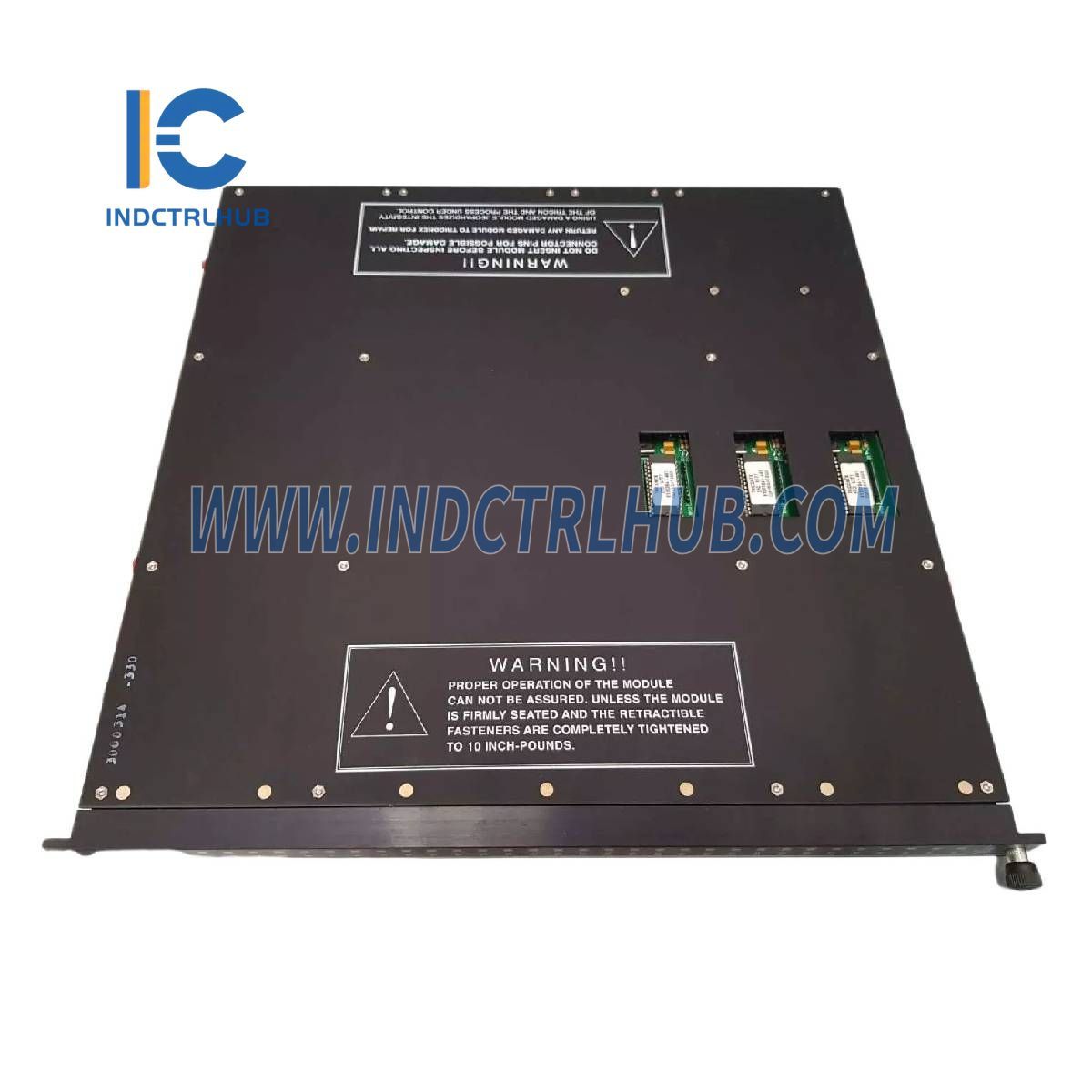

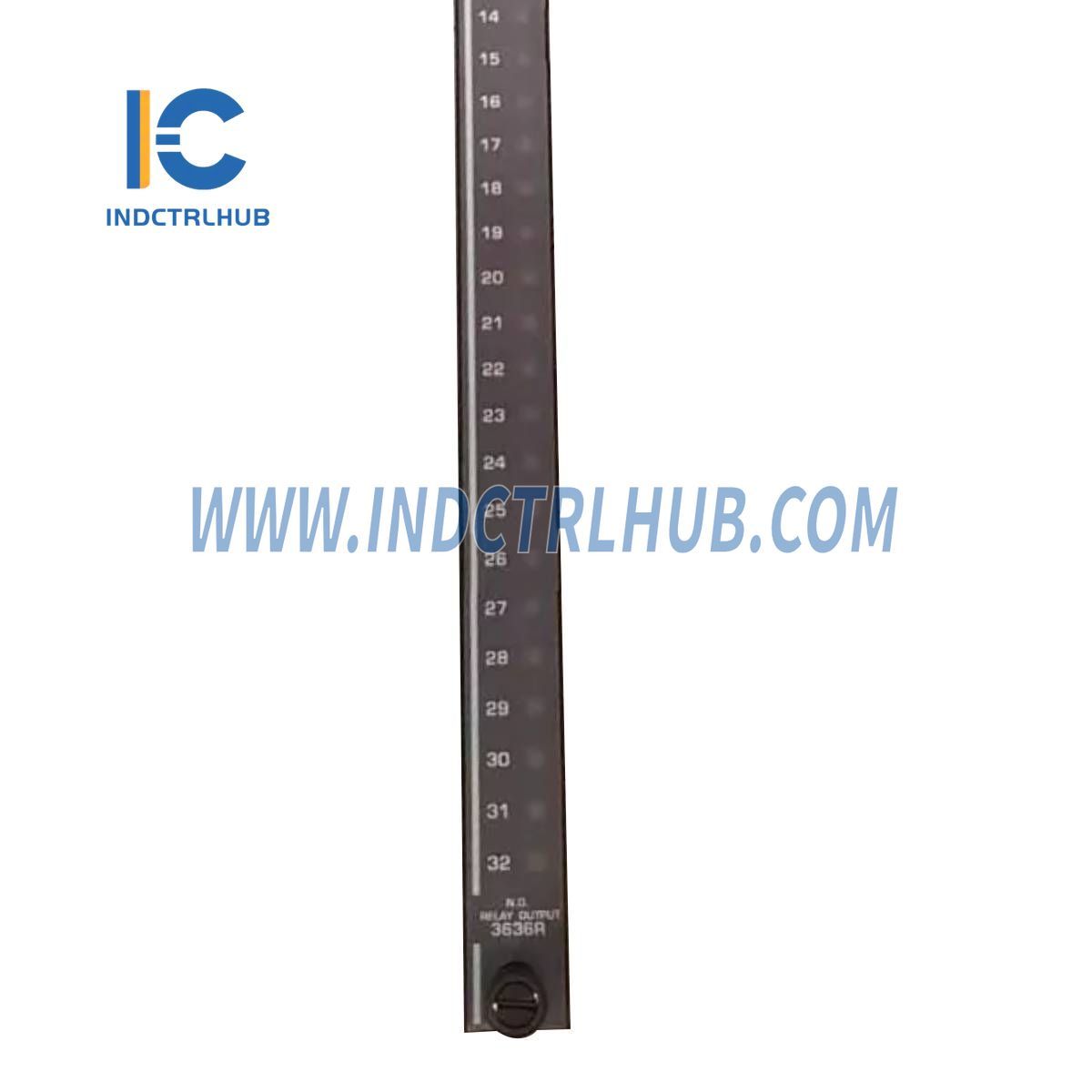

The Triconex 3636R is a Relay Output Module designed for use within the Tricon safety instrumented system (SIS) by Triconex, a brand under Schneider Electric (formerly Invensys). This non-triplicated module provides 32 normally open (NO) relay outputs for interfacing with field devices that are not compatible with high-side solid-state switches, such as annunciator panels or other non-critical loads. It supports the Triple Modular Redundant (TMR) architecture for input signal voting, ensuring reliable operation in safety-critical applications across industries like oil & gas, petrochemical, and power generation.
Technical Specifications
The 3636R has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | 3636R |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Relay Output Module, Non-Triplicated, 32 Points |
| Series | Tricon SIS |
| Output Channels | 32 relay outputs, non-commoned |
| Voltage Range | 125 VAC/VDC maximum |
| Current Load | 2 A maximum |
| Minimum Load | 10 mA at 5 VDC |
| Power Supply | 24 VDC (via Tricon chassis backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 1.1 kg |
Additional Details
The 3636R includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Drives 32 relay outputs based on voted TMR signals |
| Mounting | Installs in Tricon chassis (e.g., Model 8110 or 8111) |
| Compatibility | Tricon Main Processors (e.g., 3008), requires external termination panel |
| Features | Normally open contacts, loopback diagnostics, hot-spare capable |
| Certifications | Meets IEC 61508 SIL 3, UL, and CE standards |
| Part Type | New, surplus, or refurbished |
