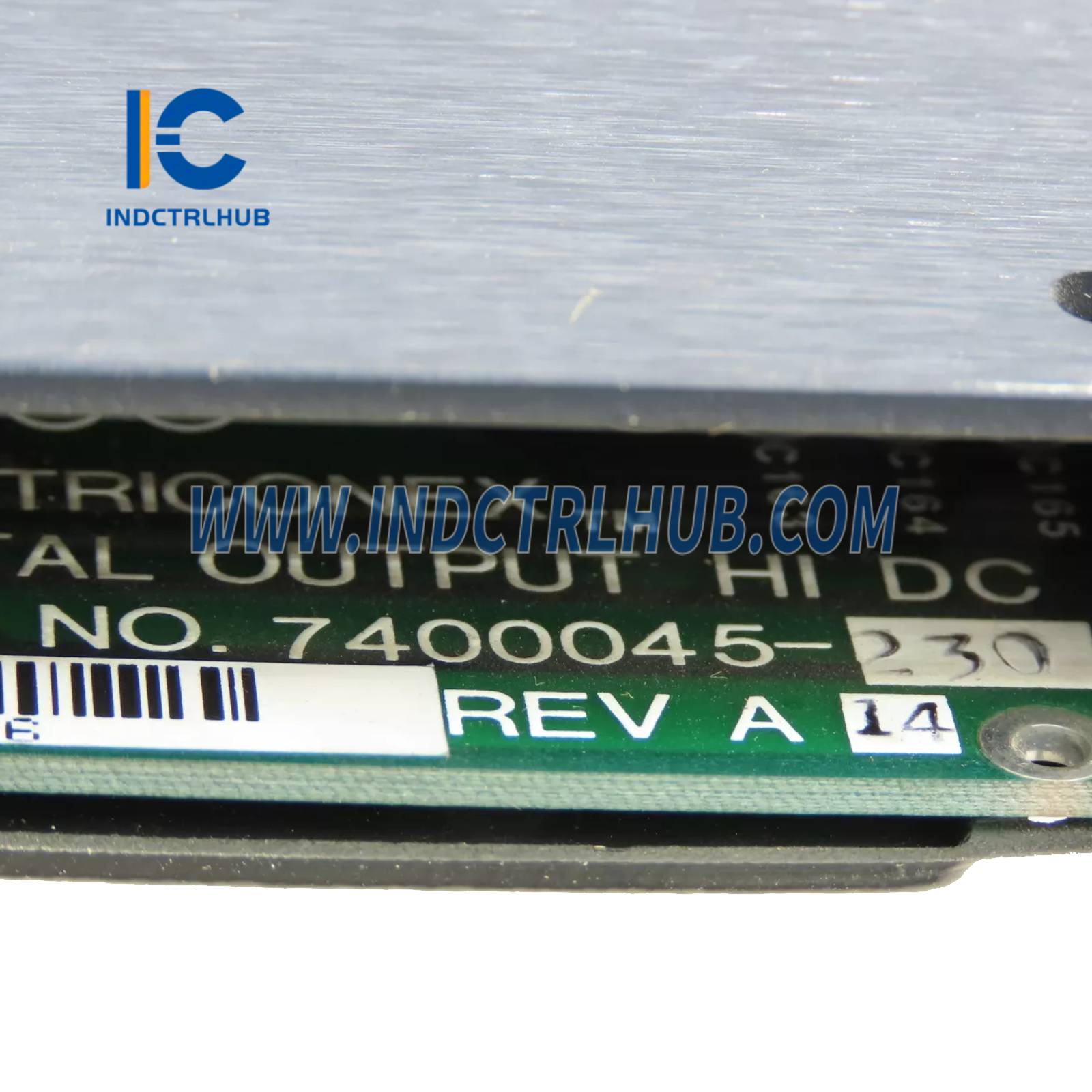

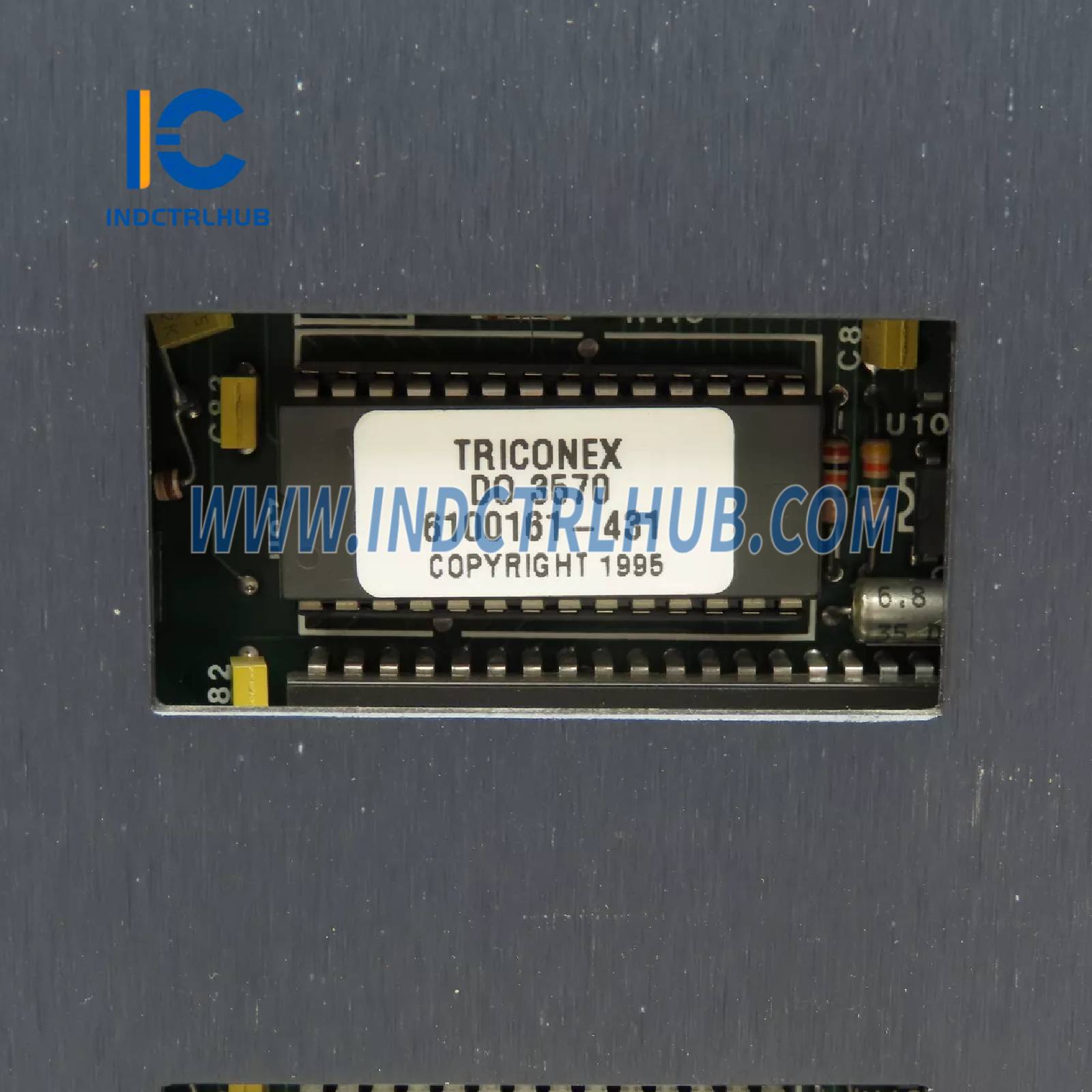

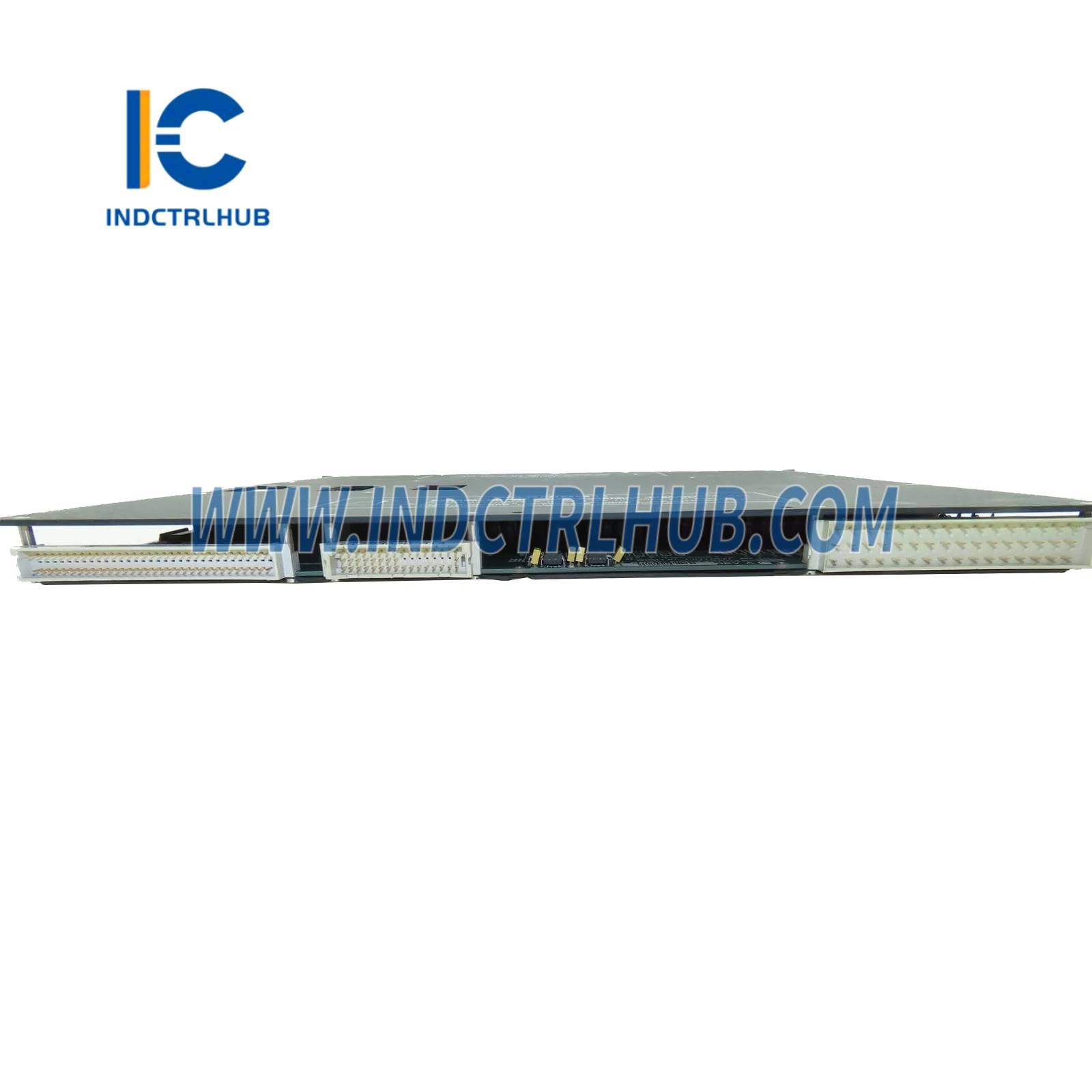

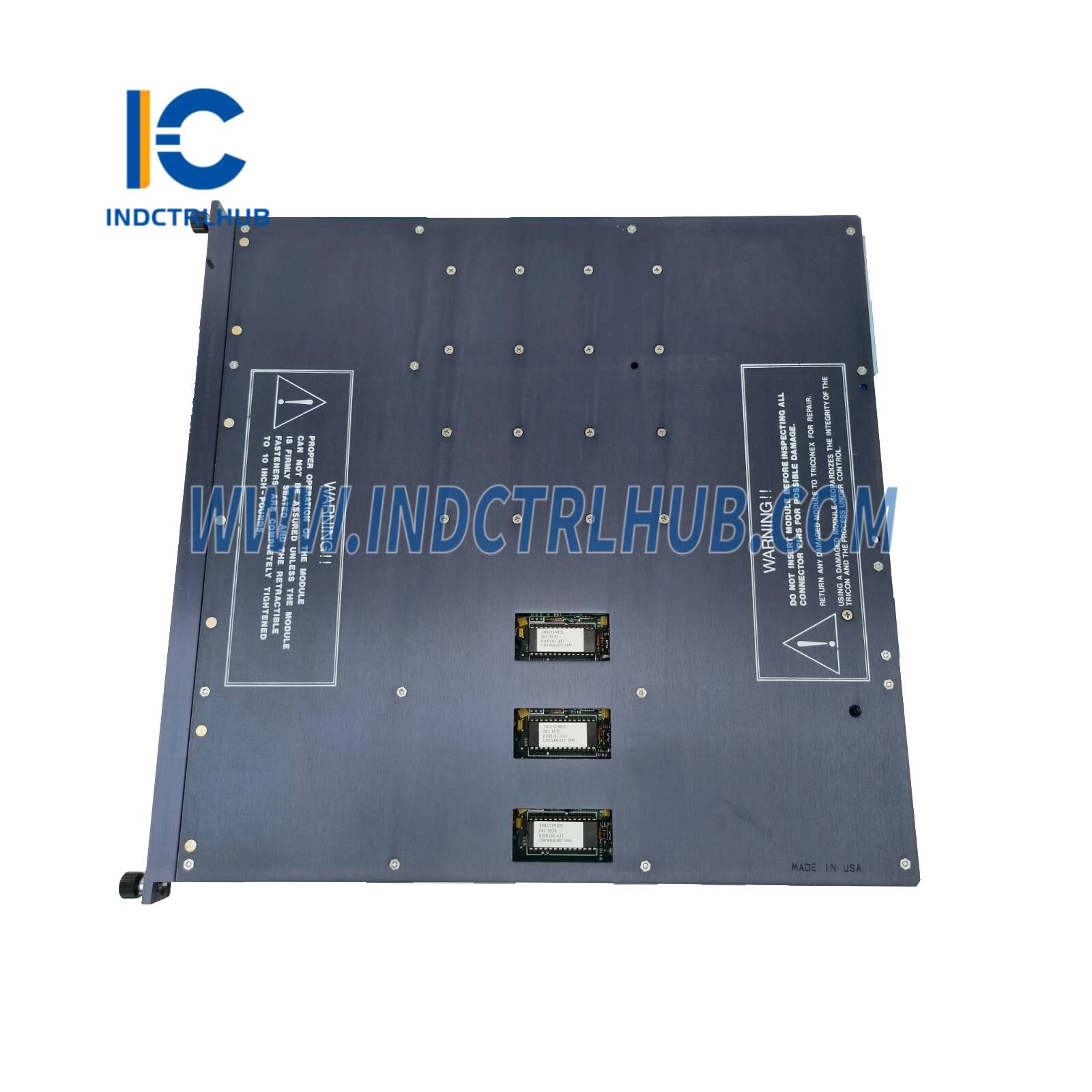

Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Triconex |
|
Model/Part Number |
3603B |
|
Model Type |
Digital Output Module |
|
System Type |
TMR (Triple Modular Redundant) |
|
Output Signals |
16, non-commoned |
|
Nominal Voltage |
48 VDC |
⚙️
Technical Specifications – Triconex 3603B
|
Specification |
Details |
|---|---|
|
Voltage Range |
44–80 VDC |
|
Voltage Drop |
< 3V, typical |
|
Frequency Range |
Not applicable |
|
Max Output Current per Point |
1 A |
|
Surge Current |
5 A for 10 ms |
|
Load Leakage Current |
≤ 2 mA |
|
Point Isolation |
1500 VDC |
|
Fuses (on field termination) |
1 per output, 1.25 A fast-acting |
🔎

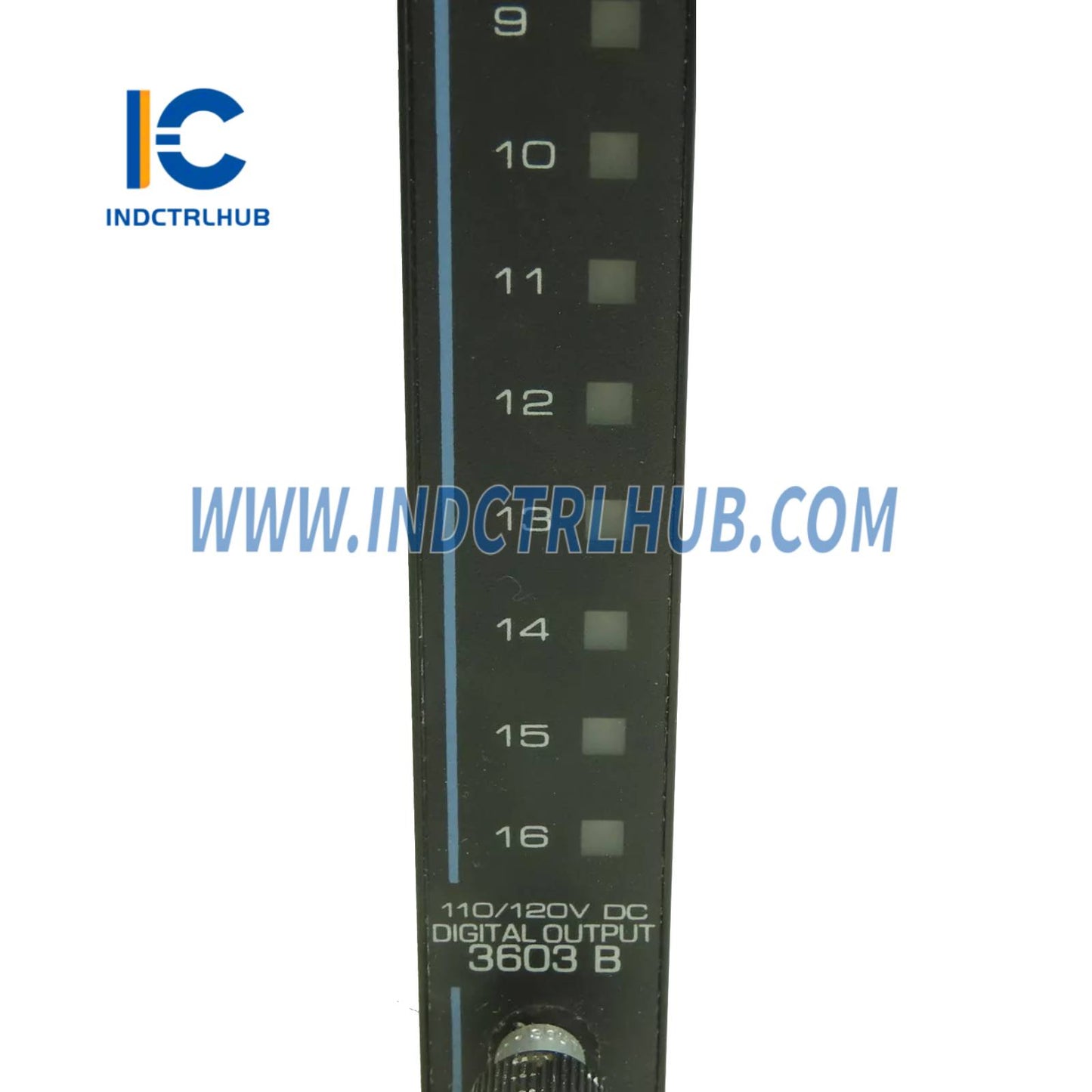

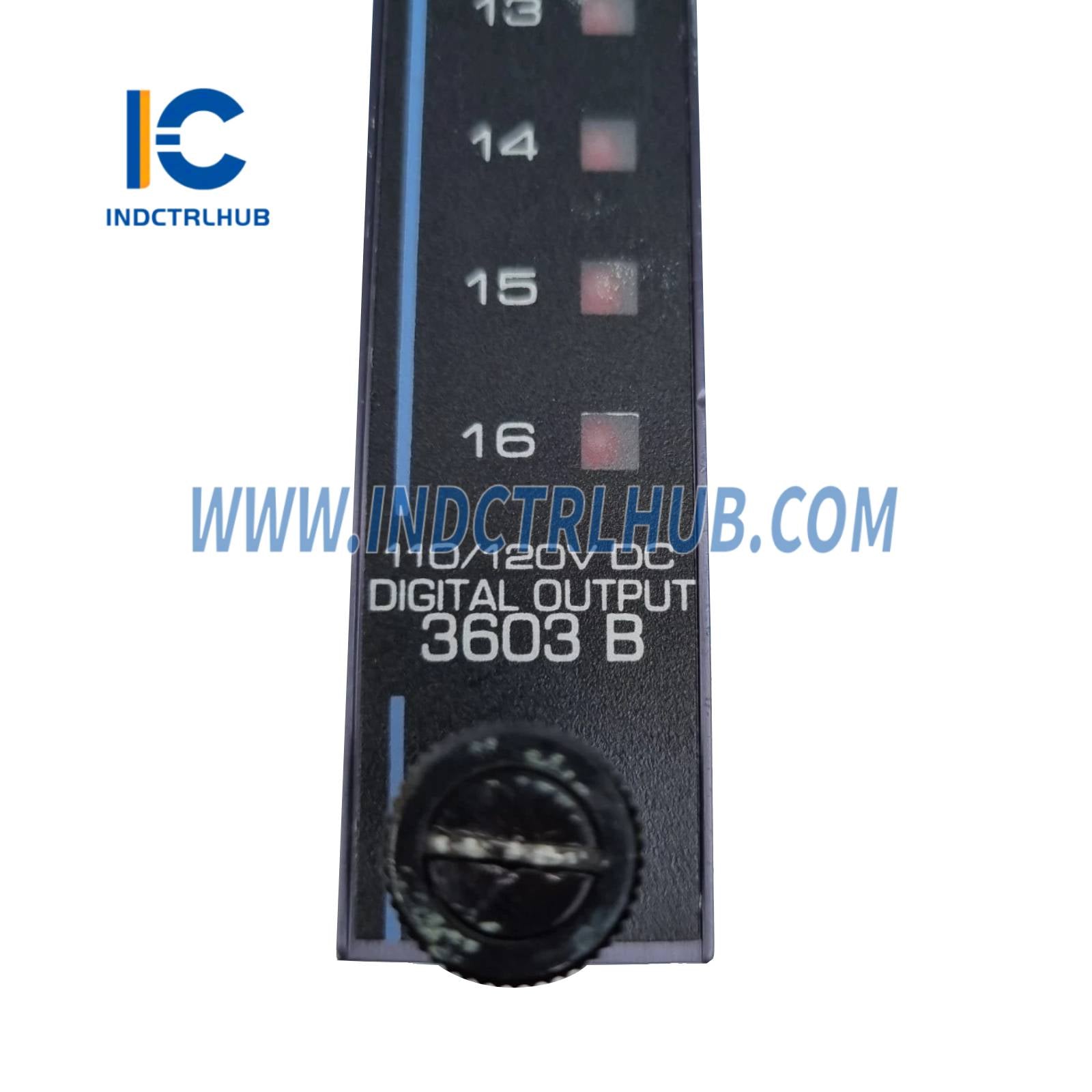

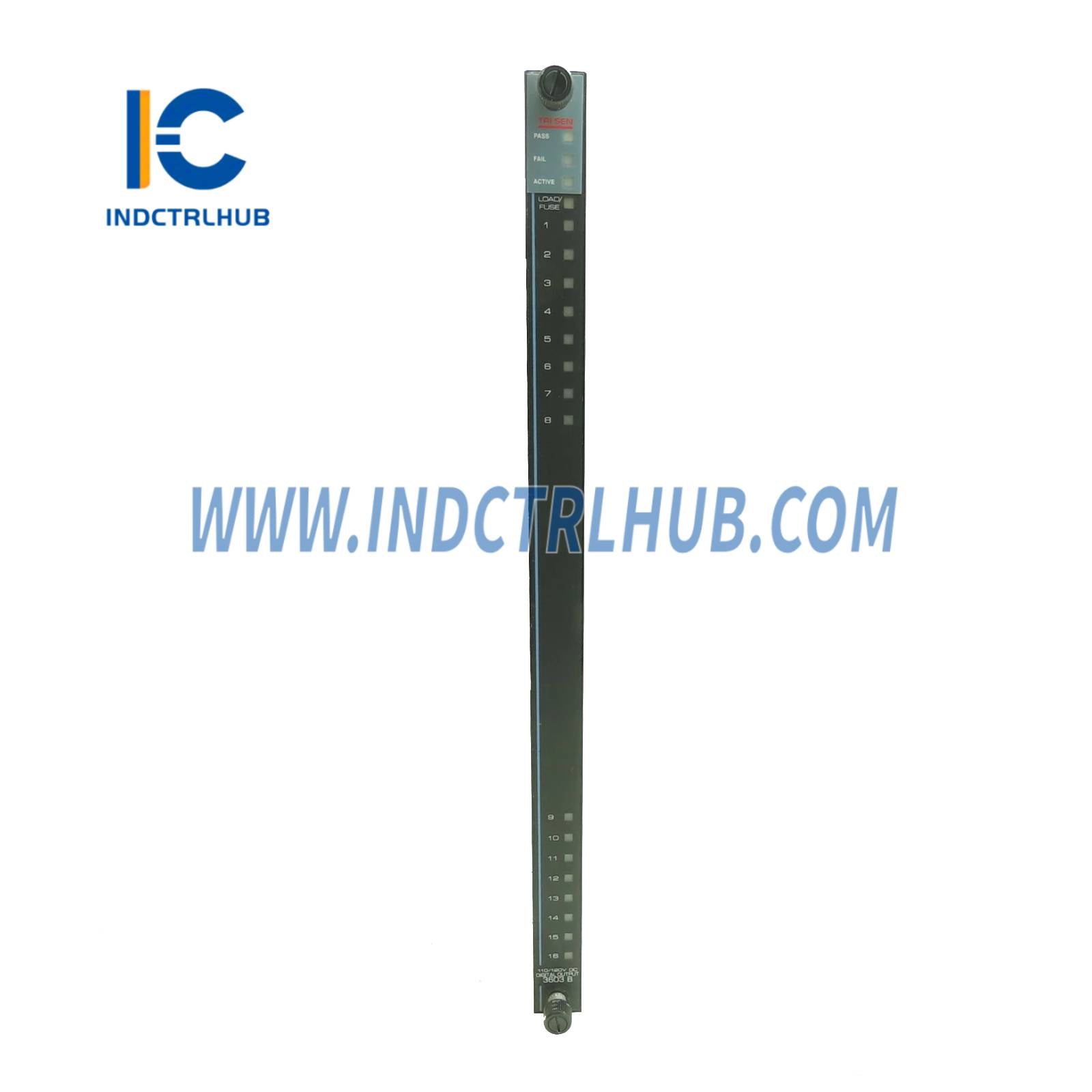

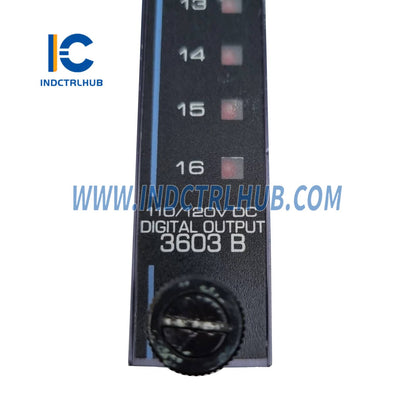

Diagnostics & Indicators
|
Indicator Type |
Details |
|---|---|
|
Channel Status |
ON/OFF state per output point |
|

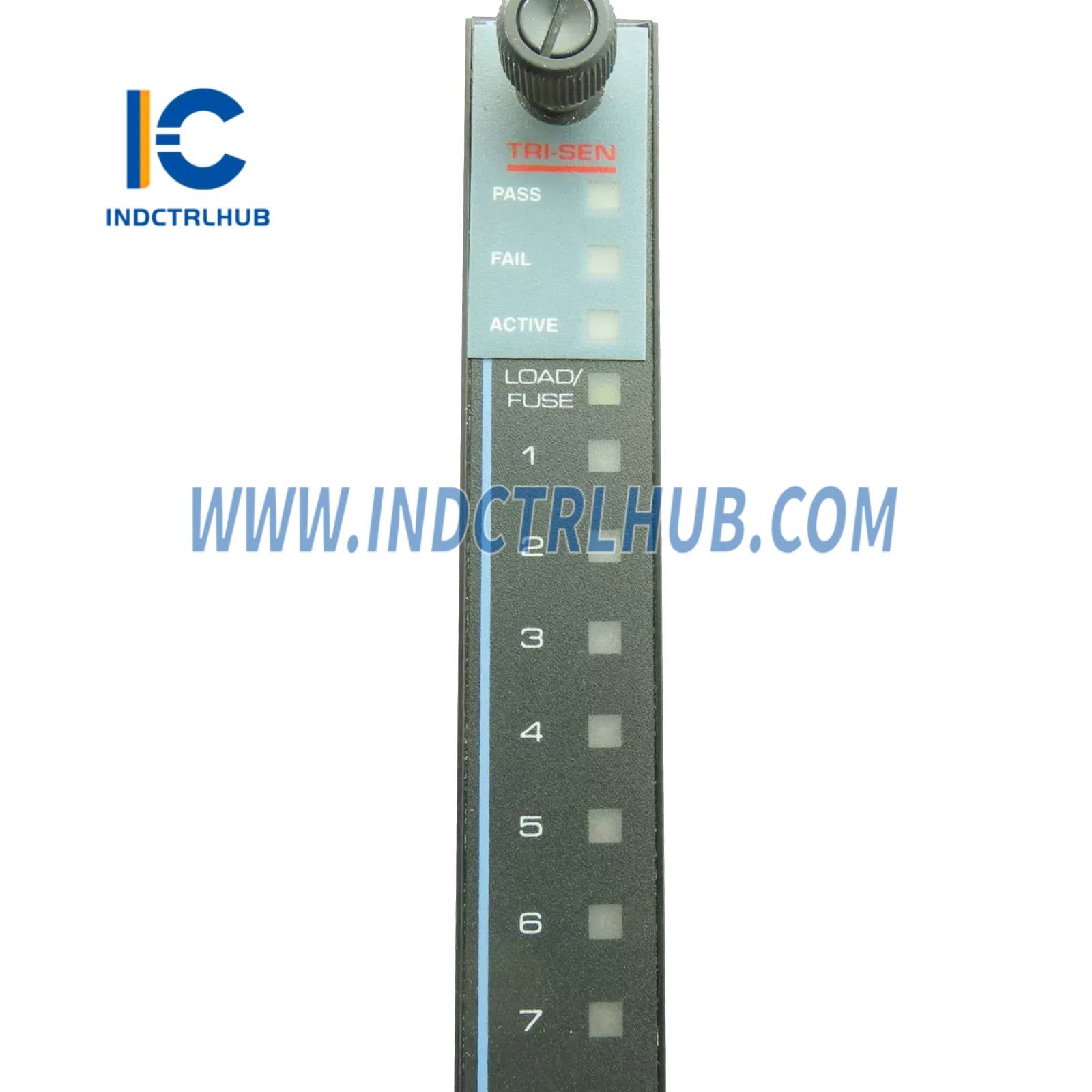

Module Status LEDs |
PASS, FAULT, ACTIVE |
|
Field Alarm Indicators |
LOAD/FUSE per point |
🎨
Additional Information
|
Attribute |
Details |
|---|---|
|
Color Code |
Light Blue |
|
Output Configuration |
Non-commoned outputs |
|
Isolation Level |
1500 VDC (standard) |
