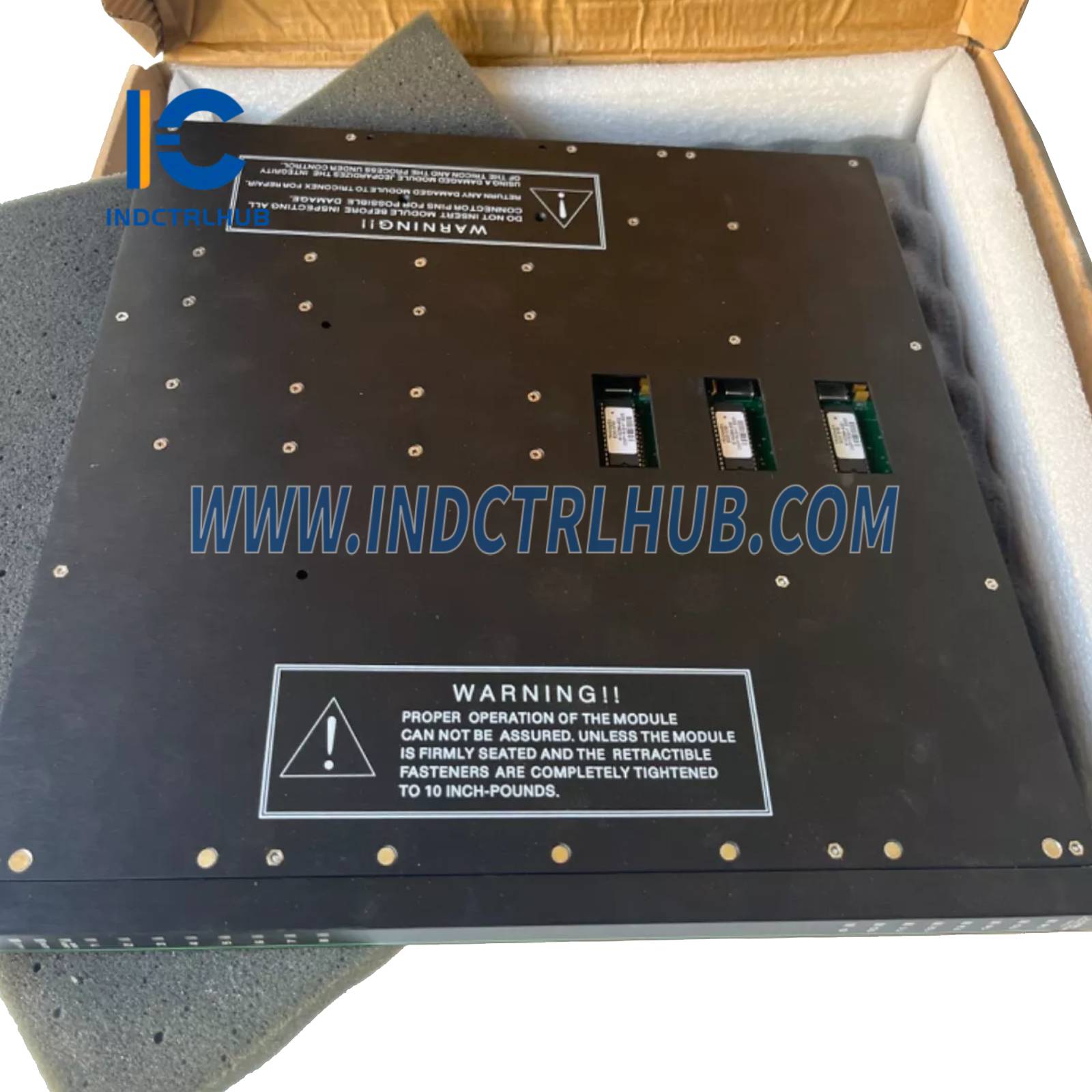

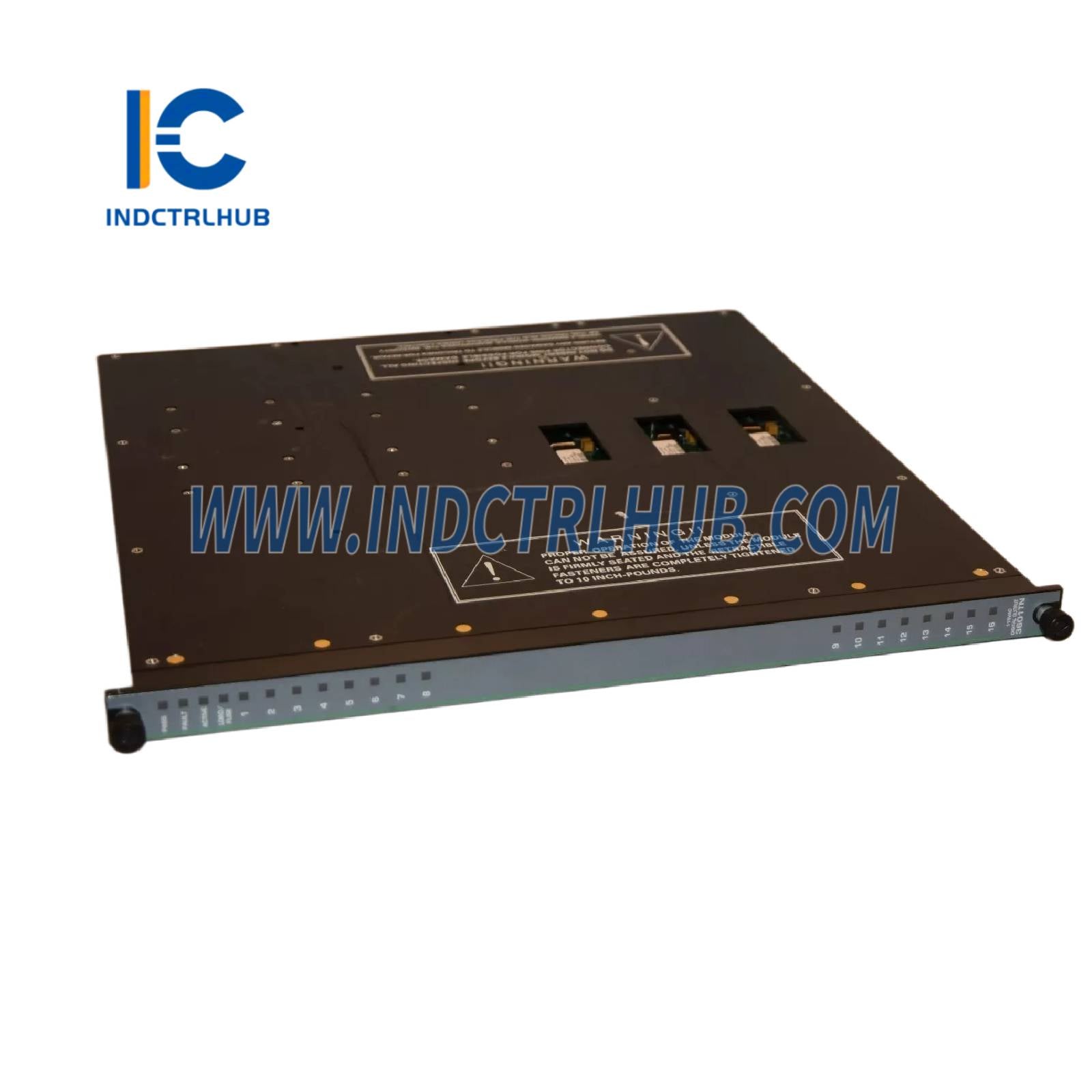

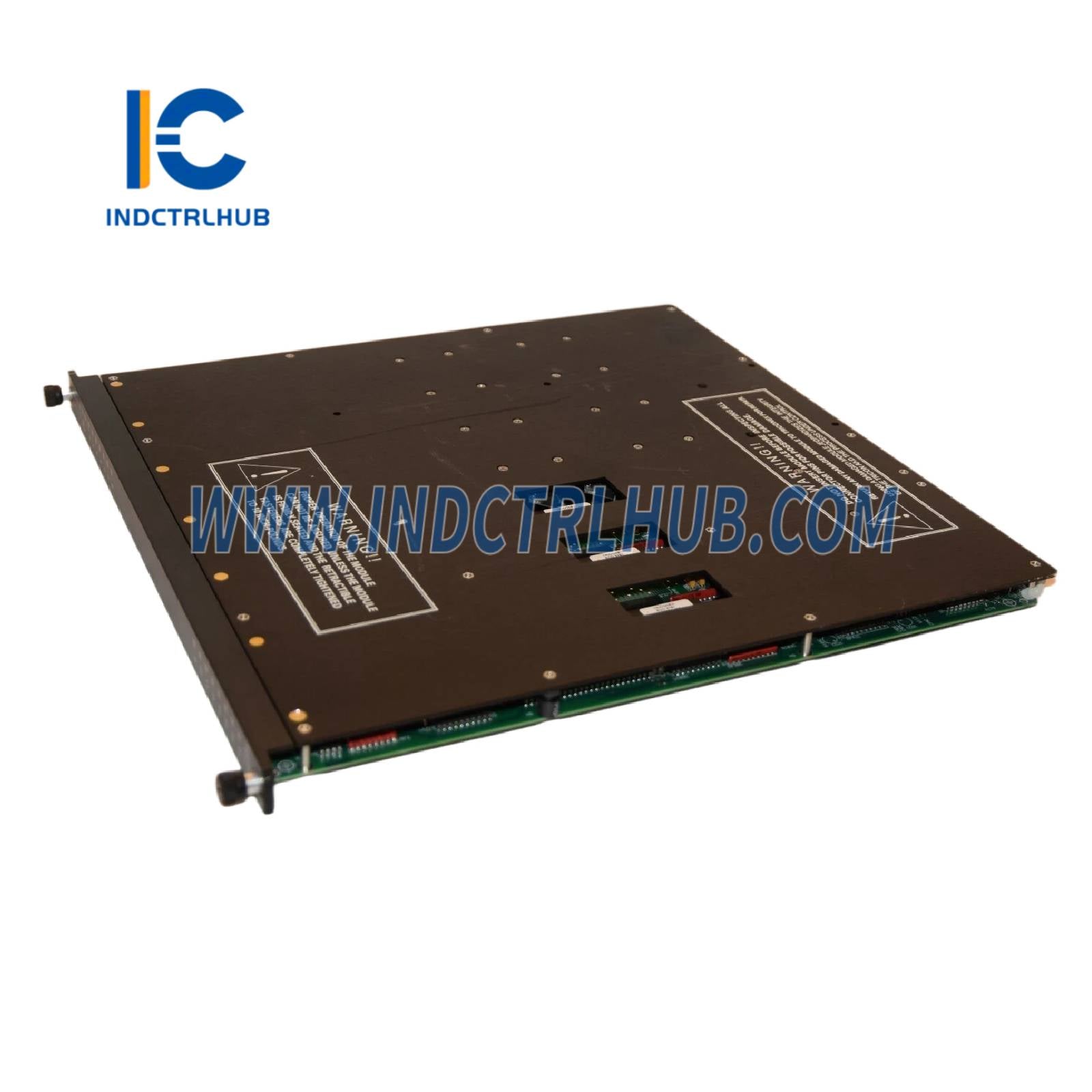

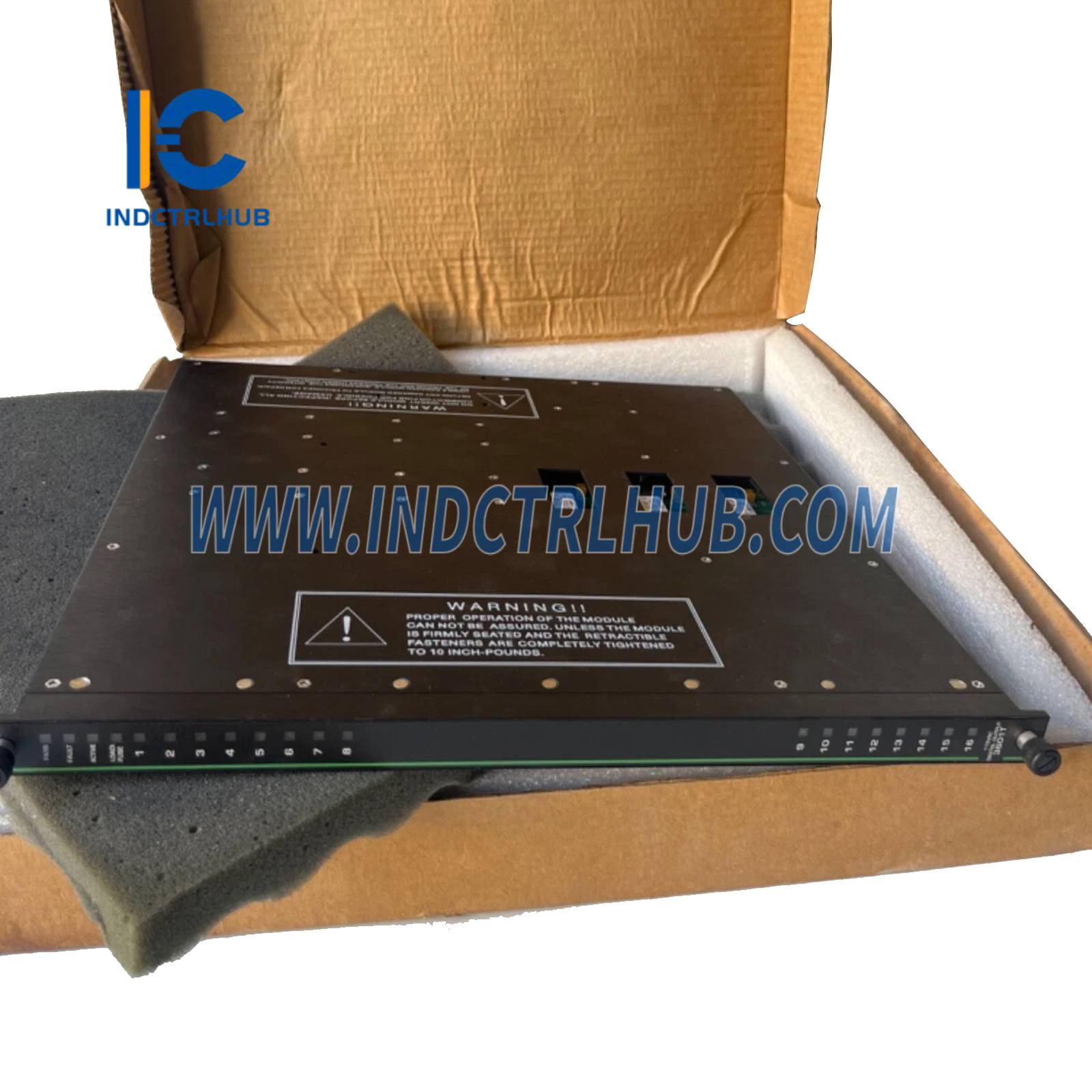

Product Description
🔍

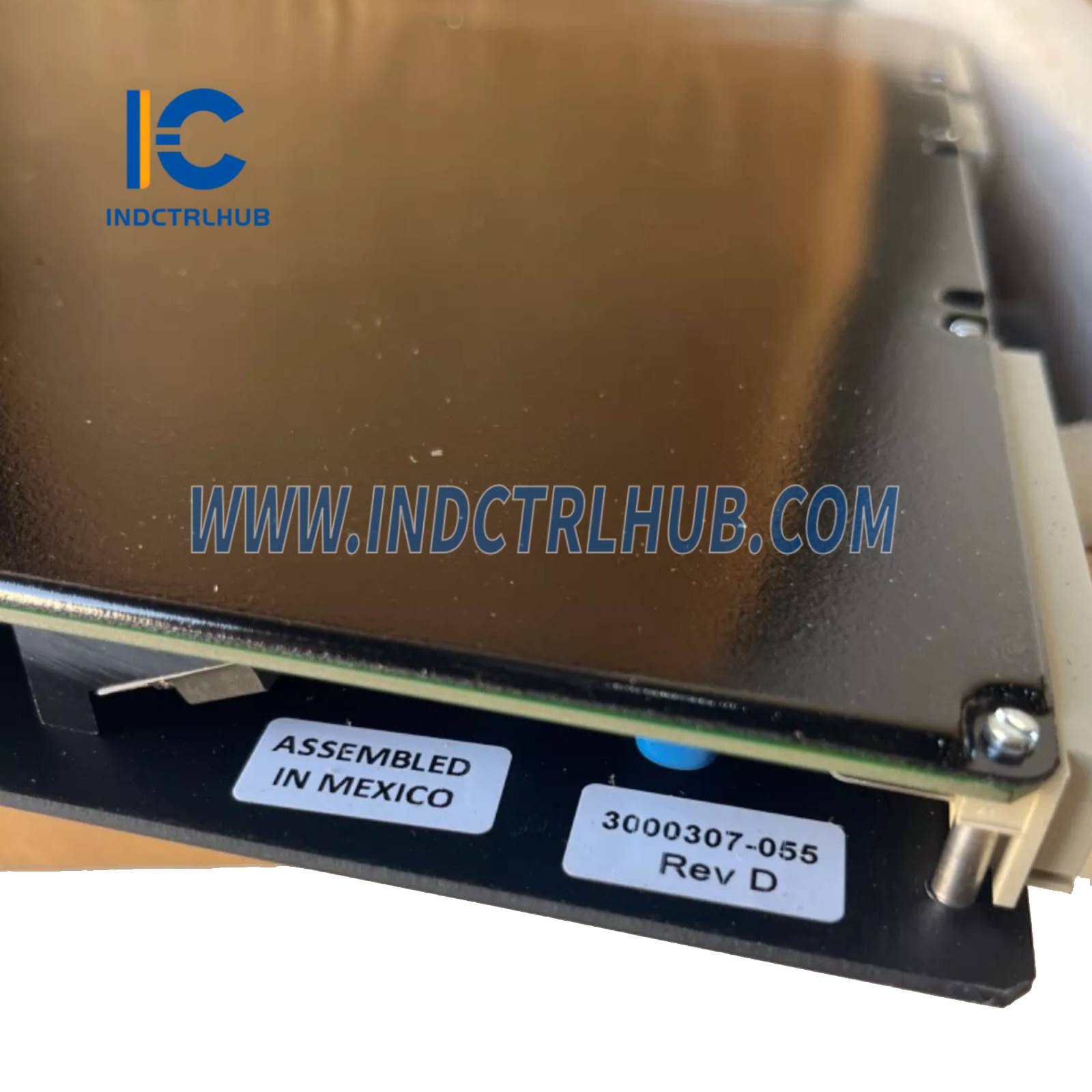

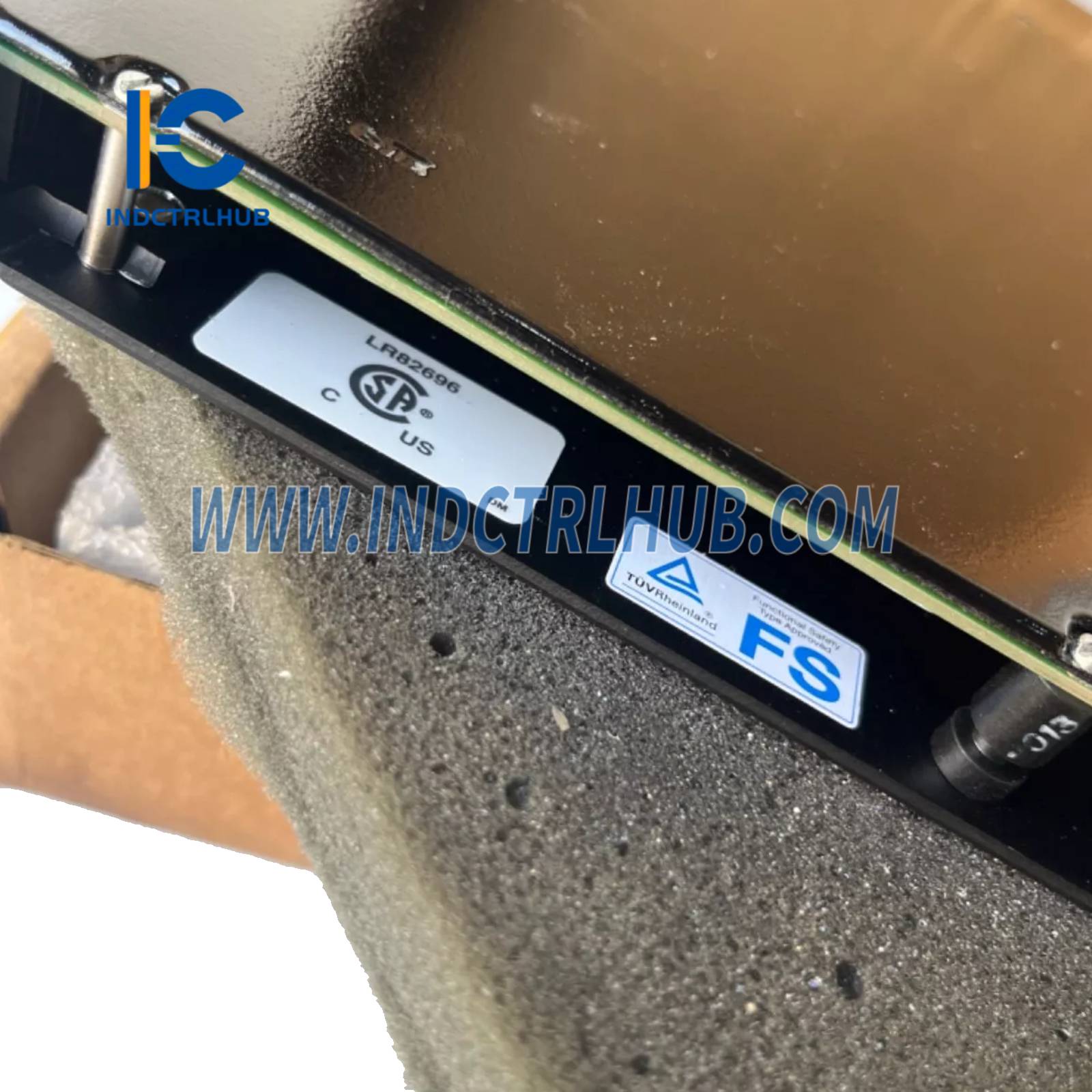

Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Triconex |
|
Model/Part Number |
3601T |
|
Model Type |
115 VAC Digital Output Module |
|
System Type |
TMR (Triple Modular Redundant) |
|
Output Signals |
16, non-commoned |
⚙️
Technical Specifications – Triconex 3601T
|
Specification |
Details |
|---|---|
|
Nominal Voltage |
115 VAC |
|
Voltage Range |
80–155 VAC |
|
Frequency Range |
47–63 Hz |
|
Voltage Drop |
< 3V typical |
|
Max Output Current per Point |
2 A |
|
Surge Current |
12 A per cycle |
|
Load Leakage Current |
≤ 2 mA @ 60 Hz |
|
Chassis Leakage Current |
≤ 4 mA @ 60 Hz |
|
Point Isolation |
1500 VDC / 2500 VDC |
|
Fuses (on field termination) |
1 per output, 3 A fast-acting |
|
Output Configuration |
Non-commoned |
🔎

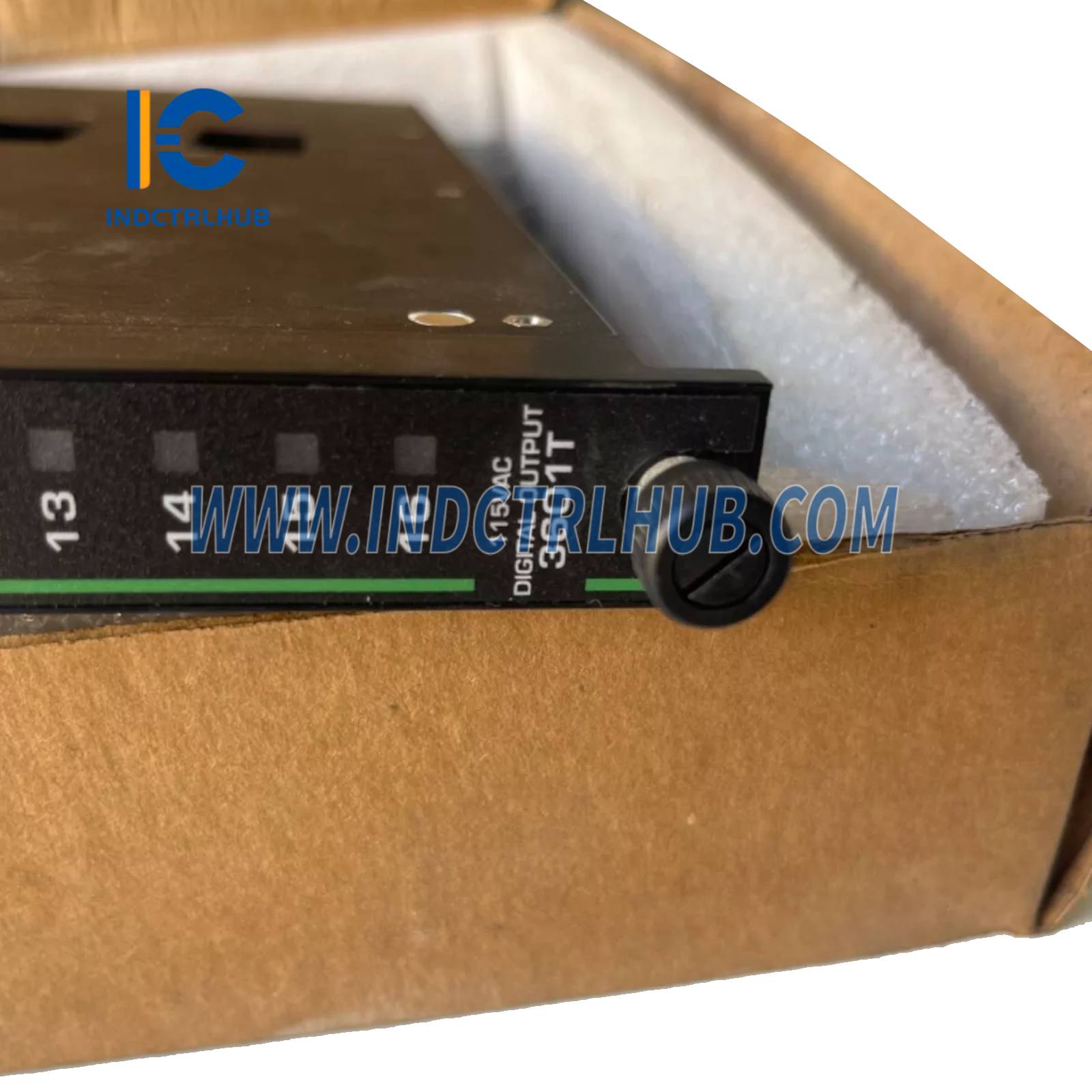

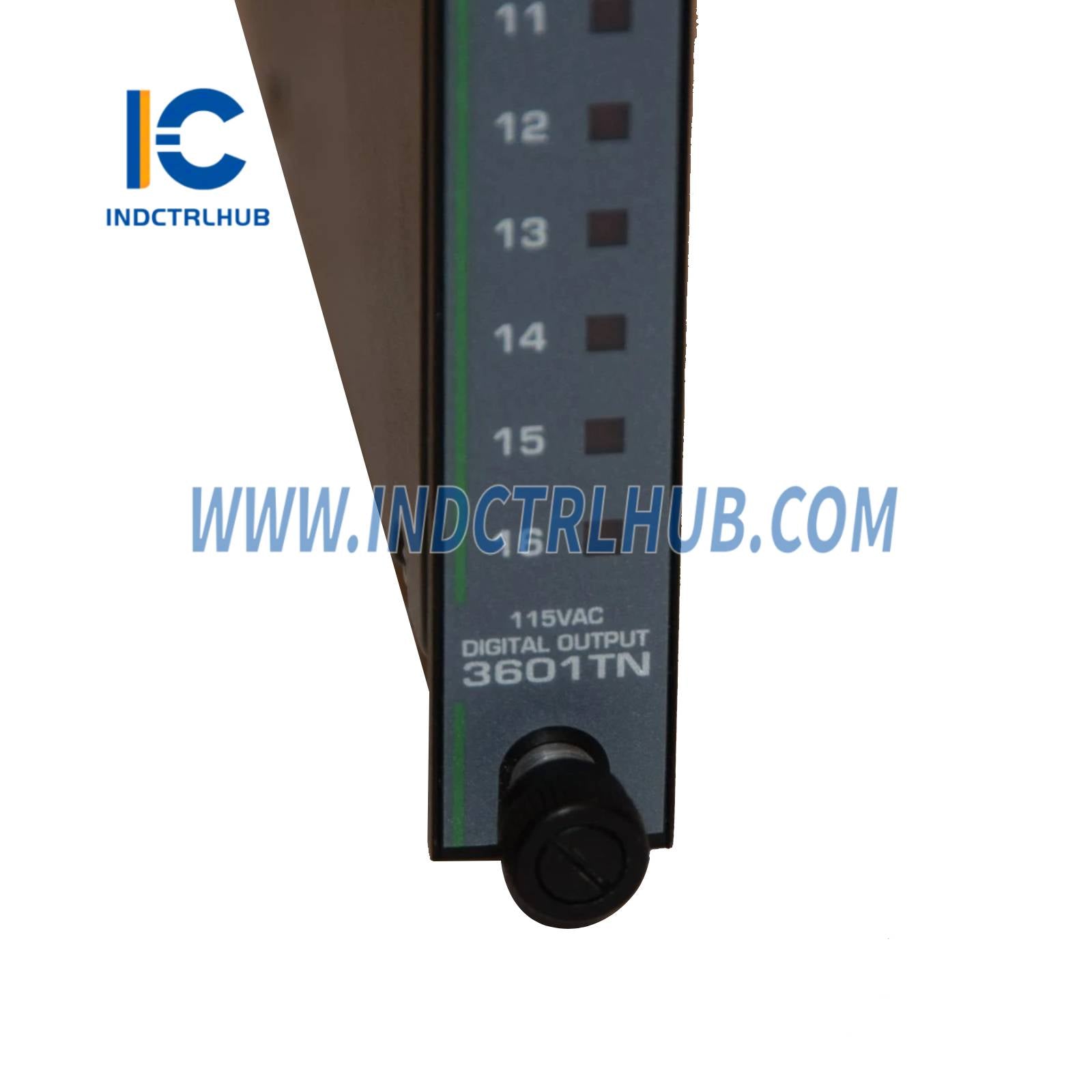

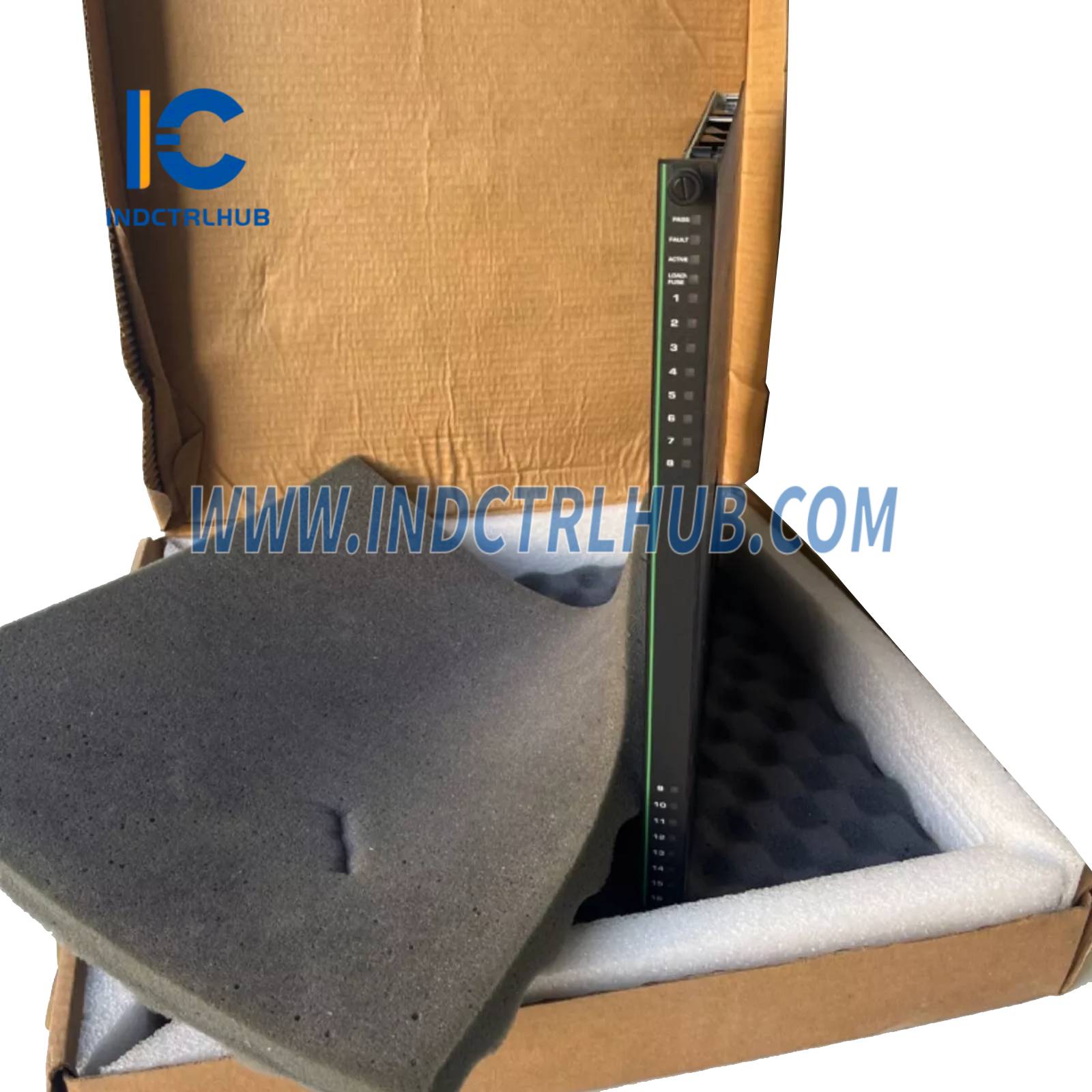

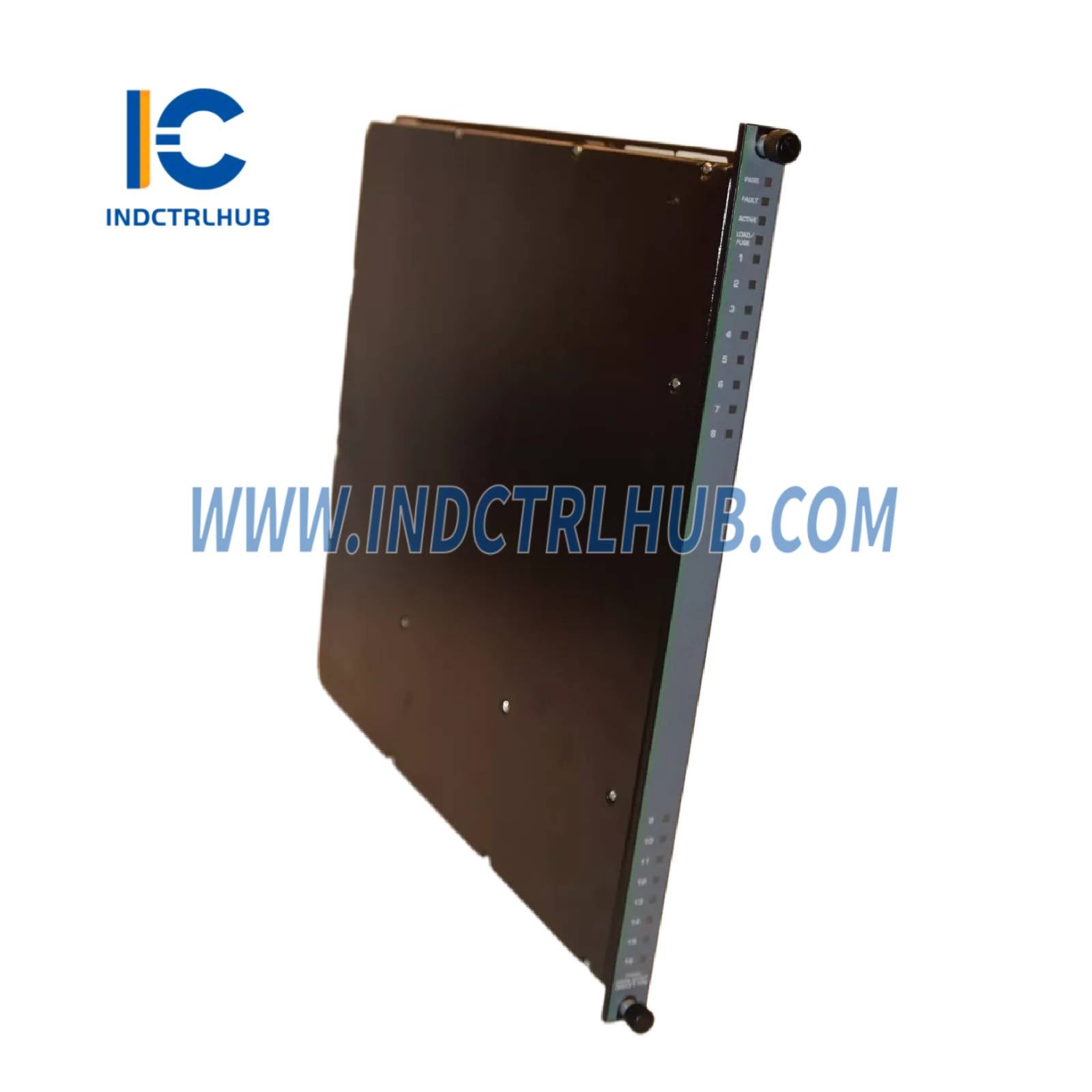

Diagnostics & Indicators
|
Indicator Type |
Details |
|---|---|
|
Channel Status |
ON/OFF state per output point |
|

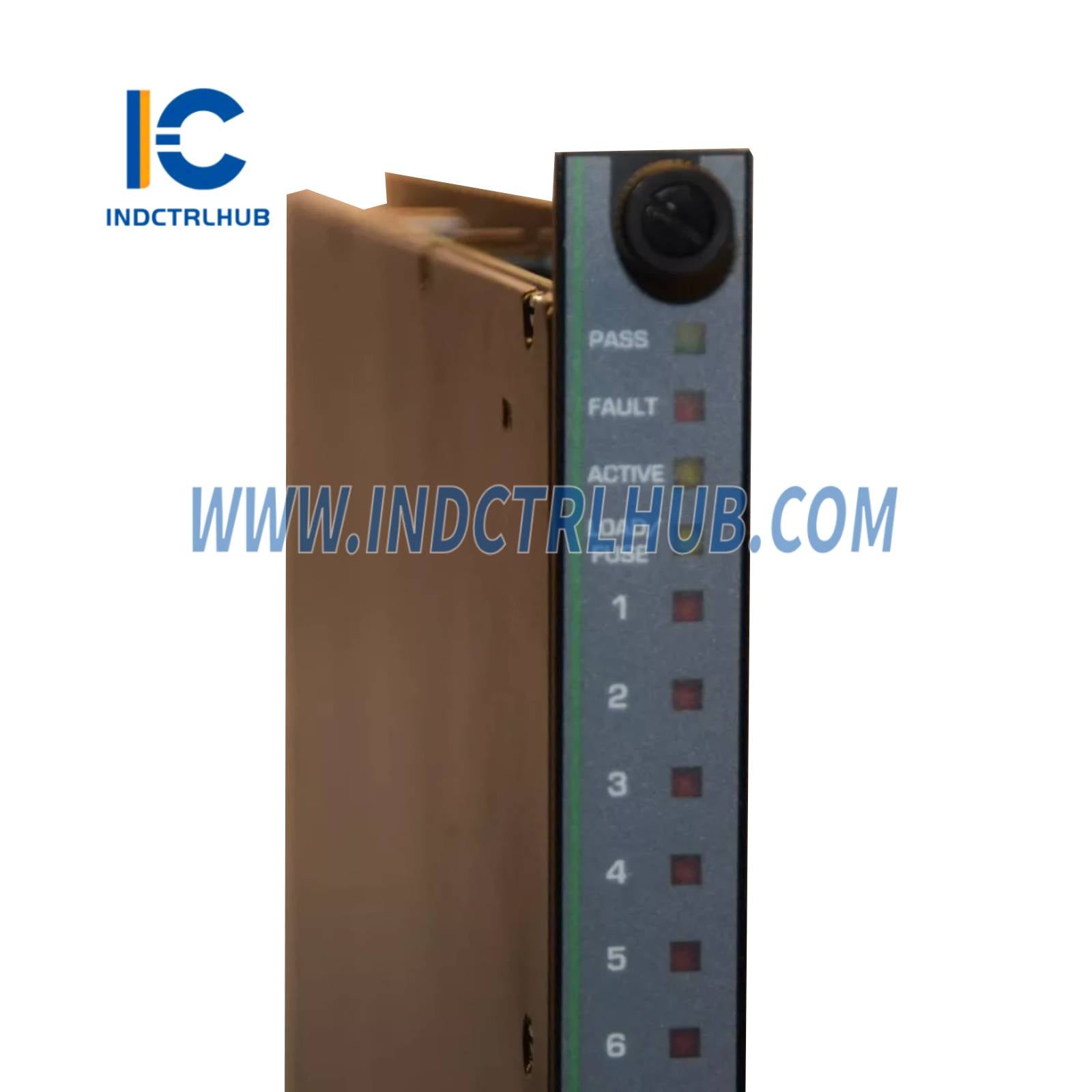

Module Status LEDs |
PASS, FAULT, ACTIVE |
|
Field Alarm Indicators |
LOAD/FUSE per point |
🎨
Additional Information
|
Attribute |
Details |
|---|---|
|
Color Code |
Green |
|
Usage Note |
Higher voltage isolation level than 3601E (up to 2500 VDC) |
