Product Description
Product Overview

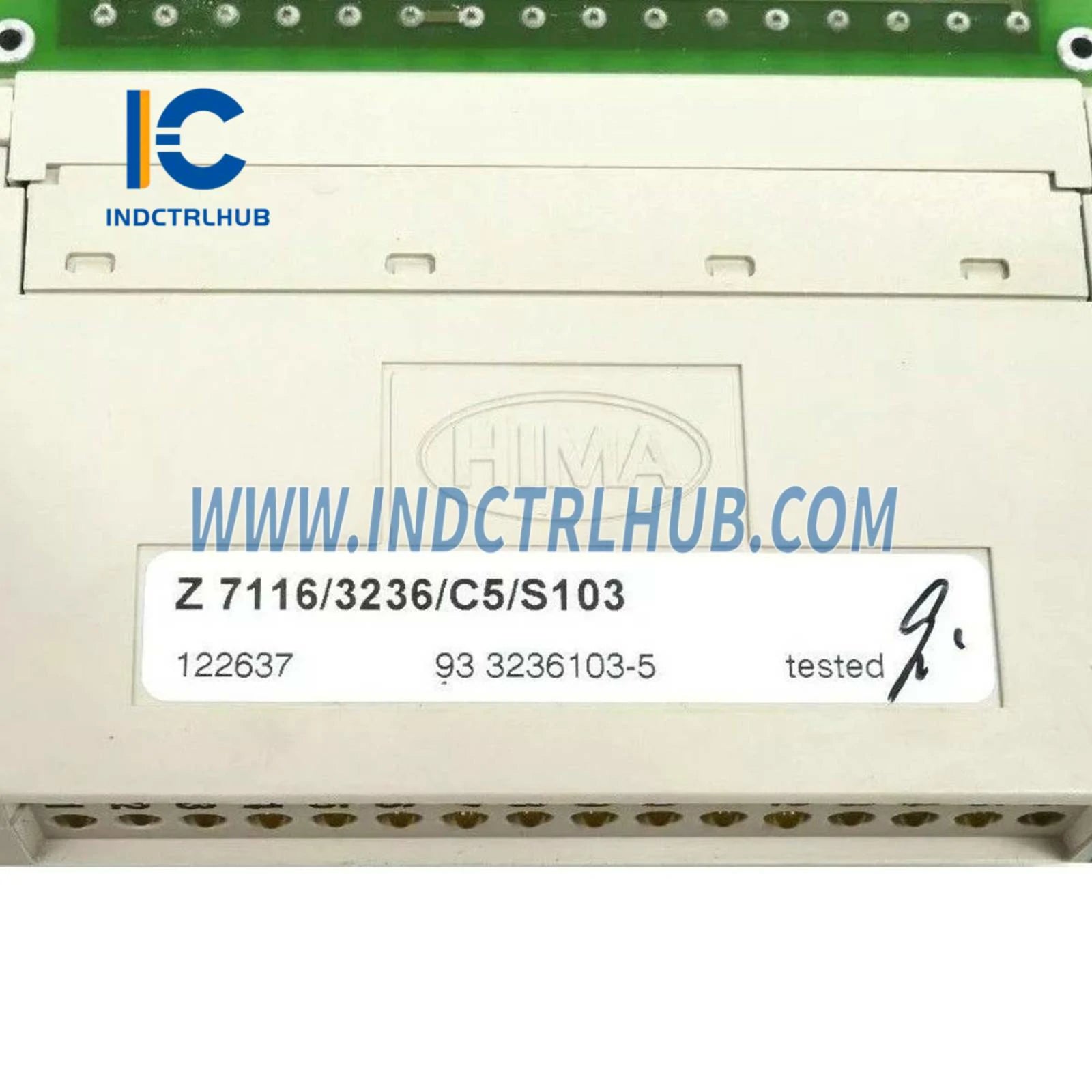

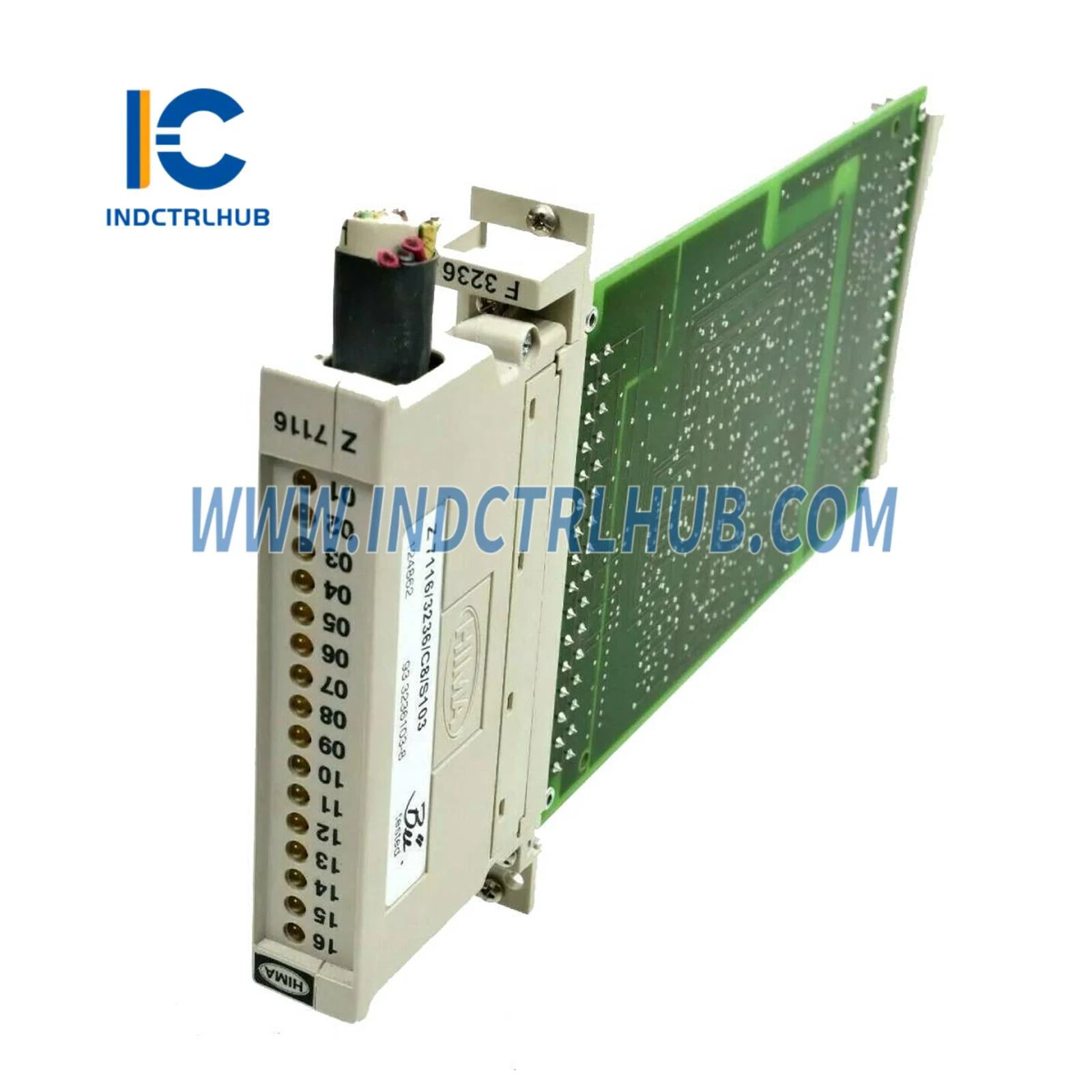

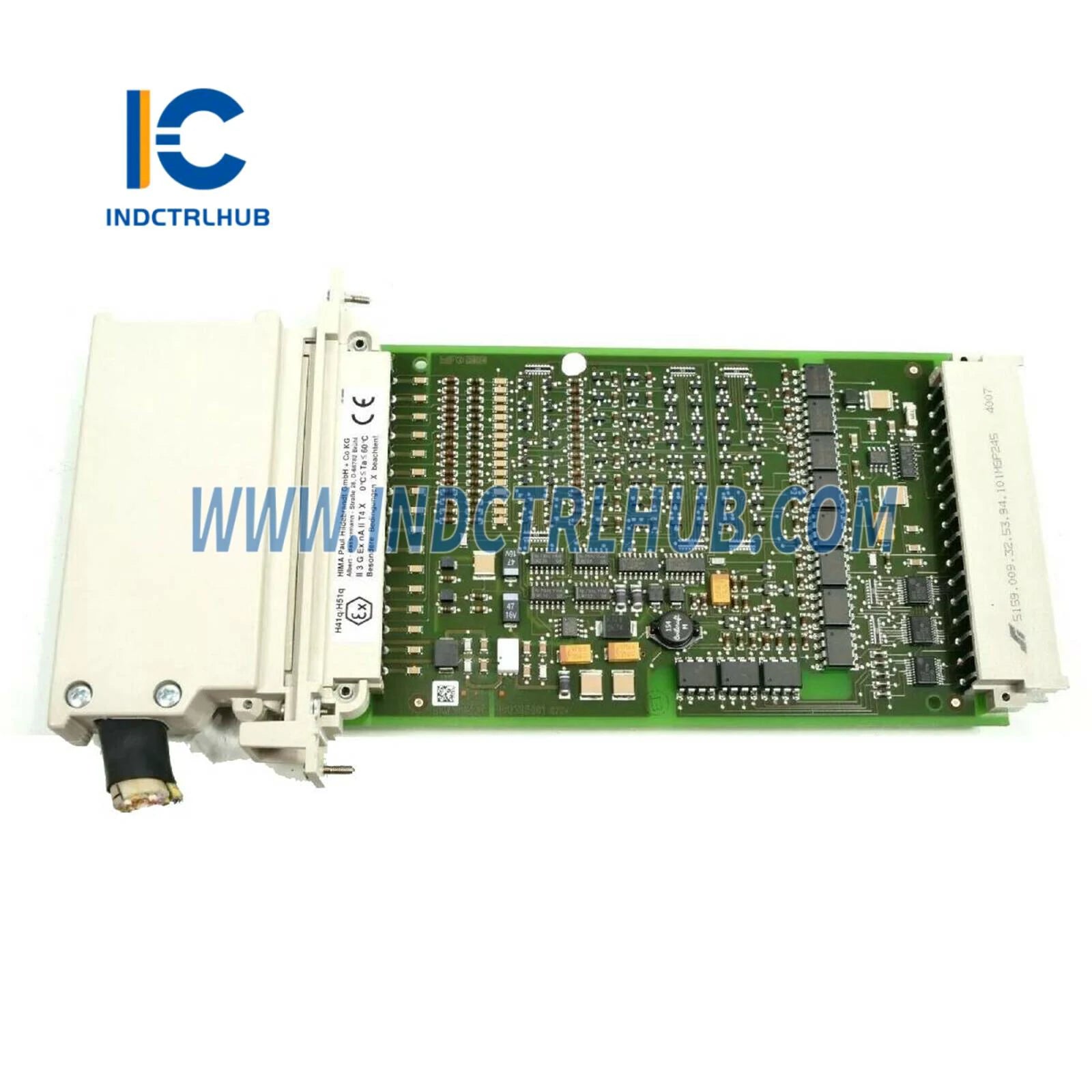

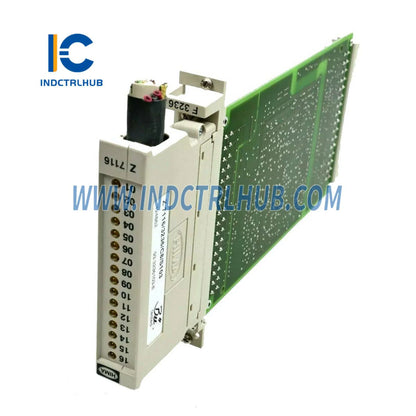

The HIMA Z7116/3236 is a Cable Plug designed as an accessory for HIMA safety-related systems, specifically for connecting to the F3236 16-channel digital input module in the HIQuad series. Manufactured by HIMA, this cable plug facilitates reliable connection of digital sensors or switches to safety modules, ensuring accurate signal transmission in industrial applications such as oil & gas, chemical processing, and power generation. It supports safety integrity levels up to SIL 3 per IEC 61508 when used within specified system constraints.
Technical Specifications
The Z7116/3236 has the following specifications based on standard characteristics for this component:
| Item | Specification |
|---|---|
| Model/Part Number | Z7116/3236 |
| Manufacturer | HIMA |
| Description | Cable Plug |
| Series | HIQuad |
| Cable Type | Multi-core cable for digital signals |
| Connector Type | Plug-in connector with LED indicators |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.1 kg (0.22 lbs) |
Additional Details
The Z7116/3236 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Connects digital sensors/switches to F3236 module |
| Mounting | Plugs into front connector of F3236 module |
| Compatibility | HIMA F3236 16-channel digital input module |
| Features | 16 LED indicators, shunt resistor, durable design |
| Certifications | SIL 3 per IEC 61508 (system-dependent) |
