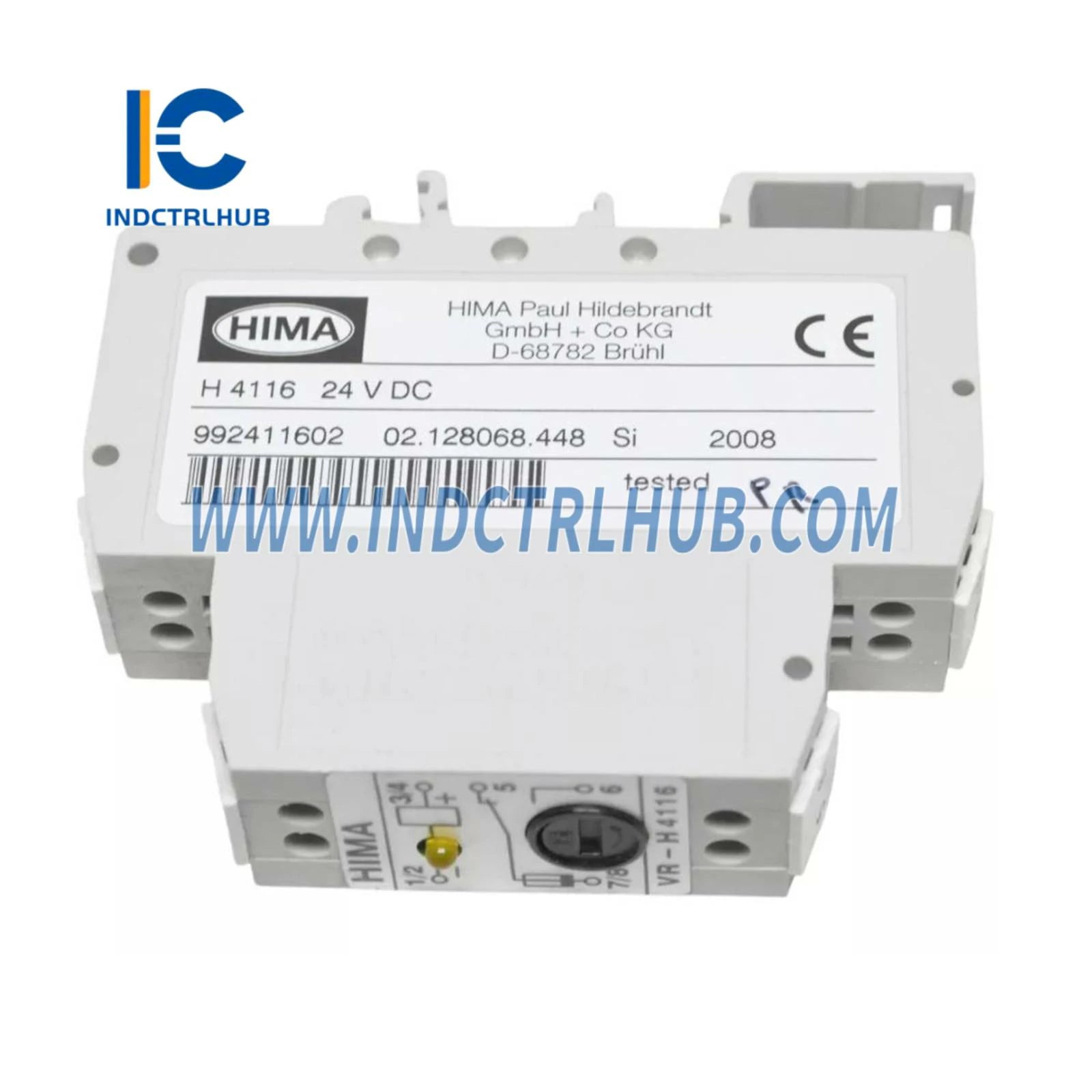

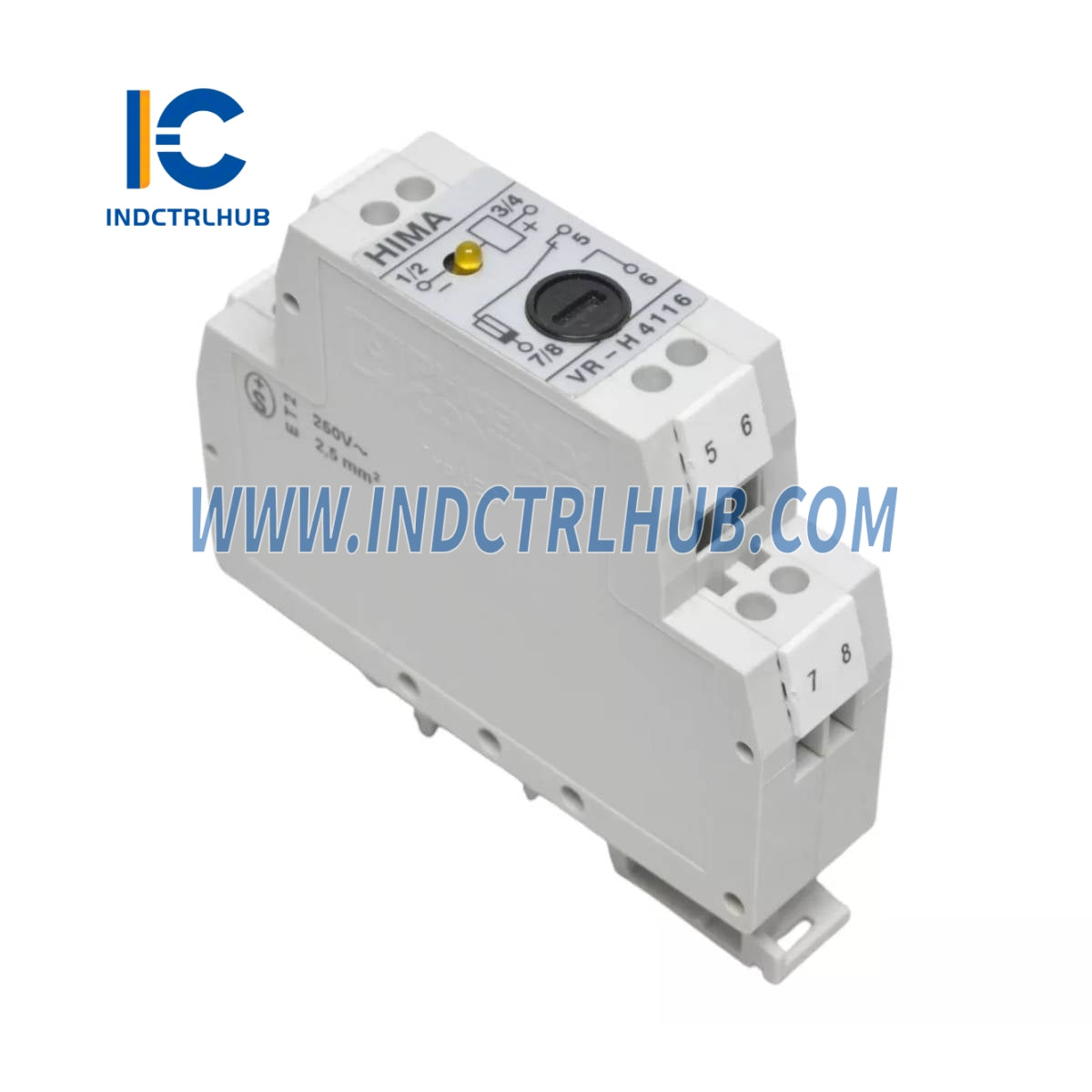

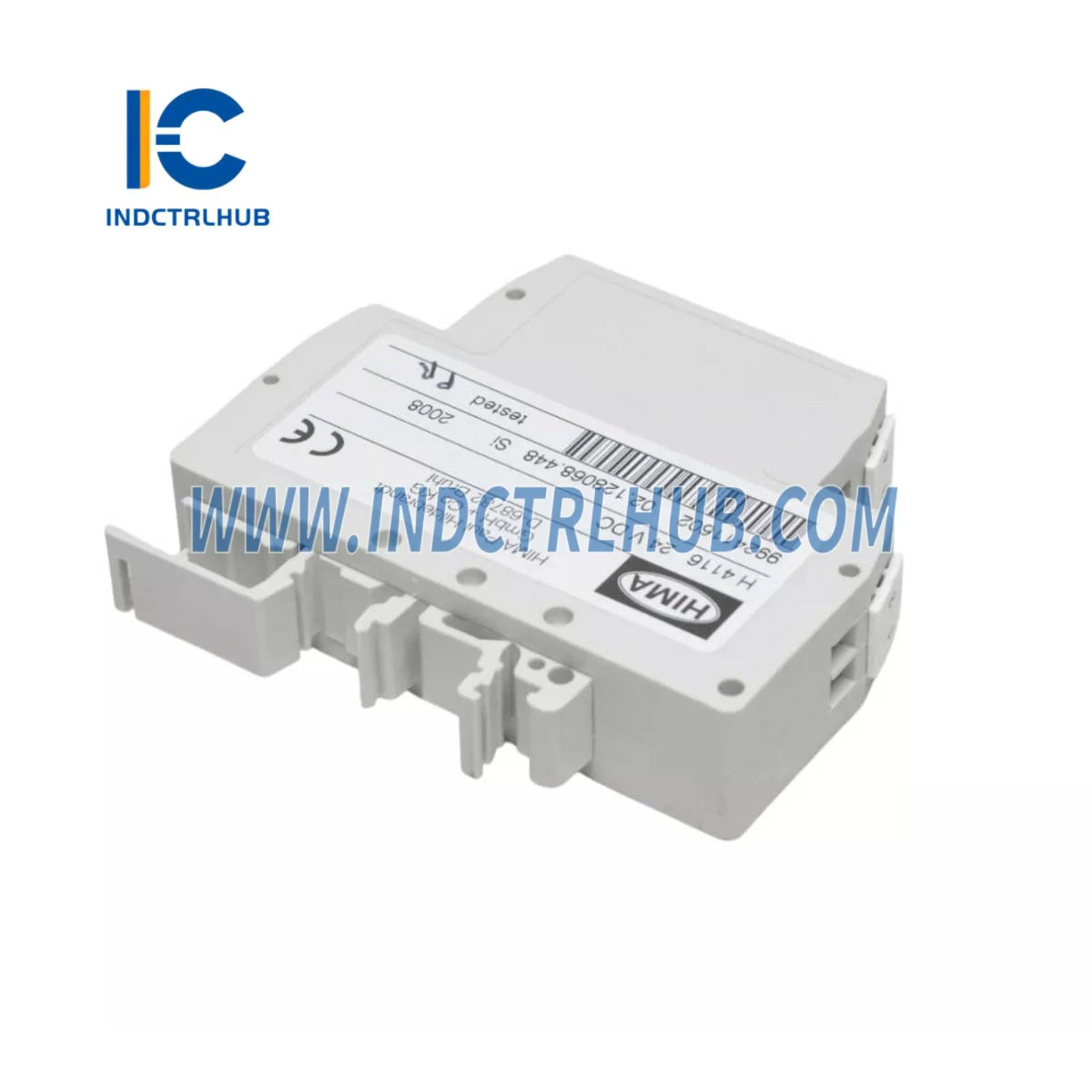

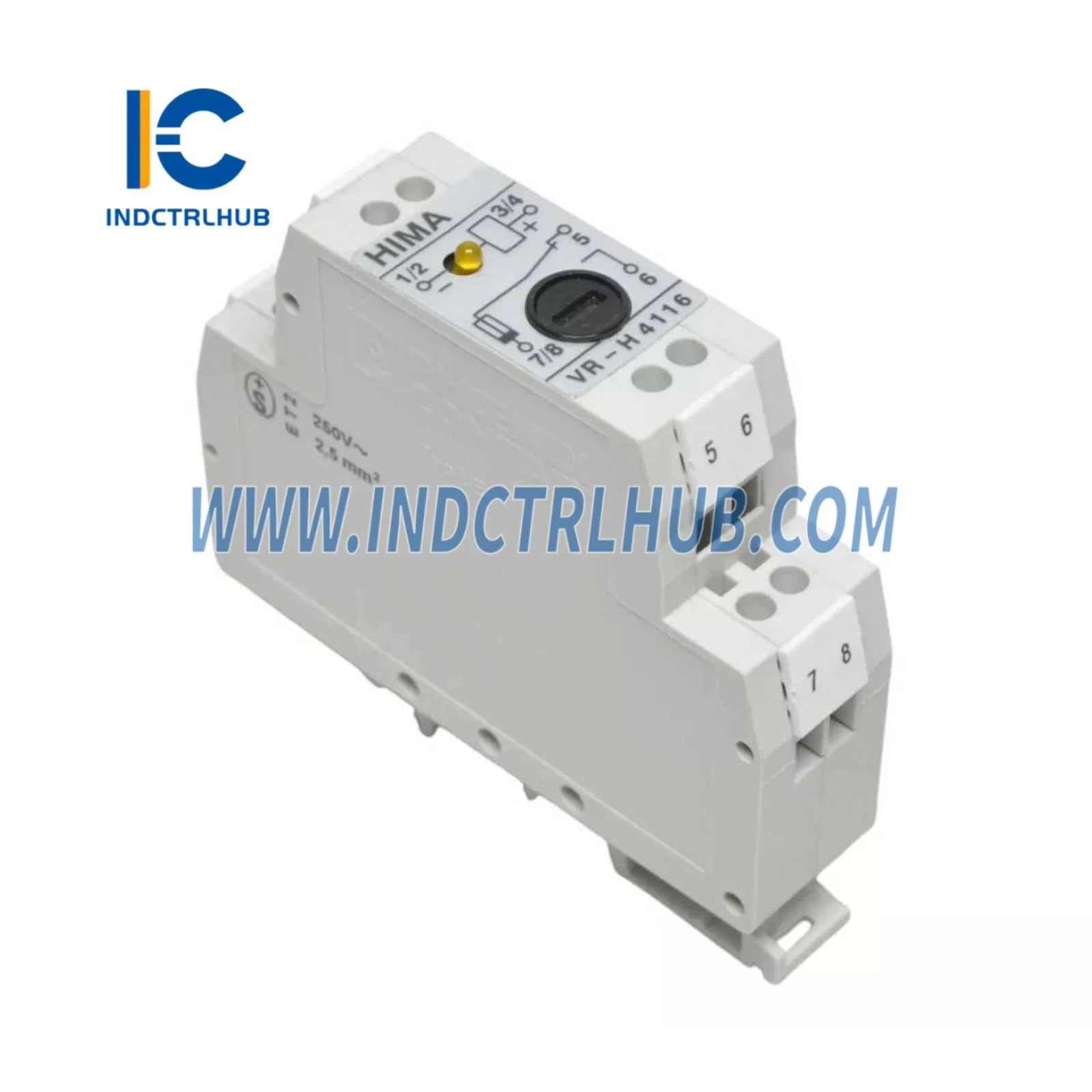

HIMA VR-H4116 24Vdc Relay in Terminal Housing
HIMA VR-H4116 24Vdc Relay in Terminal Housing
Manufacturer: HIMA
Product No.: VR-H4116 24Vdc
Condition:1000 in stock
Product Type: Relay in Terminal Housing
Product Origin: Germany
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
|
Manufacturer |
HIMA |
|---|---|
|
Model/Part Number |
VR-H4116 24Vdc |
|
Description |
Relay in Terminal Housing |
Technical Specifications
General
|
Parameter |
Value |
|---|---|
|
Input Voltage |
24 VDC, -15_+20 % |
|
Current Consumption |
20 mA |
|
Output |
1 potential-free change-over contact, sealed |
|
Switching Time |
Approx. 7 ms |
|
Reset Time |
Approx. 5 ms |
|
Power Dissipation |
1_2 W |
|
Ambient Temperature |
-25_+50 °C |
|
Degree of Protection |
IP20 (IEC/EN 60529, VDE 0470 Part 1) |
|
Safe Separation |
Between output contact and input (EN 50178, Overvoltage Class III up to 300 V) |
Relay Data
|
Parameter |
Value |
|---|---|
|
Contact Material |
AgNi, hard gold plated |
|
Switching Voltage |
_ 1 mV, _ 250 VAC / VDC |
|
Switching Current |
_ 1 mA, _ 4 A (for safety-related applications as well) |
|
Fuse |
_ 4 A (time-lag), delivery condition: 4 A (time-lag) |
|
Switching Capacity (AC) |
_ 1000 VA, cos _ > 0.5 |
|
Switching Capacity (DC) |
Up to 30 V: _ 120 W__Up to 250 V: _ 40 W |
|
Bounce Time |
Approx. 1 ms |
Lifetime
|
Parameter |
Value |
|---|---|
|
Mechanical |
_ 10_ switching operations |
|
Electrical |
_ 2.5 _ 10_ switching operations (at ohmic full load and _ 0.1 switching operations per second) |
