Product Description
Product Overview

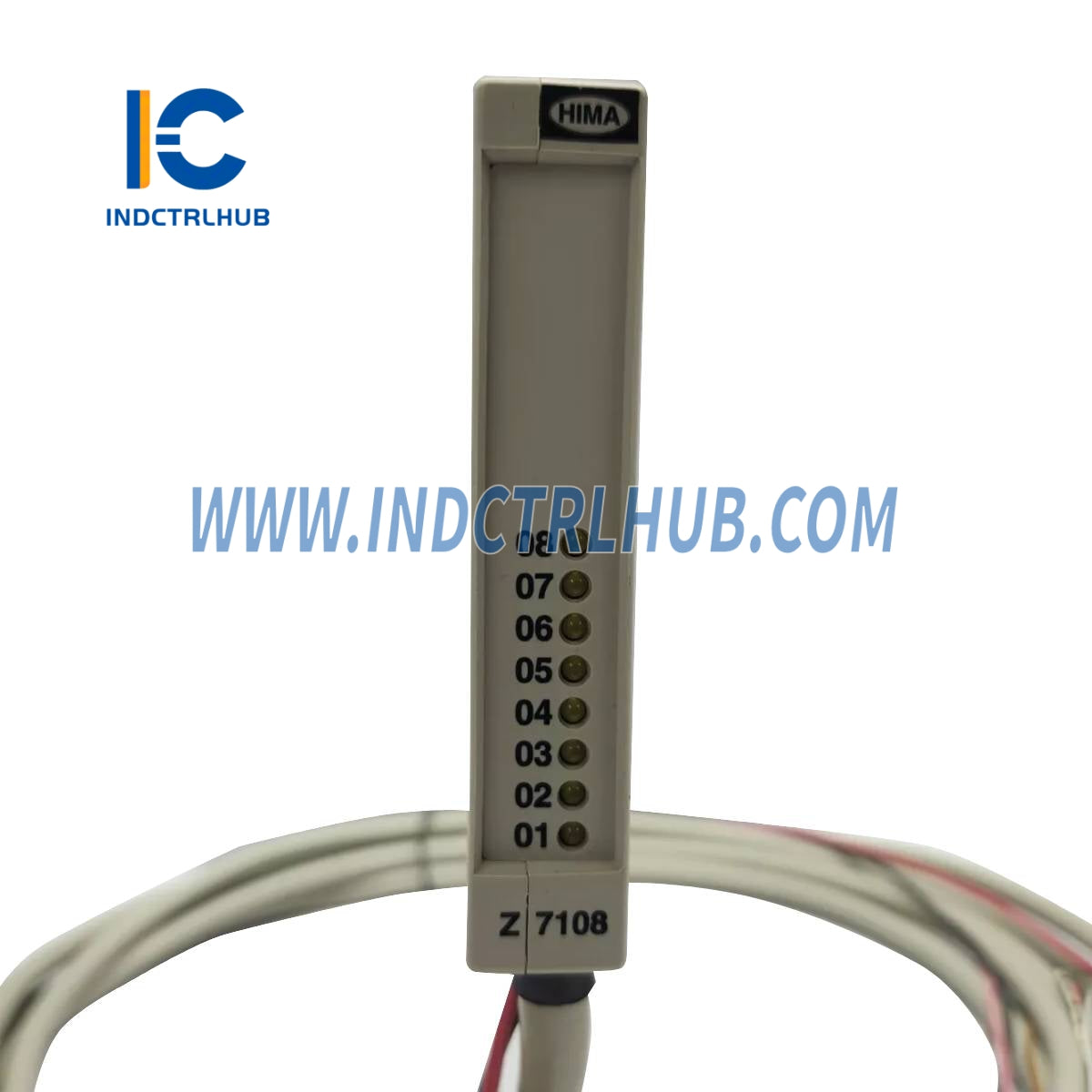

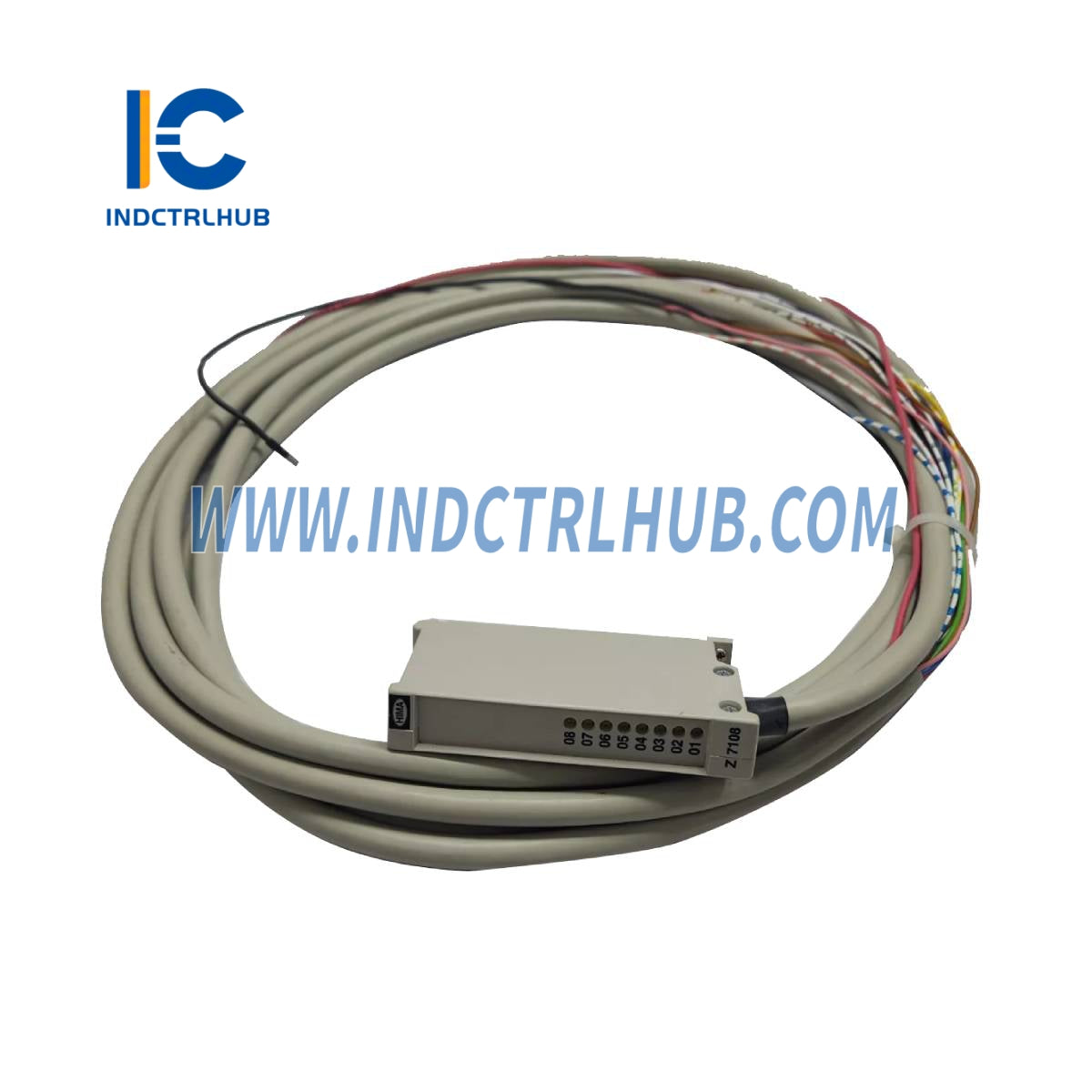

The HIMA Z7108/3237/C5 is a Special Cable Plug designed as an accessory for HIMA safety-related systems, specifically for connecting to the F3237 8-channel digital input module in the HIQuad series. Manufactured by HIMA, this cable plug facilitates mono connection of NAMUR proximity switches (per EN 60947-5-6) to safety modules, ensuring reliable signal transmission in industrial applications such as oil & gas, chemical processing, and power generation. It supports safety integrity levels up to SIL 3 per IEC 61508 when used within specified system constraints.
Technical Specifications
The Z7108/3237/C5 has the following specifications based on standard characteristics for this component:
| Item | Specification |
|---|---|
| Model/Part Number | Z7108/3237/C5 |
| Manufacturer | HIMA |
| Description | Special Cable Plug |
| Series | HIQuad |
| Cable Type | LiYY 16 x 0.5 mm² |
| Connector Type | Flat pin plug, 2.8 x 0.8 mm² |
| Cable Length | 750 mm |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.1 kg (0.22 lbs) |
Additional Details
The Z7108/3237/C5 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Connects NAMUR proximity switches to F3237 input module (mono configuration) |
| Mounting | Plugs into front connector of F3237 module |
| Compatibility | HIMA F3237 8-channel digital input module |
| Features | Color-coded leads for 8 channels, supports line impedance ≤ 50 Ω |
| Certifications | SIL 3 per IEC 61508 (system-dependent) |
