Product Description
Product Overview

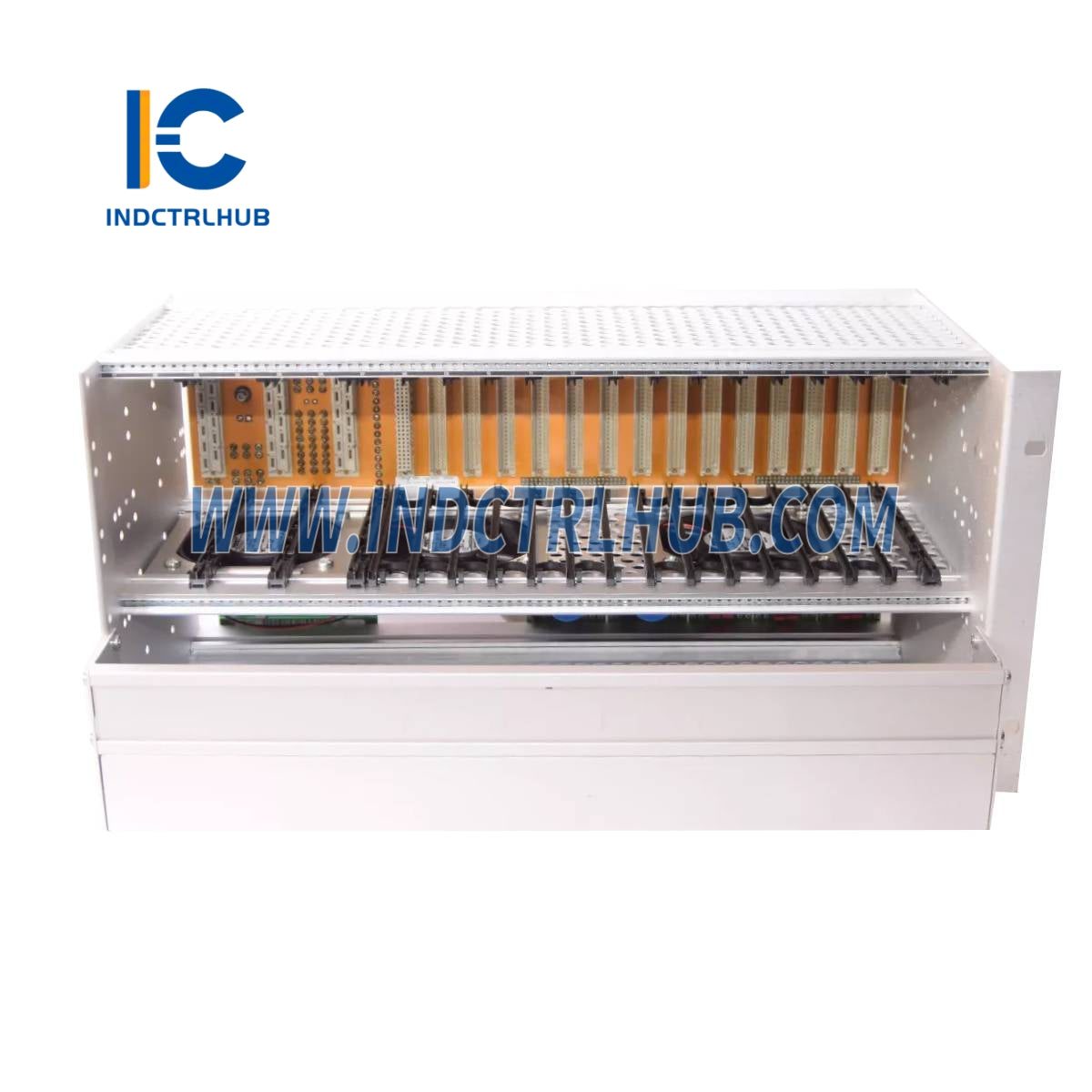

The HIMA H51q-HS 997105233 is an Assembly Kit for the HIQuad H51q-HS safety system, designed for safety-critical applications requiring high reliability. Manufactured by HIMA, this kit includes a central rack and essential modules to configure a safety system with a single-channel I/O bus and redundant central modules. It is used in industries such as oil & gas, chemical processing, and power generation, supporting safety integrity levels up to SIL 3 per IEC 61508.
Technical Specifications
The H51q-HS 997105233 has the following specifications based on standard characteristics for this assembly kit:
| Item | Specification |
|---|---|
| Model/Part Number | H51q-HS 997105233 |
| Manufacturer | HIMA |
| Description | Assembly Kit |
| Series | HIQuad H51q |
| Rack Size | 19 inches wide, 5 units high |
| Power Supply | 24 V DC / 5 V DC, 10 A per module |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 5 kg (11 lbs) |
Additional Details
The H51q-HS 997105233 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Configures a safety system with redundant central modules and single-channel I/O bus |
| Mounting | 19-inch rack mountable |
| Compatibility | HIQuad I/O modules, SafeEthernet |
| Features | Redundant central modules, integrated cable tray, fan modules |
| Certifications | SIL 3 per IEC 61508, TÜV certified |
