Product Description
Product Details
|
Manufacturer |
HIMA |
|---|---|
|
Model/Part Number |

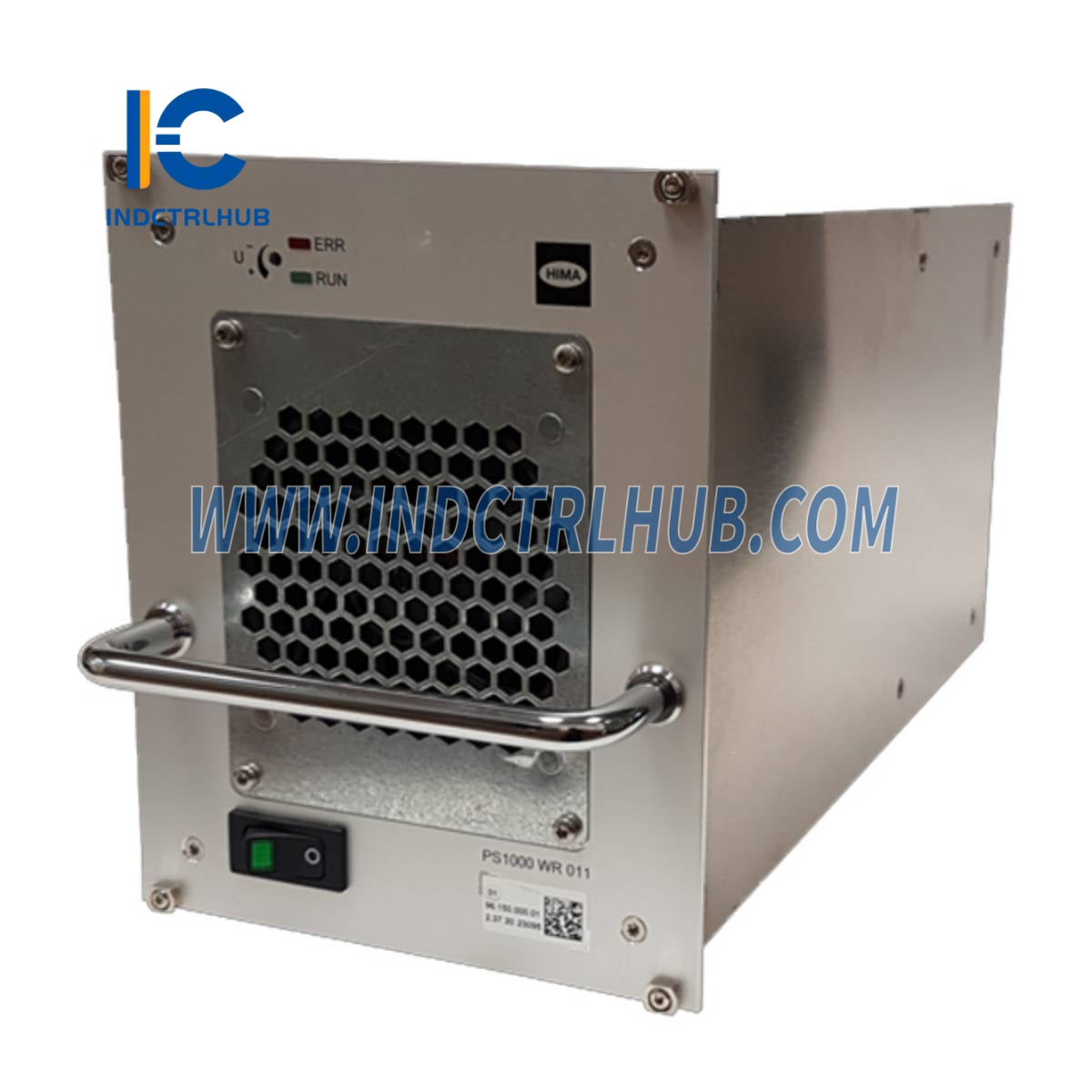

PS 1000 WR 011 |
|
Description |
Power Supply |
Technical Specifications
General
|
Parameter |
Value |
|---|---|
|
Input Voltage |
120 VAC, -15…+10 %, 50…60 Hz |
|
Output Voltage |
24 VDC, adjustable ±10 % via potentiometer on the front plate |
|
Fuse |
120 VAC 16 A automatic |
|
Maximum Load |
40 A continuously |
|
Regulation |
< 100 mV at load change 0…100 % |
|
Efficiency |
> 89% |
|
Power Dissipation |
< 110 W |
|
Hold-up Time |
20 ms |
|
Degree of Protection |
IP20 |
|
Humidity |
< 95% relative, non-condensing |
|
Ambient Temperature |
0…60 °C |
|
Storage Temperature |
-40…+85 °C |
|
Dimensions (WxHxD) |
142 x 173 x 281 mm |
|
Weight |
Approx. 6 kg |
|
External Fusing |
16 A gL |
|
Connections (Min. Cross Sections for Wiring) |
2.5 mm² (120 VAC), 10 mm² (24 VDC), 0.5 mm² (Fail Contact) |
|
Fault Contact (Fail) Switching Capacity |
30 VDC / 1 A, 30 VAC / 0.5 A |
|
Connection Type |
One potential-free changeover contact, connection via terminals 3 x 1.5 mm² |
