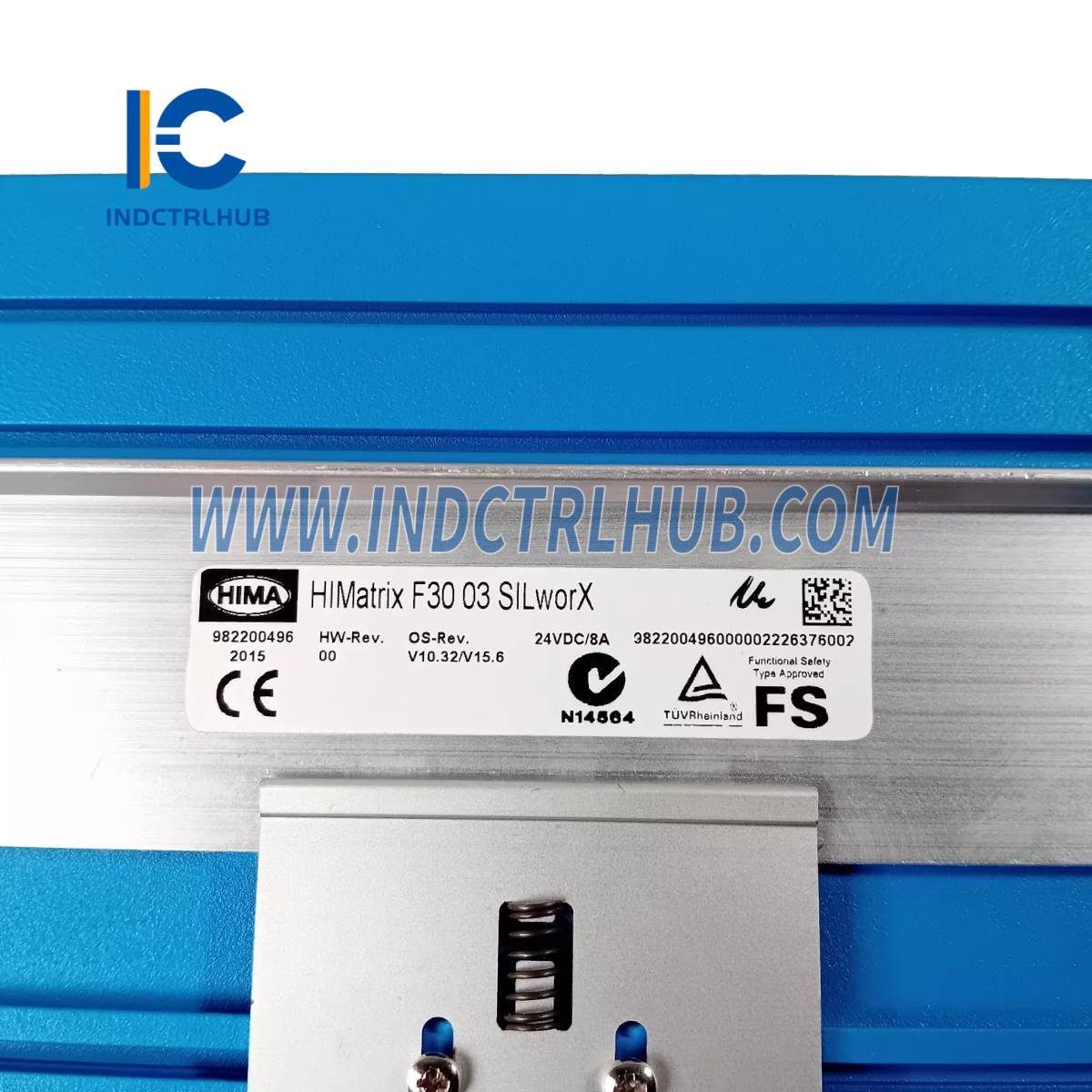

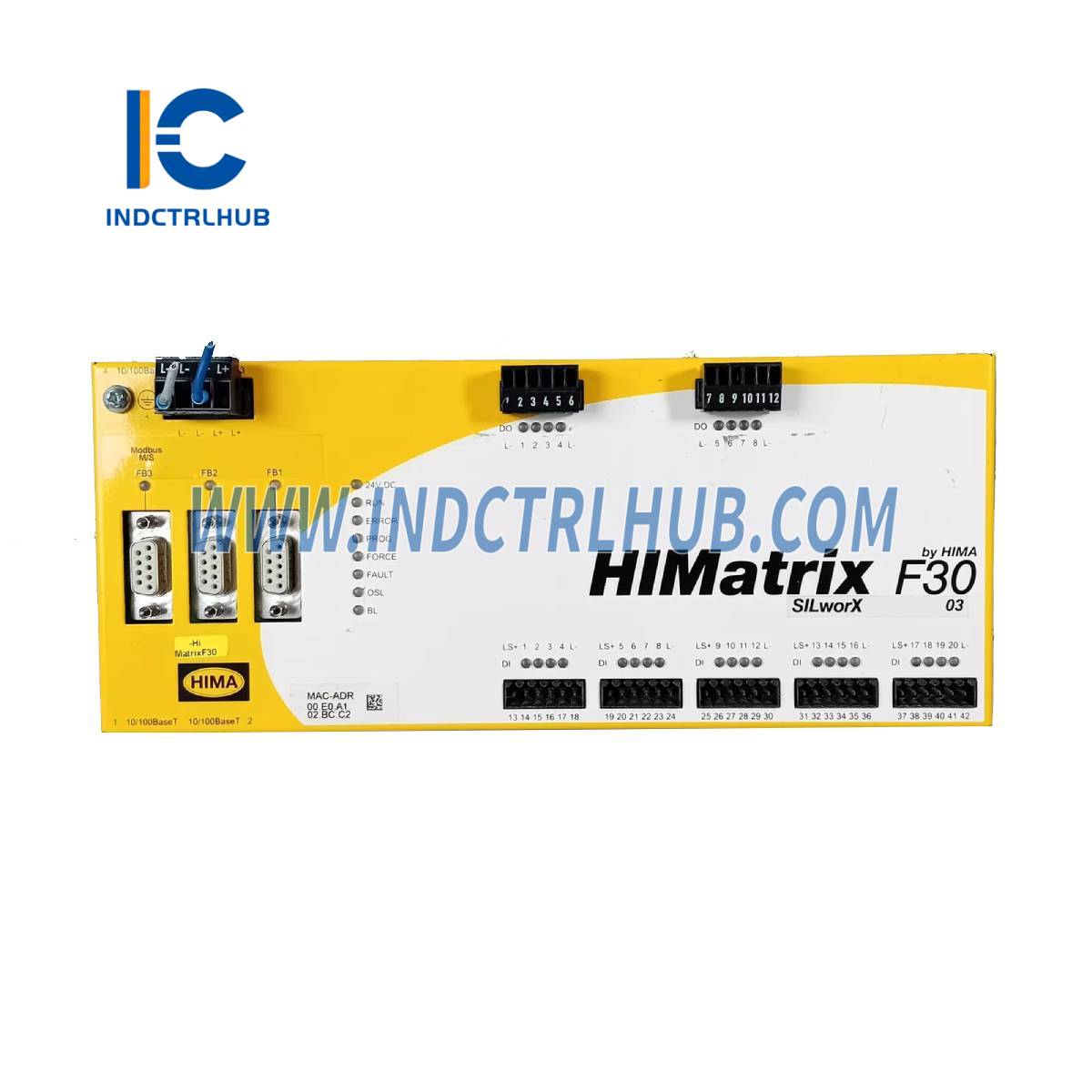

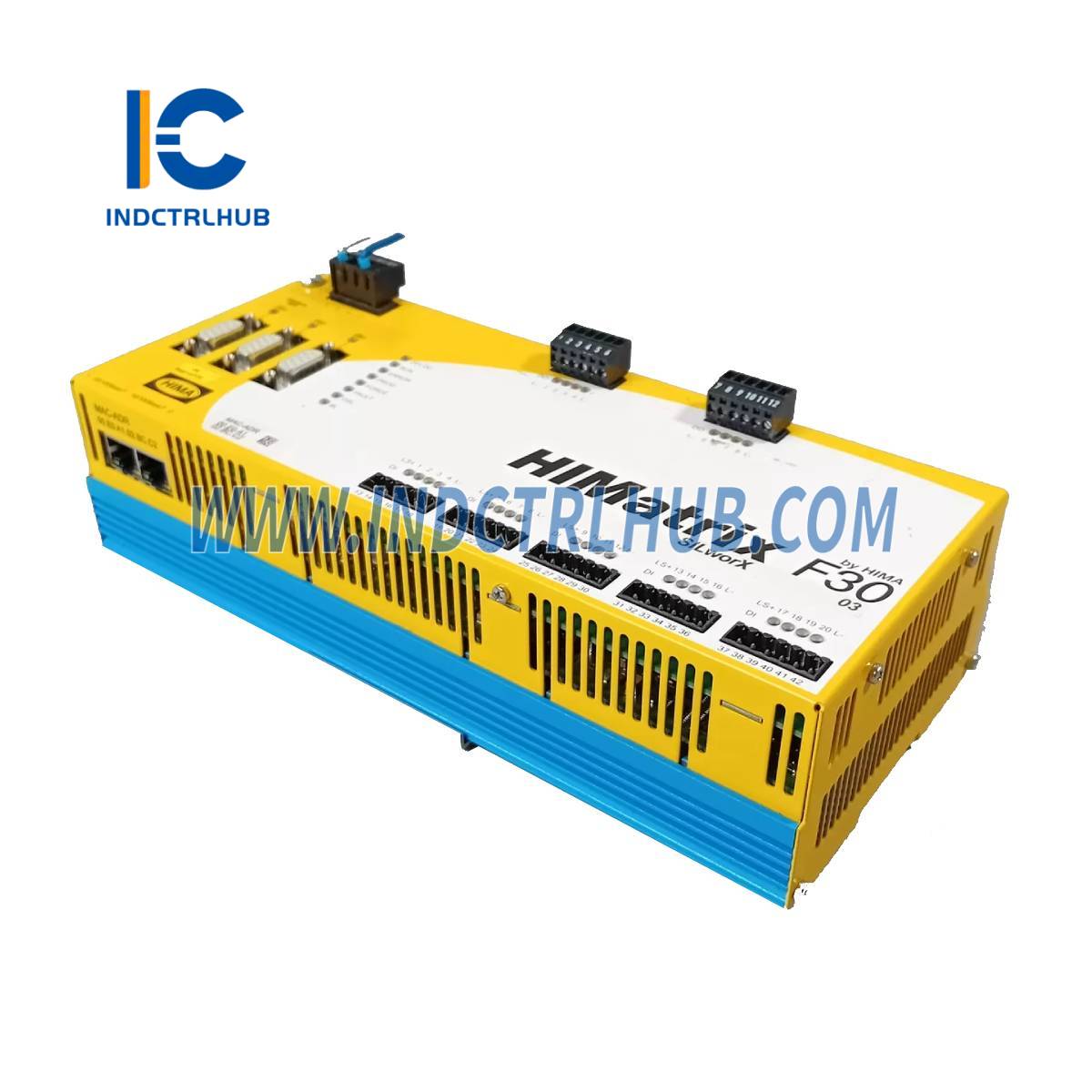

HIMA F30 03 Safety-Related Controller

Model/Part Number

F30 03

Description

Safety-Related Controller

Total Program & Data Memory

5 MB (less 64 kBytes for CRCs)

Response Time

≥ 6 ms

Ethernet Interfaces

4 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch

Fieldbus Interfaces

3 x 9-pole D-sub

Fieldbus Configuration

FB1 & FB2 with pluggable fieldbus submodule, FB3 with RS485 for Modbus (master/slave) or ComUserTask

Operating Voltage

24 VDC (-15% to +20%), rPP ≤ 15%

Current Input

Max. 8 A (with full load), Idle: 0.5 A

Fuse (External)

10 A time-lag (T)

Date/Time Buffer

Gold capacitor

Operating Temperature

0 to +60 °C

Storage Temperature

-40 to +85 °C

Type of Protection

IP20

Dimensions (without plug)

Width: 257 mm (with housing screws)  Height: 114 mm (with fixing bolt)  Depth: 66 mm (with earthing screw)

Weight

Approx. 1.2 kg

Number of Inputs

20 (non-galvanically separated)

High-Level Voltage

15 to 30 VDC

High-Level Current Input

≥ 2 mA at 15 V

Low-Level Voltage

Max. 5 VDC

Low-Level Current Input

Max. 1.5 mA (1 mA at 5 V)

Switching Point

Typ. 7.5 V

Supply

5 x 20 V / 100 mA (at 24 V), short-circuit proof

Number of Outputs

8 (non-galvanically separated)

Output Voltage

≥ L+ minus 2 V

Output Current (Channels 1-3, 5-7)

0.5 A at ≤ 60 °C

Output Current (Channels 4 & 8)

< 50°C: 2 A  50–60°C: 1 A

Minimum Load

2 mA per channel

Internal Voltage Drop

Max. 2 V at 2 A

Leakage Current (Low Level)

Max. 1 mA at 2 V

Overload Behavior (Individual Output)

The affected output is switched off and cyclically switched on again

Total Output Current

Max. 7 A

Overload Behavior (All Outputs)

If overloaded, all outputs are switched off and cyclically switched on again
