Product Description
Product Overview

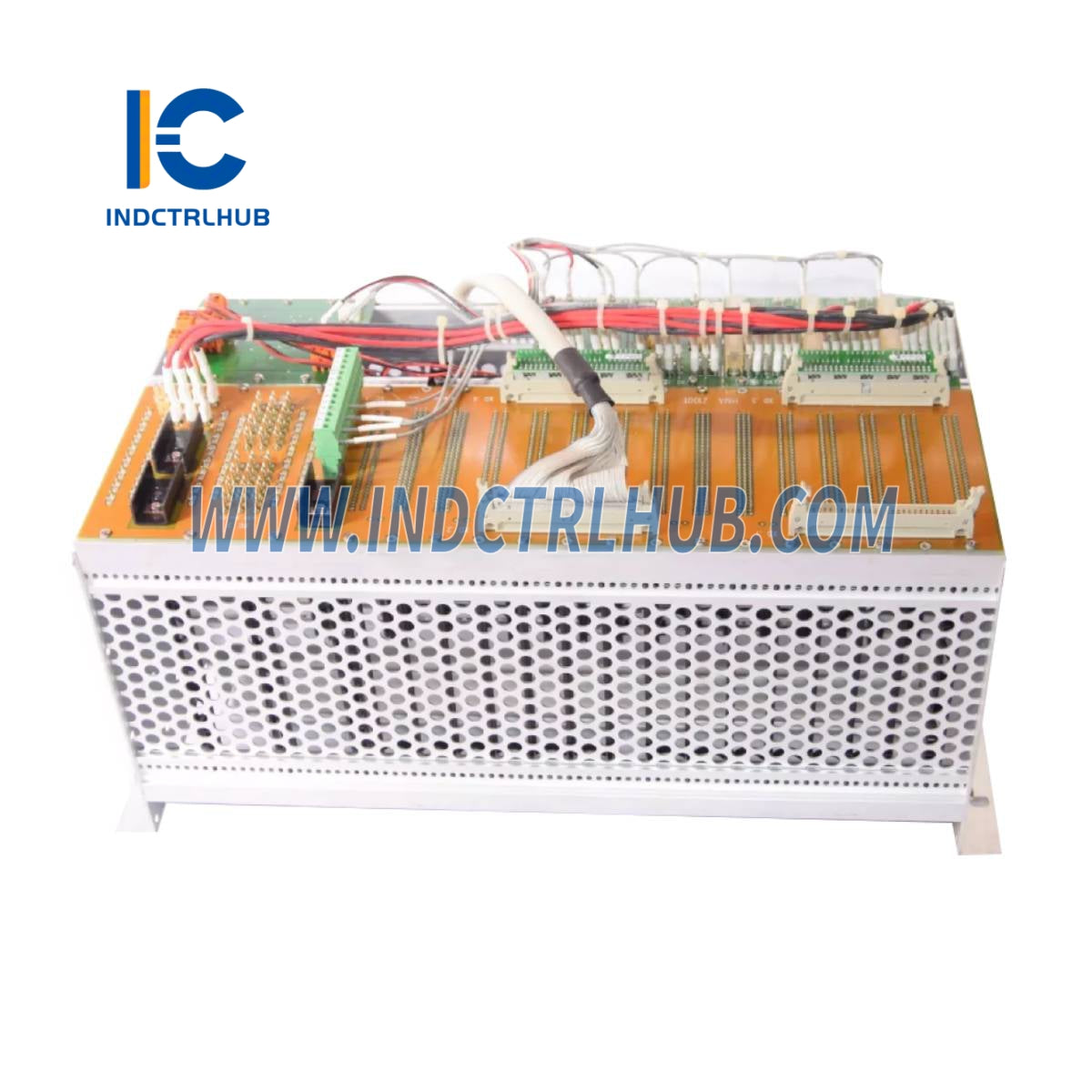

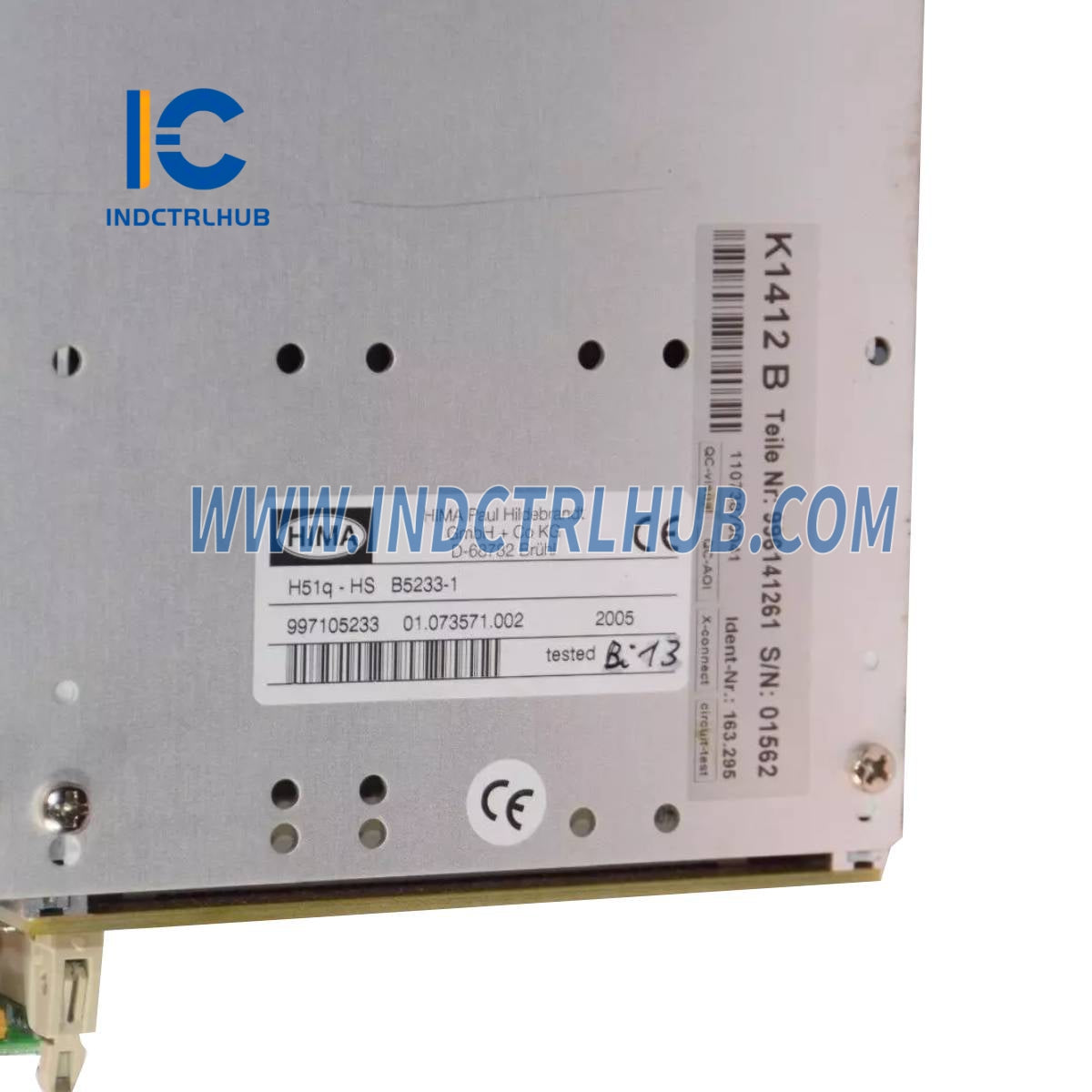

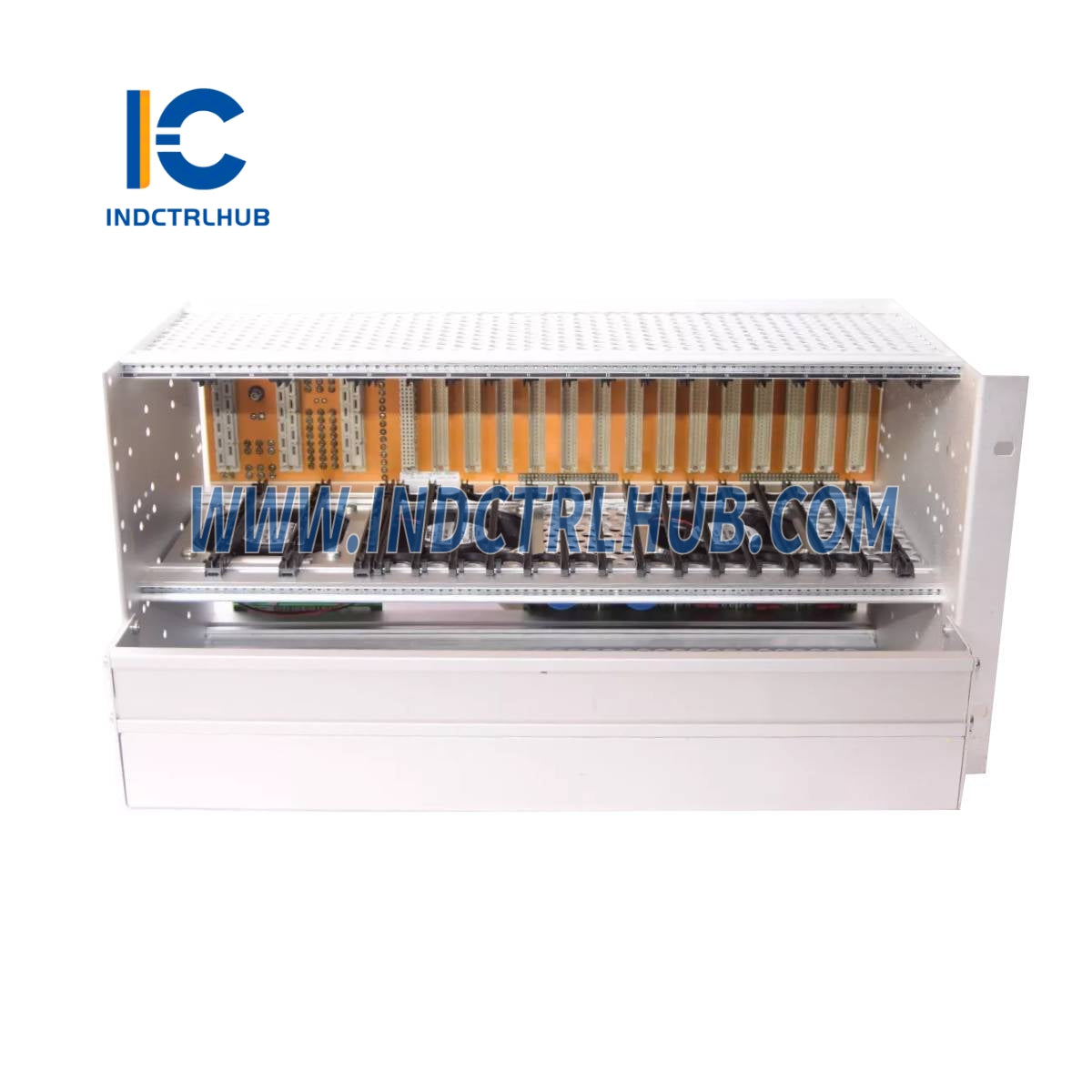

The HIMA H15Q-HS B5233-1 (assumed variant) is a Safety System Subrack designed for safety-critical applications within HIMA’s HIQuad series. Manufactured by HIMA, this assembly kit likely features a single-channel I/O bus with redundant central modules, providing reliable control and monitoring for industrial processes. It is intended for use in environments such as oil & gas, chemical processing, and power generation, where safety integrity up to SIL 3 (IEC 61508) is required. The “HS” designation suggests a high-safety configuration with redundancy for enhanced reliability.
Technical Specifications
The H15Q-HS B5233-1 has the following specifications, inferred from similar HIQuad models like H51q-HS B5233-1:
| Item | Specification |
|---|---|
| Model/Part Number | H15Q-HS B5233-1 |
| Manufacturer | HIMA |
| Description | Safety System Subrack |
| Series | HIQuad |
| I/O Capacity | Up to 128 I/O points (compact configuration, estimated) |
| Power Supply | 24 V DC (via power supply modules, e.g., F7126) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 5 kg (11 lbs), depending on configuration |
Additional Details
The H15Q-HS B5233-1 includes the following additional information, adapted from HIQuad standards:
| Category | Details |
|---|---|
| Function | Executes safety logic with redundant processing |
| Mounting | 19-inch rack, likely 5 HU (height units) |
| Compatibility | HIQuad I/O modules (e.g., F3422, F6214), SafeEthernet |
| Features | Redundant central modules, single I/O bus, power supply monitoring |
| Certifications | SIL 3 (IEC 61508), TÜV certified |
| Part Type | System assembly |
