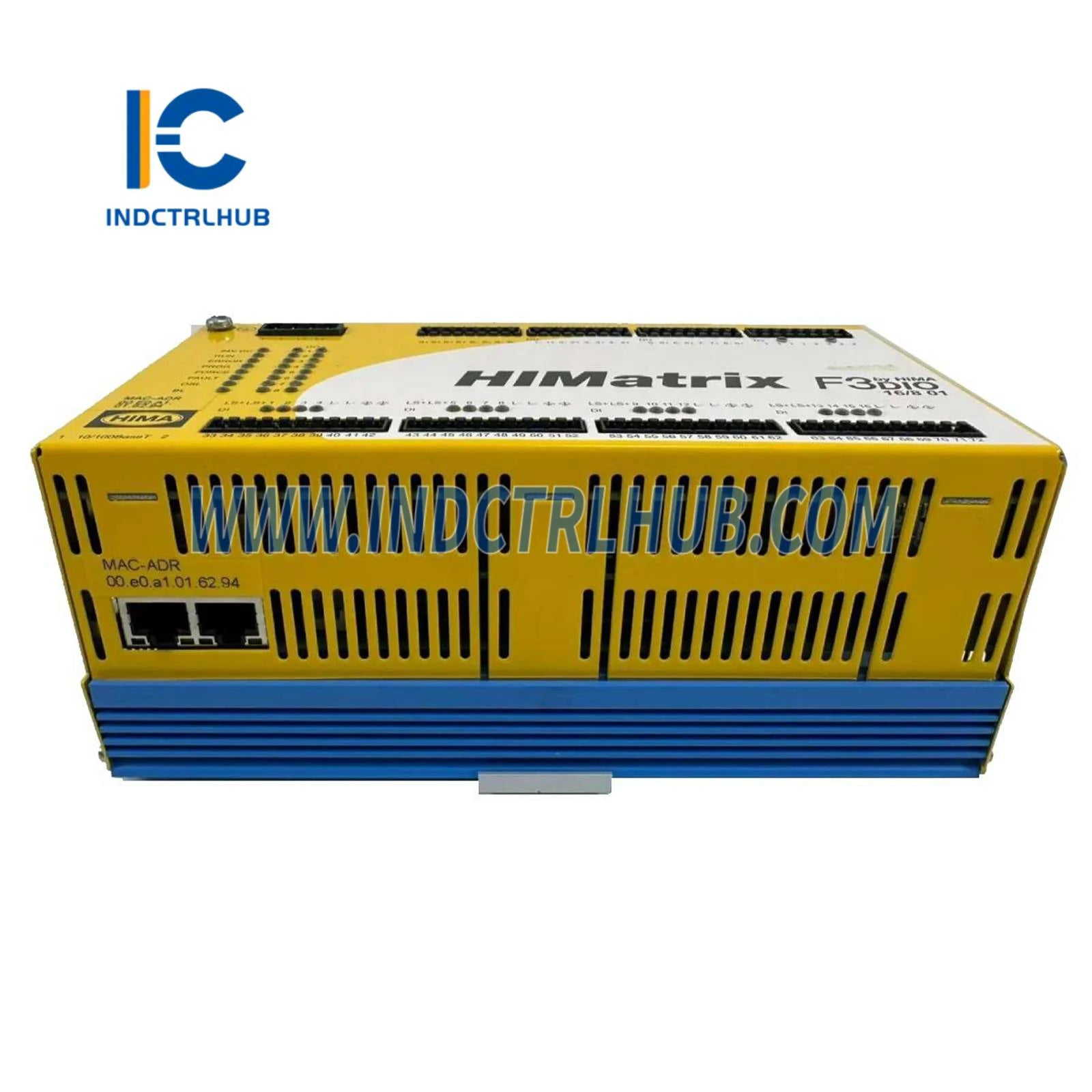

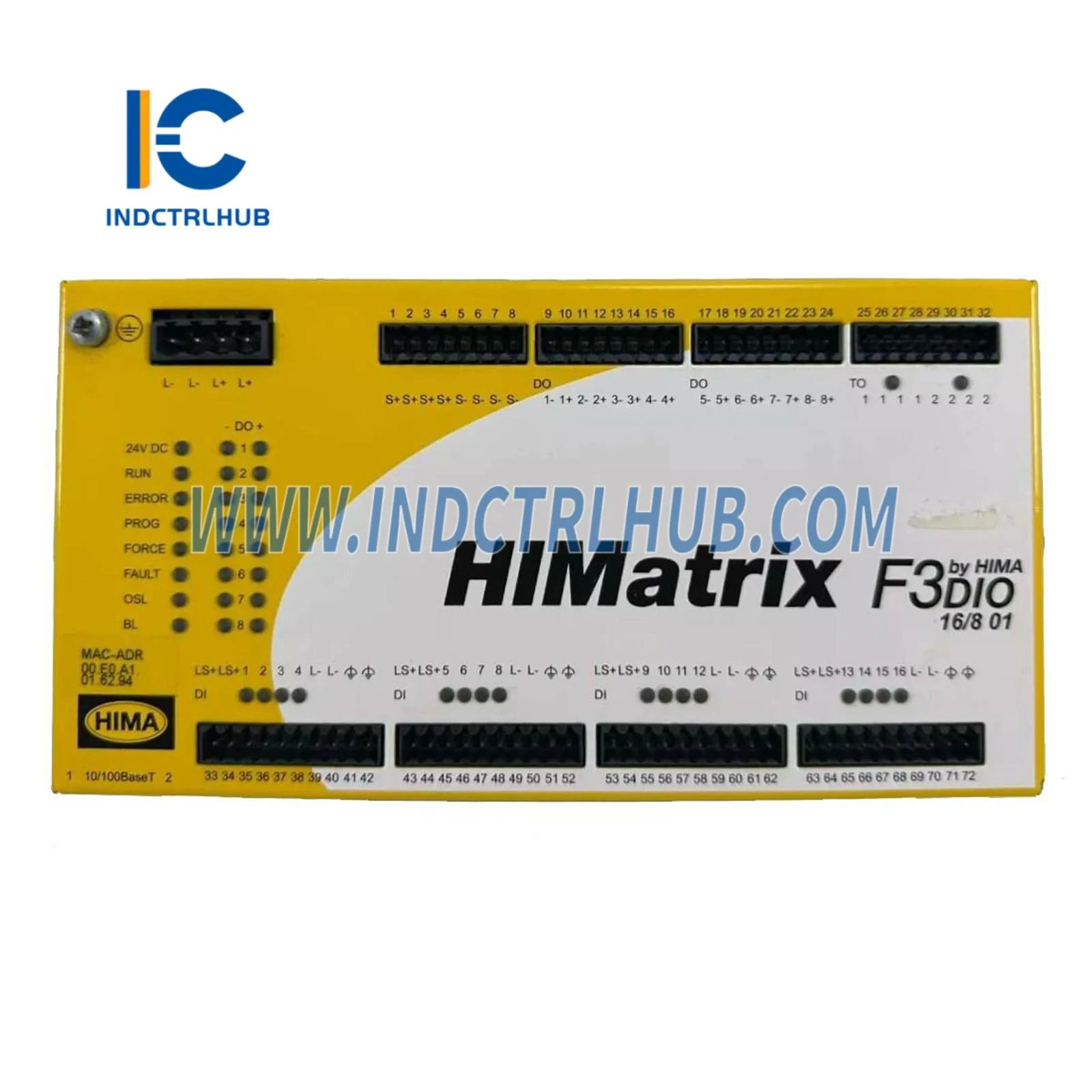

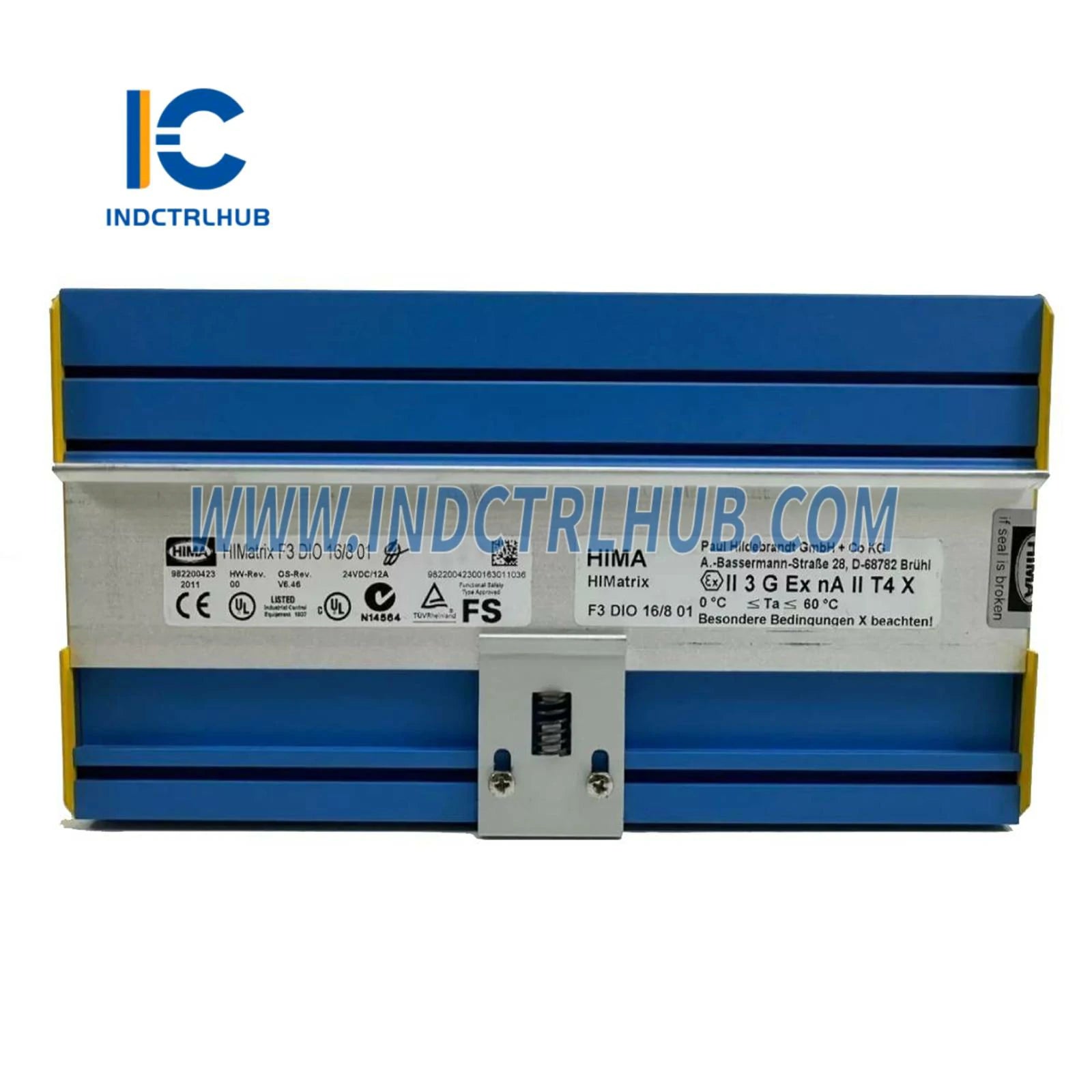

HIMA F3DIO16/8 01 Safety-Related Controller

Model/Part Number

F3DIO16/8 01

Description

Safety-Related Controller

Response Time

≥ 10 ms

Ethernet Interfaces

2 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch

Operating Voltage

24 VDC (-15% to +20%), rPP ≤ 15%, from a power supply unit with safe insulation (IEC 61131-2)

Current Input

Max. 11 A (with maximum load) (UL: max. 10 A), Idle: 0.45 A

Fuse (External)

12 A time-lag (T)

Operating Temperature

0°C to +60°C

Storage Temperature

-40°C to +85°C

Type of Protection

IP20

Dimensions (W x H x D)

205 mm x 114 mm x 88 mm (without plug)

Weight

Approx. 1.3 kg

Number of Inputs

16 (non-galvanically separated)

High-Level Voltage

15…30 VDC

High-Level Current Input

≥ 2 mA at 15 V

Low-Level Voltage

Max. 5 VDC

Low-Level Current Input

Max. 1.5 mA (1 mA at 5 V)

Switching Point

Typ. 7.5 V

Switching Time

250 µs

Supply

- 4 x LS+ minus 4 V / 40 mA, short-circuit-proof, Buffered for 20 ms   - 2 x LS+ minus 2 V / 1 A total, short-circuit-proof, Unbuffered

Current Input

Max. 1 A at 60°C

Number of Outputs

8 (non-galvanically separated)

Switching Type

2-pole switching

Output Voltage

≥ L+ minus voltage drop (L+ and L- leg)

Voltage Drop (2-pole Outputs)

Max. 3 V at 2 A

Voltage Drop (Outputs DO+)

Max. 1.5 V at 2 A

Voltage Drop (Outputs DO-)

Max. 1.5 V at 2 A

Output Current

Max. 2 A at < 40°C  Max. 1 A at 40…60°C  Min. 10 mA

Total Permissible Current

Max. 8 A

Leakage Current (Low Level)

Max. 1 mA at 2 V

Lamp Load

Max. 25 W

Inductive Load

Max. 500 mH

Line Diagnosis

Open-Circuit > 4 kΩ  Short-Circuit < 10 Ω

Overload Behavior

The affected output is switched off and cyclically switched on again

Number of Outputs

2 (non-galvanically separated)

Output Voltage

≥ L+ minus 4 V

Output Current

Approx. 60 mA

Minimum Load

None

Switching Time

≤ 100 µs

Overload Behavior

2 x ≥ 19.2 V, short-circuit current 60 mA at 24 V
