Product Description
Product Details
|
Manufacturer |
HIMA |
|---|---|
|
Model/Part Number |

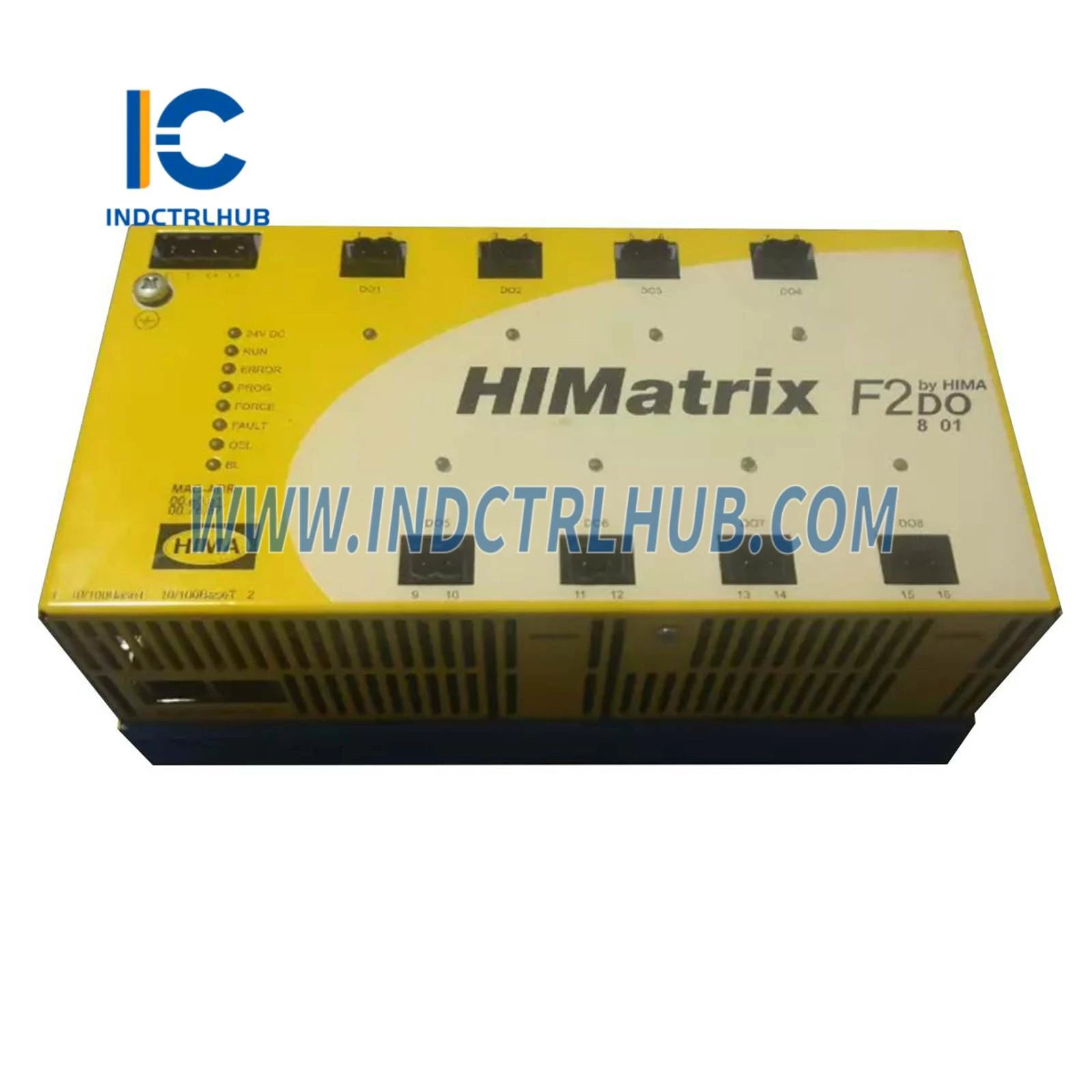

F2DO8 01 |
|
Description |
Safety-Related Controller |
Technical Specifications
General Specifications
|
Parameter |
Value |
|---|---|
|
Response Time |
≥ 20 ms |
|
Ethernet Interfaces |
2 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch |
|
Operating Voltage |
24 VDC (-15% to +20%), rPP ≤ 15%, from a power supply unit with safe insulation (IEC 61131-2) |
|
Current Input |
Max. 0.6 A |
|
Fuse (External) |
10 A time-lag (T) |
|
Electrical Isolation of Channels |
Yes |
|
Back-Up Battery |
None |
|
Operating Temperature |
0°C to +60°C |
|
Storage Temperature |
-40°C to +85°C |
|
Type of Protection |
IP20 |
|
Dimensions (W x H x D) |
207 mm x 114 mm x 86 mm (without plug) |
|
Weight |
1.3 kg |
Relay Outputs
|
Parameter |
Value |
|---|---|
|
Relay Types (Per Channel) |
2 safety relays with forcibly guided contacts, 1 standard relay |
|
Number of Channels |
8 potential-free normally open contacts |
|
Switching Voltage |
≥ 5 V, ≤ 250 VAC / 250 VDC |
|
Switching Current |
≥ 10 mA, ≤ 3 A |
|
Internal Fuse |
3.15 A (fuse breaking capacity: 100 A) |
|
Contact Material |
Silver alloy (AgNi) |
|
Switching Time |
Approx. 30 ms |
|
Reset Time |
Approx. 10 ms |
|
Bounce Time |
Approx. 15 ms |
|
Contact Lifetime |
- Mechanical: ≥ 10 x 10⁶ switching operations - Electrical: See Figure 4 |
