Product Description
Product Overview

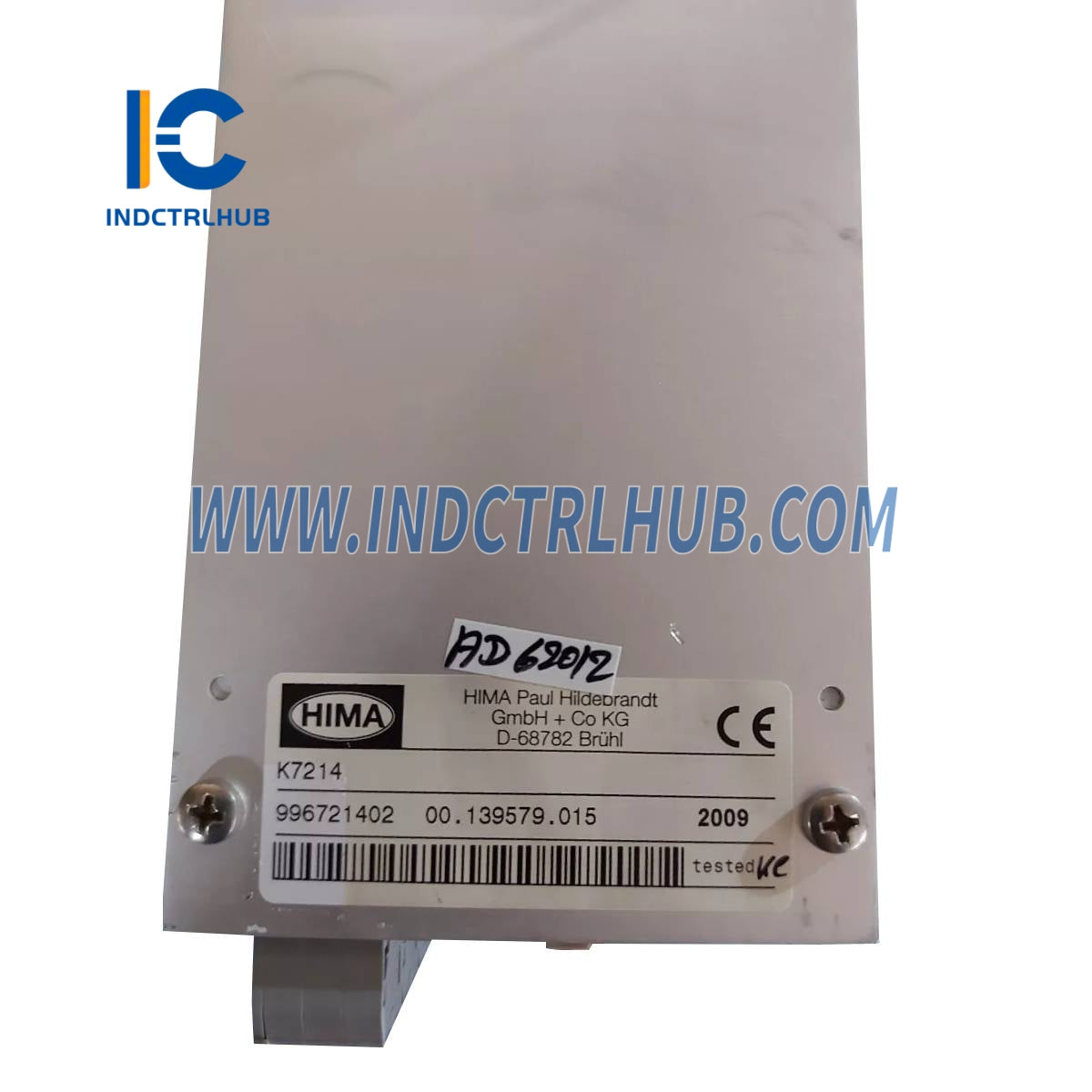

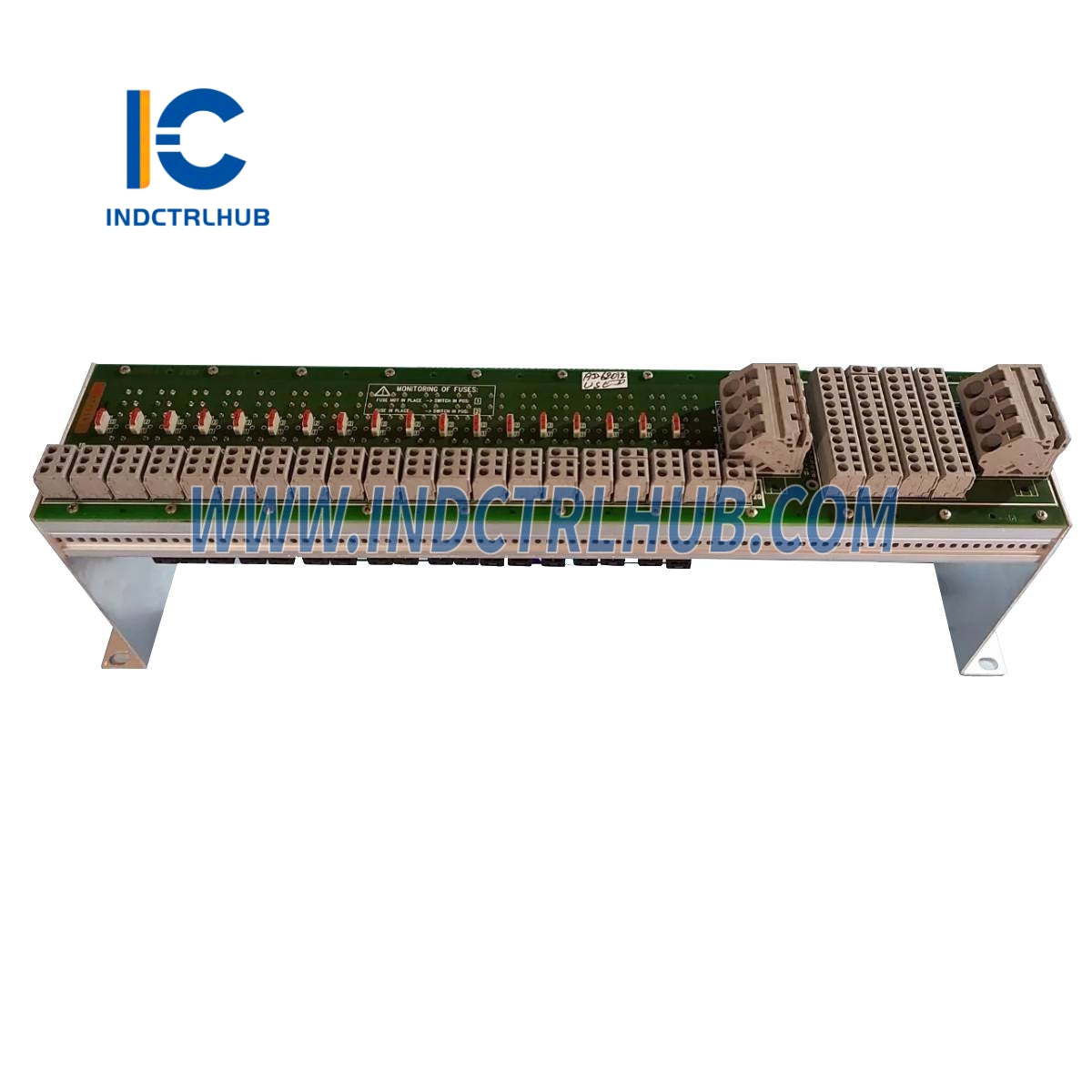

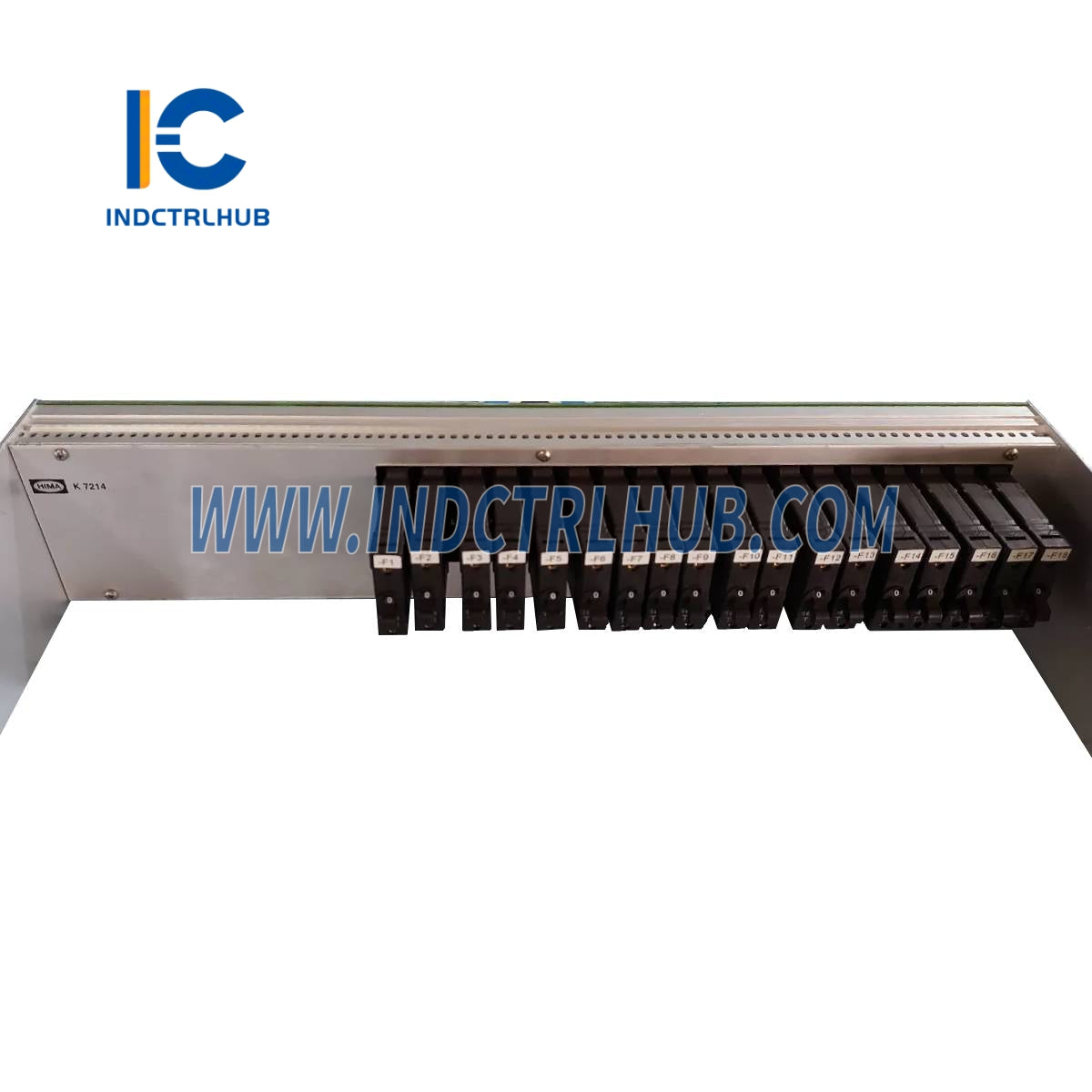

The HIMA K7214 is a Current Distribution Module designed for use in HIMA safety-related systems. Manufactured by HIMA, this module provides power distribution with up to 18 circuit breaker slots, ensuring reliable and safe power supply management in industrial applications such as oil & gas, chemical processing, and power generation. It is built to support safety integrity levels up to SIL 3 per IEC 61508.
Technical Specifications
The K7214 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | K7214 |
| Manufacturer | HIMA |
| Description | Current Distribution Module |
| Maximum Current | 120 A |
| Number of Circuits | 18 |
| Power Supply | 24 V DC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 3.25 kg (7.17 lbs) |
Additional Details
The K7214 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Distributes power with circuit breaker protection |
| Mounting | 19-inch rack, 2 units high |
| Compatibility | HIMA safety systems |
| Features | Heat sink for decoupling diodes, mounting plate for circuit breakers, network filters |
| Certifications | SIL 3 per IEC 61508 |
