Product Description
Product Overview

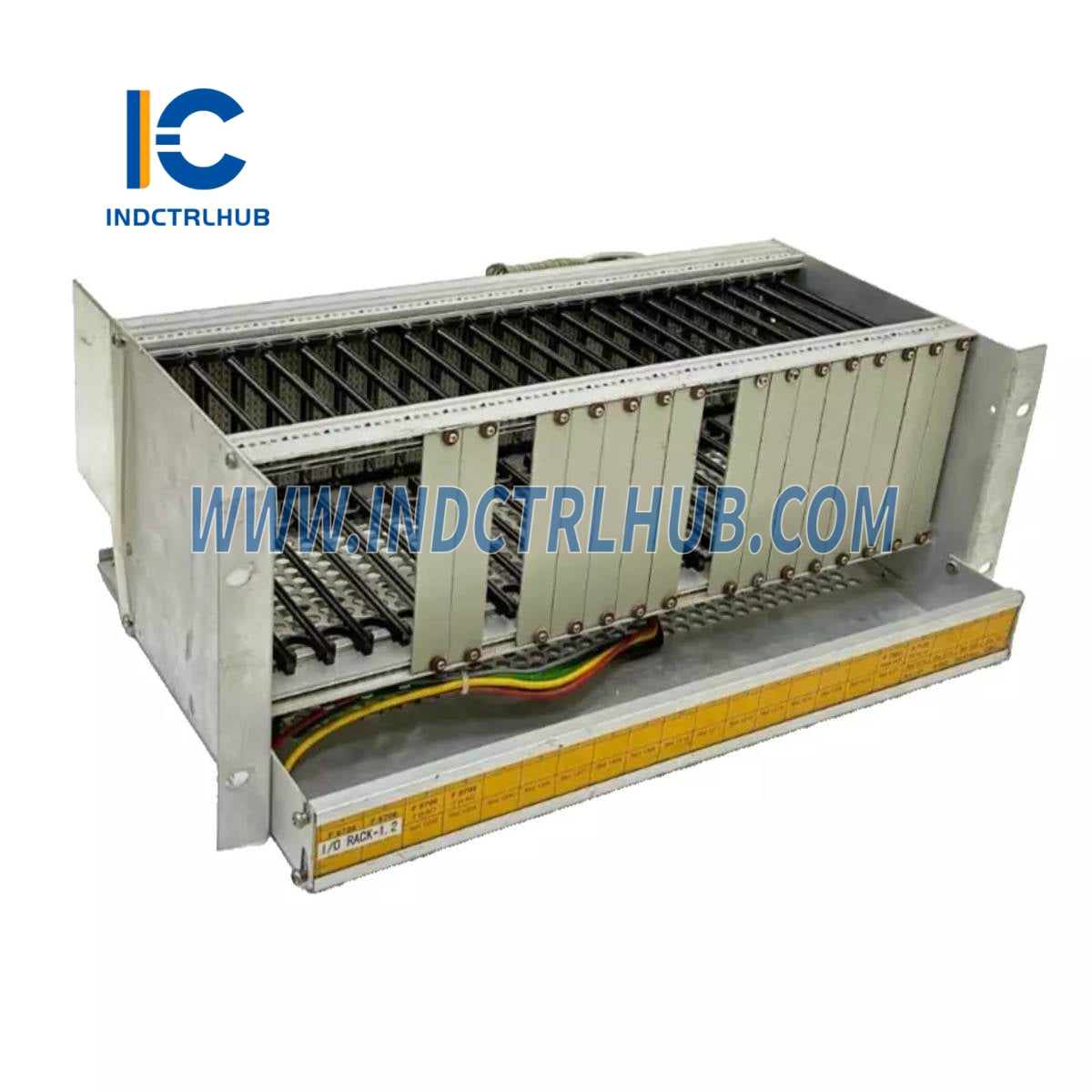

The HIMA B9302 is an I/O-Rack designed for the HIQuad safety-related control system. Manufactured by HIMA, this 19-inch rack assembly, 4 units high, accommodates up to 16 I/O modules and additional components such as power distribution and coupling modules. It is used in industrial safety applications, including oil & gas, chemical processing, and power generation, to house and connect I/O modules for safety-critical processes, supporting safety integrity levels up to SIL 3 per IEC 61508.
Technical Specifications
The B9302 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | B9302 |
| Manufacturer | HIMA |
| Description | I/O-Rack |
| Series | HIQuad |
| Rack Size | 19 inches wide, 4 units high |
| Slot Capacity | 16 slots for I/O modules (slots 1-16), additional slots for power and coupling modules |
| Power Supply | 24 V DC via power distribution modules |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.8 kg (1.76 lbs) |
Additional Details
The B9302 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Houses and connects I/O modules for safety system operations |
| Mounting | 19-inch rack mountable |
| Compatibility | HIQuad I/O modules (e.g., F3422, F6214), F7553 coupling module, F7133 power distribution |
| Features | Integrated cable tray, hinged label receptacle, supports BV 7032 flat cable (0.5 m or 1 m standard lengths) |
| Certifications | SIL 3 per IEC 61508 |
