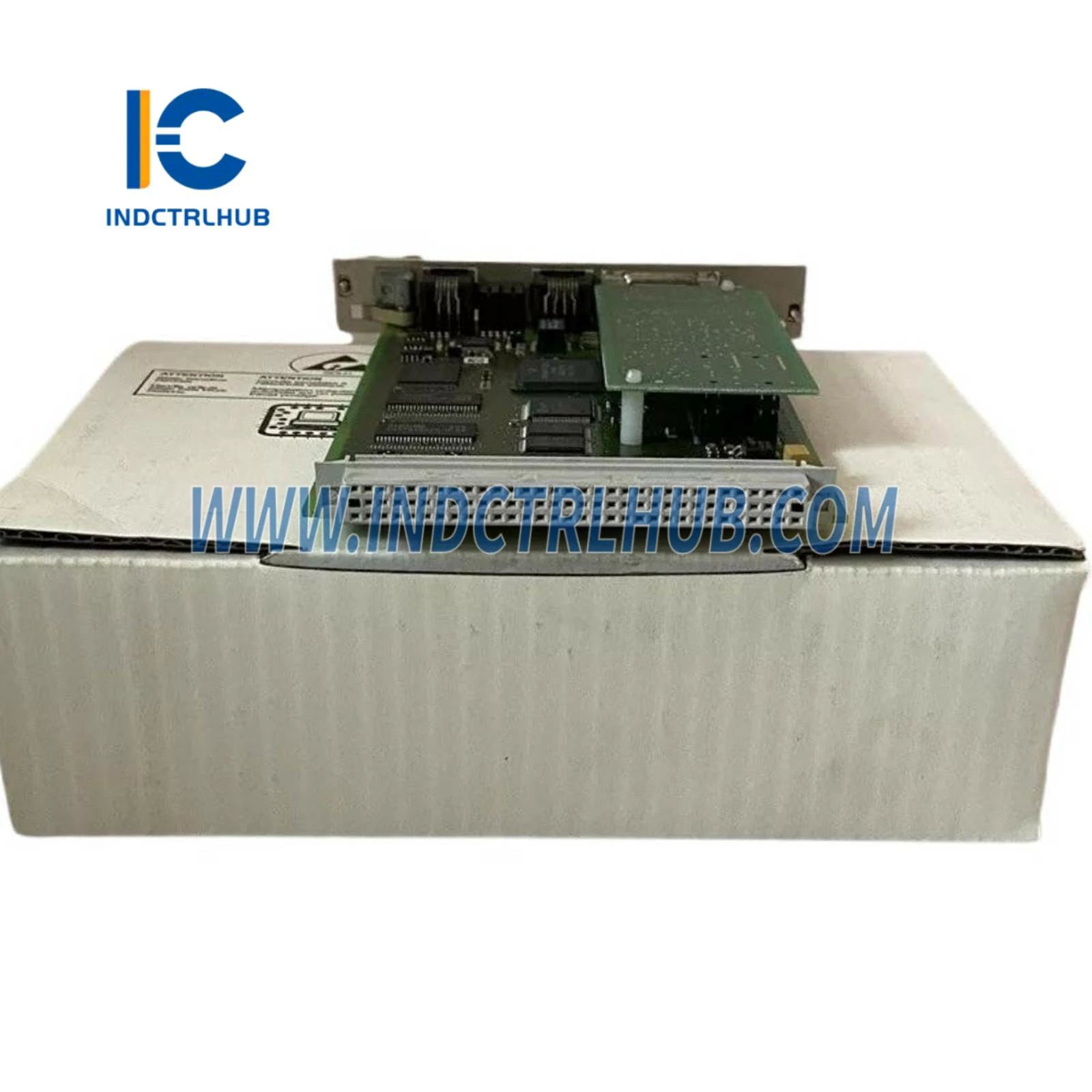

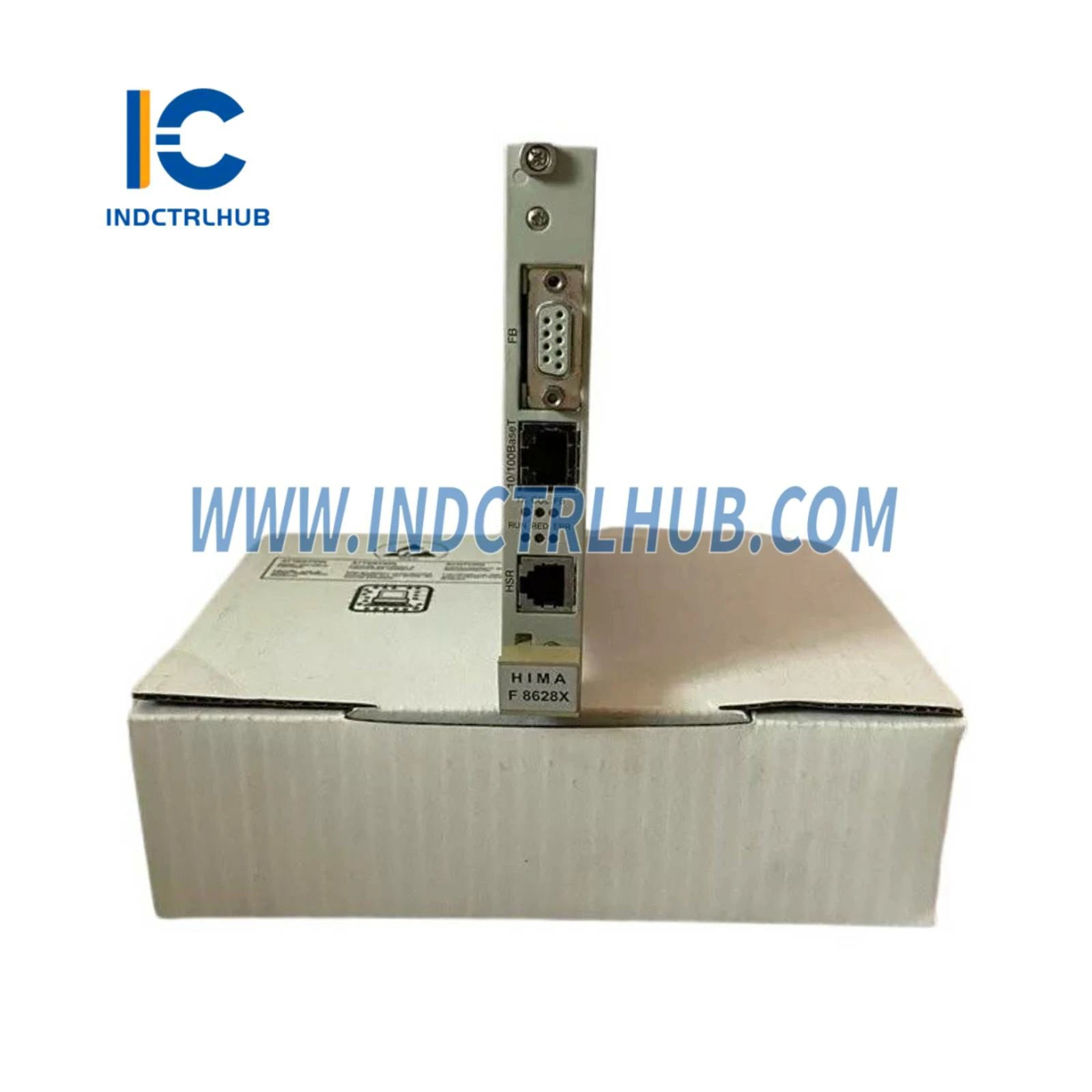

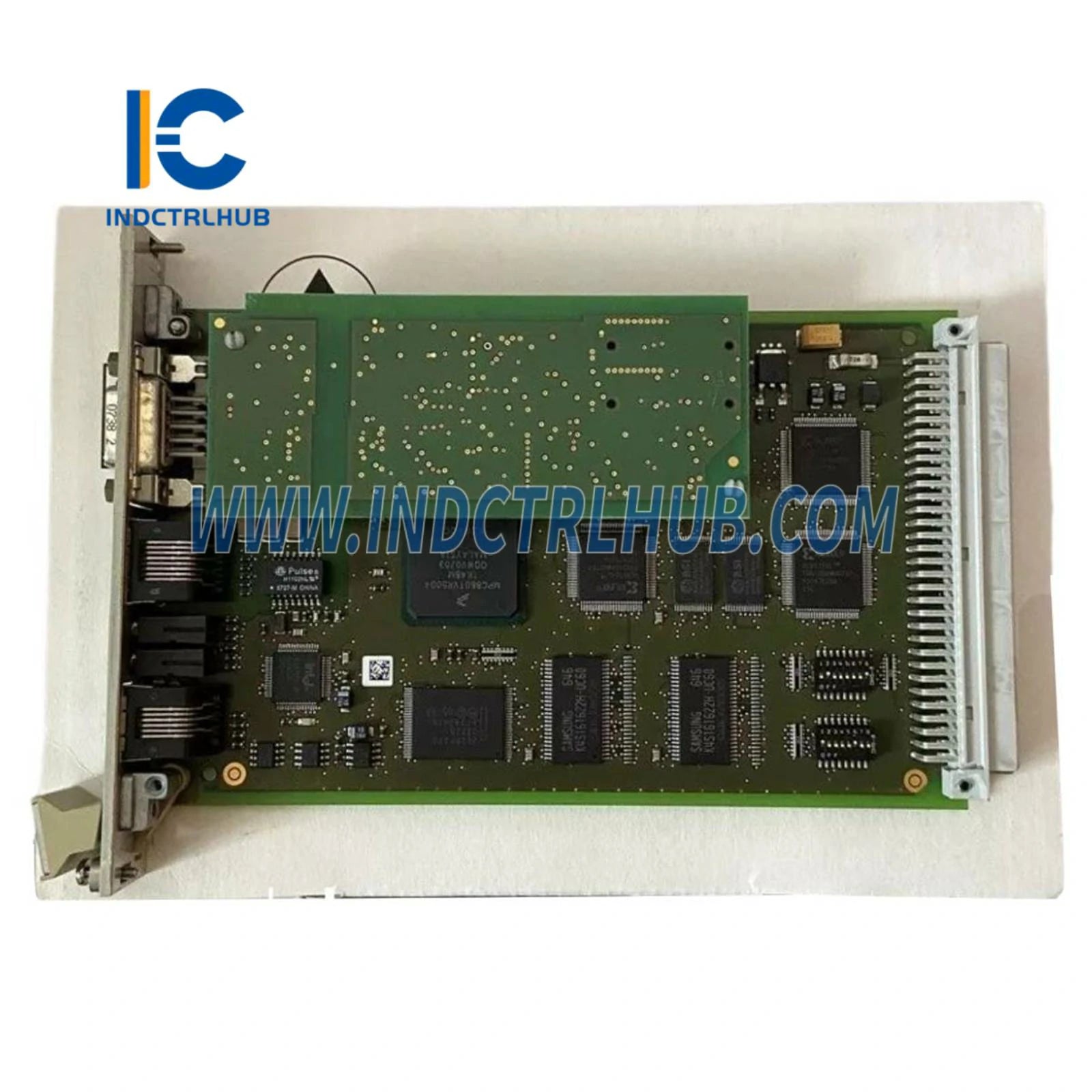

HIMA F8628X Communication Module
HIMA F8628X Communication Module
Manufacturer: HIMA
Product No.: F8628X
Condition:1000 in stock
Product Type: Communication Module
Product Origin: Germany
Payment: T/T, Western Union
Weight: 200g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
The HIMA F8628X is a Communication Module designed for use in HIMA safety-related control systems, such as the H41q/H51q or HIMatrix series. This module enables the HIMA controller to operate as a Profibus DP slave, facilitating communication with external systems like PLCs, SCADA, or HMIs. Additionally, it supports ELOP II TCP programming over Ethernet (from OS version 4.x), enhancing data exchange between the controller and a programming PC (PADT). It is typically deployed in industrial safety applications, such as oil & gas, chemical processing, and power generation, where reliable communication is critical for achieving safety integrity levels up to SIL 3.
Technical Specifications
The F8628X has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | F8628X |
| Manufacturer | HIMA |
| Description | Communication Module |
| Communication Interfaces | 1 x Profibus DP (RS-485, galvanically isolated) 1 x Ethernet (ELOP II TCP, from OS V4.x) |
| Profibus Baud Rate | Up to 12 Mbps |
| Power Supply | 24 V DC (via system backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 0.2 kg (0.44 lbs) |
Additional Details
The F8628X includes the following additional information based on its standard use and documentation:
_
| Category | Details |
|---|---|
| Function | Enables Profibus DP slave communication and ELOP II TCP programming |
| Mounting | Plugs into HIMA system rack (e.g., H41q/H51q or HIMatrix) |
| Compatibility | HIMA H41q/H51q, HIMatrix safety controllers; requires F865x CPUs for full functionality |
| Features | Galvanic isolation for Profibus, supports ELOP II TCP (V4.x+), backward compatible with F8628 |
| Certifications | Suitable for SIL 3 applications per IEC 61508 |
| Part Type | New, surplus, or refurbished_ |
