Product Description
Product Overview

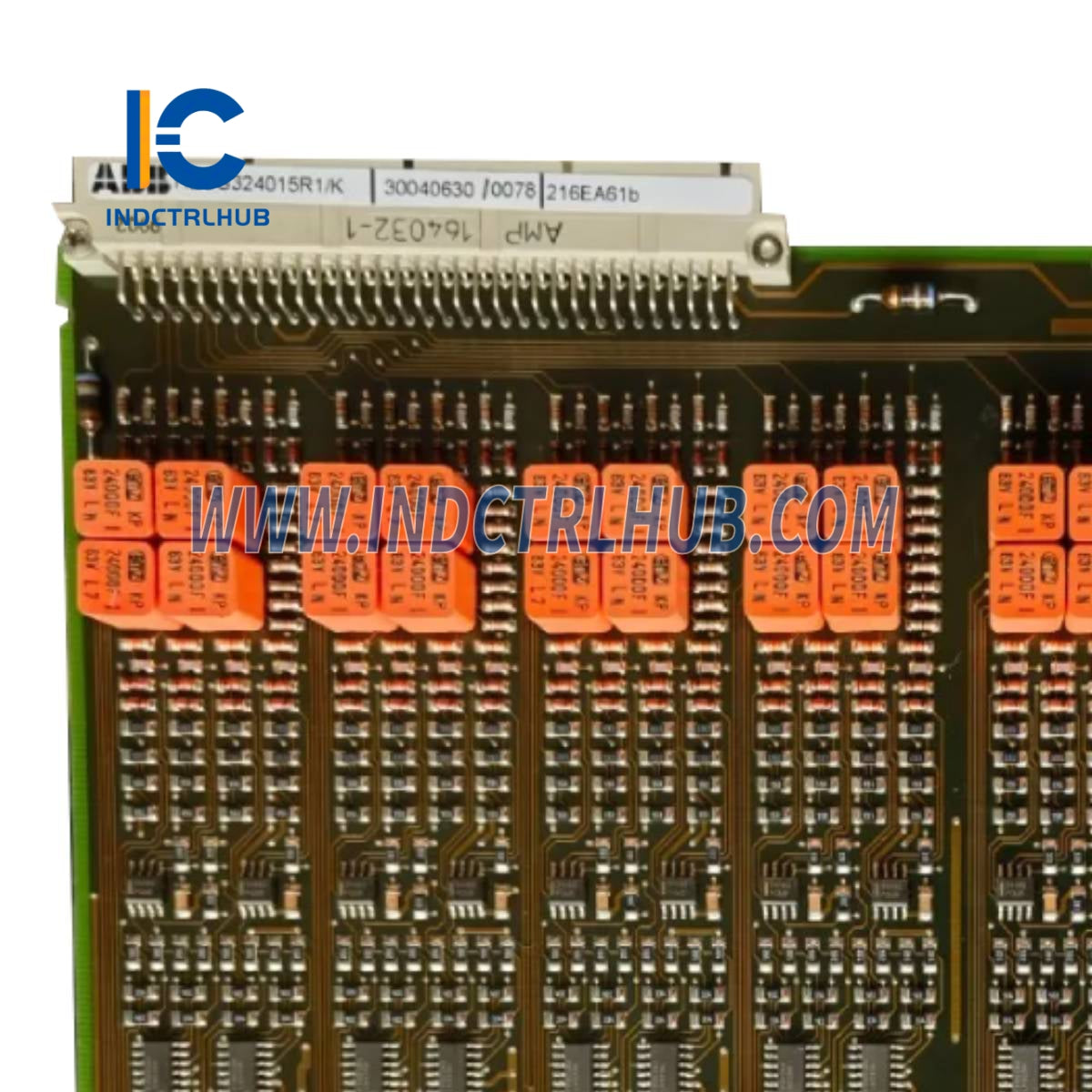

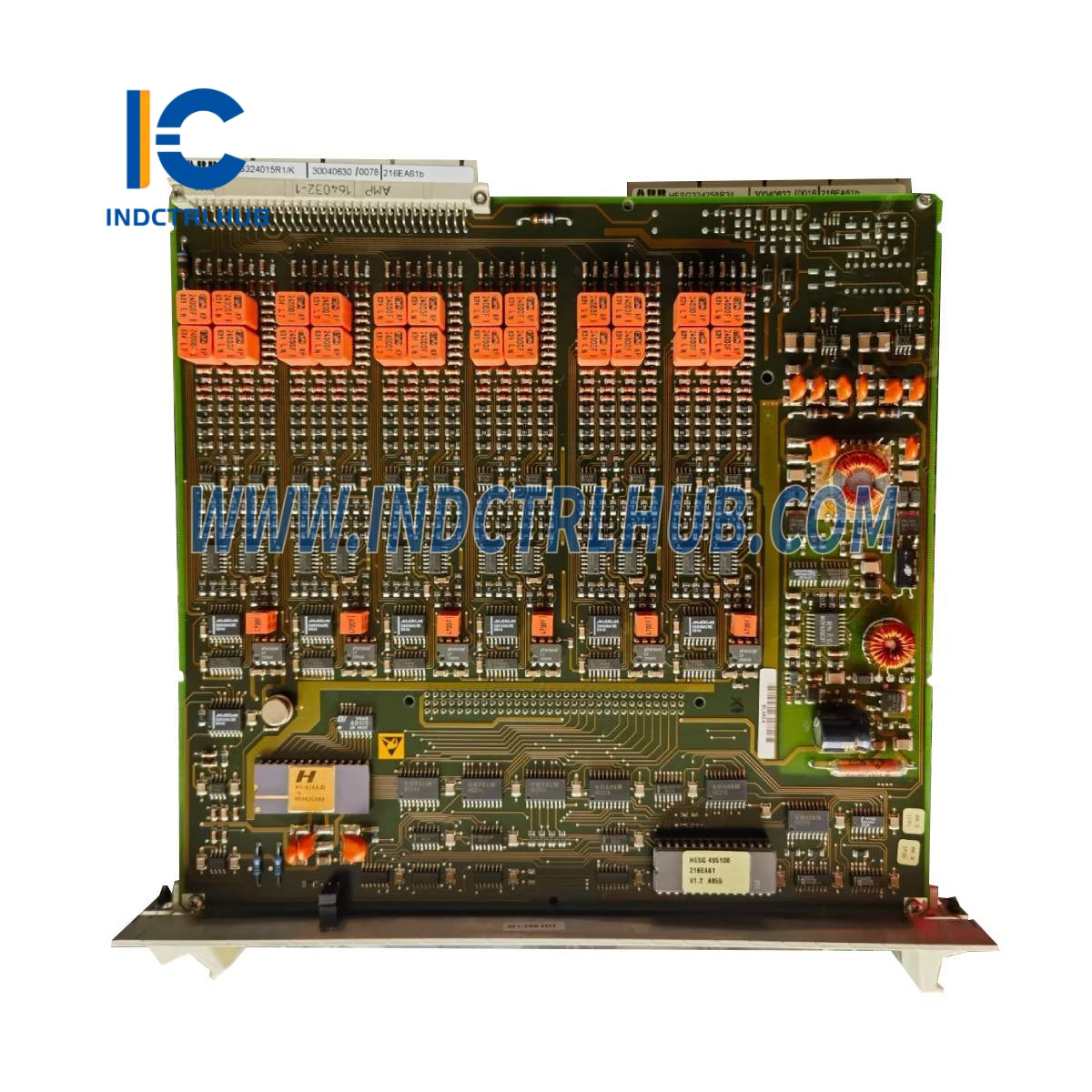

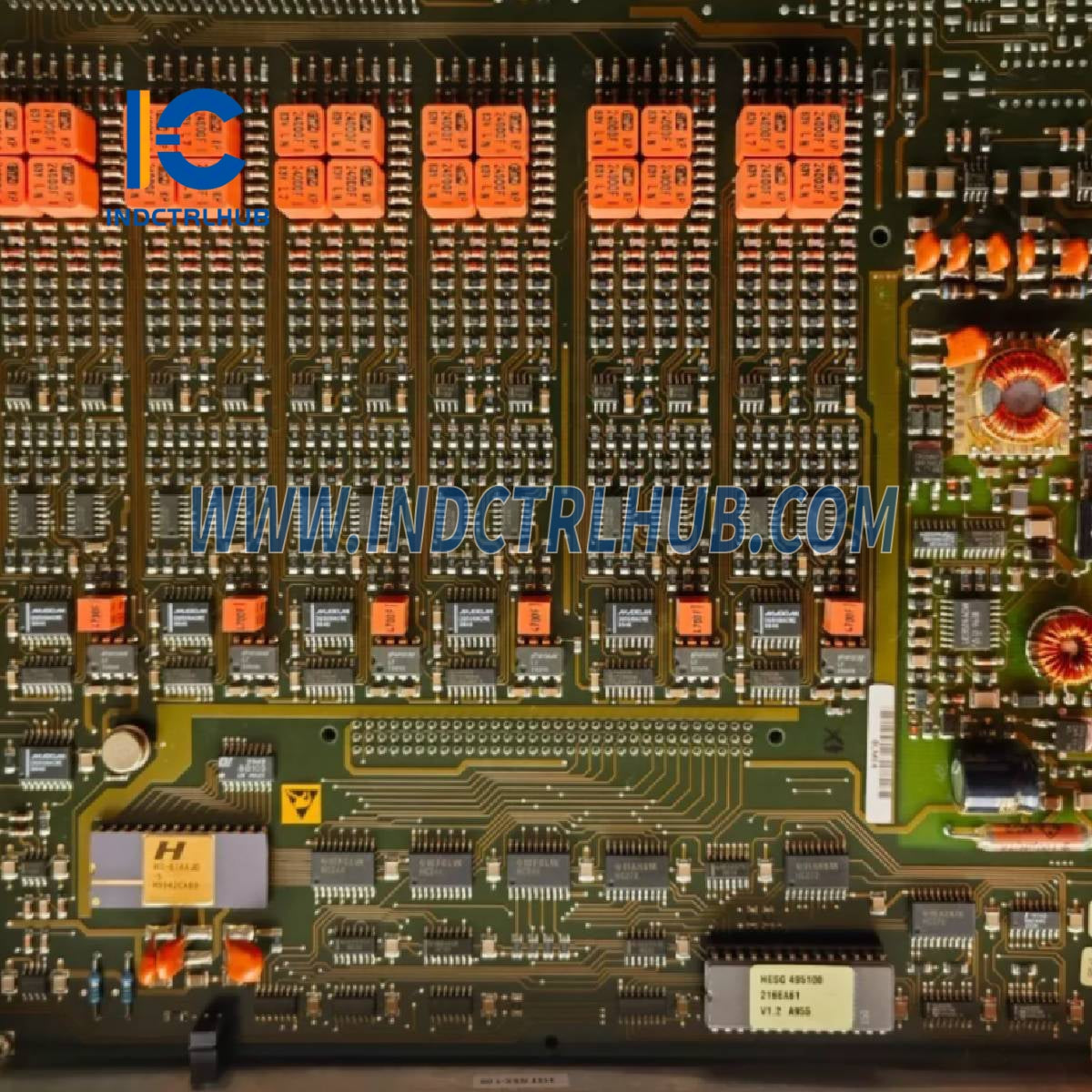

The ABB HESG324015R1 216EA61B is an Analog Output Module designed for use in ABB’s industrial automation systems, likely within the Advant OCS (Open Control System) or related platforms. Manufactured by ABB, this module is engineered to provide precise analog signal outputs for controlling field devices such as actuators, valves, or motor drives in industrial applications like power generation, oil & gas, and manufacturing. It is a reliable component known for its high precision and compatibility with ABB’s control architectures. The “216EA61B” is the specific model designation, while “HESG324015R1” is the catalog part number, indicating its configuration within the Procontrol series.
Technical Specifications
The HESG324015R1 216EA61B has the following specifications based on supplier data and inferred characteristics from similar ABB modules:
| Item | Specification |
|---|---|
| Model/Part Number | HESG324015R1 216EA61B |
| Manufacturer | ABB |
| Description | Analog Output Module |
| Series | Advant OCS / Procontrol |
| Power Supply | 24 V DC |
| Output Channels | 8 (assumed based on similar modules) |
| Output Signal | 0-10 V or 4-20 mA (configurable) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Weight | Approximately 0.35 kg (0.77 lbs) |
Additional Details
The HESG324015R1 216EA61B includes the following additional information based on its standard use and supplier documentation:
| Category | Details |
|---|---|
| Function | Generates analog signals for controlling field devices |
| Mounting | Plugs into ABB control system rack or backplane |
| Connectivity | Terminal blocks for field wiring, bus connection to controller |
| Features | High precision, configurable outputs, fault diagnostics |
| Certifications | Designed for industrial standards (e.g., CE) |
