Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Model/Part Number |
DSDO 115A |
|
Product ID |

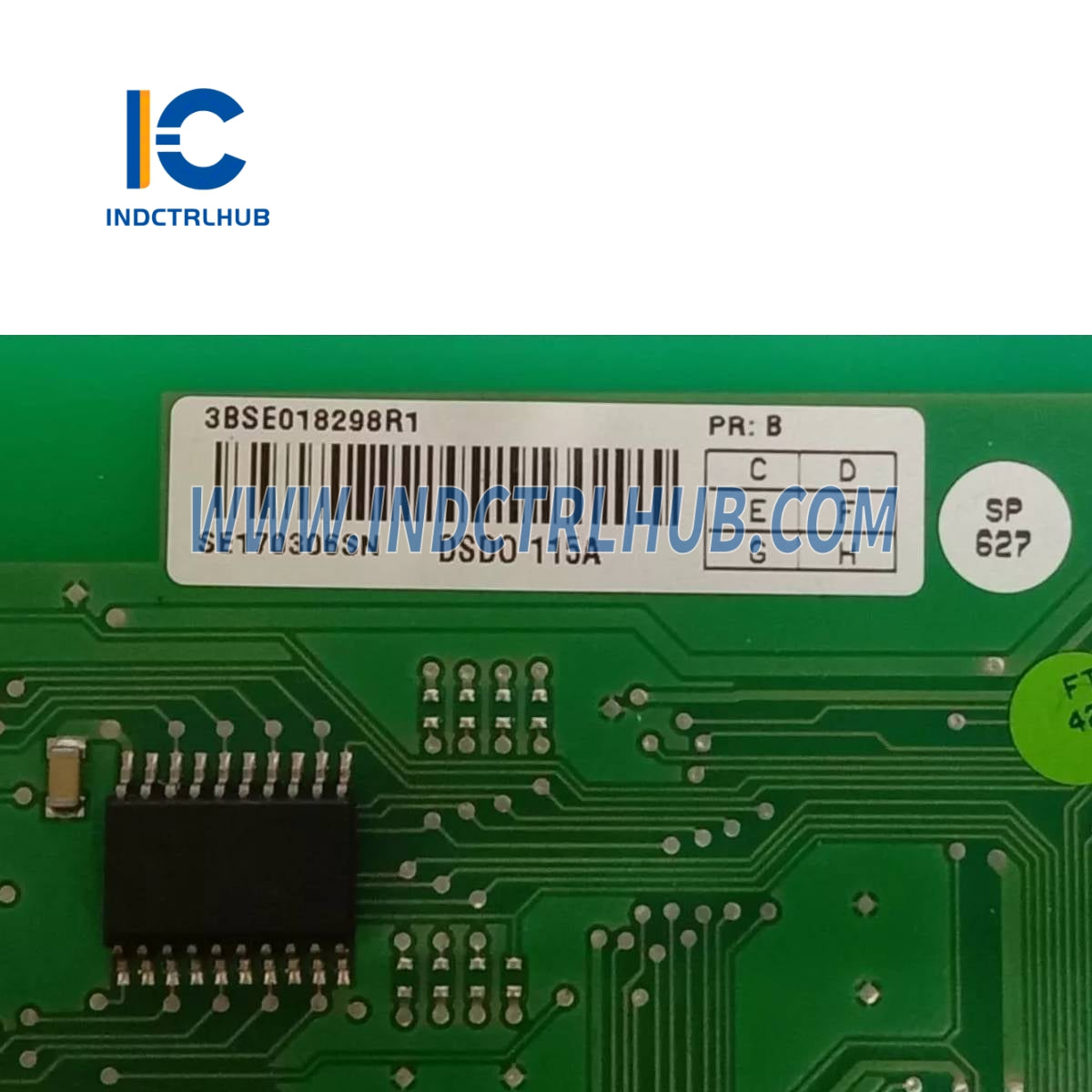

3BSE018298R1 |
|
Catalog Description |

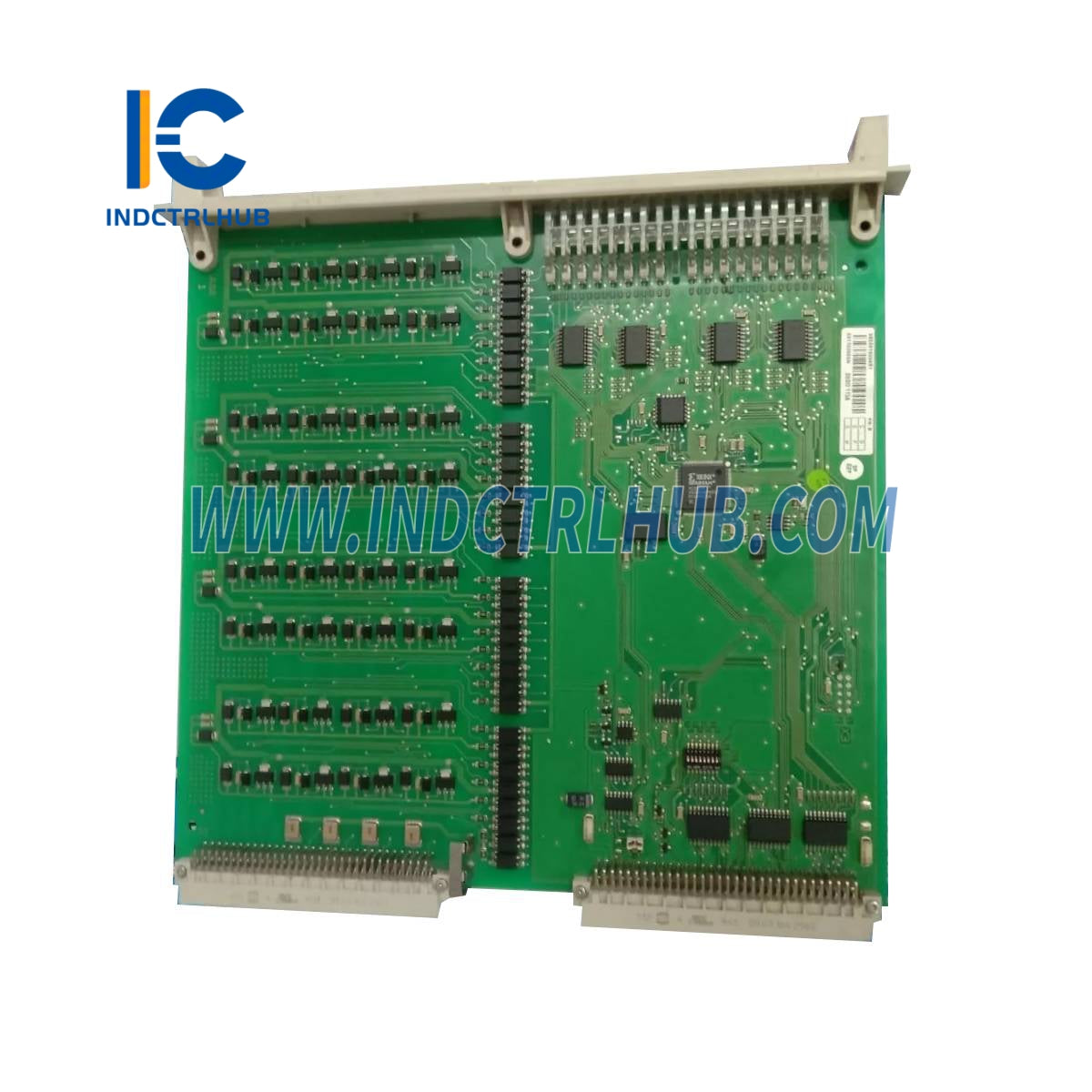

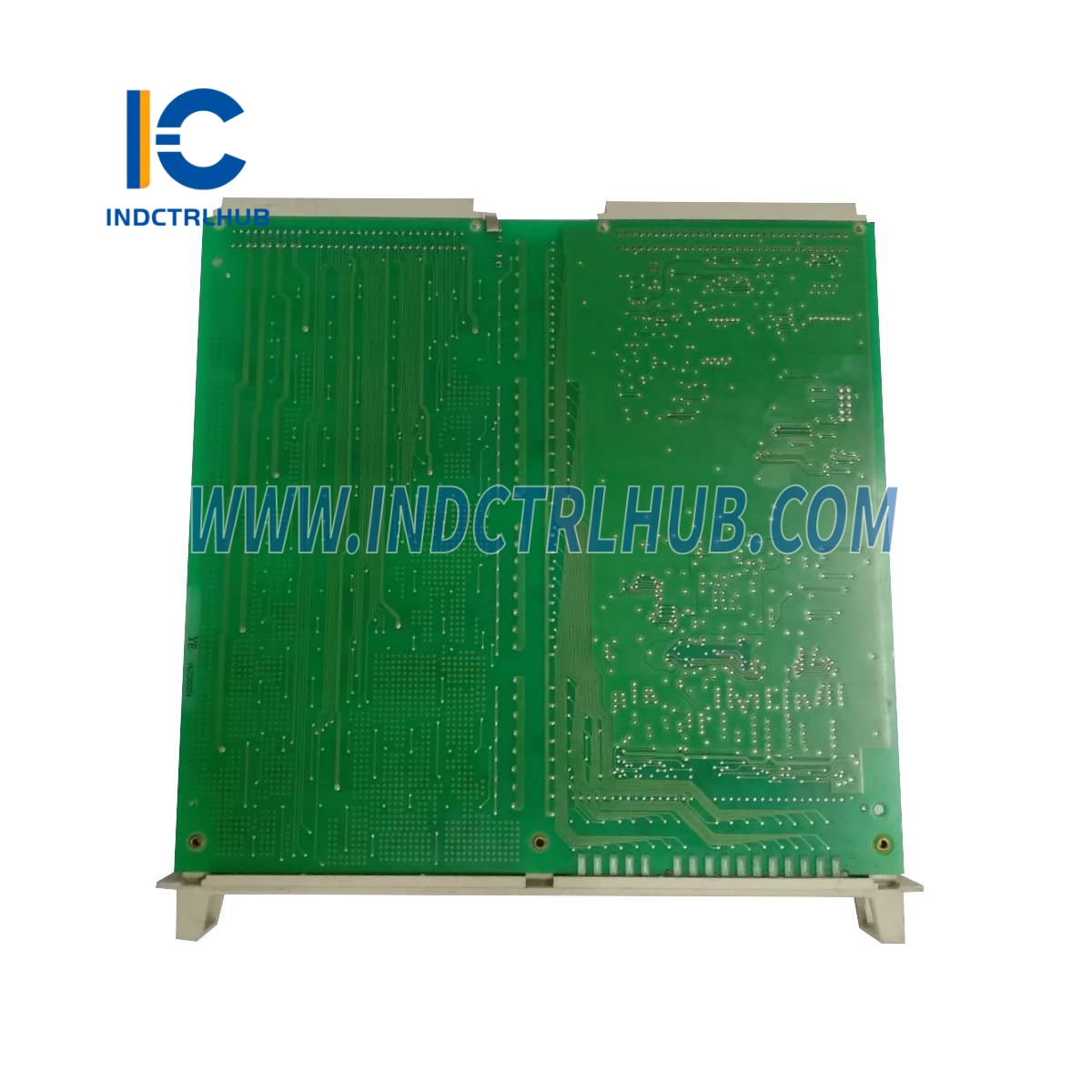

DSDO 115A Digital Output Board 32 Channels |
|
Long Description |
Digital Output Board |
|
Product Type |
I/O Module |
Technical Information
|
Parameter |
Value |
|---|---|
|
Number of Channels |
32 |
|
Voltage |
24V DC |
|
Output Current per Channel |
0.5 A |
Ordering Information
|
Parameter |
Value |
|---|---|
|
HS Code |
853890 |
|
Customs Tariff Number |
85389091 |
|
Made To Order |
No |
|
Number of Batteries |
0 |
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Depth / Length |
324 mm |
|
Product Net Height |
22.5 mm |
|
Product Net Width |
234 mm |
|
Product Net Weight |
0.32 kg |
Environmental Compliance
|
Parameter |
Value |
|---|---|
|
RoHS Status |
Not RoHS Compliant |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
SCIP |
cdd013e1-a150-4d00-9d56-3fd8695cbfdb (Sweden) |
Product Applications
• Control System Products
• I/O Products → S100 I/O → S100 I/O Modules → DSDO 115A Digital Outputs
• Control Systems
• Advant OCS with Master SW → Controllers → Advant Controller 450 / AC460
• Advant OCS with MOD 300 SW → I/O Modules
• 800xA → I/Os → S100 I/O → I/O Modules
