Product Description
Product Details

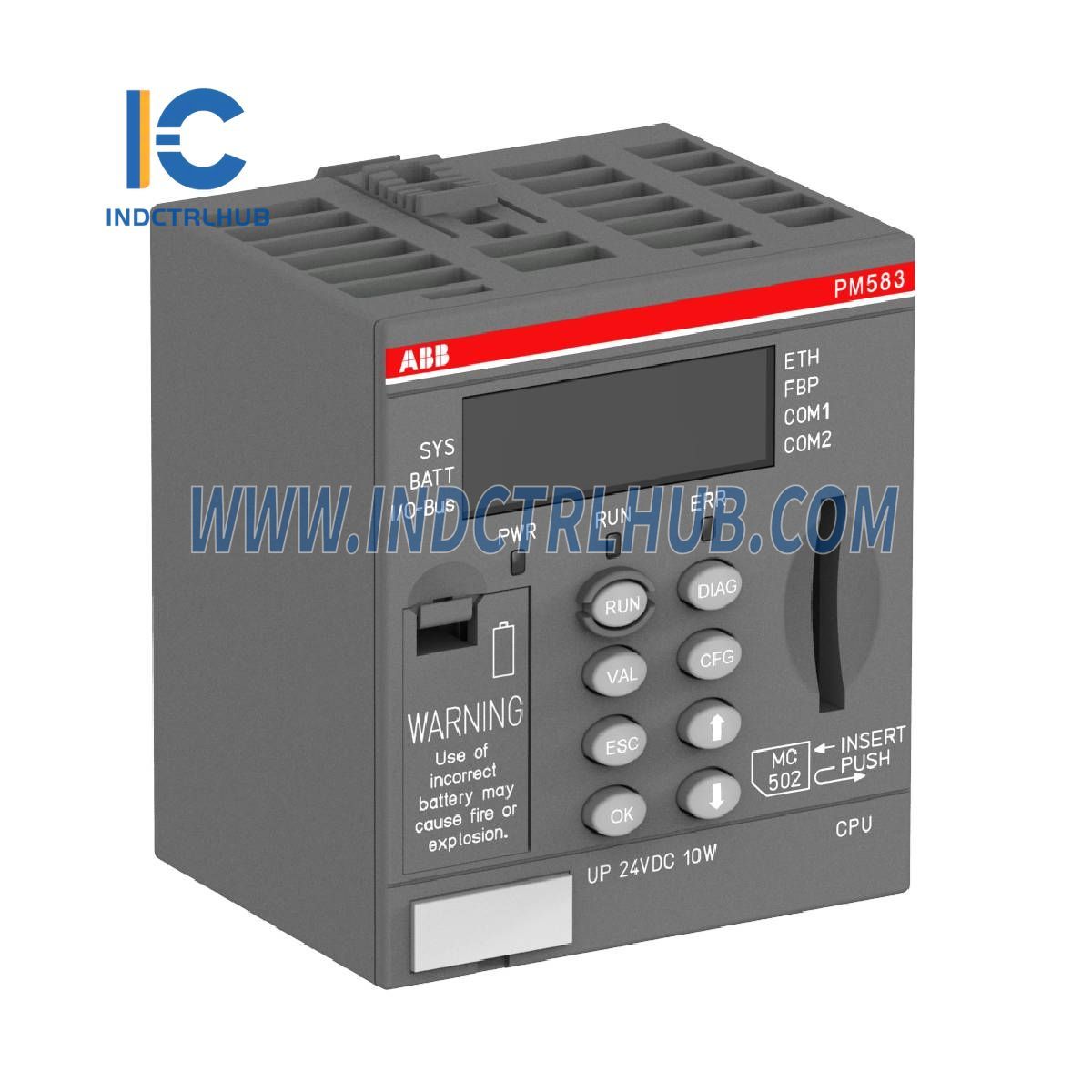

- Manufacturer: ABB
- Model/Part Number: PM583-ETH (1SAP140300R0271)
- Description: Processor Module
General Information
| Attribute | Details |
|---|---|
| Extended Product Type | PM583-ETH |
| Product ID | 1SAP140300R0271 |
| ABB Type Designation | PM583-ETH |
| EAN | 4016779711609 |
| Catalog Description | Processor module. Memory 1MB. Interfaces: Ethernet, 2x RS232/485, FBP. Display (PM583-ETH) |
| Long Description | PM583-ETH: AC500 Processor module with 1MB memory, Ethernet, 2x RS232/485, FBP, and LCD display. |
| Product Main Type | PM583 |
| Product Name | Distributed Automation PLCs |
Ordering & Logistics
| Attribute | Details |
|---|---|
| CN8 Code | 85389091 |
| Invoice Description | Processor module. Memory 1MB. Interfaces: Ethernet, 2x RS232/485, FBP. Display (PM583-ETH) |
| Made to Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | Piece |
| Gross Weight | 0.158 kg |
Dimensions & Environmental Conditions
| Attribute | Details |
|---|---|
| Product Net Weight | 0.134 kg |
| Product Net Dimensions (W x H x D) | 67.5 mm x 76 mm x 62 mm |
| Package Dimensions (W x H x D) | 71 mm x 72 mm x 84 mm |
| Ambient Air Temperature (Operation) | 0 ... +60 °C |
| Ambient Air Temperature (Storage) | -40 ... +70 °C |
| Degree of Protection | IP20 |
Technical Specifications
| Attribute | Details |
|---|---|
| Function | Processor module with memory 1MB, Ethernet, 2x RS232/485, FBP, LCD display |
| Display Type | LCD |
| Communication Interface | Serial/FBP/Ethernet |
| Number of Hardware Interfaces | Industrial Ethernet: 1 RS-232: 0 RS-422: 0 RS-485: 0 USB: 0 Wireless: 0 |
| Memory Size | 2048 kB |
| Memory Size (User Data) | 1024 kB |
| Memory Size (User Program) | 1024 kB |
| Memory Type (User Data) | RAM |
| Controller Processing Time | 0.00005 ms |
| Number of Digital Configurable I/Os | 0 |
| Rated Voltage (Ur) | 24 V DC |
| Supply Voltage | 20.4 – 28.8 V DC |
