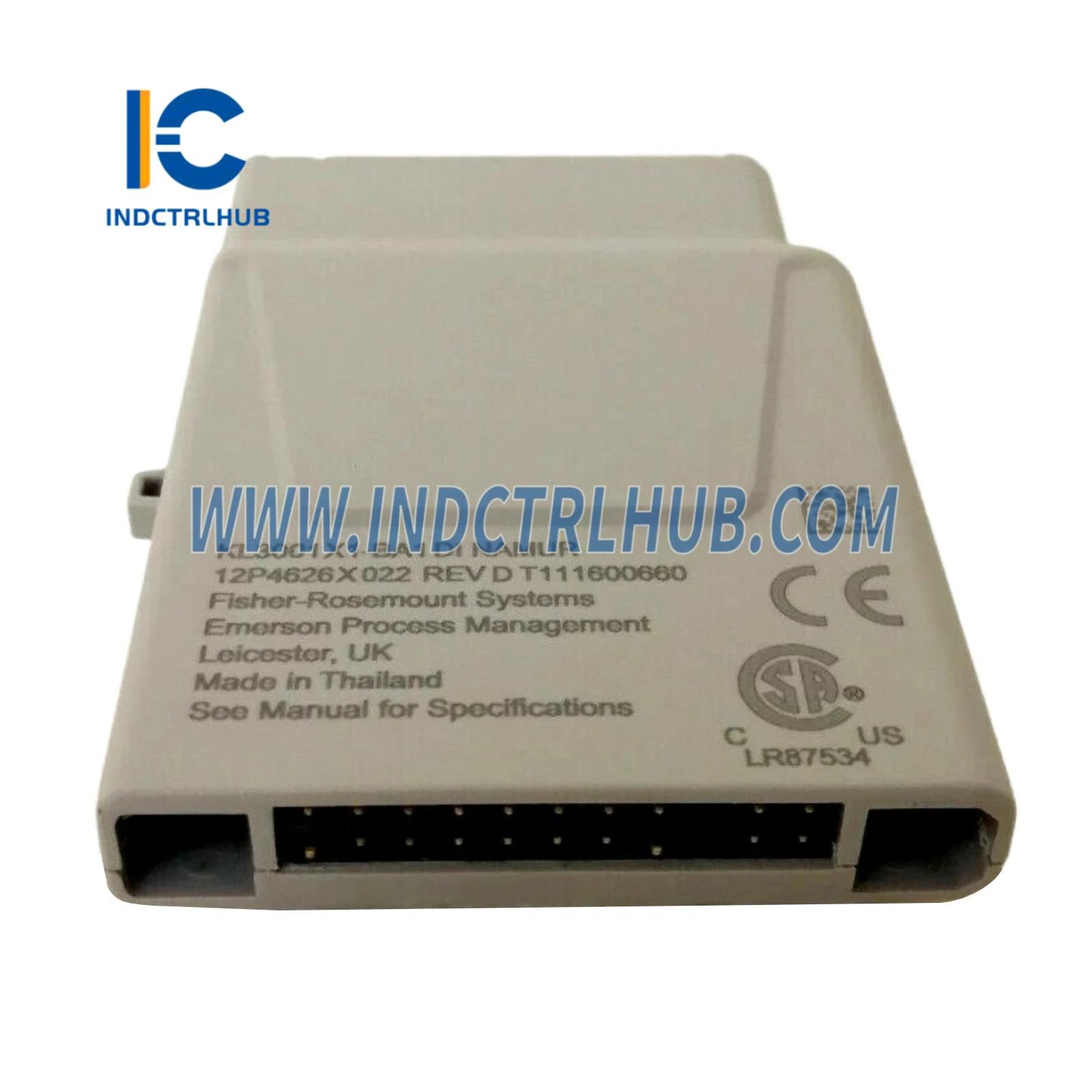

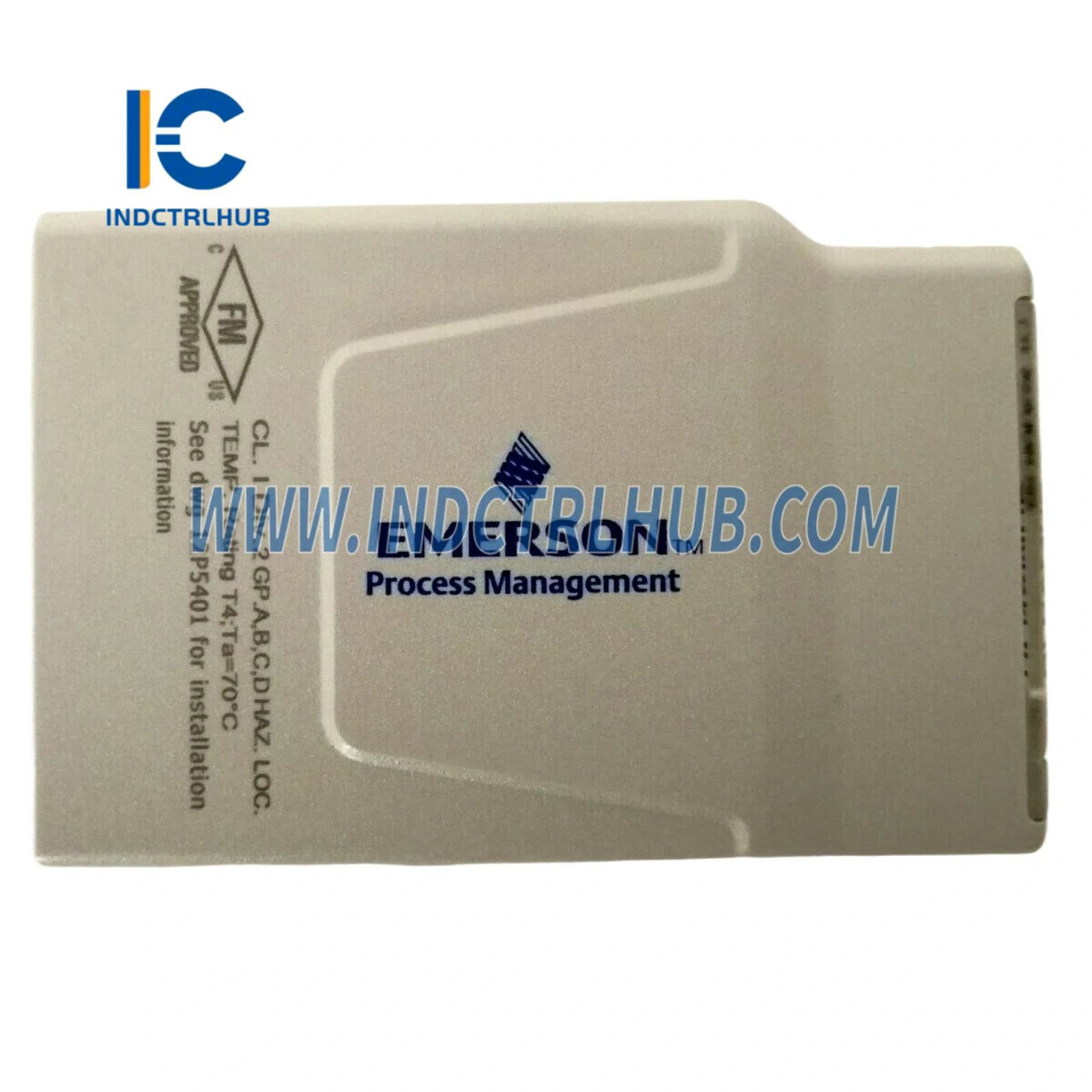

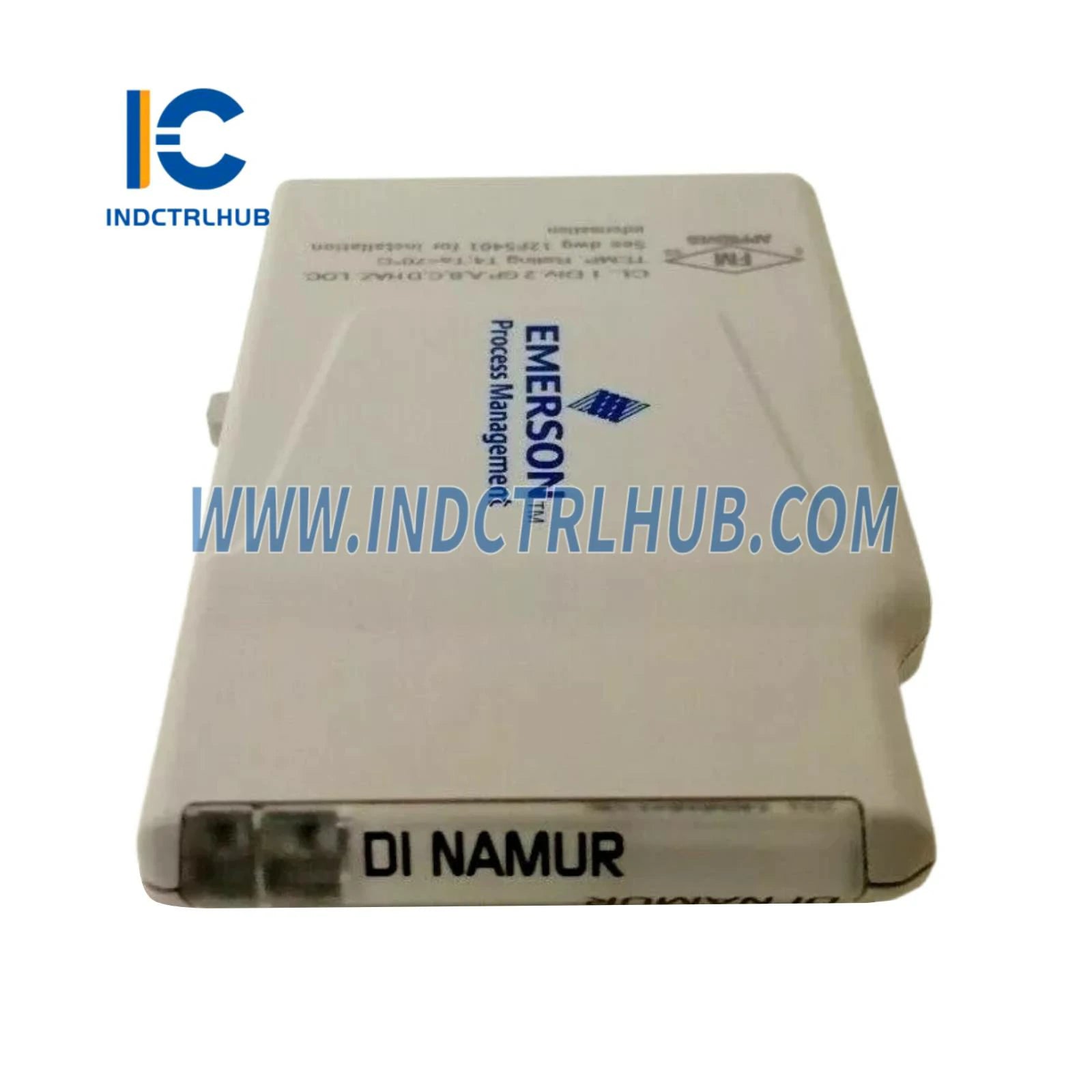

Emerson KL3001X1-BA1 DI NAMUR CHARM
Emerson KL3001X1-BA1 DI NAMUR CHARM
Manufacturer: Emerson
Product No.: KL3001X1-BA1
Condition:1000 in stock
Product Type: DeltaV I/O Module
Product Origin: 8961708327171
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Emerson KL3001X1-BA1 DI NAMUR CHARM - Precision Digital Input for NAMUR Proximity Sensors
The Emerson KL3001X1-BA1 (SE4301T01) DI NAMUR CHARM delivers specialized digital input capabilities for DeltaV distributed control systems, specifically engineered to interface with NAMUR-compliant proximity sensors and switches. This module provides reliable position detection and status monitoring in process automation applications where two-wire sensor technology offers installation simplicity and diagnostic intelligence.
Core Technical Specifications
- Input Standard: NAMUR (DIN EN 60947-5-6 compliant)
- Sensor Compatibility: NAMUR proximity switches, inductive sensors, and two-wire limit switches
- Isolation: Galvanic isolation between field circuits and system bus
- CHARM Bus Power: +6.3V DC at 32mA
- Field Circuit Power: +24V DC at 16mA per channel
- Terminal Block Key: 1C for proper CHARM identification
- Operating Temperature: -40°C to +70°C (-40°F to 158°F)
- System Compatibility: DeltaV v11 or higher with electronic marshalling
Hazardous Area Certifications
Certified for safe operation in classified industrial environments:
- Zone 2 / Class I Division 2: Suitable for hazardous locations with Groups A, B, C, D
- ATEX Compliance: European directive for explosive atmospheres
- IECEx Certification: International electrotechnical commission standards
- IP20 Protection: Suitable for control room and marshalling cabinet installations
NAMUR Sensor Technology Advantages
Understanding NAMUR sensor benefits in industrial automation:
Two-Wire Simplicity: NAMUR sensors require only two wires for both power and signal transmission, reducing installation costs and cable complexity compared to three-wire or four-wire proximity switches. This architecture simplifies troubleshooting and reduces potential failure points in long cable runs.
Diagnostic Capability: Unlike simple dry contact switches, NAMUR sensors provide three distinct states - sensor activated (low current), sensor deactivated (high current), and fault conditions (wire break or short circuit). This diagnostic intelligence enables predictive maintenance strategies by detecting sensor degradation before complete failure.
Intrinsic Safety Compatibility: NAMUR sensors operate at low current levels (typically 1-2mA), making them ideal for intrinsically safe applications in Zone 0/Division 1 hazardous areas when paired with appropriate safety barriers.
Industrial Process Applications
The KL3001X1-BA1 NAMUR CHARM excels in critical position detection scenarios:
Valve Position Monitoring: Track open/closed status of motor-operated valves, ball valves, and butterfly valves in pipeline systems. NAMUR proximity switches mounted on valve actuators provide reliable position feedback for interlock logic and process sequencing in oil & gas, chemical processing, and water treatment facilities.
Rotating Equipment Protection: Monitor shaft rotation, bearing temperature switch status, and vibration switch activation on pumps, compressors, and turbines. The diagnostic capability detects sensor wiring faults that could compromise critical machinery protection systems.
Level Switch Integration: Interface with NAMUR-compatible level switches for high/low level detection in tanks, vessels, and separators. The two-wire design simplifies installation in remote tank farms where cable runs may exceed 1000 meters.
Conveyor & Material Handling: Detect product presence, jam conditions, and emergency stop activation in packaging lines, palletizers, and automated warehousing systems. Fast response times ensure precise position control for high-speed operations.
Electronic Marshalling Benefits
Leverage DeltaV CHARM architecture advantages:
- Channel-Level Flexibility: Assign individual input channels to any DeltaV controller without physical rewiring, enabling rapid process modifications and control strategy changes
- Reduced Cabinet Space: Eliminate traditional marshalling panels and terminal blocks, reducing control room footprint by up to 70%
- Simplified Commissioning: Drag-and-drop I/O assignment in DeltaV Explorer eliminates manual wiring documentation and reduces commissioning errors
- Enhanced Diagnostics: Real-time module health monitoring, wiring fault detection, and sensor status visibility through DeltaV control strategies
Installation & System Integration
Engineered for efficient DeltaV I/O deployment:
- Mounts on DeltaV CHARM Baseplate (e.g., SS3001 KL4103X1-BA1) with DIN rail compatibility
- Integrates with CHARM I/O Card (CIOC) such as SE6504 KL2101X1-BB1 for system connectivity
- Compatible with standard CHARM terminal blocks (SE4501, SE4502) for field wiring
- Self-keying mechanism (Terminal Block Key 1C) prevents incorrect CHARM insertion
- No field calibration required - factory configured and tested
- Conformal coating for ISA-S71.04-1985 Class G3 environments
Diagnostic & Status Features
Built-in intelligence for operational visibility:
- Wire Break Detection: Identifies open circuits in sensor wiring before they cause process disruptions
- Short Circuit Protection: Detects and reports wiring faults to prevent module damage
- Sensor Status Monitoring: Distinguishes between activated, deactivated, and fault conditions
- Module Health Reporting: Internal diagnostics propagate to DeltaV for automated alarm generation
Environmental Ruggedness
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Humidity | 5% to 95% RH, non-condensing |
| Shock Resistance | 10g half-sine wave for 11ms |
| Vibration Tolerance | 1mm peak-to-peak (2-13.2 Hz); 0.7g (13.2-150 Hz) |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 with conformal coating |
Why Choose Industrial Control Hub?
Your specialized partner for Emerson DeltaV automation solutions:
- ✓ Genuine Emerson OEM products with full manufacturer certification
- ✓ Expert DCS technical support from certified automation engineers
- ✓ Comprehensive inventory of current production and obsolete spare parts
- ✓ Fast global logistics to US, UK, EU, and Asia-Pacific markets
- ✓ Competitive project pricing with volume discounts available
- ✓ Complete documentation including wiring diagrams and configuration guides
Related DeltaV Digital Input Modules
| Product Model | Description | Link |
|---|---|---|
| SE4305T01 (KL3002X1-BA1) | 24V DC Digital Input CHARM for standard dry contact and wet contact switches | View Product |
| SE4301T02 (KL3003X1-BA1) | DI 24V DC Dry Contact CHARM for voltage-free contact inputs with enhanced filtering | View Product |
| KJ2003X1-BA2 | 32-Channel Digital Input Module for M-Series DeltaV controllers with high-density I/O | View Product |
Ordering Information & Accessories
- KL3001X1-BA1 / SE4301T01: DI NAMUR CHARM (this product)
- SS3001 (KL4103X1-BA1): CHARM Baseplate for DIN rail mounting
- SE6504 (KL2101X1-BB1): CHARM I/O Card (CIOC) for system connectivity
- SE4501: Standard CHARM Terminal Block (4 screw terminals)
- SE4502: Alternative CHARM Terminal Block configuration
Technical Documentation & Engineering Support
Complete installation manuals, NAMUR sensor wiring diagrams, control drawings, and DeltaV configuration examples available upon request. Our application engineering team provides system design consultation, I/O channel planning, and troubleshooting assistance for complex DeltaV implementations.
Note: This module is designed for standard process control applications. For Safety Instrumented Systems (SIS) requiring SIL certification, please refer to the LS-series CHARM modules specifically rated for functional safety applications.
