Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
SE4301T02 (KL3003X1-BA1) |
|
Series |
DeltaV S-series (CHARM - CHARM Characterization Module) |
|
Description |

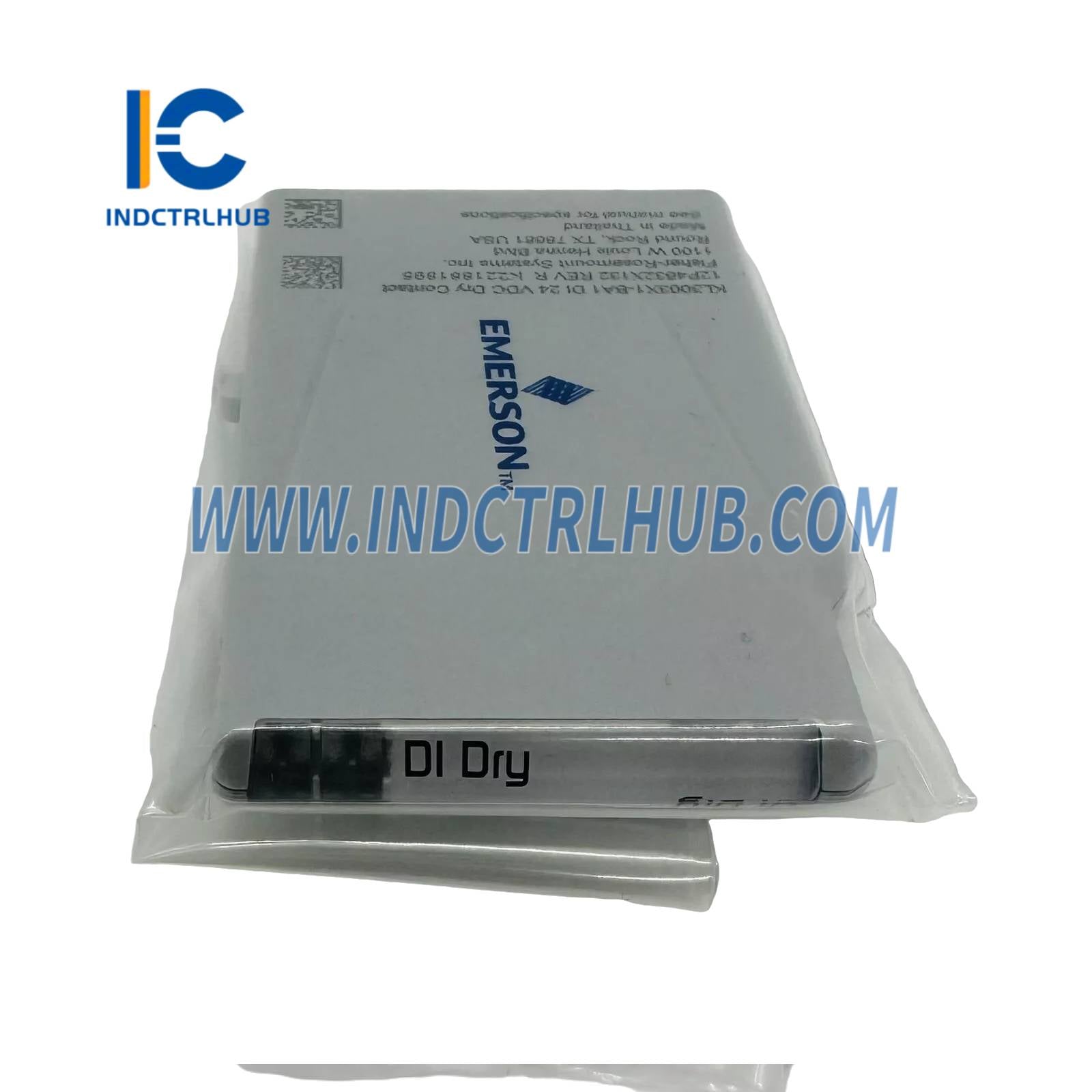

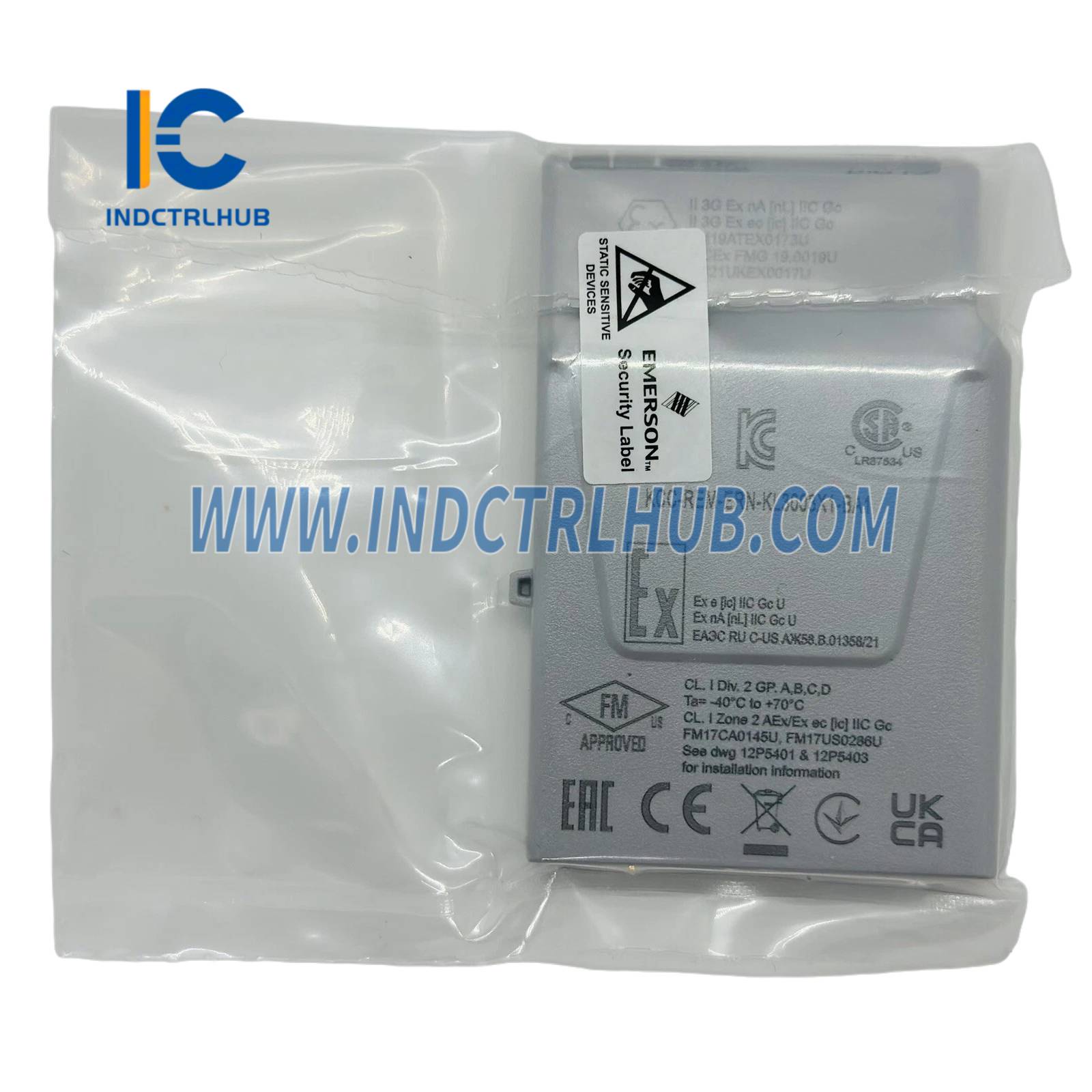

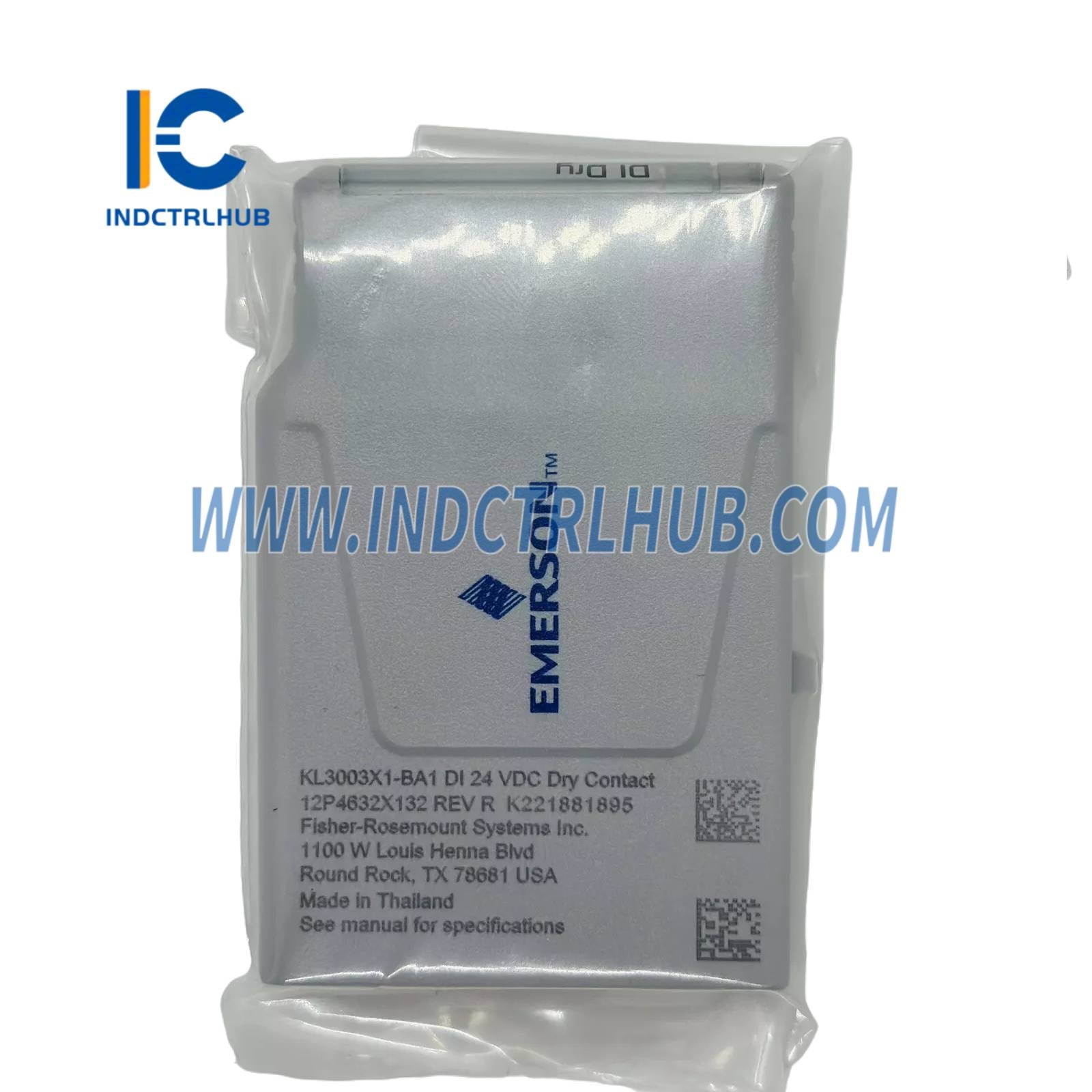

DI 24 VDC Dry Contact CHARM Module |
|
Application |
Processes 24 VDC dry contact digital inputs from field switches, relays, etc., for use in DeltaV DCS applications. |
⚙️
Technical Specifications
|
Specification |
Details |
|---|---|
|
Input Type |
Dry contact digital input |
|
Input Voltage |
24 VDC nominal (from field circuit) |
|
CHARM Bus Power |
+6.3 VDC at 32 mA |
|
Field Circuit Power |
+24 VDC at 10 mA |
|
Isolation |
Galvanically isolated (typically 250 V RMS) |
|
Terminal Block Key |
2C |
🌡️
Environmental Specifications
|
Condition |
Value |
|---|---|
|
Operating Temperature |
-40°C to +70°C |
|
Shock |
10g, ½ sinewave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz); 0.7g (13.2–150 Hz) |
|
Humidity |
5% to 95% RH (non-condensing) |
|
Airborne Contaminants |
ISA-S71.04 –1985 Class G3 |
|
Protection Rating |
IP20 (when installed in CHARM baseplate) |
