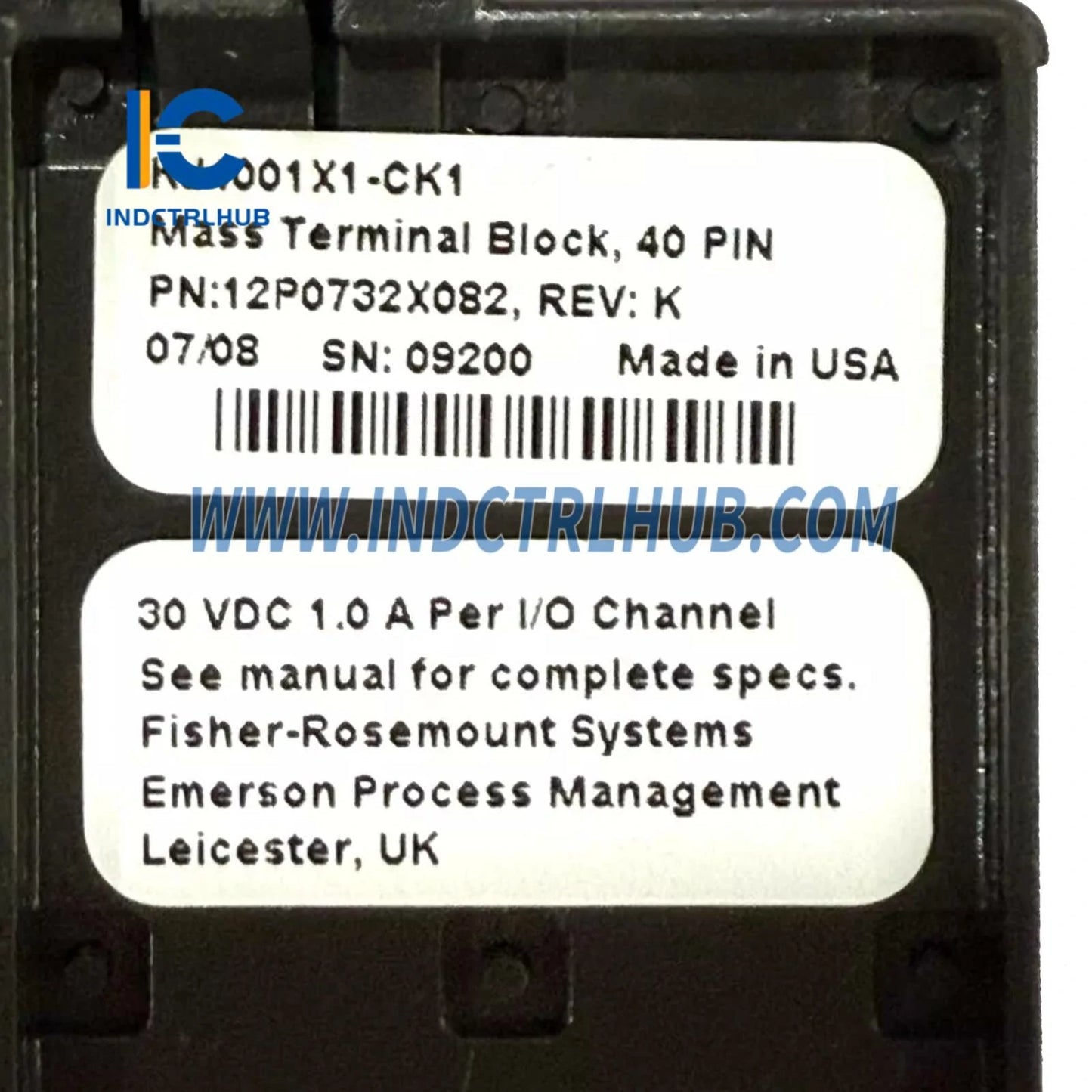

Emerson KJ4001X1-CK1 Mass Terminal Block 40-Pin

Emerson KJ4001X1-CK1 Mass Terminal Block 40-Pin - High-Density Field Wiring Solution for DeltaV

The Emerson KJ4001X1-CK1 40-Pin Mass Terminal Block provides efficient high-density field wiring termination for DeltaV distributed control system I/O cards. This mass termination solution eliminates individual wire-by-wire connections, dramatically reducing installation time and minimizing wiring errors in oil & gas, chemical, pharmaceutical, and power generation facilities requiring reliable, high-channel-count I/O connectivity.

Core Technical Specifications

• Model Number: KJ4001X1-CK1
• Pin Configuration: 40-pin mass termination connector
• Power Rating: 30VDC @ 1A per channel maximum
• Operating Temperature: -40°C to +70°C (-40°F to 158°F)
• Wire Acceptance: Screw cage terminals for 22-14 AWG field wiring
• Environmental Protection: ISA-S71.04-1985 Class G3 conformal coating
• Installation: Not hot-swappable - requires system power-down for installation/removal
• System Compatibility: DeltaV M-series I/O cards with 40-pin mass termination interface

Global Hazardous Area Certifications

Certified for deployment in classified industrial environments worldwide:

• FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
• ATEX Europe: Zone 2 certified for explosive atmosphere installations
• IECEx International: Compliant with global hazardous area standards per Document 12P2046
• Marine Certification: DNV and ABS approved for offshore platforms and maritime installations

Industrial Field Wiring Applications

High-Density Discrete I/O Systems: Terminate up to 40 discrete input or output signals from field devices such as limit switches, pushbuttons, solenoid valves, and indicator lights. The mass termination design reduces cabinet wiring time by 60-70% compared to individual terminal strip connections, critical for large-scale projects with hundreds or thousands of I/O points.

Analog Signal Marshalling: Interface multi-channel analog input cards with field transmitters for pressure, temperature, flow, and level measurement. The 40-pin configuration supports 16-channel analog input cards with individual signal pairs plus common returns, maintaining signal integrity through proper shield termination and ground isolation.

Refinery Control Room Installations: Organize field terminations in marshalling cabinets serving crude distillation, catalytic cracking, and alkylation units. Mass terminal blocks enable logical grouping of signals by process area or equipment type, simplifying troubleshooting and reducing commissioning errors during plant startups and turnarounds.

Chemical Batch Manufacturing: Support flexible I/O configurations for multi-product batch plants where different recipes require varying signal counts. The 40-pin mass termination accommodates future expansion by providing spare termination points without requiring additional terminal blocks or cabinet modifications.

Offshore Platform Installations: Minimize cabinet space requirements on offshore oil & gas platforms where equipment room real estate is at a premium. The compact mass termination design reduces cabinet footprint by 40-50% compared to traditional terminal strip installations, while the rugged construction withstands marine environments with 10g shock resistance and vibration tolerance up to 0.7g (13.2-150 Hz).

Mass Termination Advantages

Critical benefits for efficient DeltaV I/O installation and maintenance:

• Reduced Installation Time: Single 40-pin connector replaces 40+ individual wire terminations, cutting installation labor by 60-70%
• Minimized Wiring Errors: Pre-wired ribbon cable or organized terminal layout reduces cross-wiring and polarity reversal errors
• Simplified Troubleshooting: Logical pin assignments and clear labeling enable rapid fault isolation during commissioning and maintenance
• Improved Cable Management: Mass termination concentrates field wiring in compact footprint, improving cabinet organization and airflow
• Enhanced Reliability: Factory-assembled connector eliminates field soldering and crimping, reducing connection failures

Installation Requirements & Best Practices

Critical guidelines for reliable field wiring termination:

Power-Down Requirement: The KJ4001X1-CK1 is NOT hot-swappable. System power MUST be de-energized before installing or removing the terminal block. Attempting hot insertion or removal can damage the I/O card, corrupt system memory, or create electrical hazards in classified areas.

Wire Sizing & Termination: Use 22-14 AWG stranded copper wire with proper ferrules or wire end sleeves for screw cage terminal connections. Strip wire insulation 7-9mm to ensure adequate conductor engagement without exposing bare wire outside the terminal housing. Torque screw terminals to manufacturer specifications (typically 0.5-0.6 Nm) to prevent loose connections.

Shield Termination: For analog signals, terminate cable shields at the terminal block using dedicated shield clamps or ground bars. Connect shields to cabinet ground at one end only (typically at the marshalling cabinet) to prevent ground loops. Never allow shields to contact signal conductors or create short circuits between channels.

Cable Routing & Separation: Maintain minimum 150mm (6 inch) separation between low-level analog signal cables and high-power AC wiring, VFD cables, or other noise sources. Use separate cable trays or conduits for analog, discrete, and power wiring to minimize electromagnetic interference.

Labeling & Documentation: Label each field wire at both ends with unique tag numbers matching loop drawings and P&IDs. Maintain as-built documentation showing actual terminal assignments, wire colors, and shield connections for future troubleshooting and modifications.

Environmental Specifications

Compatible DeltaV I/O Cards

The KJ4001X1-CK1 40-pin mass terminal block interfaces with various DeltaV M-series I/O cards:

• Discrete Input Cards: 32-channel and 40-channel DI cards for switch, relay, and contact monitoring
• Discrete Output Cards: 32-channel and 40-channel DO cards for solenoid valve and indicator control
• Analog Input Cards: 16-channel AI cards for 4-20mA, HART, thermocouple, and RTD signals
• Analog Output Cards: 16-channel AO cards for valve positioner and VFD control

Why Choose Industrial Control Hub?

Your specialized source for genuine Emerson DeltaV automation components:

• ✓ 100% authentic OEM products with full manufacturer traceability and warranty
• ✓ Expert DCS technical support from certified automation engineers
• ✓ Extensive inventory of current production and legacy DeltaV terminal blocks
• ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
• ✓ Competitive pricing with volume discounts for project quantities
• ✓ Complete documentation, wiring diagrams, and installation assistance

Complementary DeltaV Terminal Blocks

Ordering Information & System Planning

• KJ4001X1-CK1: 40-Pin Mass Terminal Block (this product)
• Compatible I/O Cards: Verify I/O card model supports 40-pin mass termination interface before ordering
• Spare Parts Strategy: Maintain spare terminal blocks for critical applications to minimize downtime during fault recovery
• Cable Assemblies: Pre-wired ribbon cables available separately for rapid field installation

Technical Documentation & Support

Complete installation manuals including Document 12P2046 (Zone 2 Installation Instructions) and "DeltaV S-Series and CHARMs Hardware Installation" manual available upon request. Our application engineering team provides wiring diagram review, terminal assignment planning, and troubleshooting assistance for complex DeltaV marshalling cabinet installations.

Maintenance & Service Life

• No User-Serviceable Parts: Factory-assembled terminal block requires no field maintenance beyond periodic terminal tightness checks
• No Calibration Required: Passive termination device requires no calibration or adjustment
• Do Not Disassemble: Terminal block disassembly voids warranty and may compromise connection integrity
• Periodic Inspection: Check screw terminal tightness annually or after significant vibration events to prevent loose connections
• Replacement Criteria: Replace if physical damage, cracked housing, or corroded terminals are observed
