Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Emerson |
|
Model/Part Number |
KJ3223X1-EA1 / 12P2867X022 |
|
Description |

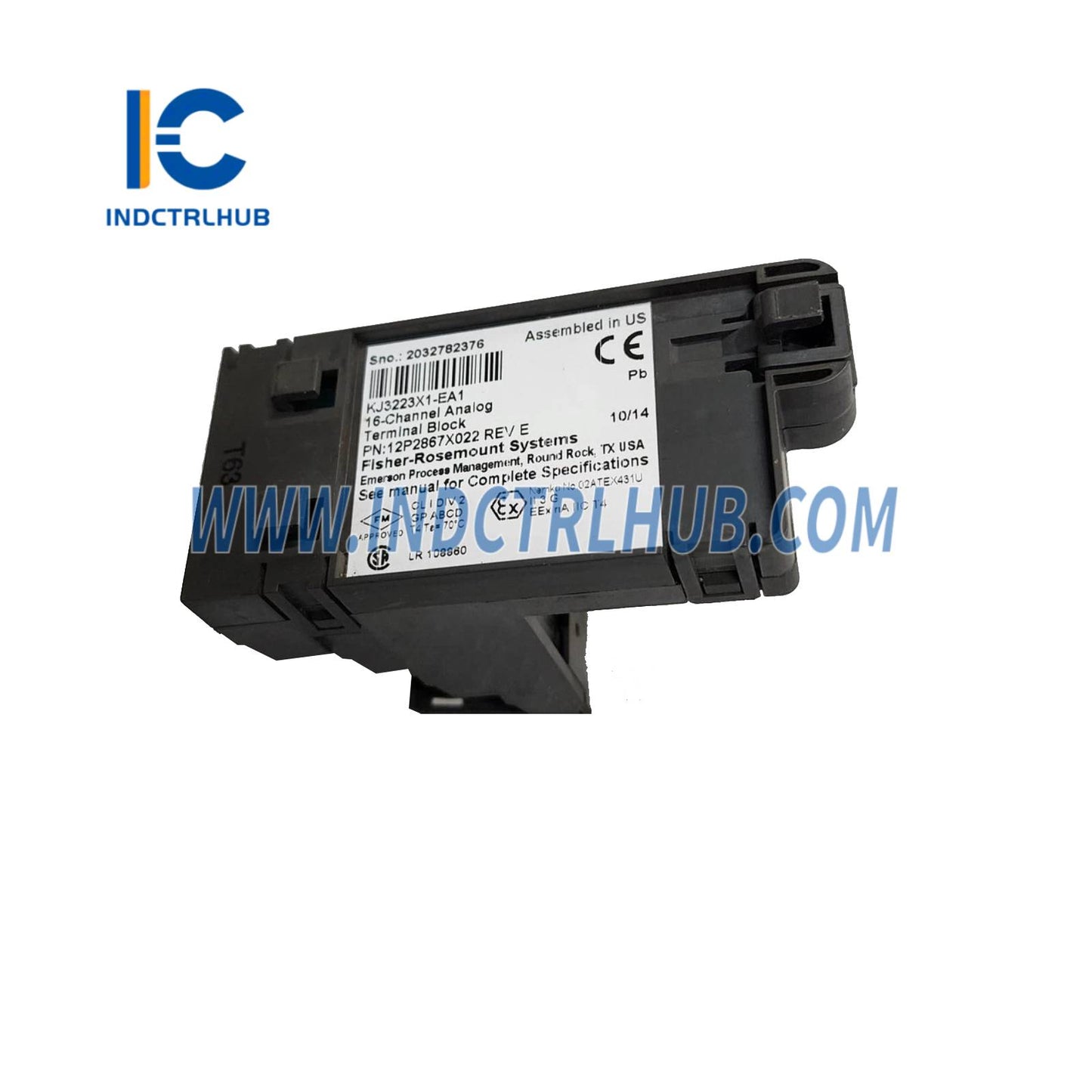

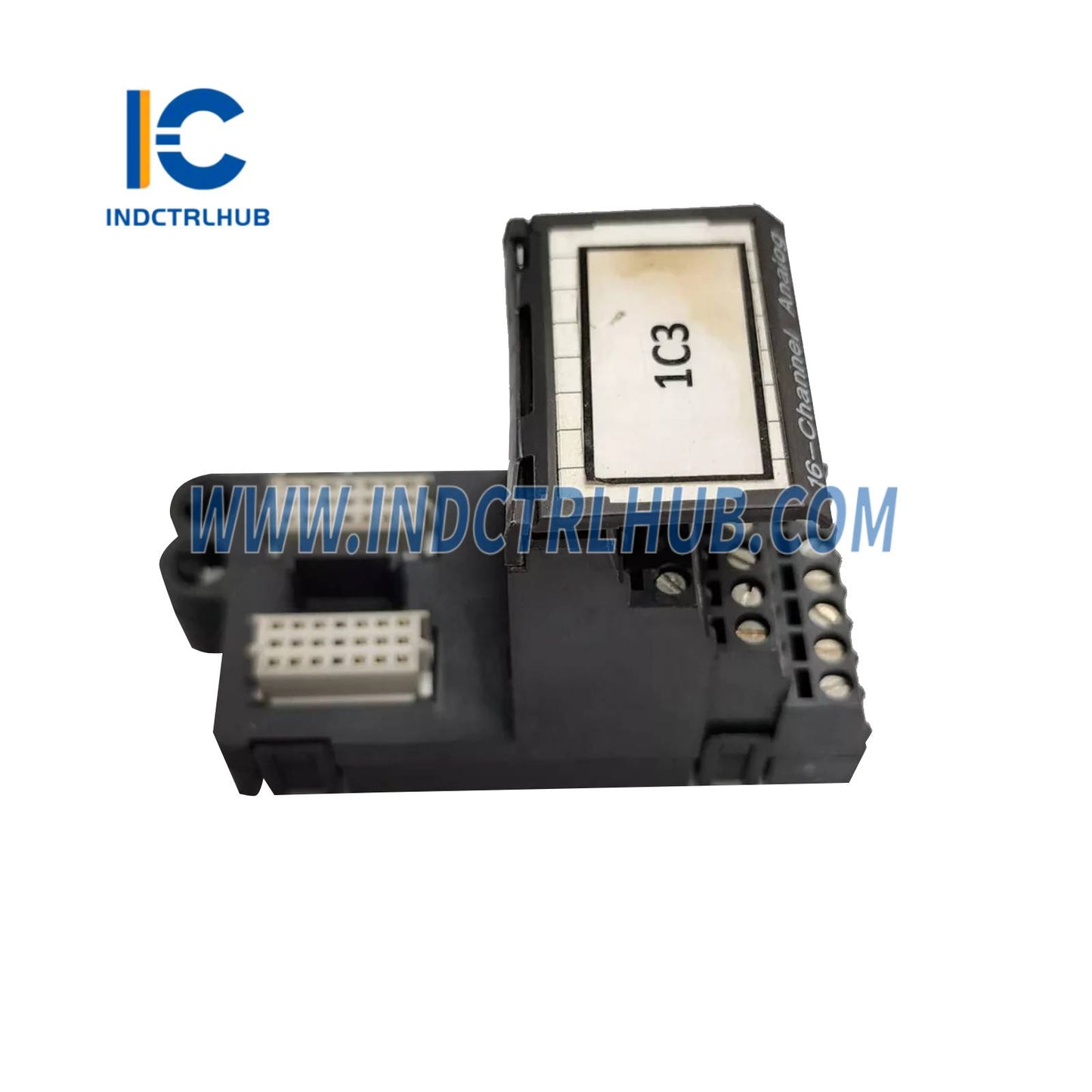

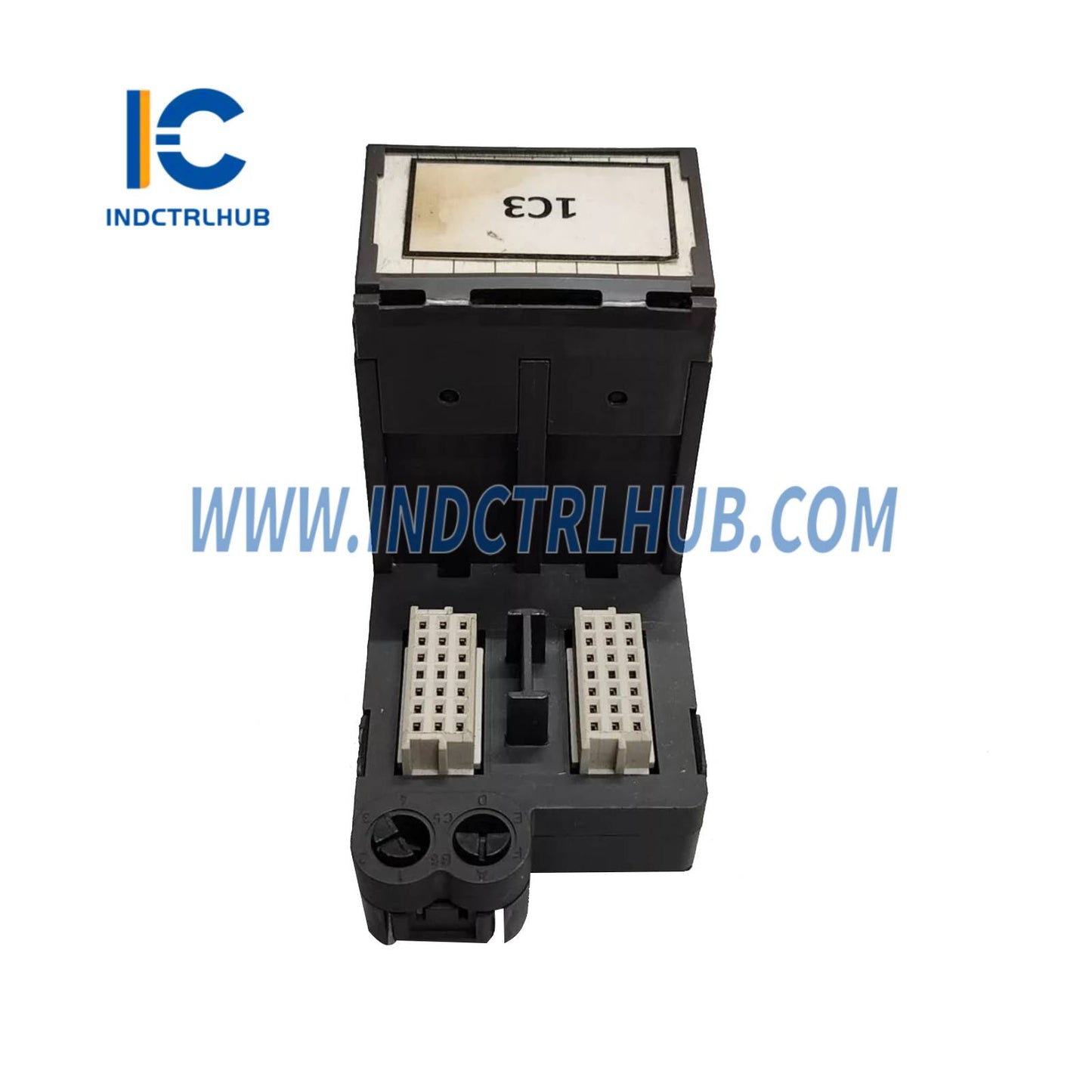

16-Channel Analog Input (AI) Terminal Block |
Power Specifications
|
Parameter |
Value |
|---|---|
|
Input Power Rating |
30 VDC @ 100 mA |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Ambient Temperature |
-40°C to +70°C |
|
Shock |
10 g half-sine wave for 11 ms |
|
Vibration |
1 mm peak-to-peak (2–13.2 Hz); 0.7 g (13.2–150 Hz) |
|
Airborne Contaminants |
ISA-S71.04 –1985, Class G3 |
|
Relative Humidity |
5% to 95% Non-Condensing |
Installation and Operation Notes
-
Hazardous Area Compliance:
-
Refer to Document 12P2046 (DeltaV™ CHARM I/O Subsystem Zone 2 Installation Instructions)
-
Additional info: DeltaV™ S-Series and CHARMs Hardware Installation manual
-
Removal and Insertion:
-
Cannot be removed or inserted with system power energized
Maintenance and Adjustment
-
No user-serviceable parts
-
Do not disassemble
-
No calibration required
