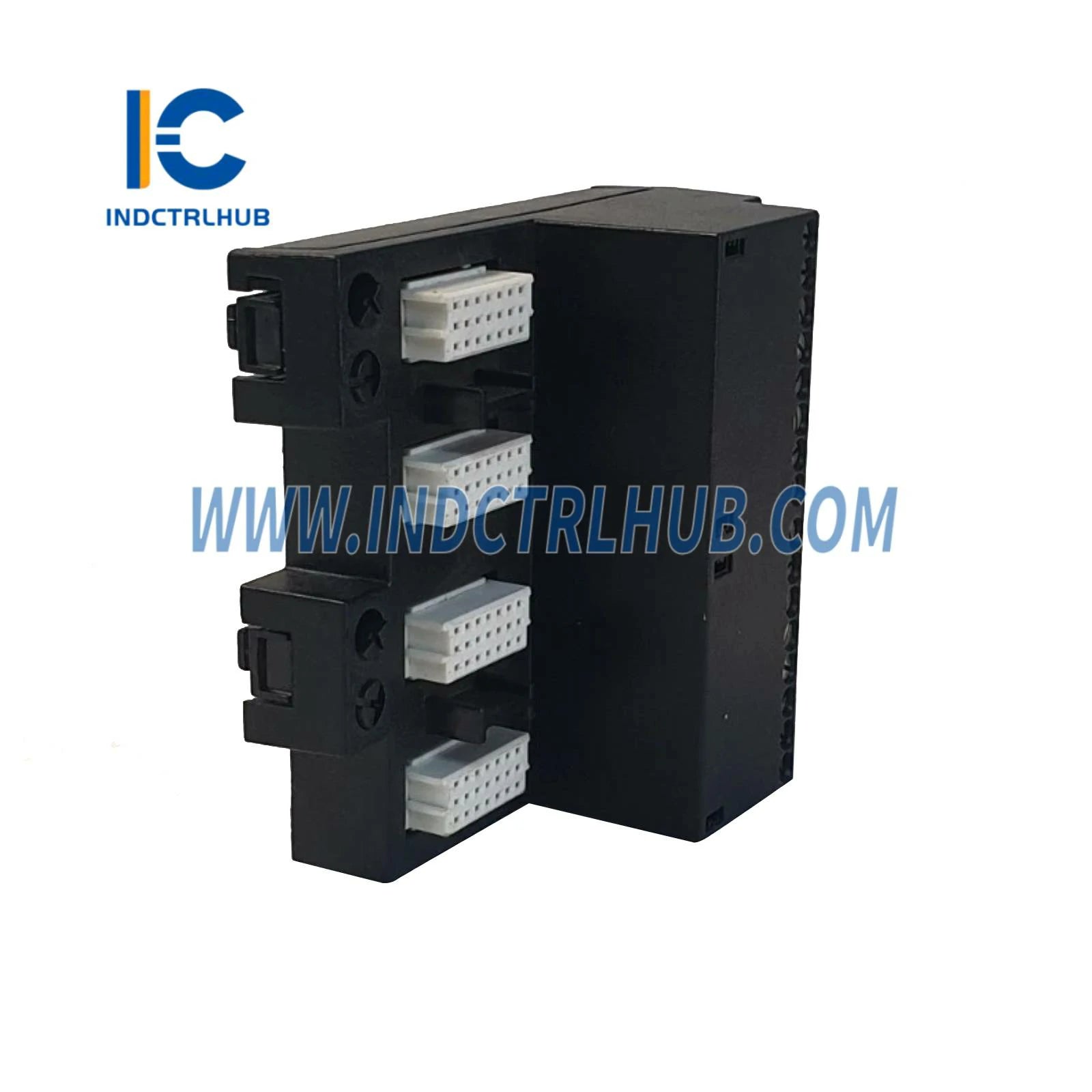

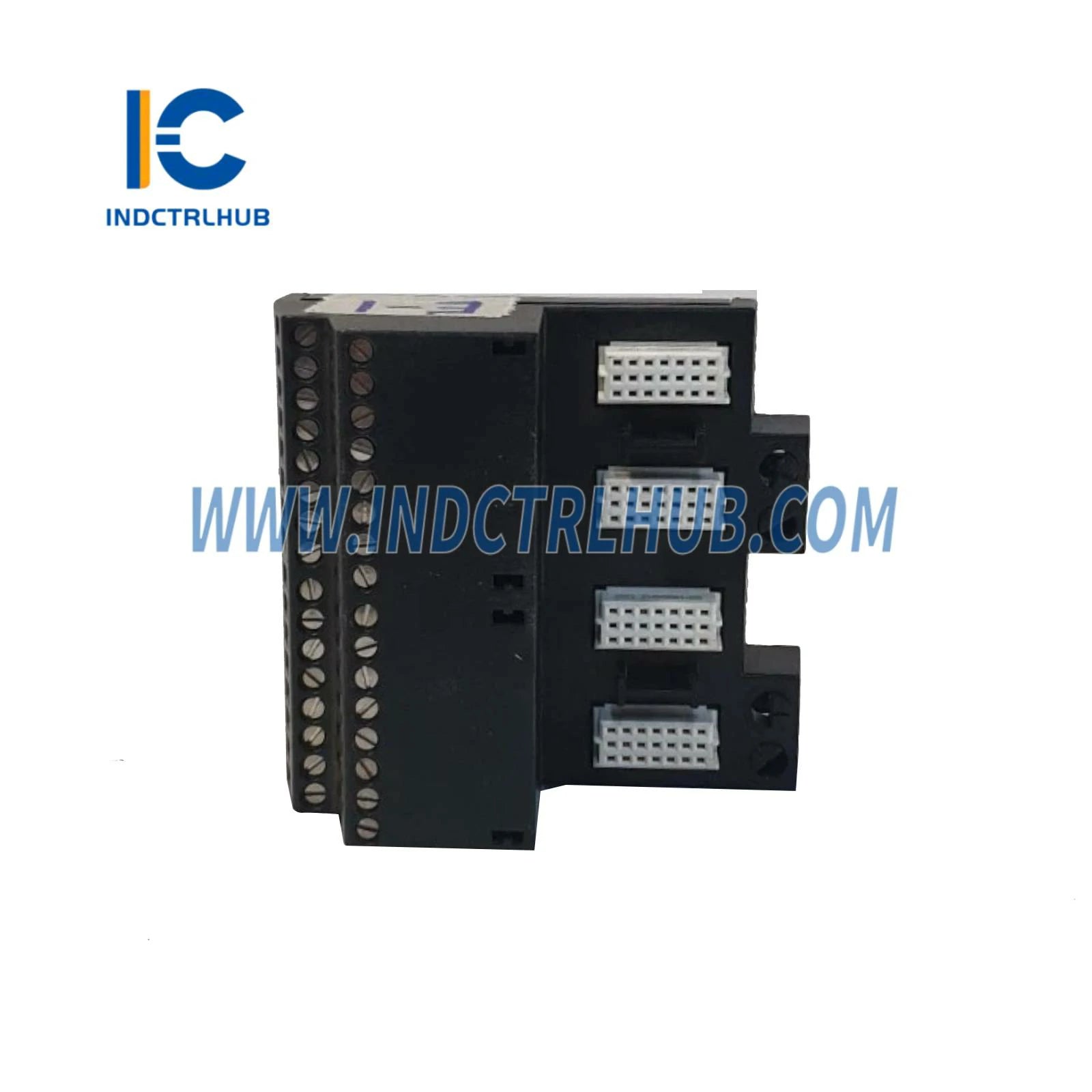

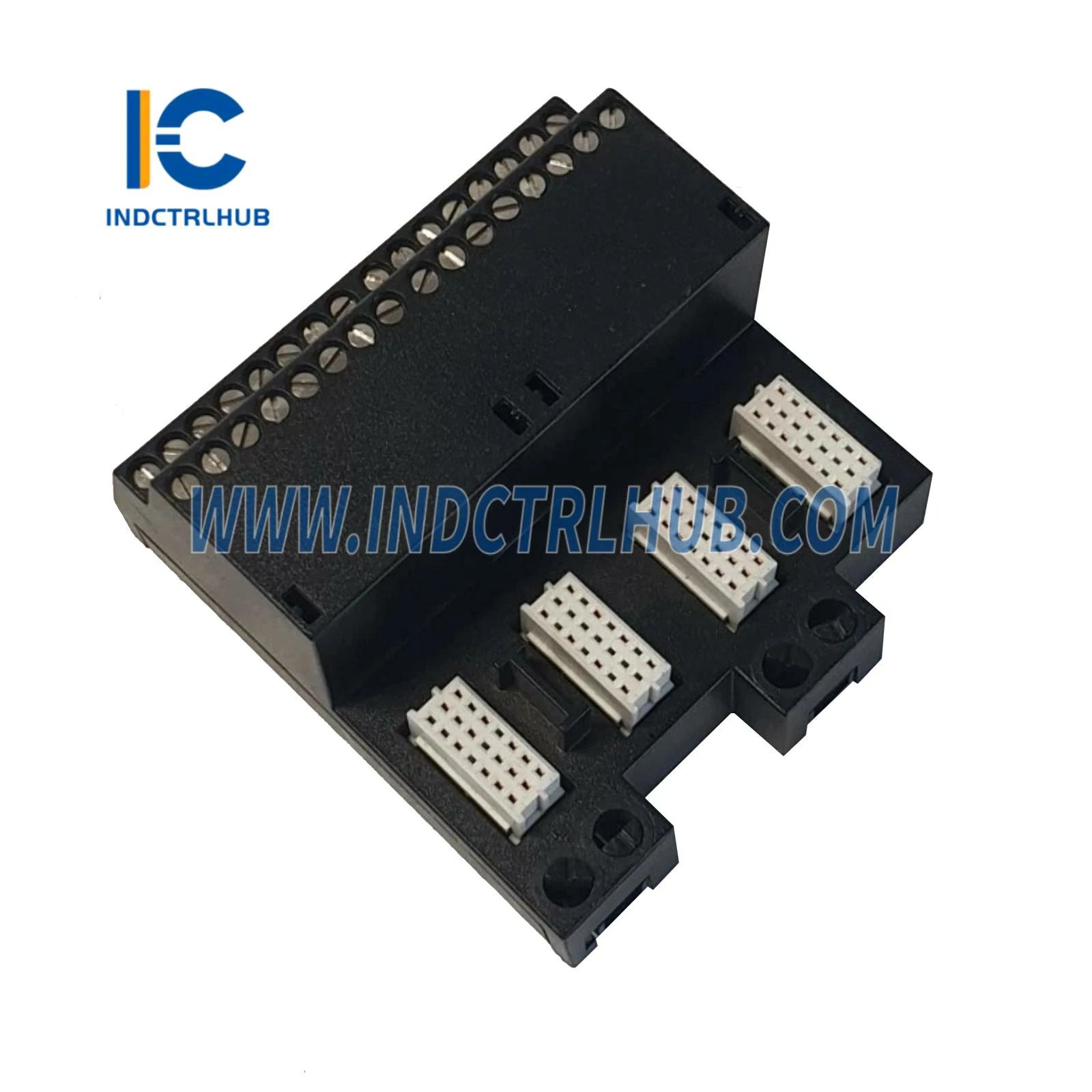

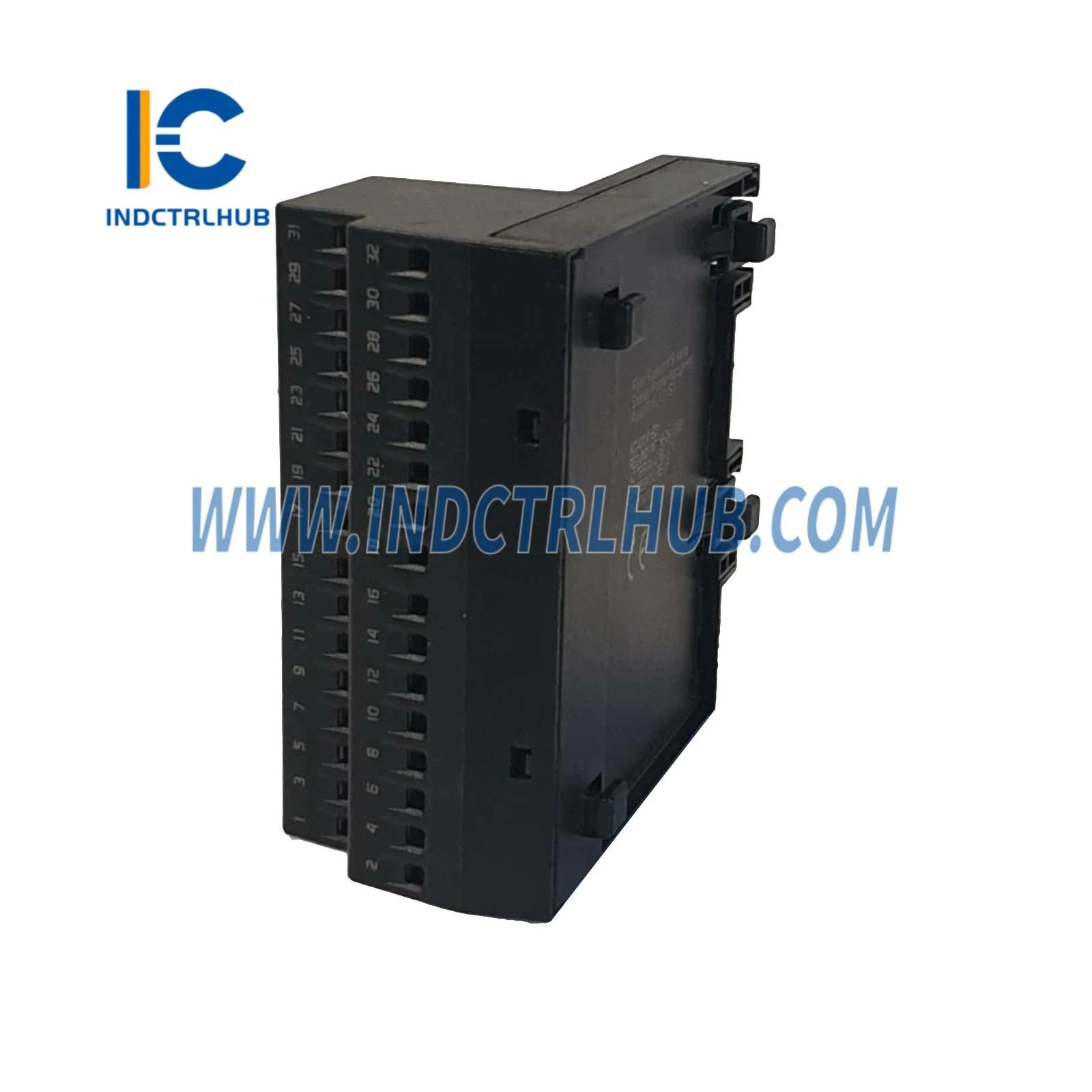

Emerson KC4011X1-BD1 Redundant AO 16-Channel Terminal Block
Emerson KC4011X1-BD1 Redundant AO 16-Channel Terminal Block
Manufacturer: Emerson
Product No.: KC4011X1-BD1
Condition:1000 in stock
Product Type: DeltaV Terminal Block
Product Origin: 8962993389827
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Emerson KC4011X1-BD1 Redundant AO 16-Channel Terminal Block - High-Availability Field Wiring for DeltaV Systems
The Emerson KC4011X1-BD1 Redundant AO 16-Channel Terminal Block provides critical field wiring termination for redundant analog output applications in DeltaV distributed control systems. Engineered for high-availability process control, this terminal block enables seamless connection of 4-20mA control signals to final control elements while supporting automatic failover between redundant I/O cards, ensuring continuous process control in safety-critical oil & gas, chemical, pharmaceutical, and power generation facilities.
Core Technical Specifications
- Model Number: KC4011X1-BD1
- Configuration: Redundant analog output terminal block
- Channel Count: 16 analog output channels
- Field Circuit Rating: 30VDC at 100mA per channel
- Operating Temperature: -40°C to +70°C (-40°F to 158°F)
- Terminal Block Key: A5 position for proper card compatibility
- Redundancy Support: Automatic failover between primary and backup AO cards
- System Compatibility: DeltaV M-series and S-series redundant analog output modules
Global Hazardous Area Certifications
Certified for deployment in classified industrial environments worldwide:
- FM/CSA North America: Class I, Division 2, Groups A-D, T4; Class I, Zone 2 applications
- ATEX Europe: Zone 2 certified for explosive atmosphere installations per Document 12P2046
- IECEx International: Compliant with global hazardous area standards
- Marine Certification: DNV and ABS approved for offshore platforms and maritime installations
Redundant Analog Output Applications
Critical Control Valve Positioning: Provide uninterrupted 4-20mA control signals to emergency shutdown (ESD) valves, pressure relief valves, and critical flow control valves in refinery and petrochemical facilities. The redundant terminal block automatically switches to the backup AO card upon primary card failure, maintaining valve position control without process disruption or safety system compromise.
Compressor Anti-Surge Control: Ensure continuous anti-surge valve control in centrifugal compressor applications where loss of control signal could result in catastrophic equipment damage. The KC4011X1-BD1 supports bumpless transfer between redundant AO cards, preventing valve position jumps that could trigger compressor surge conditions during failover events.
Reactor Temperature Control: Maintain precise temperature control in exothermic chemical reactors where loss of cooling control could lead to runaway reactions. Redundant analog output architecture ensures continuous control signal delivery to cooling valve positioners, even during I/O card maintenance or unexpected failures.
Turbine Speed Control: Support redundant speed control systems in steam and gas turbines for power generation applications. The terminal block enables parallel connection of redundant speed controllers to turbine governor actuators, ensuring continuous speed regulation during controller switchovers or maintenance activities.
Pharmaceutical Batch Control: Provide validated redundant control for critical process parameters in FDA-regulated pharmaceutical manufacturing. The terminal block supports 21 CFR Part 11 compliance by maintaining continuous control loop integrity during system maintenance, reducing batch rejection risks and regulatory audit findings.
Redundant Architecture Advantages
Critical benefits for high-availability process control:
- Automatic Failover: Seamless switching to backup AO card upon primary card failure without operator intervention
- Bumpless Transfer: Maintains current output value during failover to prevent process upsets
- Online Maintenance: Replace failed AO cards without process shutdown or control loop disruption
- Diagnostic Visibility: Real-time status indication of primary and backup card health through DCS interface
- Reduced Downtime: Eliminates scheduled maintenance windows for I/O card replacement
Installation Requirements & Best Practices
Critical guidelines for reliable redundant operation:
Rotary Keying System: The terminal block features A5 key position to ensure compatibility with redundant analog output I/O cards. The rotary keying mechanism prevents incorrect terminal block installation and ensures field wiring matches the installed card type, reducing commissioning errors and preventing damage to field devices or I/O electronics.
Field Wiring Considerations: Each analog output channel supports 30VDC at 100mA maximum current. Typical 4-20mA control loops consume 20-24VDC at 20mA, leaving adequate margin for voltage drop in field wiring. Calculate wire gauge based on loop resistance requirements to maintain minimum 12VDC at transmitter terminals for HART communication compatibility.
Removal/Insertion Guidelines: Terminal blocks may be removed or inserted with system power applied ONLY if no I/O card is installed AND no field wiring is connected. This safety requirement prevents arcing at connector contacts, protects field devices from transient voltages, and maintains hazardous area compliance during maintenance activities.
Redundant Card Synchronization: Upon installation, both primary and backup AO cards must synchronize their output values to prevent output bumps during failover. The DeltaV system automatically manages this synchronization, but operators should verify both cards show identical output values in the DCS interface before declaring the redundant pair operational.
Environmental Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
| Shock Resistance | 10g half-sine wave for 11ms |
| Vibration Tolerance | 1mm peak-to-peak (2-13.2 Hz); 0.7g (13.2-150 Hz) |
| Humidity Range | 5% to 95% non-condensing |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 protection |
Compatible Redundant AO Modules
| Module Type | Channels | Application |
|---|---|---|
| VE4035S2B1 | 16 channels | M-series redundant analog output |
| KJ3221X1-BA1 | 8 channels | M-series HART analog output |
| KC3011X1-BK1 | 16 channels | S-series analog output |
Why Choose Industrial Control Hub?
Your specialized source for genuine Emerson DeltaV automation components:
- ✓ 100% authentic OEM products with full manufacturer traceability and warranty
- ✓ Expert DCS technical support from certified automation engineers
- ✓ Extensive inventory of current production and legacy DeltaV terminal blocks
- ✓ Expedited global shipping to US, UK, EU, and Asia-Pacific markets
- ✓ Competitive pricing with volume discounts for project quantities
- ✓ Complete documentation, wiring diagrams, and installation assistance
Complementary DeltaV Redundant Components
| Product Model | Description | Link |
|---|---|---|
| VE4035S2B1 | Redundant Analog Output Module for DeltaV M-series systems | View Product |
| KJ4006X1-BT1 | Redundant AO Terminal Block for DeltaV field wiring termination | View Product |
| KC3011X1-BK1 | S-Series 16-Channel Analog Output Module for next-generation DeltaV | View Product |
Ordering Information & System Planning
- KC4011X1-BD1: Redundant AO 16-Channel Terminal Block (this product)
- Required I/O Cards: Two redundant analog output cards (primary and backup)
- Key Position: A5 terminal block key for proper card compatibility
- Field Wiring: 18-22 AWG wire recommended for 4-20mA loops up to 1000 feet
- Spare Parts: Maintain spare terminal blocks for rapid replacement during failures
Technical Documentation & Support
Complete installation manuals including Document 12P2046 (Zone 2 Installation Instructions) and "DeltaV S-Series and CHARMs Hardware Installation" manual available upon request. Our application engineering team provides wiring diagram review, redundancy configuration guidance, failover testing procedures, and troubleshooting assistance for complex DeltaV redundant analog output applications.
Maintenance & Service Life
- No User-Serviceable Parts: Terminal block requires no field maintenance beyond periodic wiring inspection
- No Calibration Required: Passive wiring termination requires no calibration or adjustment
- Do Not Disassemble: Terminal block disassembly voids warranty and may compromise safety certifications
- Replacement Criteria: Replace if physical damage, connector wear, or contact resistance issues occur
- Expected Service Life: 15+ years in typical control room environments with proper installation
