Emerson KJ4006X1-BT1 Redundant AO Terminal Block | DeltaV
Emerson KJ4006X1-BT1 Redundant AO Terminal Block | DeltaV
Manufacturer: Emerson
Product No.: KJ4006X1-BT1
Condition:1000 in stock
Product Type: I/O Modules & Terminal Blocks
Payment: T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping

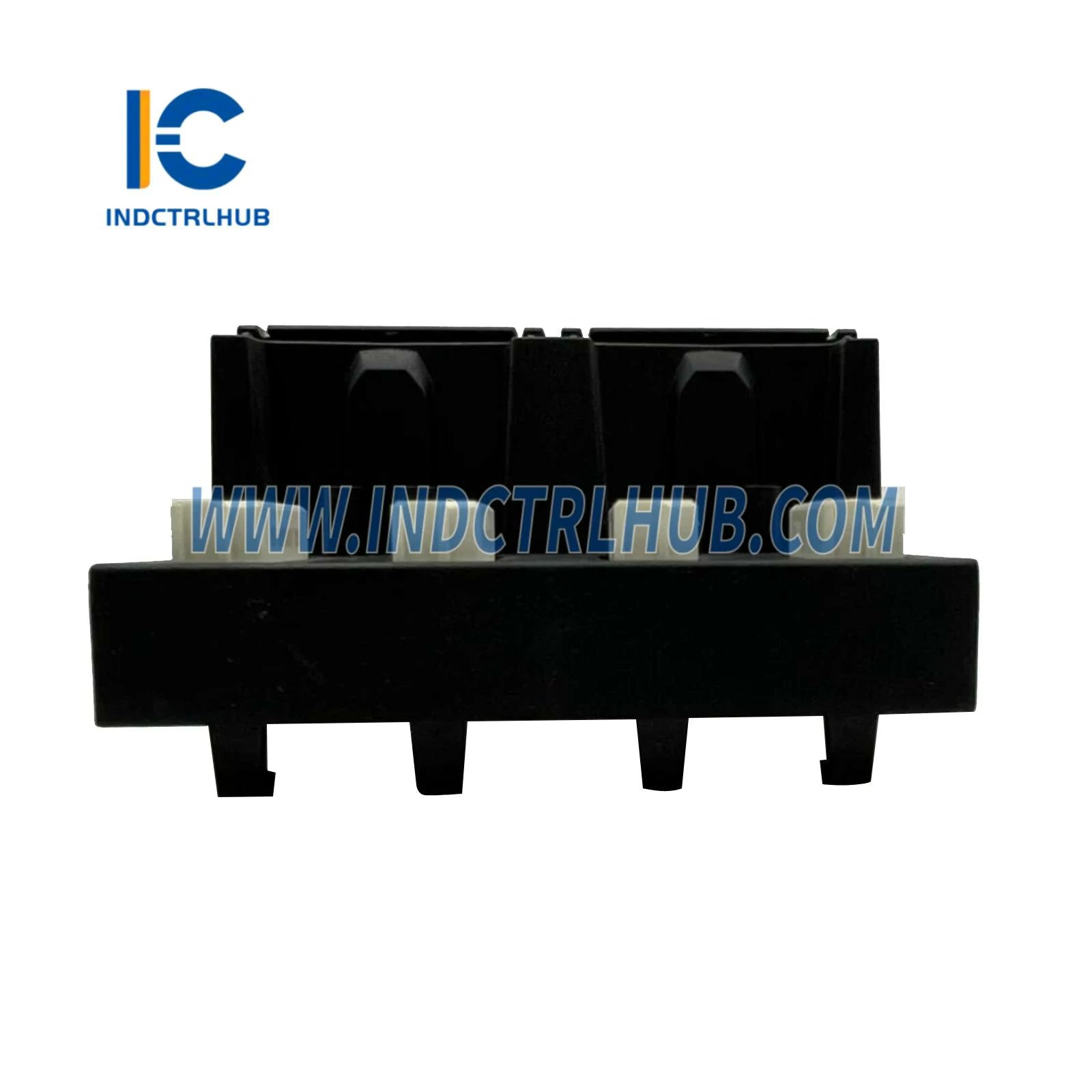

📊 Emerson KJ4006X1-BT1 - Redundant Analog Output Terminal Block
The Emerson KJ4006X1-BT1 is an 8-channel redundant analog output (AO) terminal block engineered specifically for DeltaV S-Series distributed control systems. This field-proven interface module delivers fault-tolerant signal distribution for mission-critical process control applications requiring continuous operation.
🎛️ Core Specifications
| Model Number: | KJ4006X1-BT1 |
| System Platform: | DeltaV S-Series I/O |
| Channel Count: | 8 Analog Outputs (Redundant) |
| Output Signal: | 4-20mA DC, HART compatible |
| Redundancy: | Dual-channel failover architecture |
| Load Resistance: | 0-750Ω per channel |
| Resolution: | 16-bit DAC (0.0015% accuracy) |
| Update Rate: | 100ms typical scan cycle |
| Power Supply: | 24V DC via carrier backplane |
| Diagnostics: | Per-channel health monitoring, wire-off detection |
🏭 Deployment Scenarios
Refinery Control Loops: Manages valve positioners and variable frequency drives (VFDs) in crude distillation units where unplanned shutdowns cost $500K+ per hour, leveraging redundancy to maintain 99.99% uptime.
Pharmaceutical Batch Processing: Controls precision dosing pumps and temperature regulators in FDA-validated cleanroom environments, with full audit trail compliance via HART digital communication overlay.
Petrochemical Reactor Systems: Interfaces with safety instrumented systems (SIS) for emergency shutdown valves and pressure relief controls, meeting IEC 61511 SIL 2 requirements through redundant output paths.
🛡️ Reliability Engineering
Bumpless Transfer Technology: Automatic switchover between primary and backup channels occurs within 50ms during controller failure, preventing process upsets that could trigger batch rejections or safety incidents.
Predictive Maintenance: Embedded diagnostics track output current deviation and loop impedance trends, generating early warnings 2-4 weeks before component failure based on 15+ years of field data analytics.
Harsh Environment Resilience: Conformal-coated PCBs and industrial-grade connectors withstand temperatures from -40°C to +70°C, vibration up to 2G, and electromagnetic interference per IEC 61000-6-2 standards.
Simplified Sparing Strategy: Hot-swappable design with auto-configuration reduces spare parts inventory by 60% compared to non-redundant architectures, while maintaining zero-downtime replacement capability.
🔌 Integration Details
- Compatible with DeltaV S-Series carriers (8-wide, 16-wide)
- Supports HART multiplexing for smart device configuration
- Fieldbus Foundation H1 segment isolation available
- Pre-wired terminal blocks reduce commissioning time by 40%
📦 Delivery Package
- 1× KJ4006X1-BT1 Terminal Block Assembly
- 8× Removable screw terminals (Phoenix Contact style)
- Installation guide with wiring schematics
- Calibration certificate (traceable to NIST)
Factory-sealed Emerson original. Preferred by DCS engineers, instrumentation technicians, and project managers executing brownfield upgrades or greenfield installations. Backward compatible with legacy DeltaV systems (v11.3+).
