Emerson VE4035S2B1 Redundant Analog Output Module | DeltaV
Emerson VE4035S2B1 Redundant Analog Output Module | DeltaV
Manufacturer: Emerson
Product No.: VE4035S2B1
Condition:1000 in stock
Product Type: DeltaV Redundant Analog Output Module
Product Origin: 6954789023458
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Emerson VE4035S2B1 Redundant Analog Output Module for Mission-Critical DeltaV Control
The Emerson VE4035S2B1 represents the pinnacle of fault-tolerant analog output technology for DeltaV distributed control systems. Engineered with dual-channel redundancy, this 8-output module ensures uninterrupted control signal delivery to final control elements even during component failures, making it indispensable for safety-critical and high-availability process automation environments.
Core Technical Specifications
- Output Channels: 8 independent redundant analog outputs
- Signal Range: 4-20 mA DC current loop with HART digital overlay
- Redundancy Architecture: 1oo2 (one-out-of-two) voting logic with automatic failover
- Output Accuracy: ±0.1% of span including linearity and repeatability
- Response Time: <100 ms from digital command to analog output stabilization
- Load Resistance: 0-750 Ω per channel at 24 VDC supply
- HART Compliance: HART 7 protocol for smart positioner communication and diagnostics
- Isolation: 1500 VAC channel-to-bus, 250 VAC channel-to-channel
- Diagnostic Coverage: >95% with open-circuit, short-circuit, and out-of-range detection
- Environmental Rating: -40°C to +70°C, 5-95% RH non-condensing
- Certifications: FM, CSA, ATEX Zone 2, IECEx, SIL 2 capable per IEC 61508
Redundancy & High-Availability Features
The VE4035S2B1 employs dual independent output drivers per channel with continuous cross-monitoring and bumpless transfer capability. When the primary output path experiences a fault, the secondary path assumes control within 50 milliseconds without process disturbance. This seamless failover mechanism eliminates the need for manual intervention during component degradation, significantly reducing mean time to repair (MTTR) and improving overall system availability to 99.95% or higher.
Built-in health monitoring tracks output current deviation, power supply voltage, junction temperature, and communication integrity. Predictive diagnostics alert operators to incipient failures 72-96 hours before critical malfunction, enabling proactive maintenance scheduling during planned outages rather than emergency shutdowns.
Industrial Application Scenarios
Valve Positioner Control in Compressor Stations: Drive pneumatic and electro-hydraulic valve actuators controlling gas flow, pressure regulation, and anti-surge protection in pipeline compression facilities where unplanned shutdowns cost $50,000-$200,000 per hour.
Reactor Temperature Cascade Control: Maintain precise coolant flow modulation in exothermic chemical reactors where temperature excursions beyond ±2°C trigger batch rejection or runaway reaction hazards.
Turbine Speed Governor Interface: Provide redundant fuel valve positioning signals to steam and gas turbine governors in combined-cycle power plants, ensuring grid stability and preventing costly turbine trips.
Pharmaceutical Clean-in-Place (CIP) Systems: Control dosing pumps for caustic, acid, and sanitizer injection with FDA 21 CFR Part 11 audit trail compliance and zero-defect reliability requirements.
System Integration & Deployment

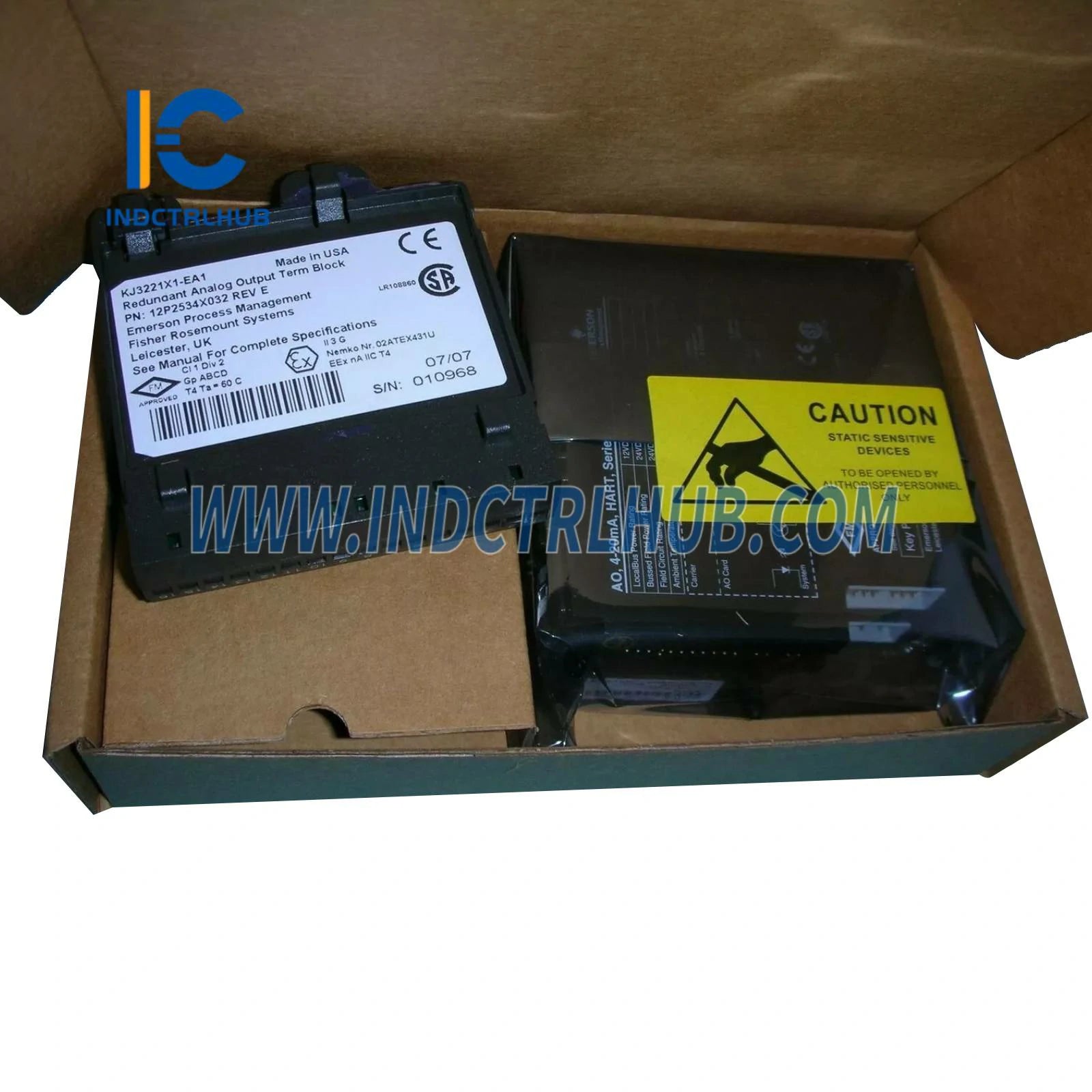

The VE4035S2B1 mounts directly onto DeltaV M-series carriers (KL4104X1, KL4002X1) and interfaces with KJ3221X1-series terminal blocks for field wiring termination. Supports both simplex-to-redundant and redundant-to-redundant controller architectures with automatic synchronization of output states during online module replacement.
Configuration via DeltaV Explorer includes per-channel scaling, damping filters (0.1-60 seconds), rate-of-change limiting, and fail-safe output states (hold-last-value, predetermined safe state, or track input). HART pass-through mode enables AMS Device Manager to commission smart positioners without additional gateways.
Related Products
| Product Model | Description | Link |
|---|---|---|
| VE4035S2B1 KJ3221X1-BA1 | Redundant AO Module with BA1 Card | View Product |
| VE4035S2B1 KJ3221X1-EA1 | Redundant AO Terminal Block Assembly | View Product |
| VE4035S2B1 Complete Set | Full Redundant AO Module with Card & Terminal Block | View Product |
Quality Assurance & Lifecycle Support
Each VE4035S2B1 module ships with factory calibration certificates traceable to NIST/PTB standards, electromagnetic compatibility (EMC) test reports, and material declarations for RoHS/REACH compliance. Backed by Emerson's 18-month warranty covering defects in materials and workmanship, with optional extended service agreements including advance replacement and 4-hour response SLAs.
Compatible with DeltaV versions 10.3 through 15.1 LTS, with firmware update capability for future protocol enhancements. Recommended spare parts stocking level: 1 module per 20 installed units for 99.9% availability targets.
