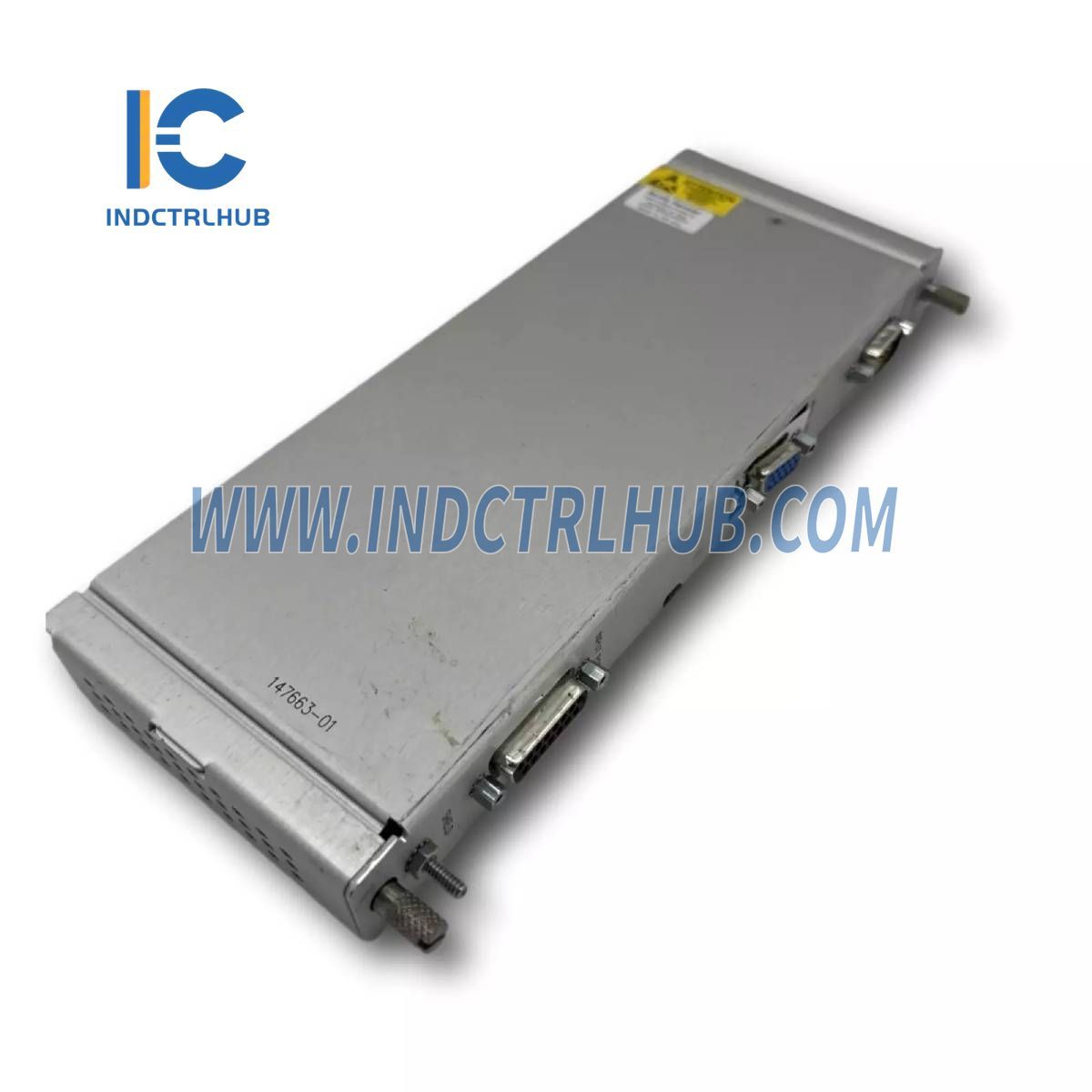

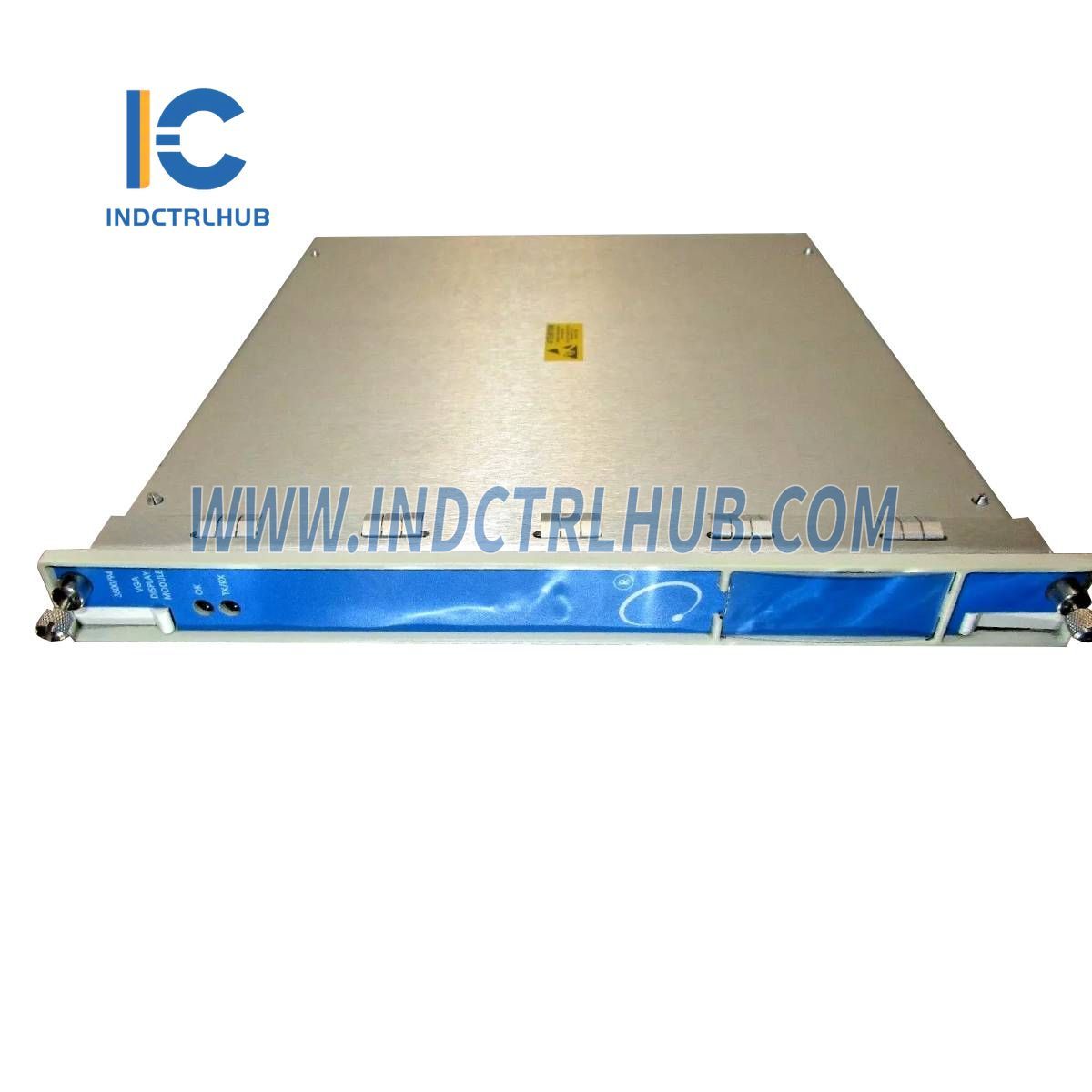

Bently Nevada 3500/94 145988-01+147663-01 VGA Display Monitor

Product Details

• Manufacturer: Bently Nevada
• Series: 3500/94
• Model/Part Numbers: 3500/94 145988-01 + 147663-01
• Model Type: VGA Display Monitor

Description

The 3500/94M VGA Display Module displays critical machinery protection system information for the 3500 series. The display includes:

• System event list
• Alarm event list
• All module and channel data
• Alarm and OK status
• Nine custom display options

Specifications

Inputs

• Power Consumption:

  • 4.6 watts maximum.

• High-Speed Network:

  • Monitors status, data, and values.

• RS232 Port (I/O):

  • Handles touch controller data.

Outputs

• OK LED:

  • Indicates proper operation of the module.

• TX/RX LED:

  • Indicates communication status between system modules.

• VGA Port (I/O):

  • Analog red, green, blue, and sync signals to the display.

• Front Port:

  • 24 Vdc Power out, VGA signal out, Touch commands in.

Environmental Limits

• Operating Temperature:

  • -20°C to 65°C (-22°F to 149°F)

• Storage Temperature:

  • -40°C to 85°C (-40°F to 185°F)

• Humidity:

  • 95%, non-condensing.

Physical Characteristics

3500/94M VGA Display Module Dimensions:

• Height x Width x Depth:

  • 241.3 mm x 24.4 mm x 241.8 mm (9.5 in x 0.96 in x 9.52 in)

• Weight:

  • 0.73 kg (1.6 lb.)

I/O Module Dimensions:

• Height x Width x Depth:

  • 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)

• Weight:

  • 0.34 kg (0.75 lb.)
