Product Description

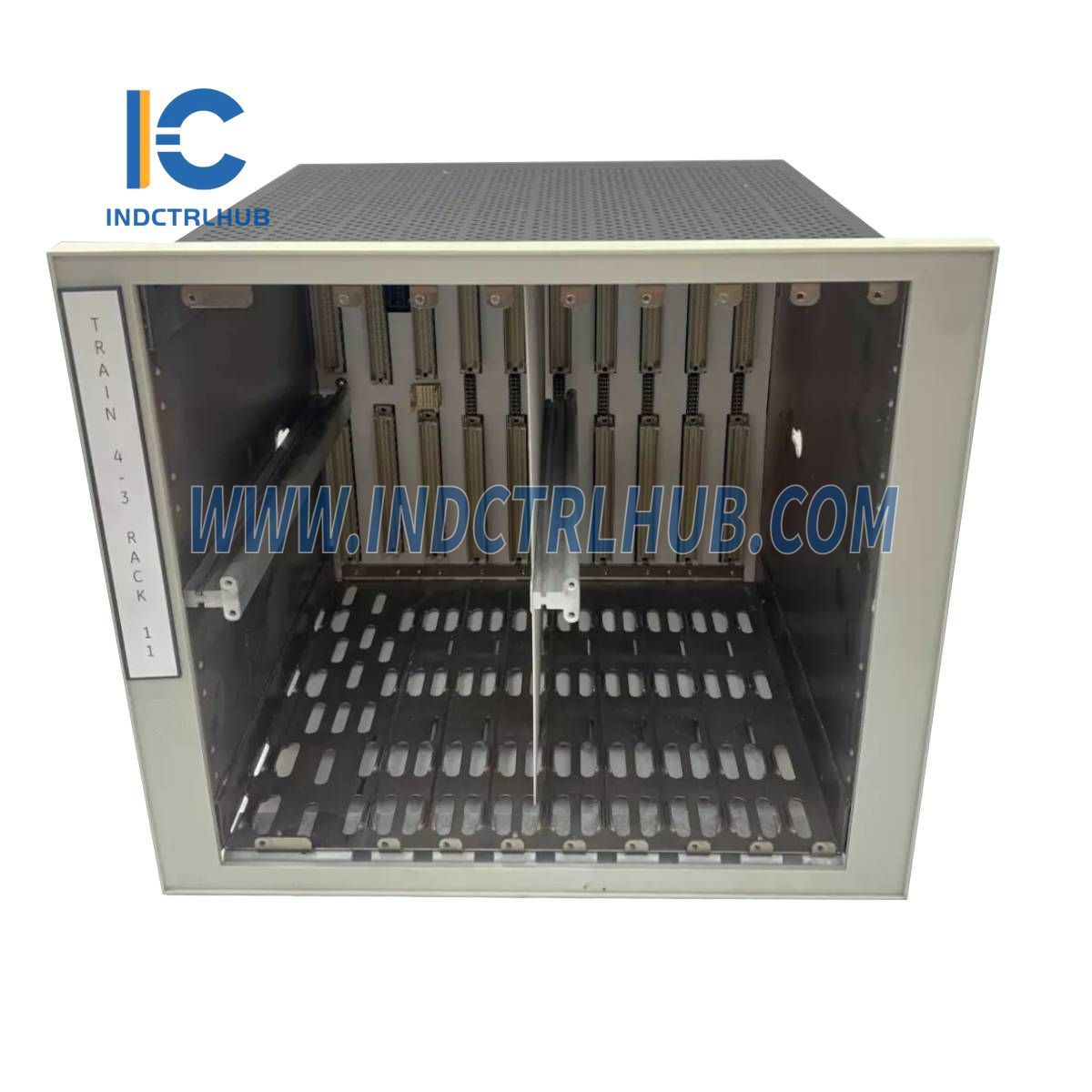

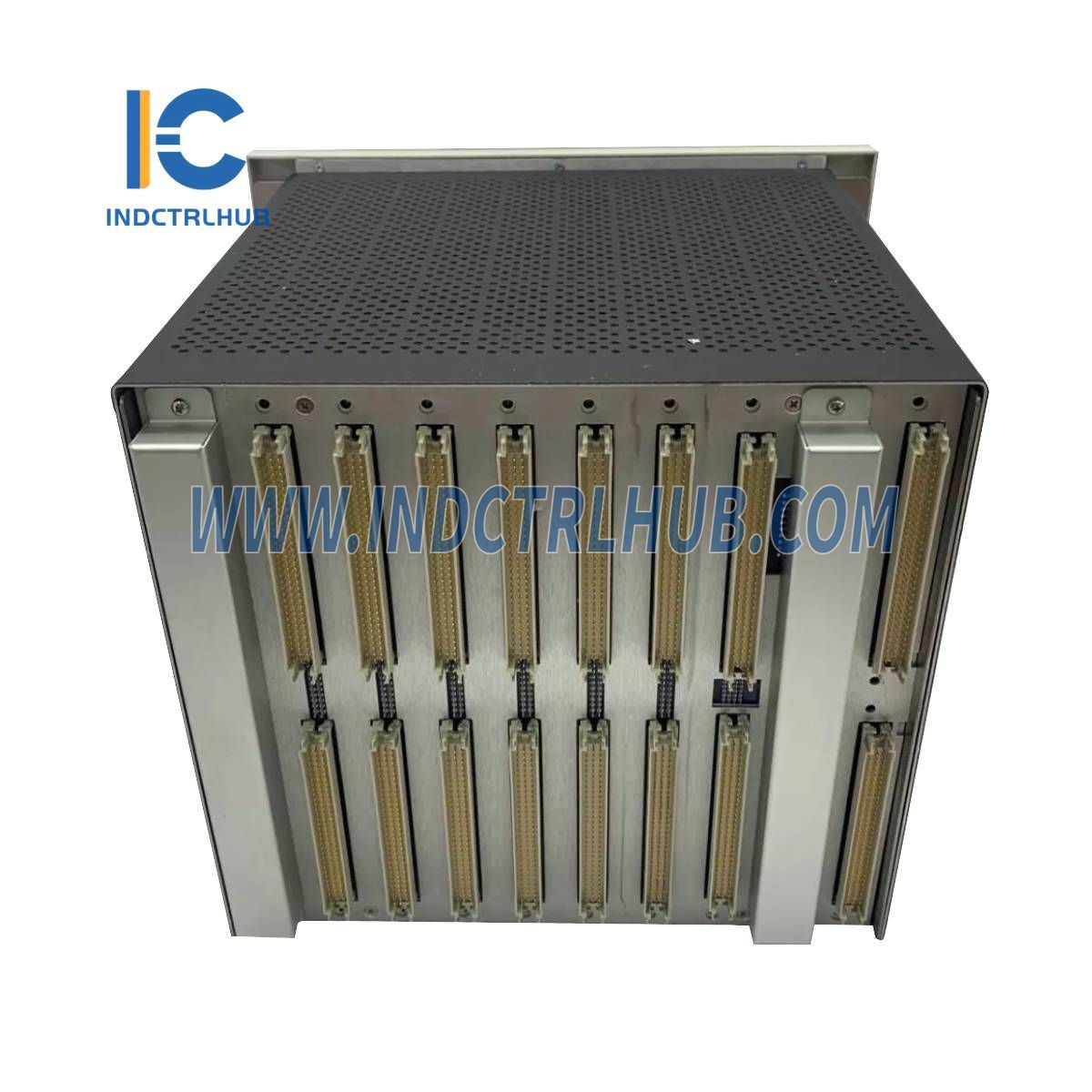

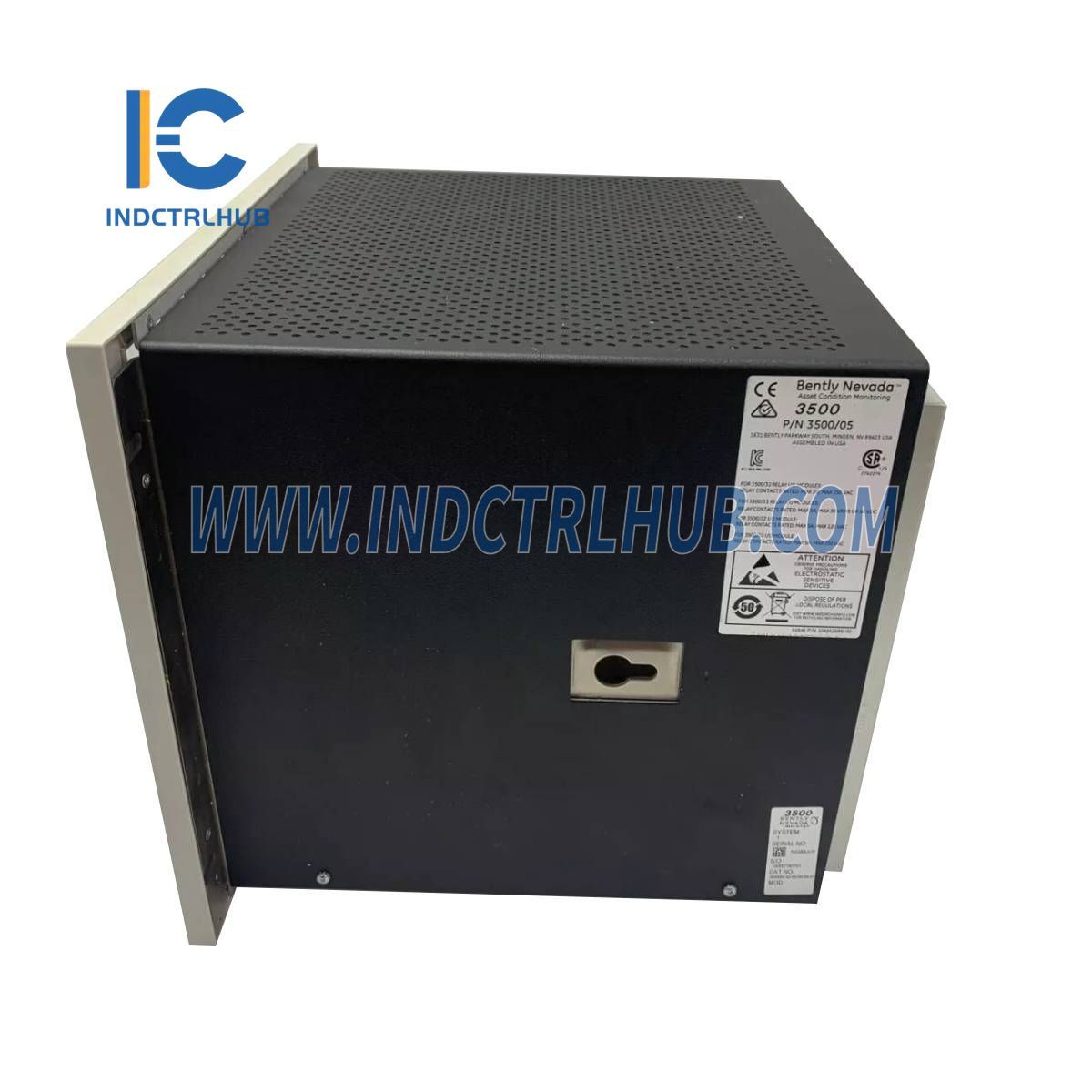

Product Information: Bently Nevada 3500/05 Instrument Rack
| Manufacturer | Bently Nevada (A Baker Hughes Business) |
|---|---|
| Series | 3500/05 |
| Model/Part Number | 3500/05-02-05-00-00-00 |
| Model Type | Instrument Rack |
General Description
The 3500/05 Instrument Rack is a key component of the Bently Nevada 3500 System, designed for continuous, online machinery protection and monitoring. This rack-based system is specifically engineered to meet the American Petroleum Institute’s API 670 standard for machinery protection systems. It offers a modular design and is capable of housing a variety of measurement modules for real-time monitoring of critical machine parameters.
The 3500/05 rack is required for operation in the 3500 Series and serves as the foundation for building a comprehensive machinery protection system.
Rack Specifications
The 3500/05 Instrument Rack features a modular design that can support multiple slots, allowing flexibility in monitoring configurations. The system provides the following options for customization and use:
| Specification | Details |
|---|---|
| Rack Size Options | 19-inch Rack (14 module slots) or 12-inch Mini-Rack (7 module slots) |
| Mounting Options | |
| Panel Mount Option, Full-Size Rack | |
| Rack Mount Option, Full-Size Rack (mounts to 19-inch EIA Rack) | |
| Bulkhead Mount Option (not available in Mini-Rack) | |
| Panel Mount Option, Mini-Rack | |
| Rack Mount Option, Mini-Rack | |
| Agency Approval Options | CSA - C – US, ATEX/CSA |
| European Compliance Options | CE (for European markets) |
Ordering Information
When ordering the 3500/05 Instrument Rack, the following configuration options are available:
| Field | Option Values |
|---|---|
| A: Rack Size | 0: 19-inch Rack (14 module slots) 2: 12-inch Mini-Rack (7 module slots) |
| B: Mounting Options | 1: Panel Mount Option, Full-Size Rack 2: Rack Mount Option, Full-Size Rack 3: Bulkhead Mount Option (not available in Mini-Rack) 4: Panel Mount Option, Mini-Rack 5: Rack Mount Option, Mini-Rack |
| C: Agency Approval Option | 0: None 1: CSA - C – US 2: ATEX/CSA |
| D: Reserved | 0: None |
| E: European Compliance Option | 1: CE |
