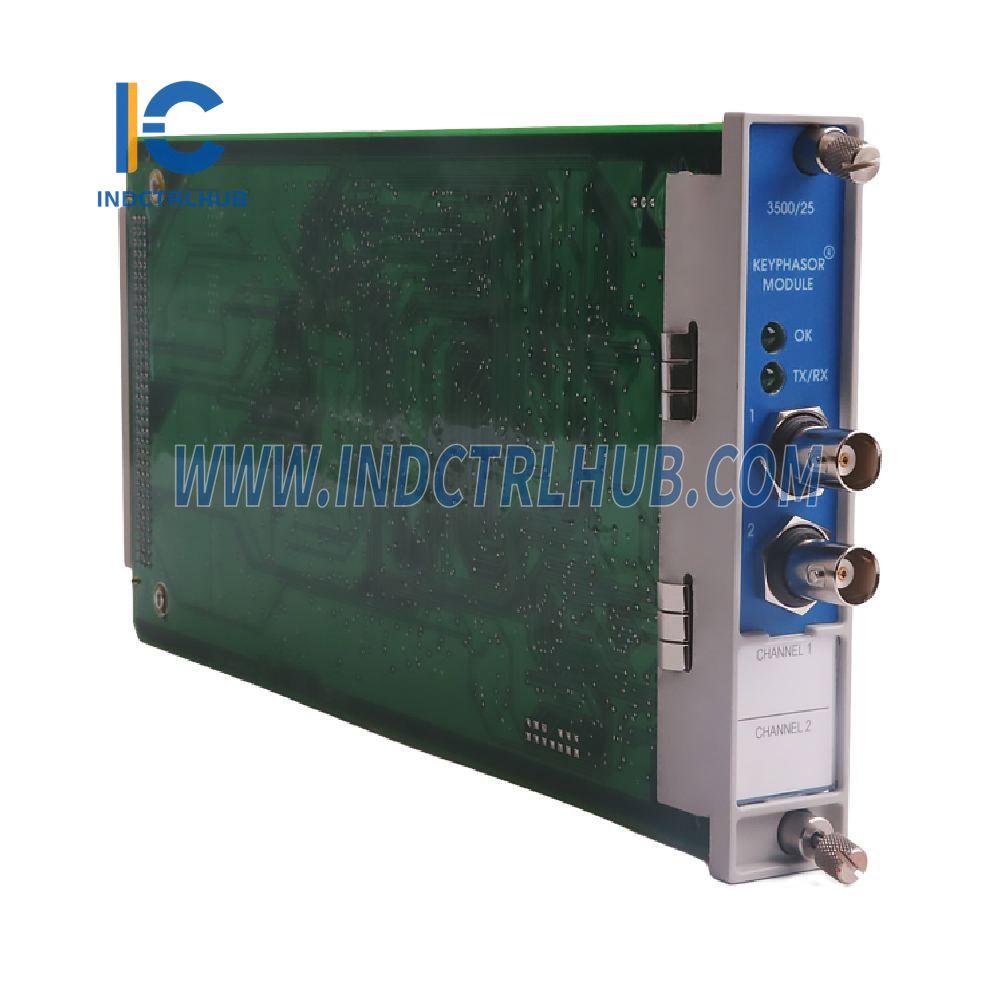

Bently Nevada 3500/25 3500/25-01-03-00 Internal Barrier I/O Module

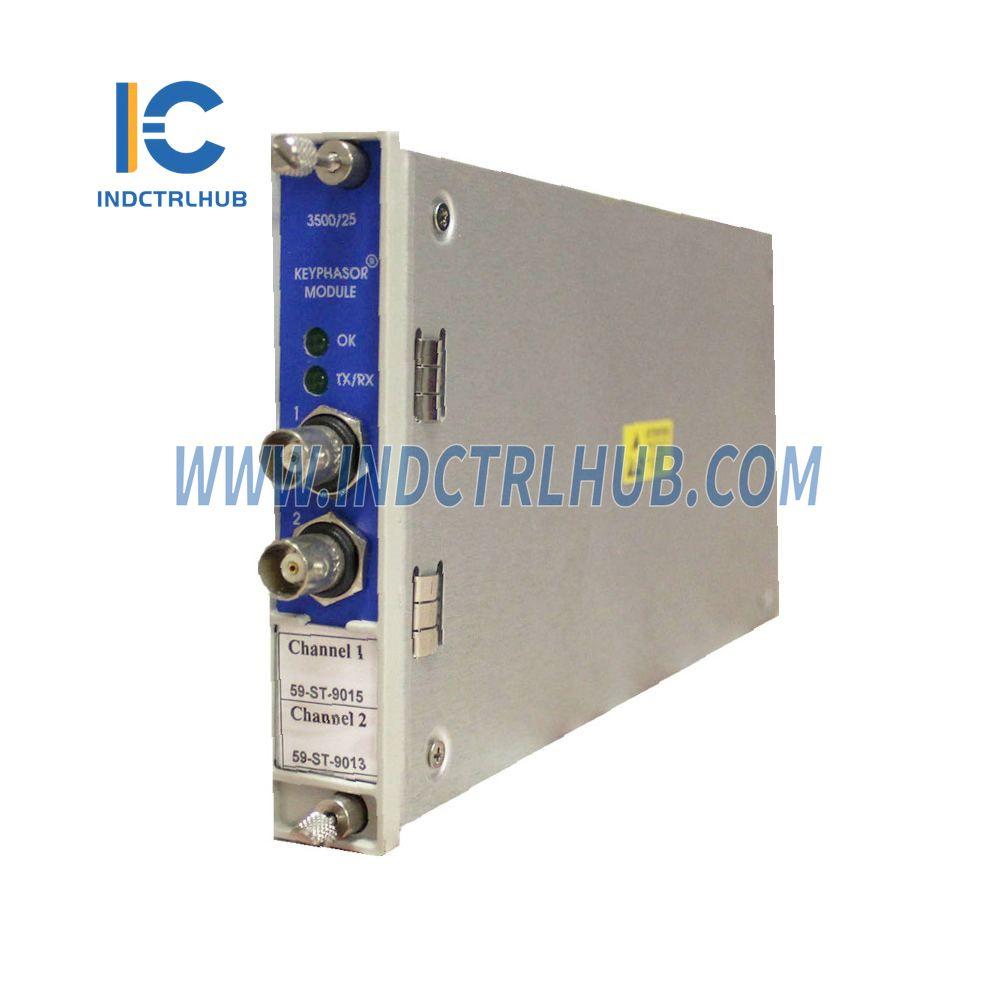

Bently Nevada 3500/25 3500/25-01-03-00 Internal Barrier I/O Module

  • Manufacturer: Bently Nevada

  • Product No.: 3500/25-01-03-00

  • Condition:1000 in stock

  • Product Type: I/O Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 460g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Overview

  • Manufacturer: Bently Nevada
  • Series: 3500/25
  • Model/Part Number: 3500/25-01-03-00
  • Type: Keyphasor Card I/O Module
  • Function: The module provides Keyphasor signals to monitor modules in a 3500 rack by converting input signals from proximity probes or magnetic pickups into digital Keyphasor signals. These signals mark the alignment of the Keyphasor transducer with the shaft's Keyphasor mark.

Specifications

  • Power Consumption: 3.2 Watts (typical)
  • Signal Input:
    • Transducer Signals: Up to 2 signals from proximity probes or magnetic pickups
    • Input Voltage Range:
      • Non-Isolated I/O Modules: +0.8V to -21.0V
      • Isolated I/O Modules: +5V to -11V
    • Input Impedance: 21.8 kΩ (minimum)
    • Magnetic Pickup Requirement: Shaft speed >200 rpm (3.3 Hz)
  • Environmental Limits:
    • Operating Temperature:
      • -30°C to +65°C (-22°F to +150°F) for non-Internal Barrier versions
      • 0°C to +65°C (32°F to +150°F) for Internal Barrier versions
    • Storage Temperature: -40°C to +85°C (-40°F to +185°F)
    • Humidity: 95% non-condensing
  • Physical Dimensions:
    • Height: 241.3 mm (9.50 in)
    • Width: 24.4 mm (0.96 in)
    • Depth: 103.1 mm (4.06 in)
    • Weight: 0.46 kg (1.01 lbs.)
    • Rack Space: 1 full-height rear slot

Ordering Information

The model number format is 3500/25-AA-BB-CC, where:

  • A: Number of channels
    • 01 = 1 card (2 channels)
    • 02 = 2 cards (4 channels)
  • B: Type of I/O Module
    • 01 = Internal Terminations
    • 02 = External Terminations
    • 03 = Internal Barrier I/O (Internal Terminations)
    • 04 = Isolated I/O with Internal Terminations (for Magnetic Pickups)
    • 05 = Isolated I/O with External Terminations (for Magnetic Pickups)
  • C: Agency Approval Option
    • 00 = No approval
    • 01 = cNRTLus (Class 1, Div 2)
    • 02 = ATEX/IECEx/CSA (Class 1, Zone 2)
