Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
330400-02-05 |
|
Description |

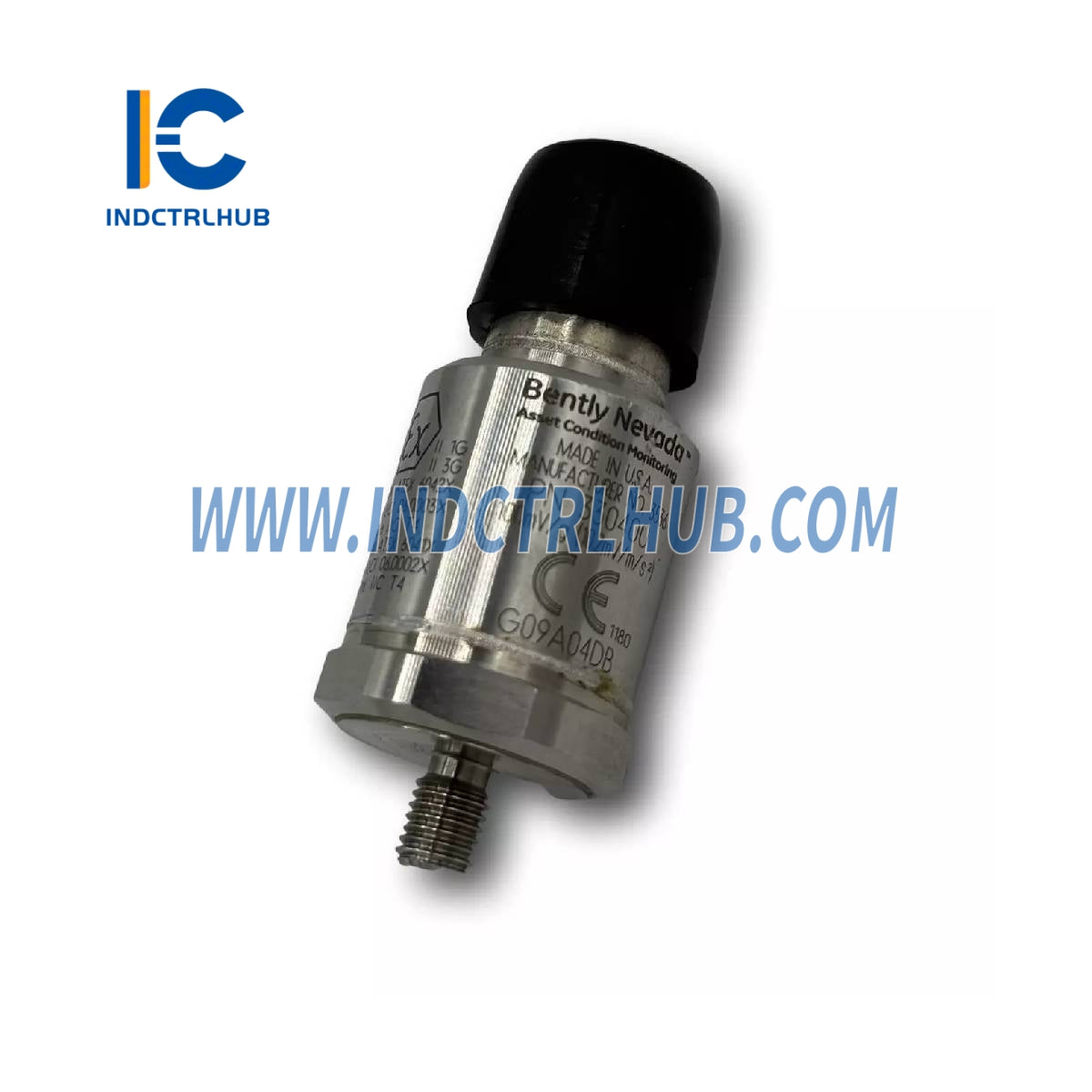

330400 Accelerometer |
🔹 Electrical Specifications
|
Attribute |
Value |
|---|---|
|
Sensitivity |
10.2 mV/m/s² (100 mV/g) ±5% |
|
Acceleration Range |
490 m/s² (50 g) peak overall acceleration within 10 Hz to 15 kHz |
|
Amplitude Linearity |
±1% to 490 m/s² (50 g) peak |
|
Broadband Noise Floor (10 Hz to 15 kHz) |
0.039 m/s² (0.004 g) rms |
🔹 Environmental Limits
|
Specification |
Value |
|---|---|
|
Operating & Storage Temperature |
-55°C to +121°C (-67°F to +250°F) |
|
Shock Survivability |
49,050 m/s² (5000 g) peak, maximum |
|
Relative Humidity |
100% condensing, non-submerged (hermetically sealed case) |
|
Magnetic Field Susceptibility |
<2.21 mm/s²/gauss (225 mg/gauss) at 50 gauss, 50-60Hz |
|
IP Rating |
Equivalent to IP68 (dust-tight and watertight) (Sensor only, not applicable to cable) |
🔹 Physical Specifications
|
Attribute |
Value |
|---|---|
|
Weight (without cable) |
99 g (3.5 oz), typical |
|
Diameter |
23 mm (0.93 in) |
|
Height |
59 mm (2.3 in), including mounting stud |
|
Connector Type |
3-pin MIL-C-5015 Receptacle |
|
Material |
316L Stainless Steel |
|
Mounting Surface |
32 µinch rms |
|
Mounting Torque |
4.1 N·m (3.0 ft·lb) |
|
Mounting Angle |
Any orientation |
🔹 Ordering Information
|
Part Number |
Description |
|---|---|
|
330400 |
Accelerometer |
|
330425 |
Accelerometer |
Customization Options
|
Code |
Mounting Thread Option |
|---|---|
|
01 |
¼-28 UNF integral stud |
|
02 |
M8 X 1 integral stud |
|
Code |
Agency Approval Option |
|---|---|
|
00 |
None |
|
05 |
Multiple approvals (CSA, ATEX, IECEx) |
