Product Description
Product Details
- Manufacturer: Bently Nevada
- Model/Part Number: 3500/05-01-01-01-00-01

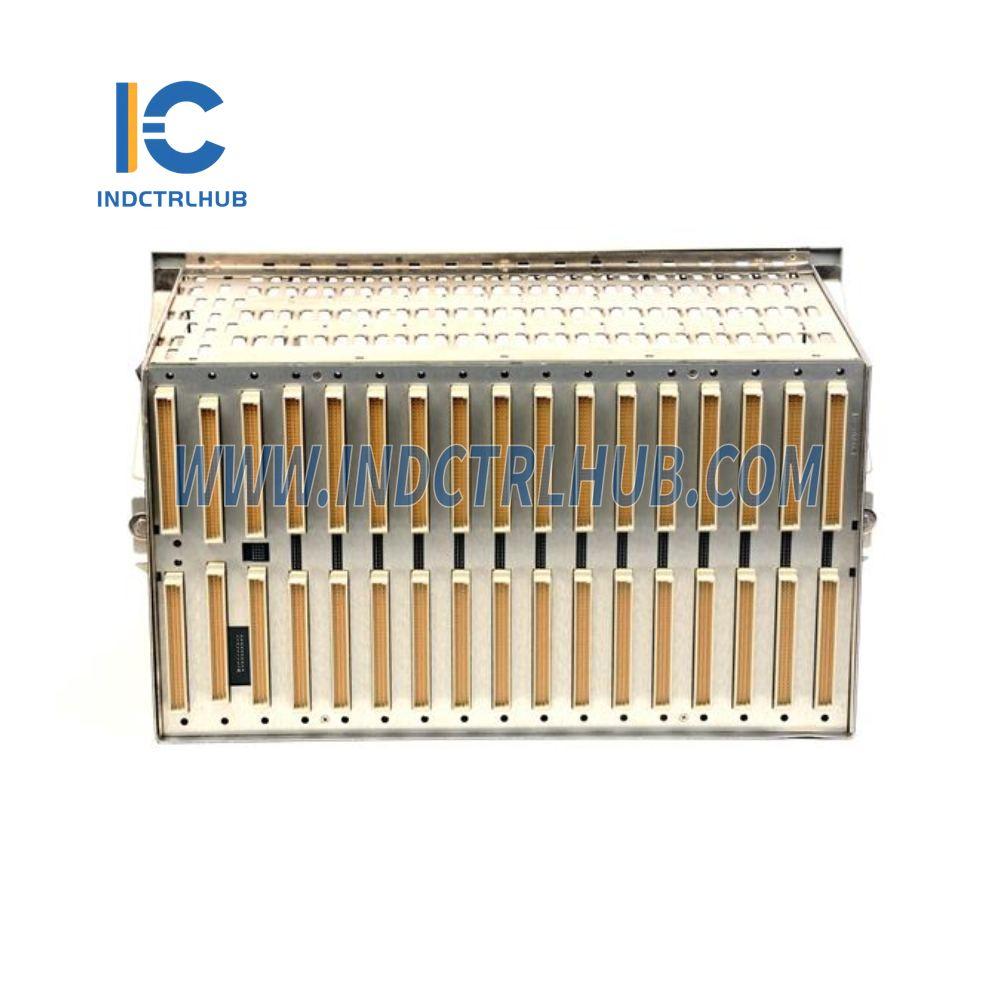

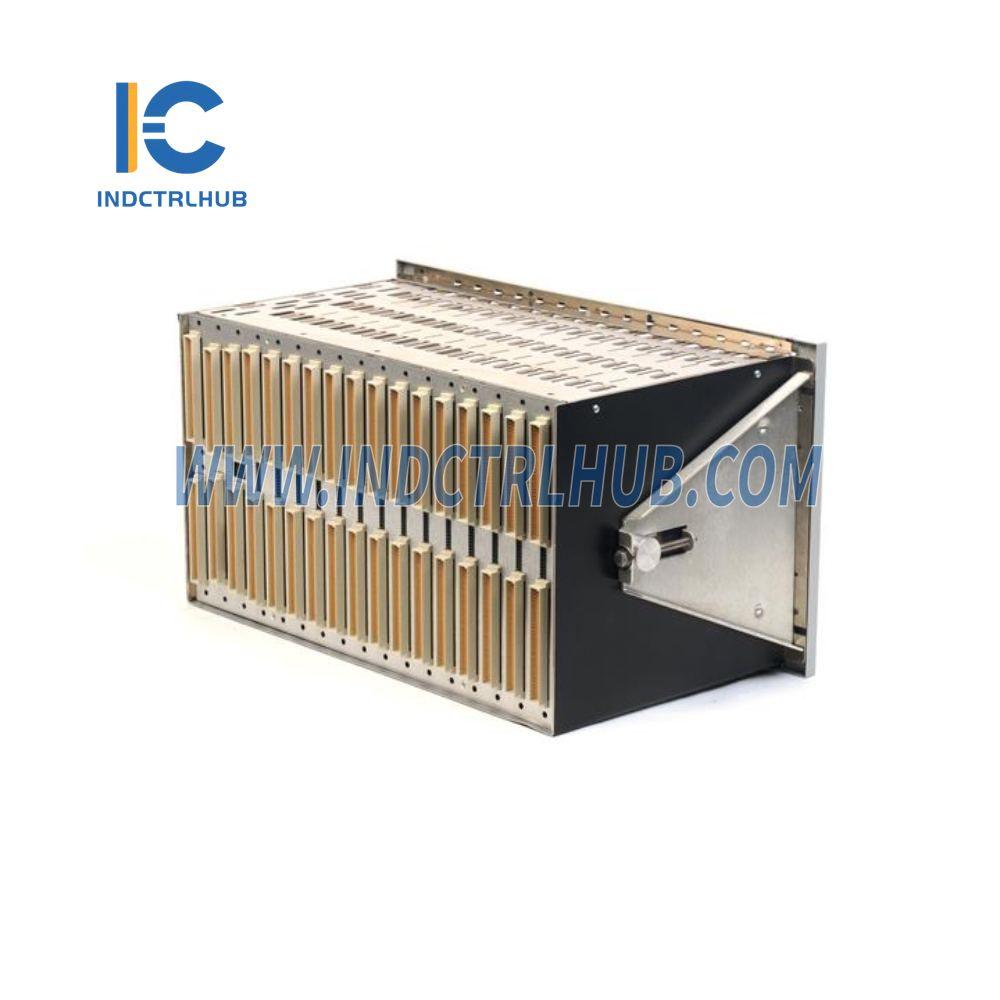

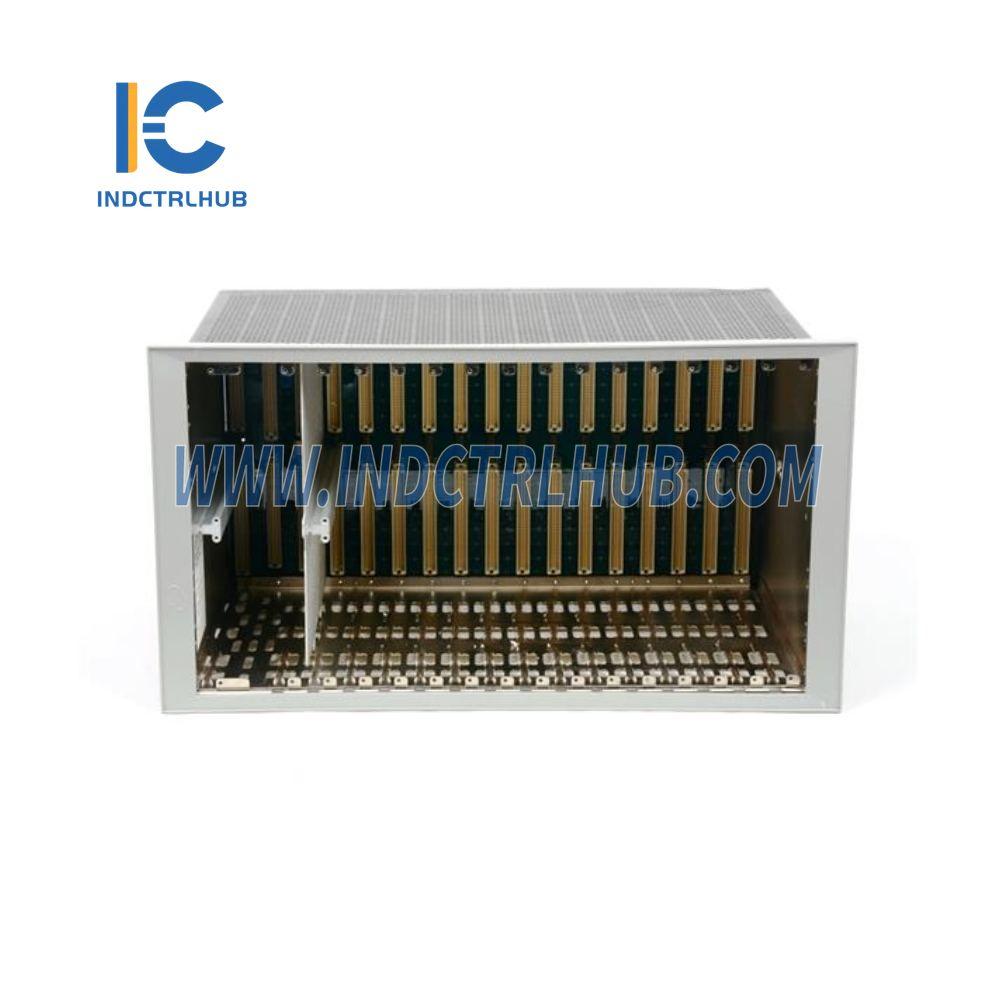

- Description: 3500/05 System Rack
Description
The 3500 System Rack is designed to mount all 3500 monitor modules and power supplies.
- Ensures that 3500 modules are located close to each other for seamless communication.
- Provides housing for power supplies to distribute power across the system.
- Available in two sizes:
- Full-Size Rack: 19-inch EIA rack with 14 module slots.
- Mini-Rack: 12-inch rack with 7 module slots.
Ordering Information
3500/05-AA-BB-CC-DD-EE
-
A: Rack Size
- 01: 19-inch Rack (14 module slots).
- 02: 12-inch Mini-Rack (7 module slots).
-
B: Mounting Options
- 01: Panel Mount Option, Full-Size Rack.
- 02: Rack Mount Option, Full-Size Rack (mounts to 19-inch EIA Rack).
- 03: Bulkhead Mount Option (not available in Mini-Rack).
- 04: Panel Mount Option, Mini-Rack.
- 05: Rack Mount Option, Mini-Rack.
-
C: Agency Approval Option
- 00: None.
- 01: CSA/NRTL/C (Class 1, Division 2).
- 02: ATEX/IECEx/CSA (Class 1, Zone 2).
-
D: Reserved
- 00: None.
-
E: European Compliance Option
- 01: CE Certification.
Dimensions
Full-Size Rack Mounting Dimensions (Rack and Panel Mount Configuration):
- Height: 265.94 mm
- Width: 482.60 mm
- Depth: 349.25 mm
