Product Description
__ General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Series |
3300 XL |
|
Model/Part Number |
330330-080-01-00 |
|
Model Type |
Extension Cable |
_
_
__ Description

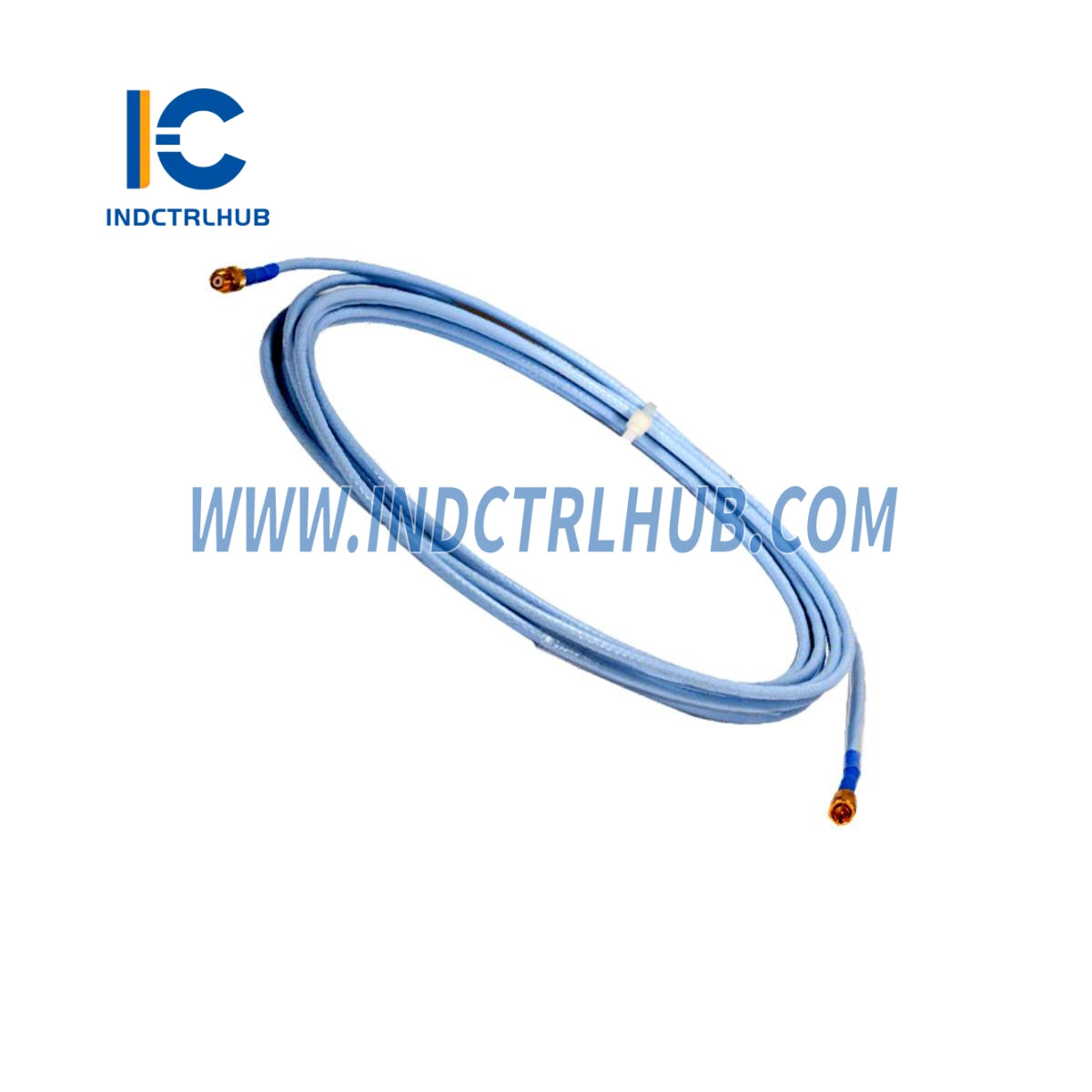

This extension cable is part of the 3300 XL system and is specifically designed for use with the_3300 XL HTPS 16 mm proximity probe. It is matched to the probe and is an essential component in maintaining system accuracy and performance.
_
_
__ Electrical Specifications
|
Parameter |
Specification |
|---|---|
|
Proximitor Sensor Input |
Accepts one non-contacting 3300 XL HTPS 16 mm probe with matched cable |
|
Extension Cable Capacitance |
69.9 pF/m (21.3 pF/ft), typical |
_
_
__ Extension Cable Properties
|
Attribute |
Specification |
|---|---|
|
Material |
75 Ω triaxial, FEP insulated |
|
System Length |
9 metres (including extension cable) |
|
Cable Weight |
45 g/m (0.5 oz/ft) |
|
Armored Cable Weight |
140 g/m (1.5 oz/ft) |
|
Operating/Storage Temperature |
-52°C to +177°C (-60°F to +351°F) |
_
_
__ Ordering Information _ Cable Configuration (330330-AAA-BB-CC)
|
Field |
Option |
Description |
|---|---|---|
|
AAA |
040 |
4.0 m (13.1 ft) extension cable |
|
070 |
7.0 m (23.0 ft) extension cable |
|
|
080 |
8.0 m (26.3 ft) extension cable_(this model) |
|
|
BB |
00 |
Without stainless steel armor |
|
01 |
With stainless steel armor |
|
|
CC |
00 |
No agency approval |
_
_
__ Armor Lengths by Cable Length Option
|
Cable Length |
Armor Length (±0.05 m) |
|---|---|
|
040 |
1.9 m (6.25 ft) |
|
070 |
5.6 m (18.4 ft) |
|
080 |
6.6 m (21.7 ft) |
