Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Series |
3500 |
|
Model/Part Number |
176449-02 + 140471-01 |
|
Description |
3500/42M Proximitor Seismic Monitor |
🔹 Description
The 3500/42M Proximitor Seismic Monitor is a 4-channel monitoring module that:
-
Continuously monitors input from proximity, velocity, or acceleration transducers.
-
Provides machinery protection by comparing these signals to configured alarm setpoints.
-
Communicates vital vibration and position information to operations and maintenance teams.
-
Supports configuration flexibility and seamless integration into the 3500 System for condition monitoring.
🔹 Specifications
Inputs
|
Parameter |
Specification |
|---|---|
|
Input Signals |
1 to 4 inputs from proximity, velocity, or acceleration transducers |
|
Power Consumption |
7.7 W (typical) |
|
Input Impedance |
10 kΩ (Proximitor and acceleration inputs) |
🔹 Environmental Limits
|
Parameter |
Specification |
|---|---|
|
Operating Temperature |
-30°C to +65°C (-22°F to +150°F) (with standard I/O modules) 0°C to +65°C (32°F to +150°F) (with internal barrier I/O module) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
Up to 95%, non-condensing |
🔹 Physical Characteristics
▪️ Monitor Module (Main Board)
|
Parameter |
Specification |
|---|---|
|
Dimensions |
241.3 mm x 24.4 mm x 241.8 mm(9.50 in x 0.96 in x 9.52 in) |
|
Weight |
0.91 kg (2.0 lb) |
▪️ I/O Module – Standard (140471-01)
|
Parameter |
Specification |
|---|---|
|
Dimensions |
241.3 mm x 24.4 mm x 99.1 mm(9.50 in x 0.96 in x 3.90 in) |
|
Weight |
0.20 kg (0.44 lb) |
▪️ I/O Module – Barrier (if used)
|
Parameter |
Specification |
|---|---|
|
Dimensions |
241.3 mm x 24.4 mm x 163.1 mm(9.50 in x 0.96 in x 6.42 in) |
|
Weight |
0.46 kg (1.01 lb) |
🔹 Spares and Configuration
|
Part Number |
Description |
|---|---|
|

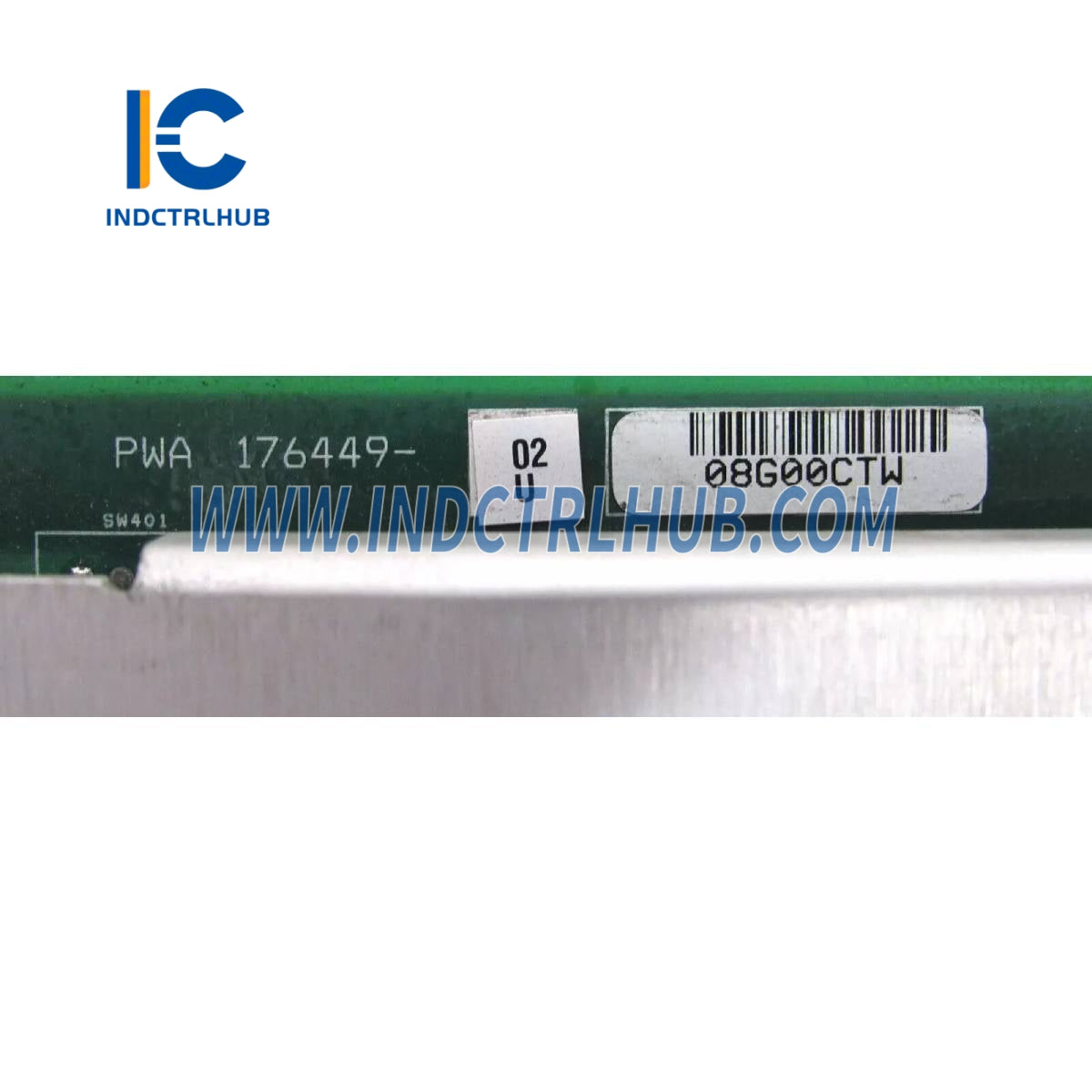

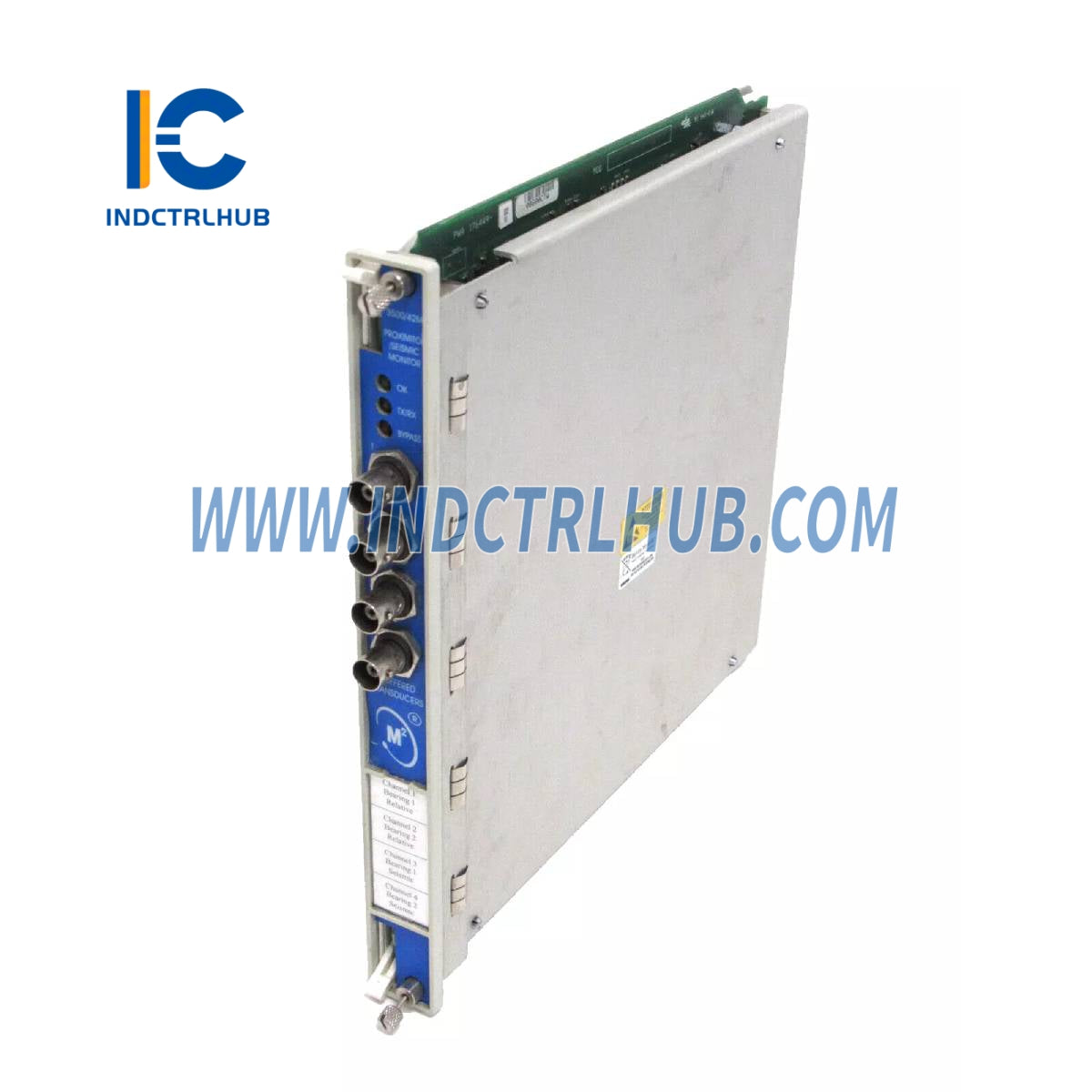

176449-02 |
3500/42M Proximitor Seismic Monitor (Main board) |
|

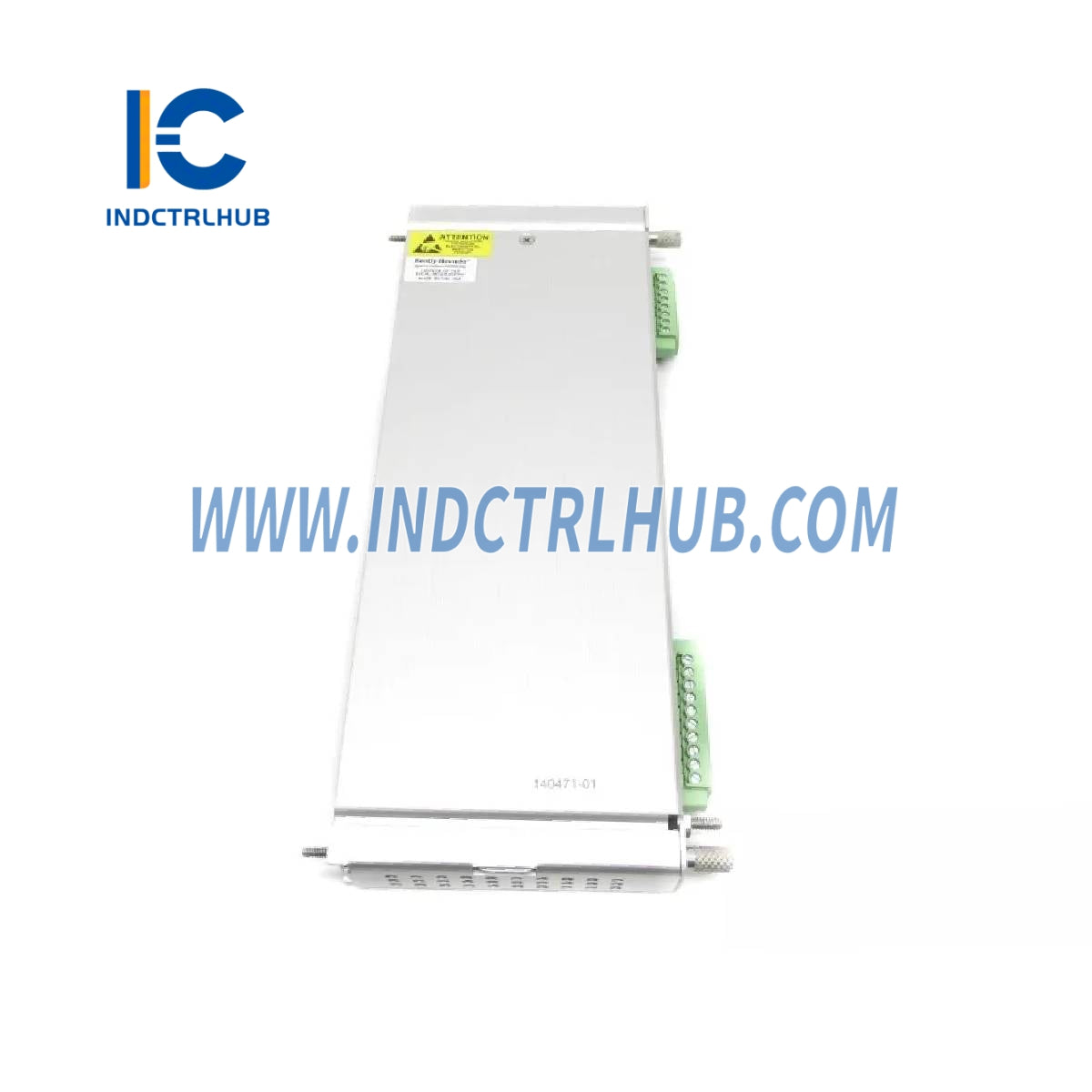

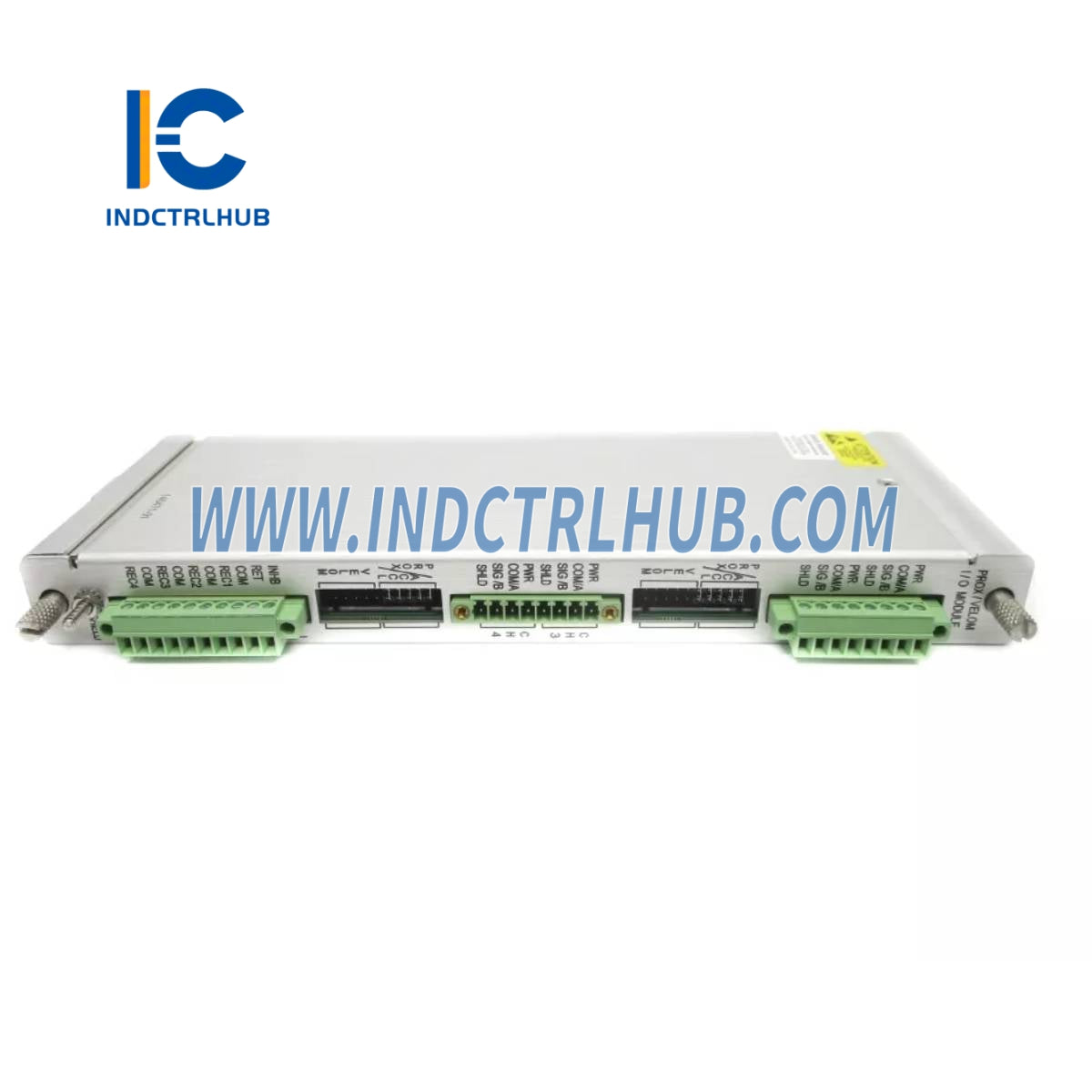

140471-01 |
Prox/Velom I/O Module with internal terminations |
