Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |
330980-71-05 |
|
Model Type |

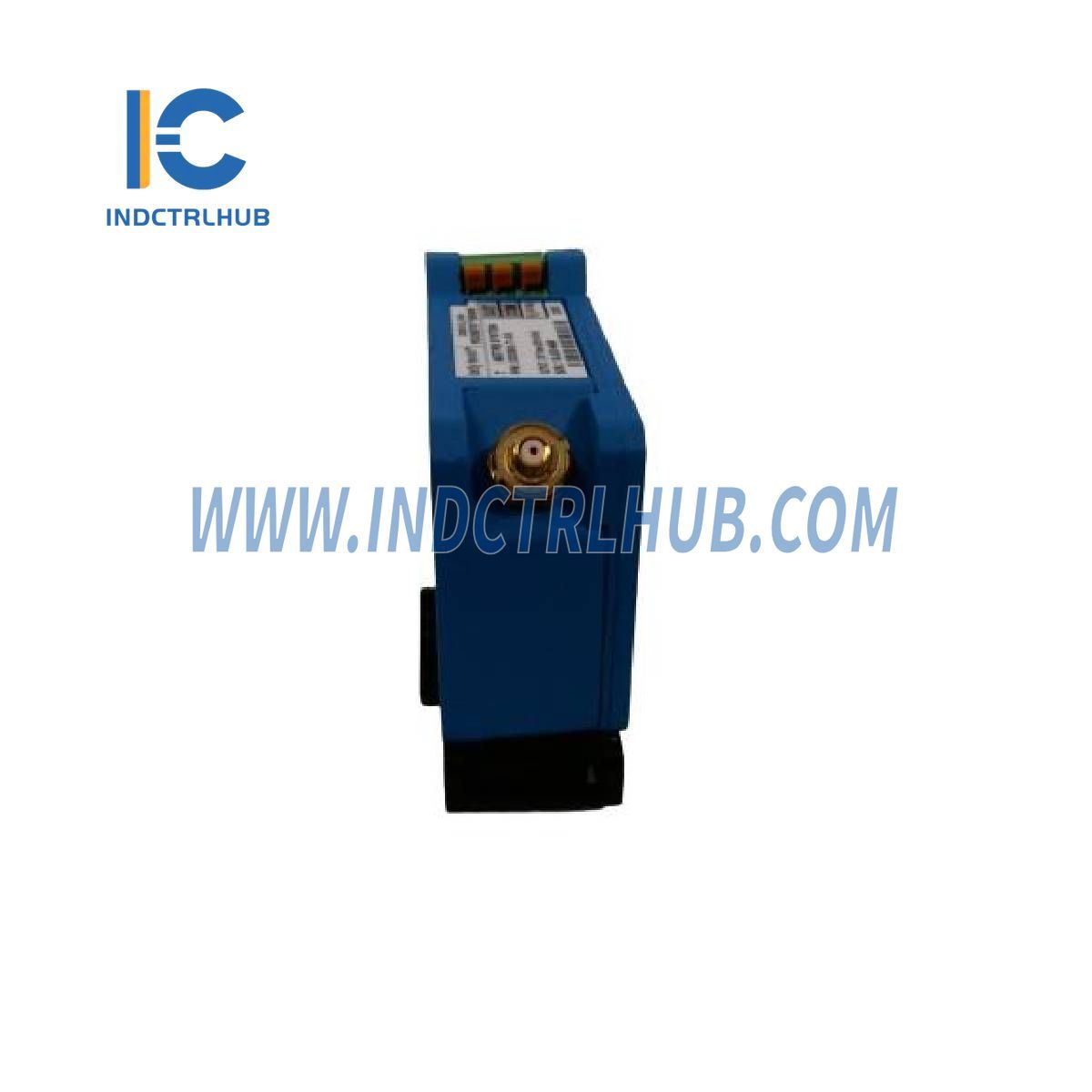

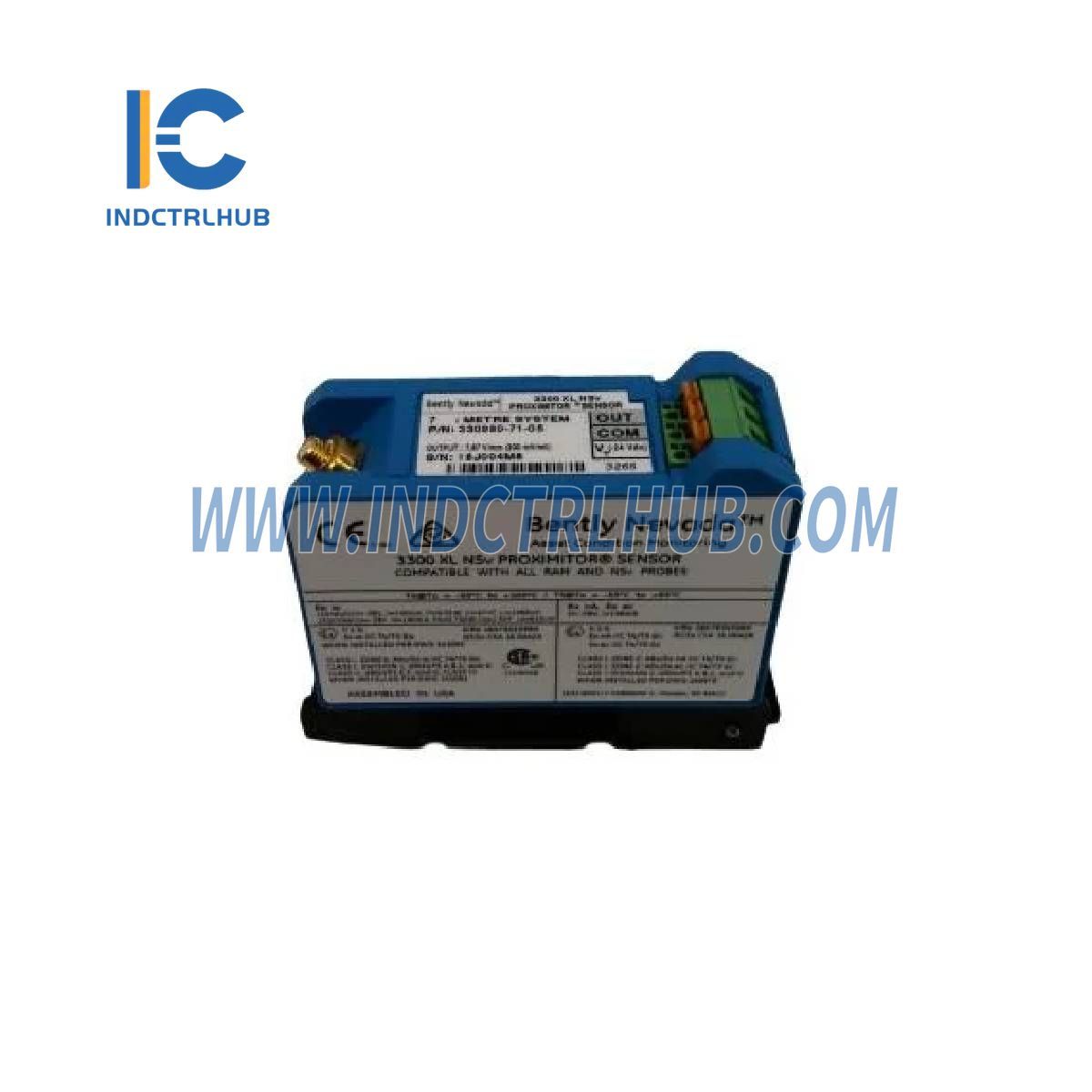

3300 XL NSv Proximitor Sensor |
Description
The 3300 XL NSv Proximitor Sensor provides similar functionality to the 3300 XL 8 mm Proximitor Sensor but in a compact and thin design. This allows for installation in high-density DIN-rail or traditional panel mount configurations. The sensor offers improved RFI/EMI immunity, ensuring compliance with European CE mark approvals without special mounting considerations. Additionally, the SpringLoc terminal strips allow for quick and tool-free wiring, ensuring a secure and efficient connection.
Specifications
|
Attribute |
Details |
|---|---|
|
Weight |
Proximitor Sensor: 255 g (9 oz) |
Environmental Limits
|
Parameter |
Range |
|---|---|
|
Operating Temperature |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature |
-52°C to +105°C (-62°F to +221°F) |
|
Relative Humidity |
100% condensing, non-submersible (connectors must be protected). Tested to IEC 68-2-3 damp heat. |
Ordering Information
|
Part Number |
Description |
|---|---|
|
330980-AA-BB |
3300 XL NSv Proximitor Sensor |
Total Length and Mounting Options (A):
• 50 – 5.0 meters (16.4 feet) system length, panel mount
• 51 – 5.0 meters (16.4 feet) system length, DIN mount
• 52 – 5.0 meters (16.4 feet) system length, no mounting hardware
• 70 – 7.0 meters (23.0 feet) system length, panel mount
• 71 – 7.0 meters (23.0 feet) system length, DIN mount
• 72 – 7.0 meters (23.0 feet) system length, no mounting hardware
Agency Approval Options (B):
• 00 – Not required
• 05 – Multiple approvals
