Product Description
š¹ General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Series |
othere |
|
Model/Part Number |
330400-01-05 |
|
Description |
Accelerometer Acceleration Transducers |
Ā
Ā
š¹ Description

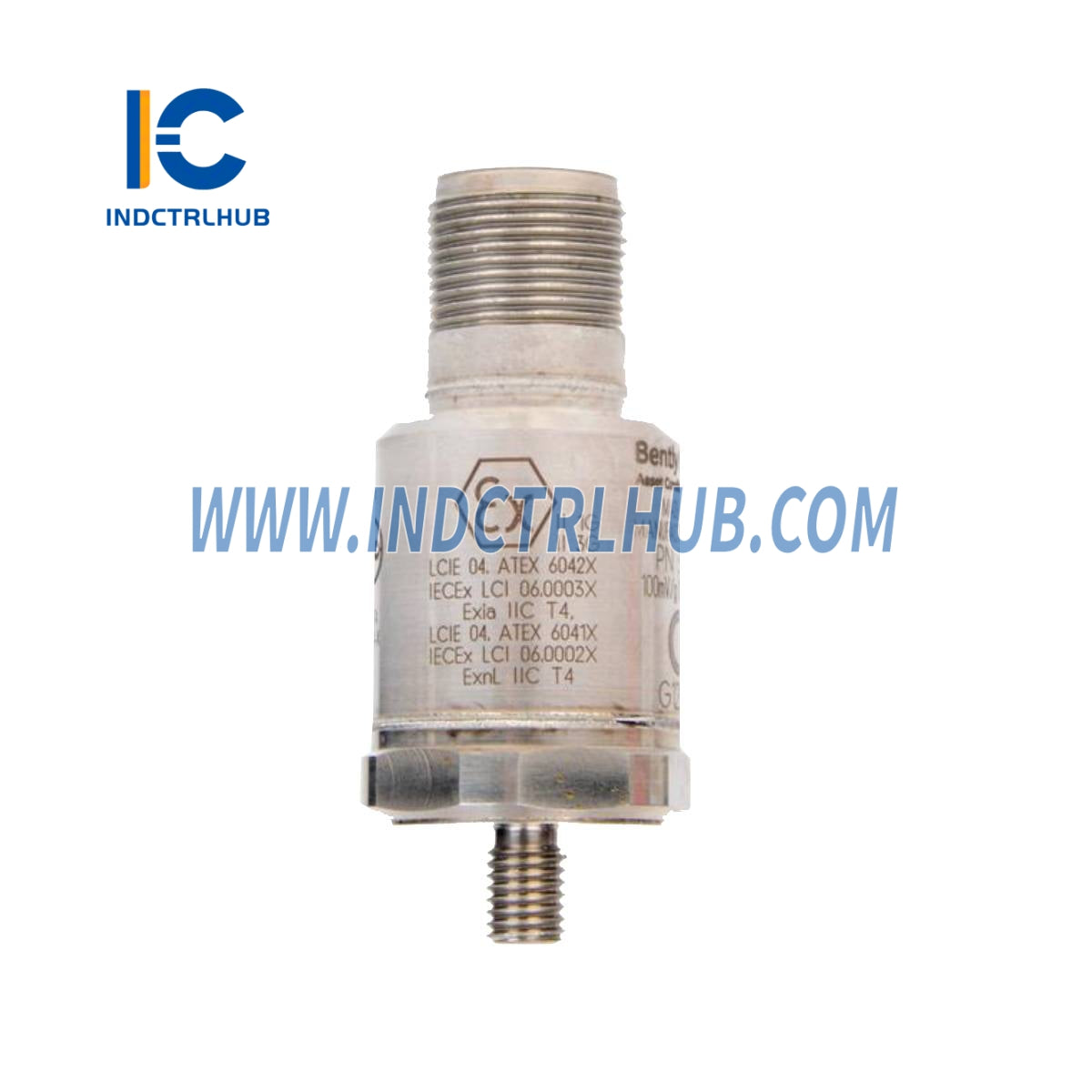

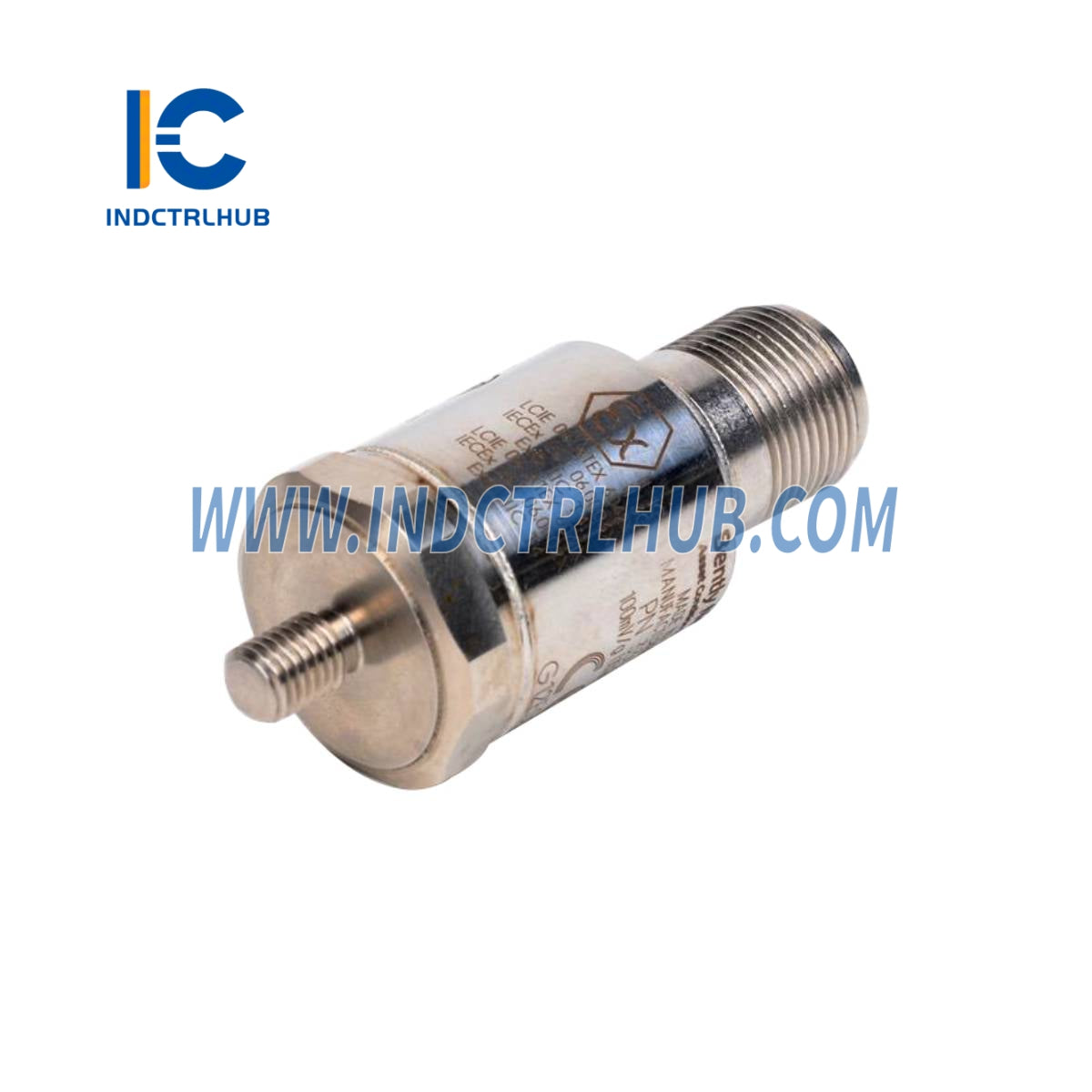

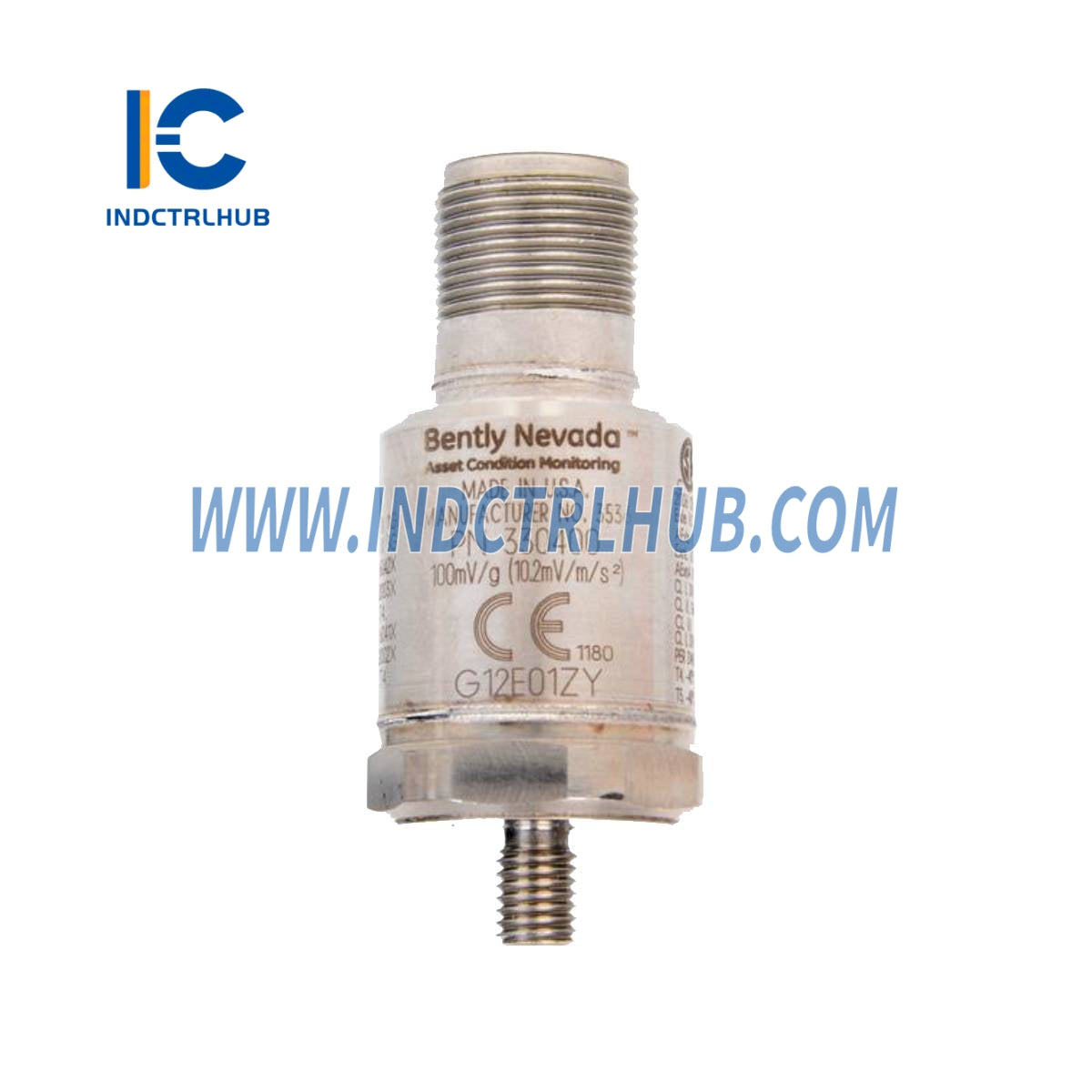

TheĀ Bently Nevada 330400Ā accelerometer is designed for use in critical machinery applications where precise casing acceleration measurements are necessary. This model meets the requirements ofĀ API Standard 670Ā for accelerometers and is ideal forĀ gear mesh monitoringĀ and similar applications.
Ā
Ā
š¹ Electrical Specifications
|
Parameter |
Specification |
|---|---|
|
Sensitivity |
10.2 mV/m/sĀ² (100 mV/g) Ā±5% |
|
Acceleration Range |
490 m/sĀ² (50 g) peak (10 Hz ā 15 kHz frequency span) |
|
Amplitude Linearity |
Ā±1% to 490 m/sĀ² (50 g) peak |
|
Broadband Noise Floor |
0.039 m/sĀ² (0.004 g) rms (10 Hz ā 15 kHz) |
Ā
Ā
š¹ Environmental Limits
|
Parameter |
Specification |
|---|---|
|
Operating/Storage Temp |
-55Ā°C to +121Ā°C (-67Ā°F to +250Ā°F) |
|
Shock Survivability |
49,050 m/sĀ² (5000 g) peak |
|
Relative Humidity |
100% condensing, non-submerged |
|
Magnetic Susceptibility |
<2.21 mm/sĀ²/gauss (225 mg/gauss @ 50 gauss) |
|
IP Rating |
Equivalent toĀ IP68Ā (sensor only) |
Ā
Ā
š¹ Physical Specifications
|
Item |
Specification |
|---|---|
|
Weight |
99ā100 g (3.5 oz), typical |
|
Diameter |
23 mm (0.93 in) |
|
Height |
59 mm (2.3 in), incl. stud |
|
Connector |

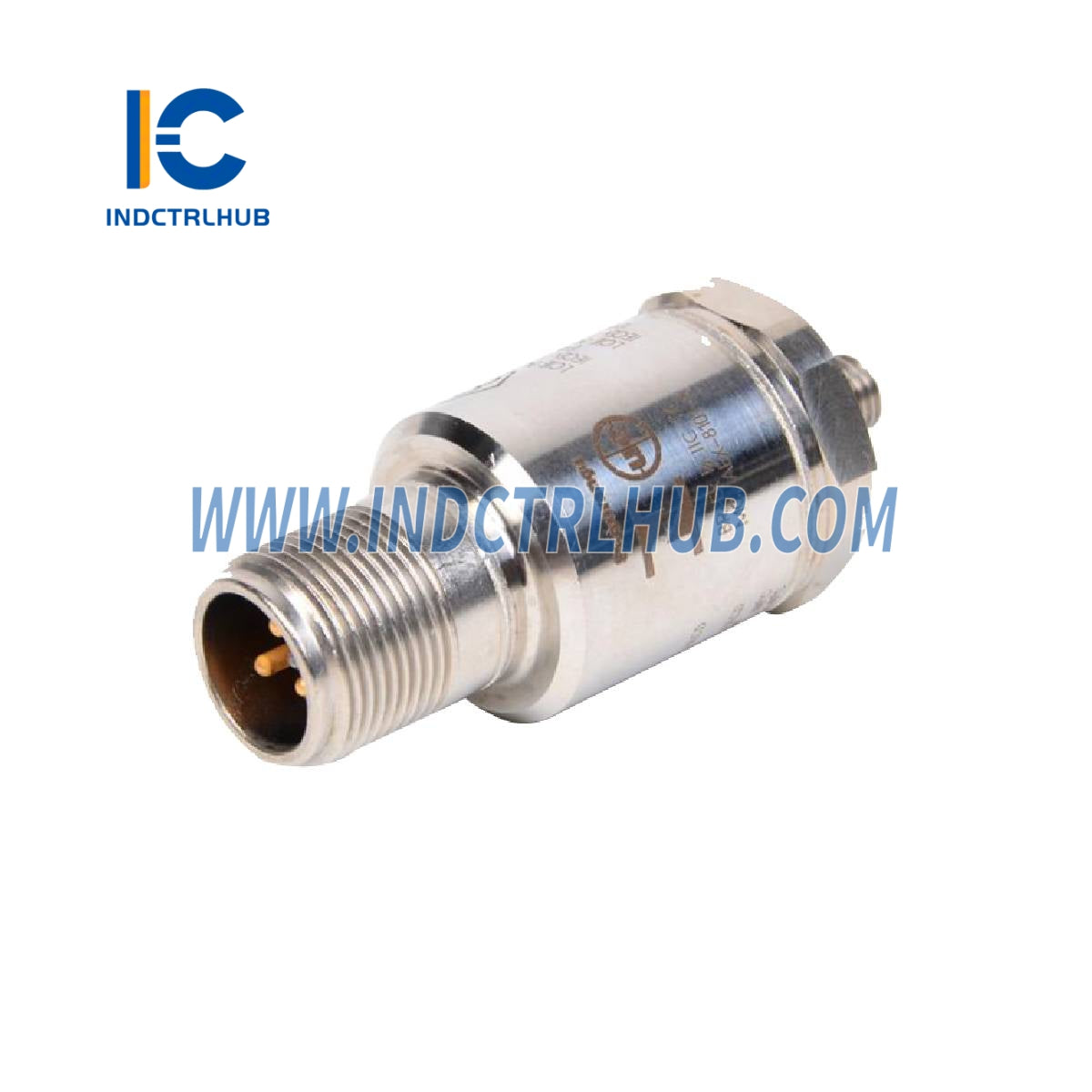

3-pin MIL-C-5015 Receptacle |
|
Mounting |
Ā¼-28 UNF integral stud (01) |
|
Mounting Surface |
32 Āµinch rms |
|
Mounting Torque |
4.1 NĀ·m (3.0 ftĀ·lb) |
|
Material |
316L Stainless Steel |
|
Mounting Angle |
Any orientation |
Ā
Ā
š¹ Ordering Information ā
330400-AA-BB
|
Field |
Code |
Description |
|---|---|---|
|
A |
01 |
Mounting Thread: Ā¼-28 UNF integral stud |
|
B |
05 |
Agency Approvals: CSA, ATEX, IECEx (Multiple) |
