Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |

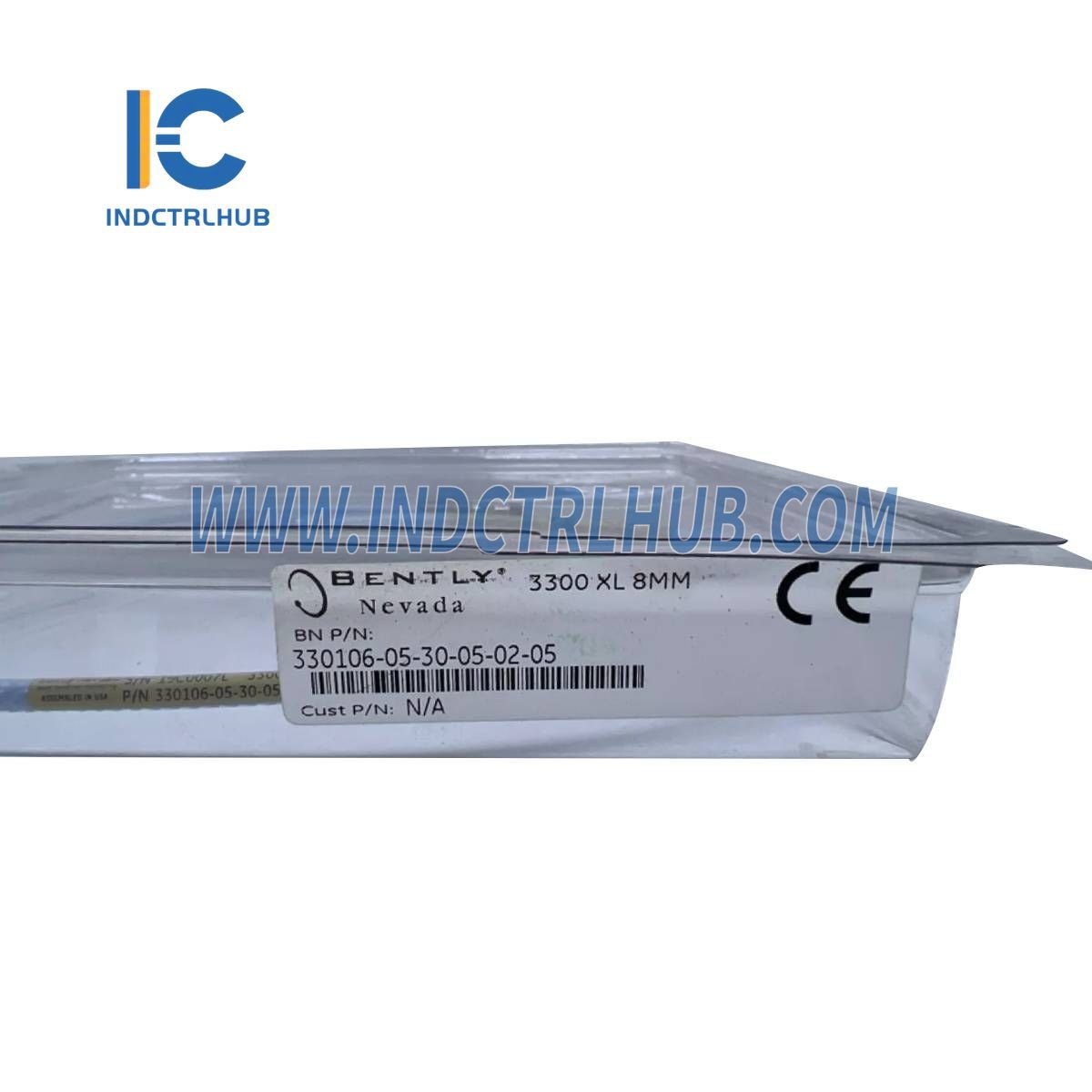

330106-05-30-05-02-05 |
|
Model Type |

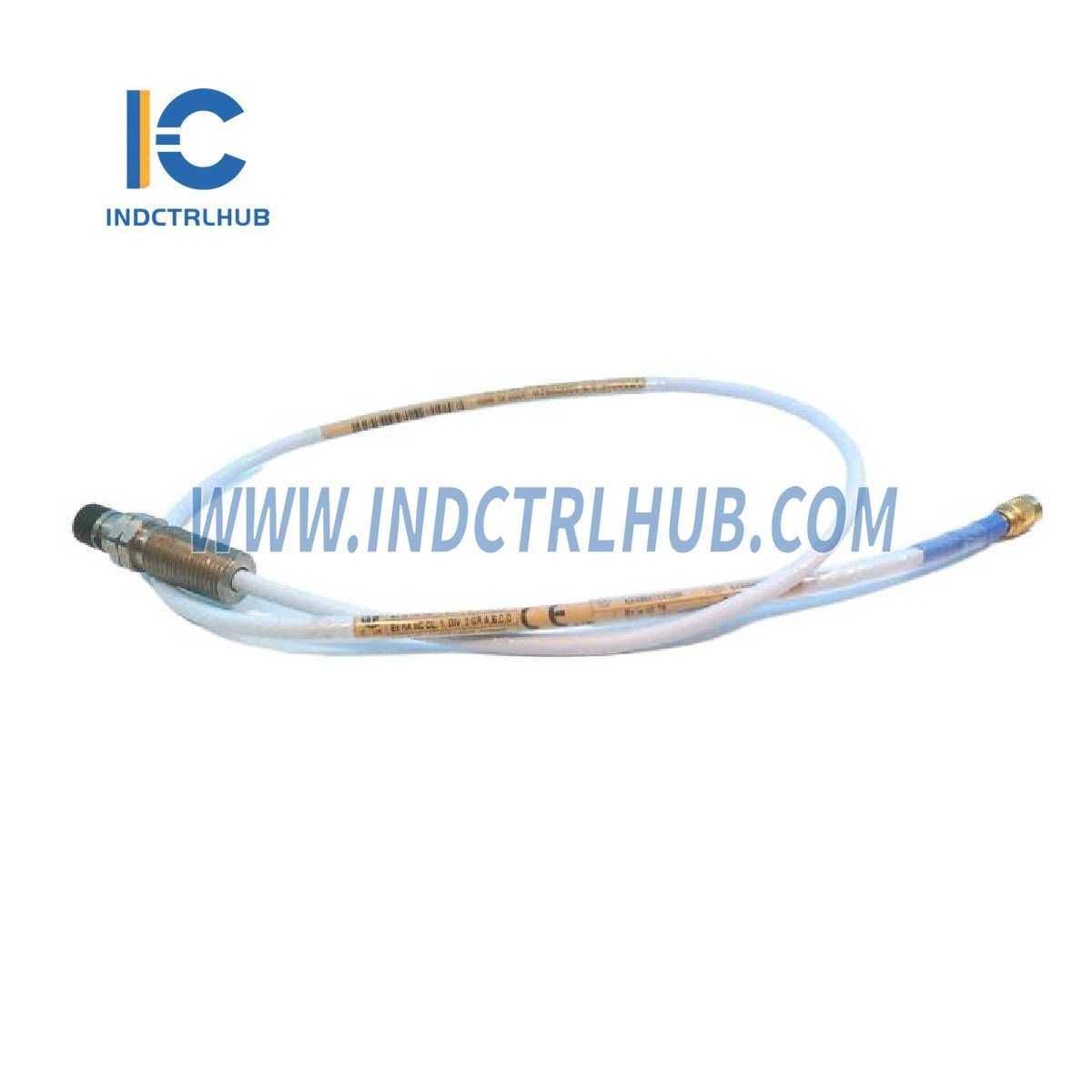

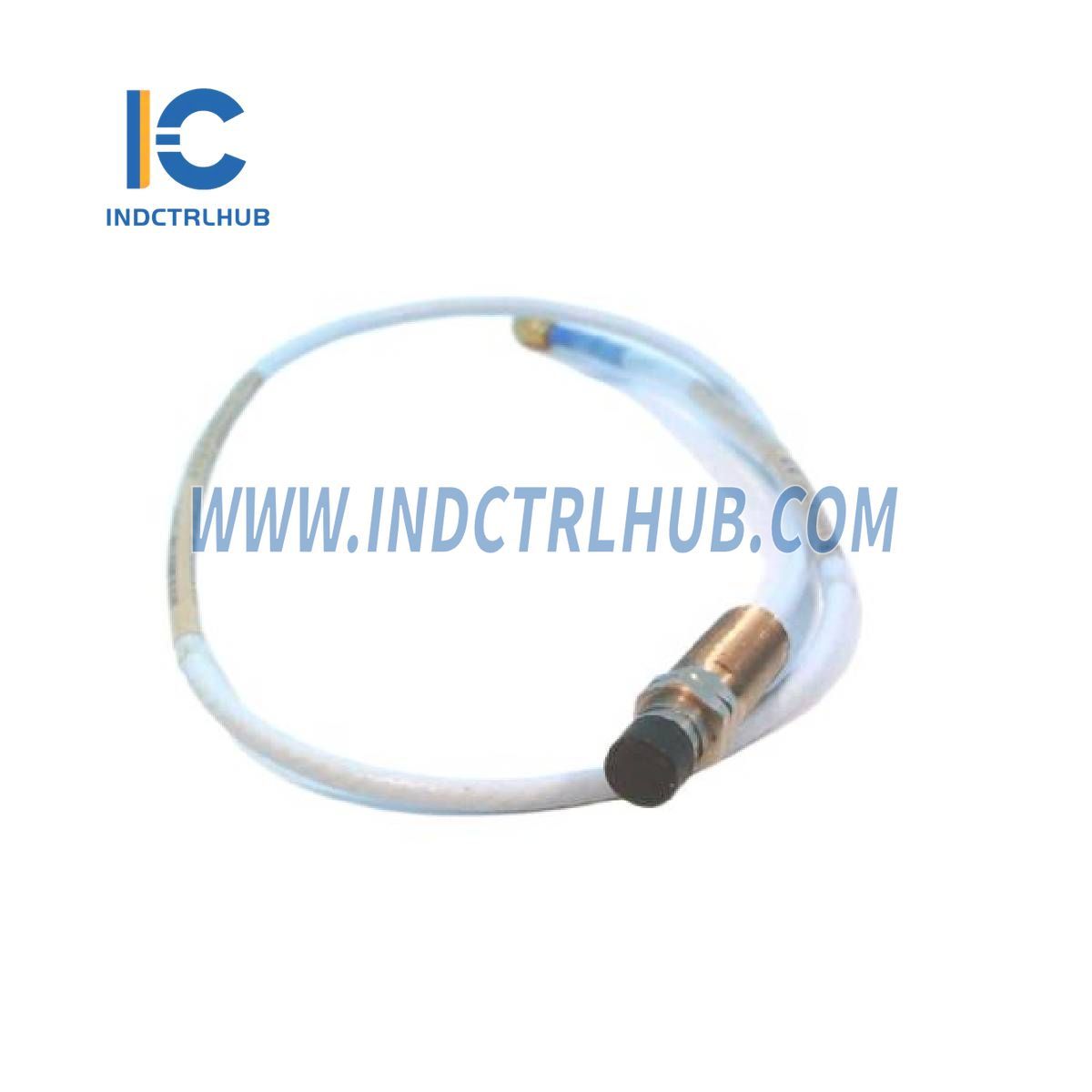

3300 XL 8 mm Reverse Mount Probes |
Description
The 3300 XL 8 mm Reverse Mount Probes are designed for applications requiring a reverse-mounted installation. These probes feature a robust construction with TipLoc molding for enhanced durability and CableLoc technology, ensuring a 330 N (75 lbf) pull strength for secure attachment between the probe tip and cable.
Specifications
|
Attribute |
Details |
|---|---|
|
Torque Specifications |
Reverse Mount Probes: 22.6 N•m (200 in•lbf) Standard Forward Mount Probes: 7.5 N•m (66 in•lbf) |
|
Total System Weight (Typical) |
0.7 kg (1.5 lbm) |
|
Component Weights |
Probe: 323 g/m (11.4 oz) Extension Cable: 34 g/m (0.4 oz/ft) Armored Extension Cable: 103 g/m (1.5 oz/ft) Proximitor Sensor: 246 g (8.67 oz) |
Environmental Limits
|
Component |
Operating & Storage Temperature |
|---|---|
|
Standard Probe |
-52°C to +177°C (-62°F to +350°F) |
|
Extended Temperature Probe |
-52°C to +218°C (-62°F to +425°F) (probe tip) -51°C to +260°C (-60°F to +500°F) (probe cable & connector) |
Ordering Information
|
Part Number |
Description |
|---|---|
|
330106-05-30-CC-DD-EE |
3300 XL 8 mm Reverse Mount Probe |
Total Length Options (C):
• 05 – 0.5 meters (1.6 feet)
• 10 – 1.0 meter (3.3 feet)
• 15 – 1.5 meters (4.9 feet)
• 20 – 2.0 meters (6.6 feet)
• 50 – 5.0 meters (16.4 feet) (For use with 5-meter Proximitor sensor only)
• 90 – 9.0 meters (29.5 feet)
Connector & Cable Type Options (D):
• 02 – Miniature ClickLoc coaxial connector
• 12 – Miniature ClickLoc coaxial connector with FluidLoc cable
Agency Approval Options (E):
• 00 – Not required
• 05 – CSA, ATEX, IECEx Approvals
