Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3300 |
|
Model/Part Number |

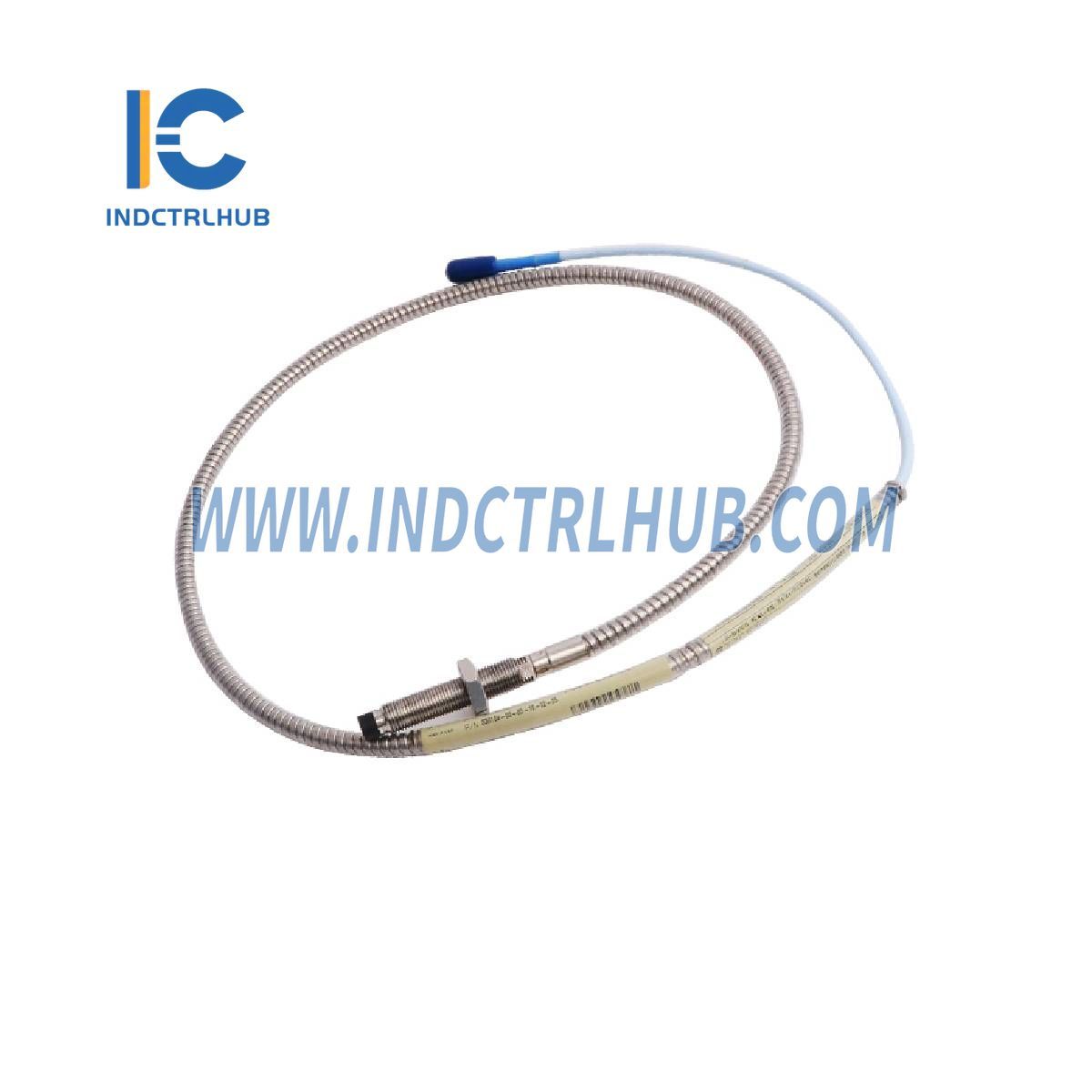

330104-00-05-10-02-05 |
|
Model Type |
3300 XL 8 mm Proximity Probes |
Probe Pressure & Sealing
• The 3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case.
• Sealing material: Viton® O-ring
• Note: Probes are not pressure tested before shipment. For pressure seal testing, contact the custom design department.
Probe 323 g/m (11.4 oz)
Probe Case Torque Ratings
|
Probe Type |
Maximum Rated Torque |
Recommended Torque |
|---|---|---|
|
Standard forward-mounted probes |
33.9 N•m (300 in•lbf) |
11.2 N•m (100 in•lbf) |
|
Standard forward-mounted probes (first three threads) |
22.6 N•m (200 in•lbf) |
7.5 N•m (66 in•lbf) |
|
Reverse-mount probes |
22.6 N•m (200 in•lbf) |
7.5 N•m (66 in•lbf) |
3300 XL 8 mm Proximity Probes (Metric)
|
Part Number |
Description |
|---|---|
|
330103 |
3300 XL 8 mm Probe, M10 x 1 thread, without armor |
|
330104 |
3300 XL 8 mm Probe, M10 x 1 thread, with armor |
Ordering Information: 330104-AA-BB-CC-DD-EE
A: Unthreaded Length Option
• Must be at least 20 mm less than the case length.
• Ordered in increments of 10 mm.
• Minimum: 0 mm
• Maximum: 230 mm
• Example: “06” = 60 mm
B: Overall Case Length Option
• Ordered in increments of 10 mm.
• Minimum: 20 mm
• Maximum: 250 mm
• Example: “06” = 60 mm
C: Total Length Option
|
Code |
Length |
|---|---|
|
05 |
0.5 meter (1.6 feet) |
|
10 |
1.0 meter (3.3 feet) |
|
15 |
1.5 meter (4.9 feet) |
|
20 |
2.0 meters (6.6 feet) |
|
50 |
5.0 meters (16.4 feet) (For use with 5-meter Proximitor sensor only) |
|
90 |
9.0 meters (29.5 feet) |
D: Connector and Cable-Type Option
|
Code |
Description |
|---|---|
|
01 |
Miniature coaxial ClickLoc connector with connector protector, standard cable |
|
02 |
Miniature coaxial ClickLoc connector, standard cable |
|
11 |
Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
|
12 |
Miniature coaxial ClickLoc connector, FluidLoc cable |
E: Agency Approval Option
|
Code |
Approval |
|---|---|
|
00 |
Not required |
|
05 |
CSA, ATEX, IECEx Approvals |
