Product Description
š¹ General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/33-01-00 149992-01 |
|
Description |

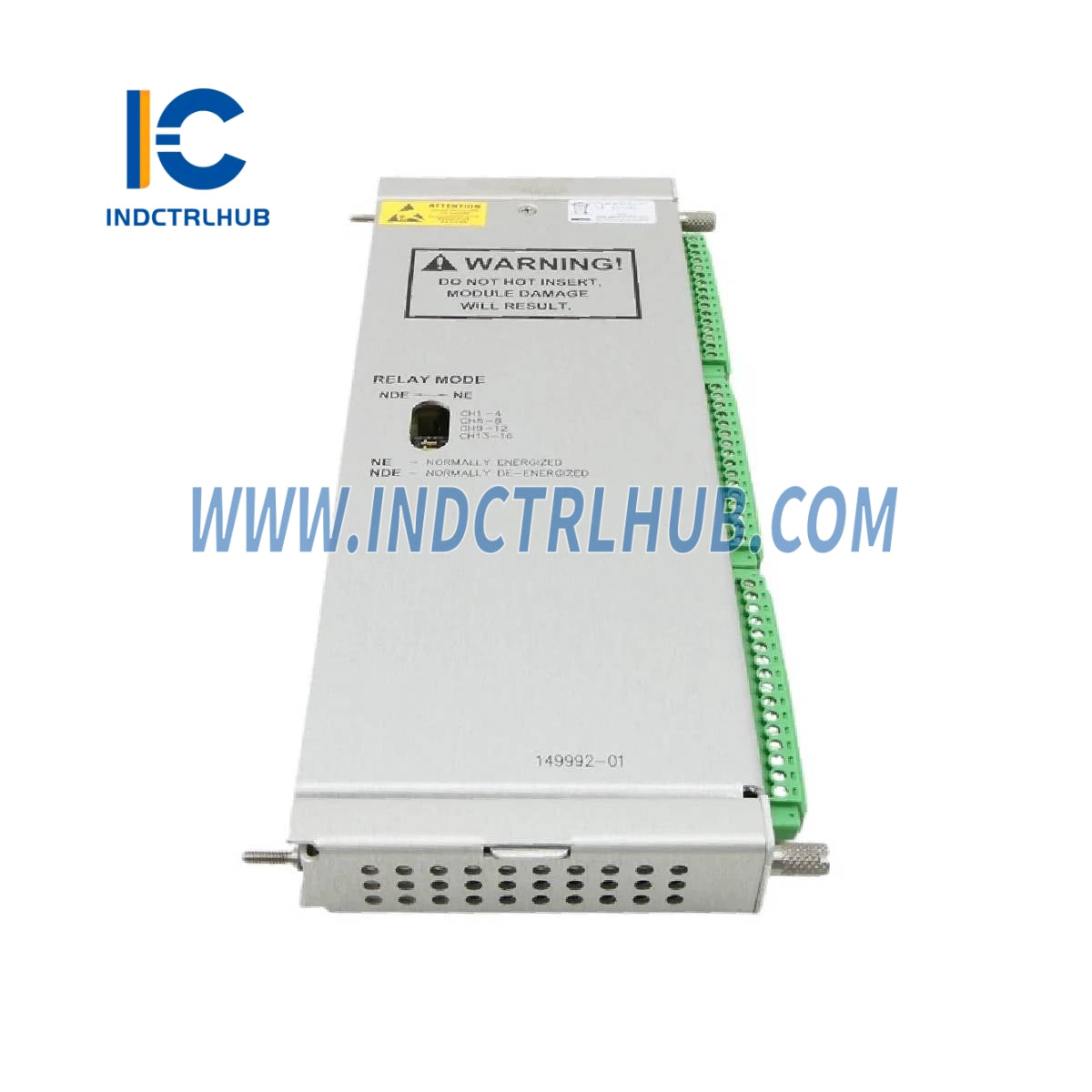

3500/33 16-Channel Relay Module |
Ā
š¹ Description
TheĀ 3500/33 16-Channel Relay ModuleĀ is aĀ full-height moduleĀ that providesĀ 16 relay outputs.
ā¢Ā MultipleĀ 16-channel relay modulesĀ can be placed in a system.
ā¢Ā Designed for integration intoĀ Bently Nevadaās 3500 Series Monitoring SystemsĀ forĀ alarm and controlĀ applications.
Ā
š¹ Physical Specifications
Main Module
|
Attribute |
Value |
|---|---|
|
Dimensions (H x W x D) |
241 mm x 24.4 mm x 242 mmĀ (9.50 in x 0.96 in x 9.52 in) |
|
Weight |
0.7 kgĀ (1.6 lbs.) |
I/O Module
|
Attribute |
Value |
|---|---|
|
Dimensions (H x W x D) |
241 mm x 24.4 mm x 99.1 mmĀ (9.50 in x 0.96 in x 3.90 in) |
|
Weight |
0.4 kgĀ (1.0 lbs.) |
Ā
š¹ Ordering Information
|
Part Number |
Description |
|---|---|
|
3500/33 |
16-Channel Relay Module |
Customization Options
|
Code |
Output Module Type |
|---|---|
|
01 |
16-Channel Relay Output Module |
|
02 |
16-Channel Failsafe Relay Output Module |
|
03 |
Low Current 16-Channel Relay Output Module |
|
04 |
Low Current 16-Channel Failsafe Relay Output Module |
|
Code |
Hazardous Area Approval Option |
|---|---|
|
00 |
None |
|
01 |
cNRTLus (Class 1, Division 2) |
|
02 |
ATEX/IECEx/CSA (Class 1, Zone 2) |
Ā
š¹ Spares
|
Part Number |
Description |
|---|---|
|

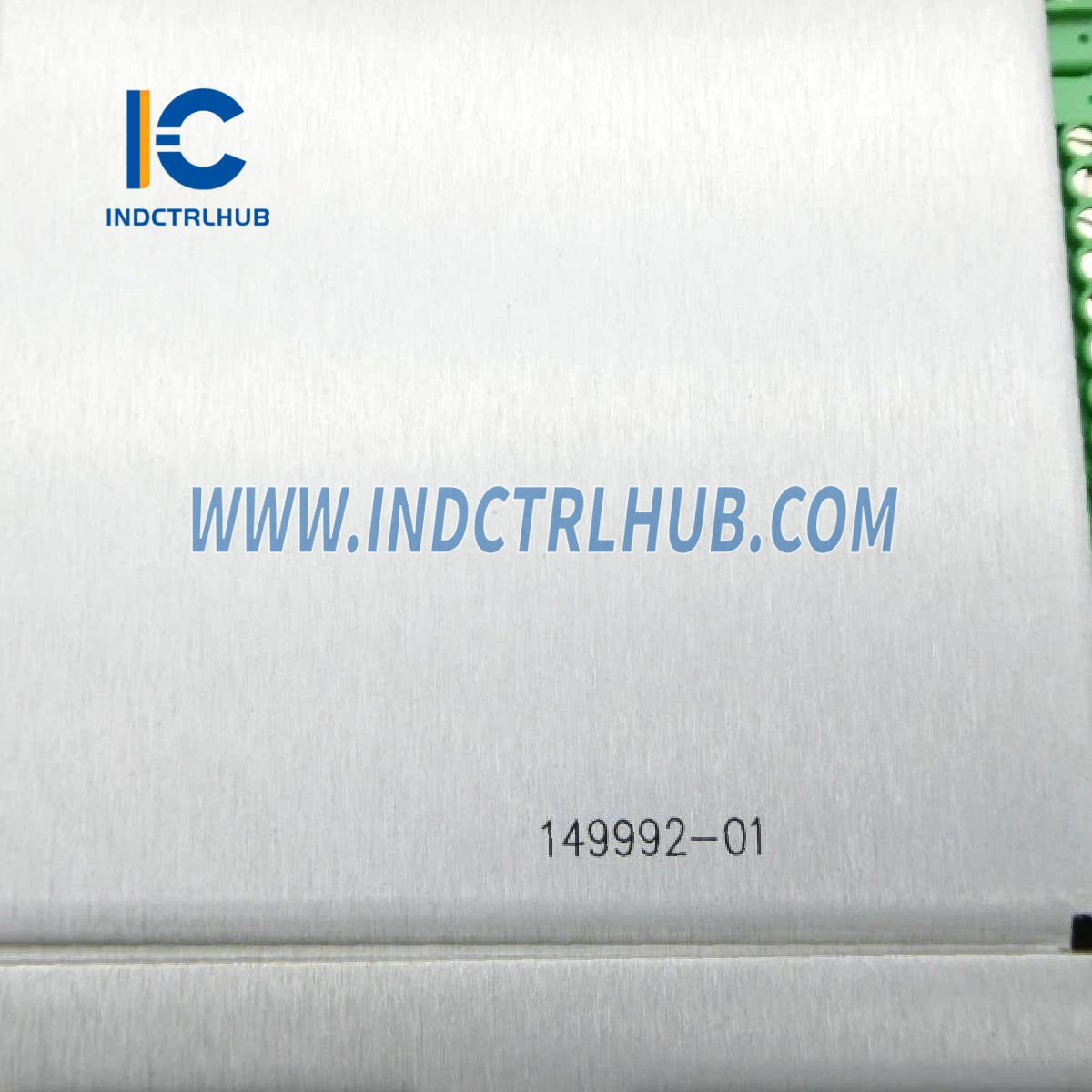

149992-01 |
Spare 16-Channel Relay Output Module |
