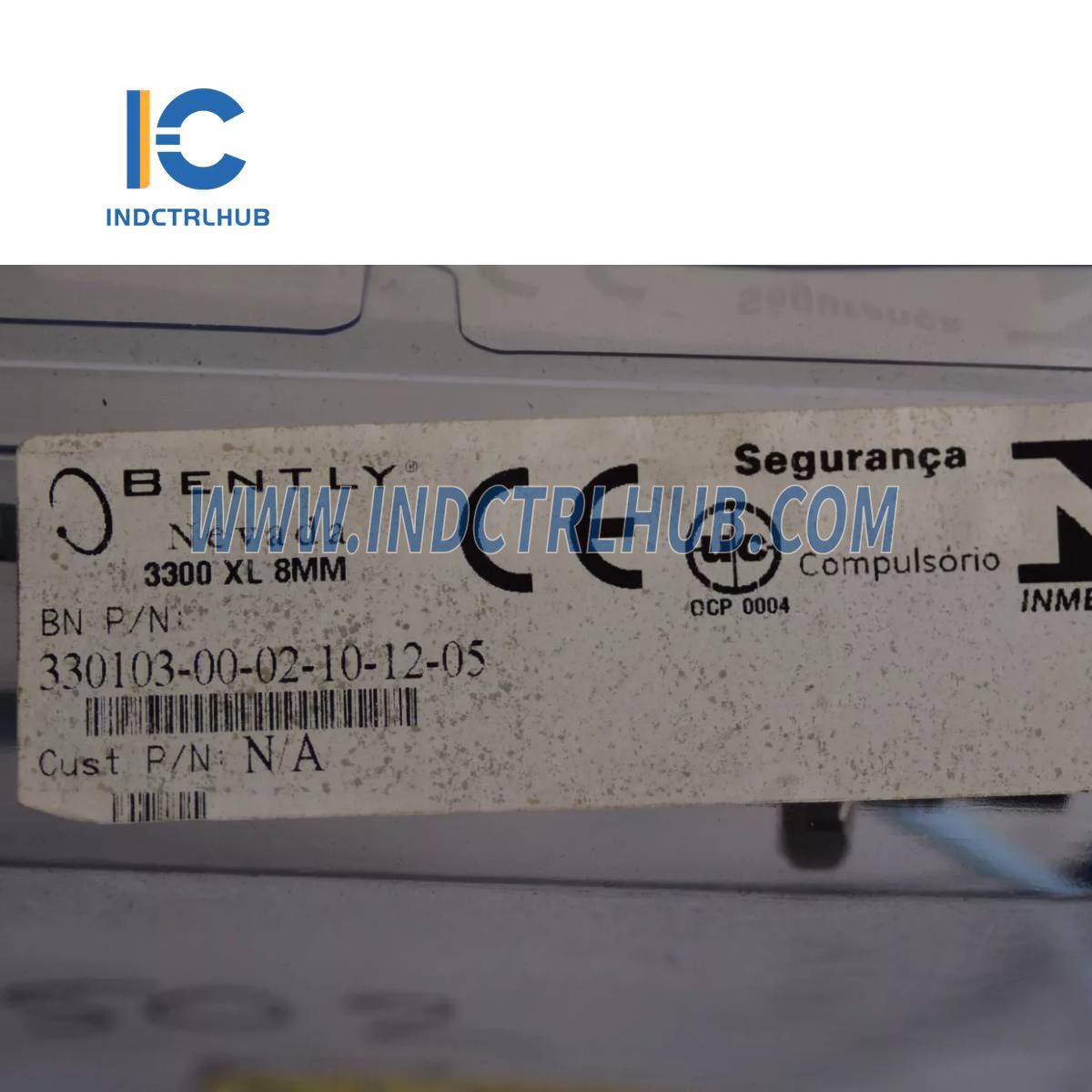

Bently Nevada 330103-00-02-10-12-05 3300 XL 8 mm Proximity Probes

Bently Nevada 330103-00-02-10-12-05 3300 XL 8 mm Proximity Probes

  • Manufacturer: Bently Nevada

  • Product No.: 330103-00-02-10-12-05

  • Condition:1000 in stock

  • Product Type: 3300 XL 8 mm Proximity Probes

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1000g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

Attribute

Details

Manufacturer

Bently Nevada

Series

3300

Model/Part Number

330103-00-02-10-12-05

Model Type

3300 XL 8 mm Proximity Probes

Materials

Component

Material

Proximitor Sensor

A308 aluminum

Connector

Gold-plated brass or gold-plated beryllium copper

Physical Specifications

Parameter

Value

System Length

5 or 9 meters (including extension cable) or 1 meter (probe only)

Total System Weight (Typical)

0.7 kg (1.5 lb)

Probe Weight

323 g/m (11.4 oz)

Extension Cable Weight

34 g/m (0.4 oz/ft)

Armored Extension Cable Weight

103 g/m (1.5 oz/ft)

Proximitor Sensor Weight

246 g (8.67 oz)

Probe Pressure

 3300 XL 8 mm probes are designed to seal differential pressure between the probe tip and case using a Viton® O-ring.

 Probes are not pressure tested before shipment. Custom pressure seal tests can be arranged upon request.

 Responsibility Disclaimer:

 The user is responsible for ensuring containment and safety in case of leakage.

 Probes exposed to high or low pH solutions may experience tip erosion, leading to leakage.

 Bently Nevada does not replace leaking probes under the service plan.


Extension Cable Temperature Range

Cable Type

Operating & Storage Temperature

Standard Cable

-52°C to +177°C (-62°F to +350°F)

Extended Temperature Range Cable

-52°C to +260°C (-62°F to +500°F)

Ordering Information

Part Number

Description

330103

3300 XL 8 mm Probe, M10 x 1 thread, without armor

330104

3300 XL 8 mm Probe, M10 x 1 thread, with armor

Part Number Format:


330103-AA-BB-CC-DD-EE

Option Code

Description

A: Unthreaded Length Option

In increments of 10 mm (Min: 0 mm, Max: 230 mm)  Example: 06 = 60 mm

B: Overall Case Length Option

In increments of 10 mm (Min: 20 mm, Max: 250 mm)  Example: 06 = 60 mm

C: Total Length Option

05 = 0.5 meters (1.6 ft)  10 = 1.0 meter (3.3 ft)  15 = 1.5 meters (4.9 ft)  20 = 2.0 meters (6.6 ft)  50 = 5.0 meters (16.4 ft)  90 = 9.0 meters (29.5 ft)

D: Connector and Cable-Type Option

01 = Miniature coaxial ClickLoc connector with connector protector, standard cable  02 = Miniature coaxial ClickLoc connector, standard cable  11 = Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable  12 = Miniature coaxial ClickLoc connector, FluidLoc cable

E: Agency Approval Option

00 = Not required  05 = CSA, ATEX, IECEx Approvals
