Product Description
Product Overview

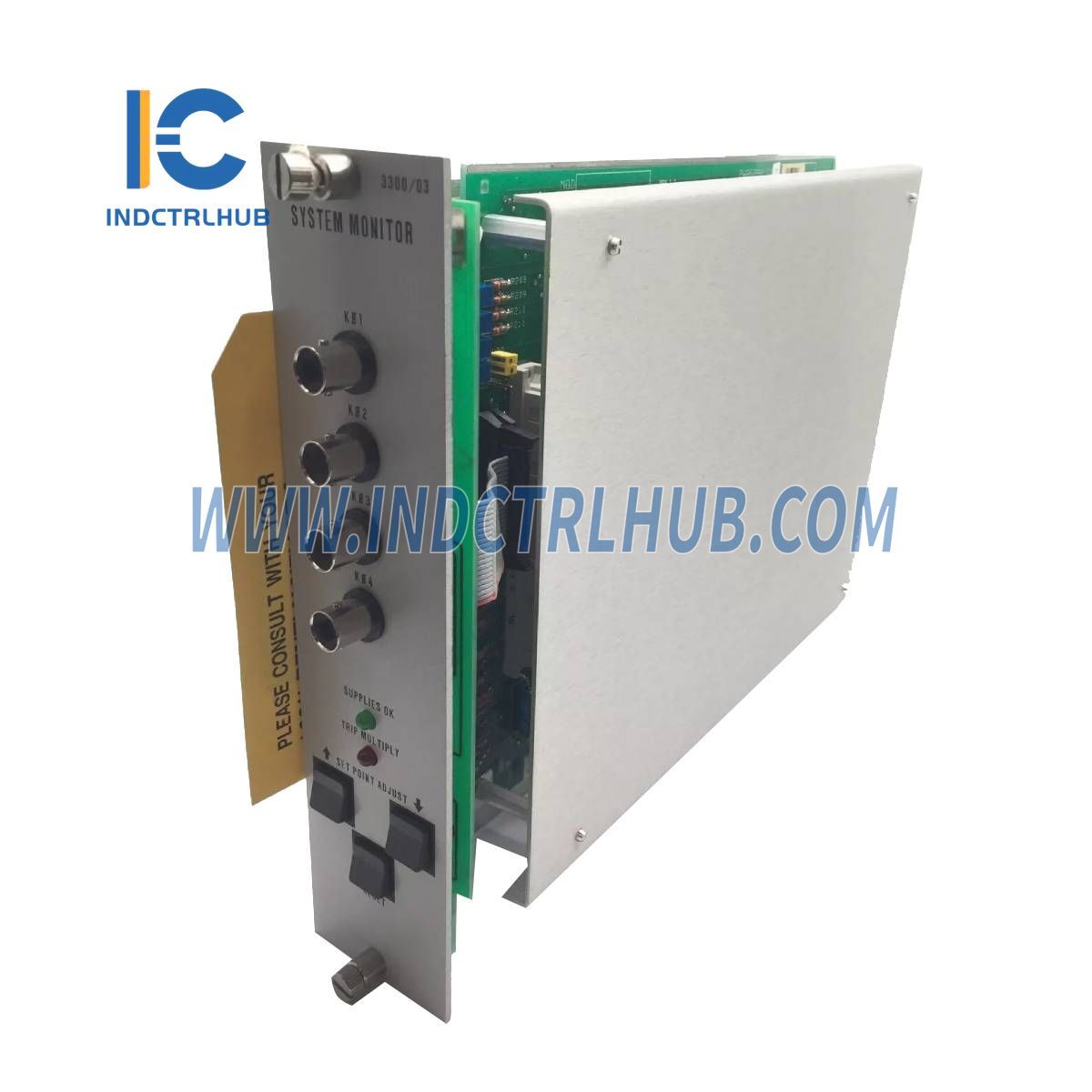

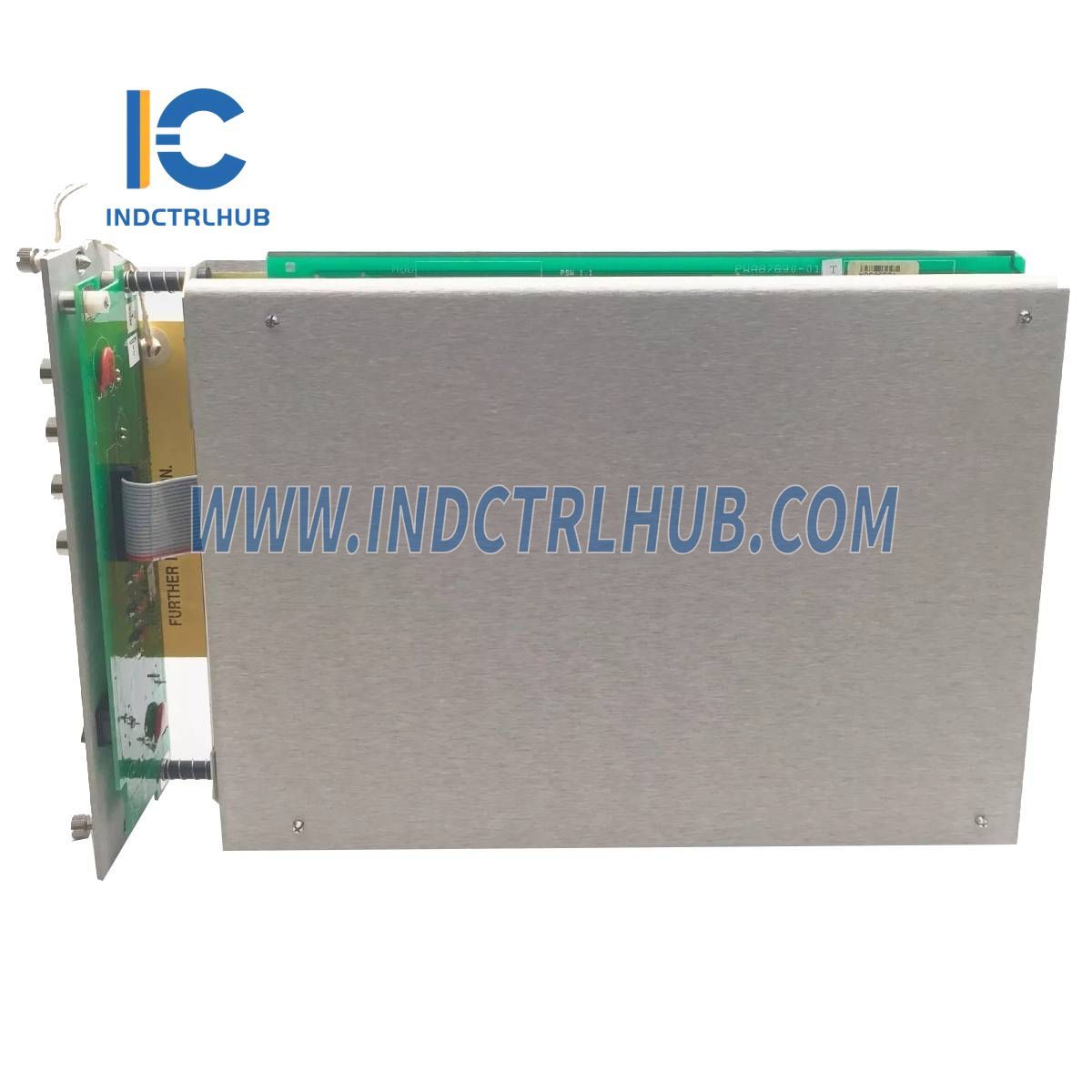

- The Bently Nevada 3300/03-01-01 is a System Monitor from the 3300/03 series, designed to perform four critical tasks within a 3300 monitor rack. It provides: - Functions common to all monitors in the rack, such as alarm setpoint adjustment, Keyphasor® power, termination, conditioning, and distribution, and alarm acknowledgment. This module ensures centralized management and coordination of monitoring functions, enhancing the reliability and efficiency of the 3300 Monitoring System.
Technical Information
| Item | Specifications |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3300/03 |
| Model/Part Number | 3300/03-01-01 |
| Model Type | System Monitor |
| Inputs - Power Consumption | 2 watts; 4.6 watts with interface options |
| Inputs - Keyphasor Signal | Accepts up to four proximity probe Keyphasor signals Input Impedance: 10 kΩ |
| RS422 Communications | Impedance: 4 kΩ Threshold: 0.2 V Baud Rate: 19.2 k baud maximum for SDI; 38.4 k baud maximum for DDI Distance: 1200 meters (4000 feet) maximum |
| RS232 Communications | Impedance: 3 kΩ to 7 kΩ Input Levels: High +3 to +25 V; Low -3 to -25 V Baud Rate: 19.2 k baud maximum for SDI and DDI Distance: 30 meters (100 feet) maximum |
| Operating Temperature | 0°C to +65°C (+32°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Relative Humidity | To 95%, non-condensing |
| Rack Space Requirements | One rack position, installs only in position two (next to the Power Supply) |
| Weight | 0.9 kg (2.2 lbs) |
Ordering Information
- Model: 3300/03 System Monitor
- Ordering Format: 3300/03-AXX-BXX
- Option Descriptions:
- A: Type
- 01: Standard
- 02: Serial Data Interface (SDI)
- 03: Dynamic Data Interface (DDI) and Serial Data Interface
- B: Approvals Option
- 00: None
- 01: CSA/NRTL/C
- 02: ATEX self-certification (Note: Requires the monitor rack to be installed in a weatherproof housing)
- A: Type
- Upgrade Kit 143121:
- 01: Basic to SDI upgrade
- 02: SDI to DDI upgrade
- 03: Basic to DDI upgrade
Specific Configuration

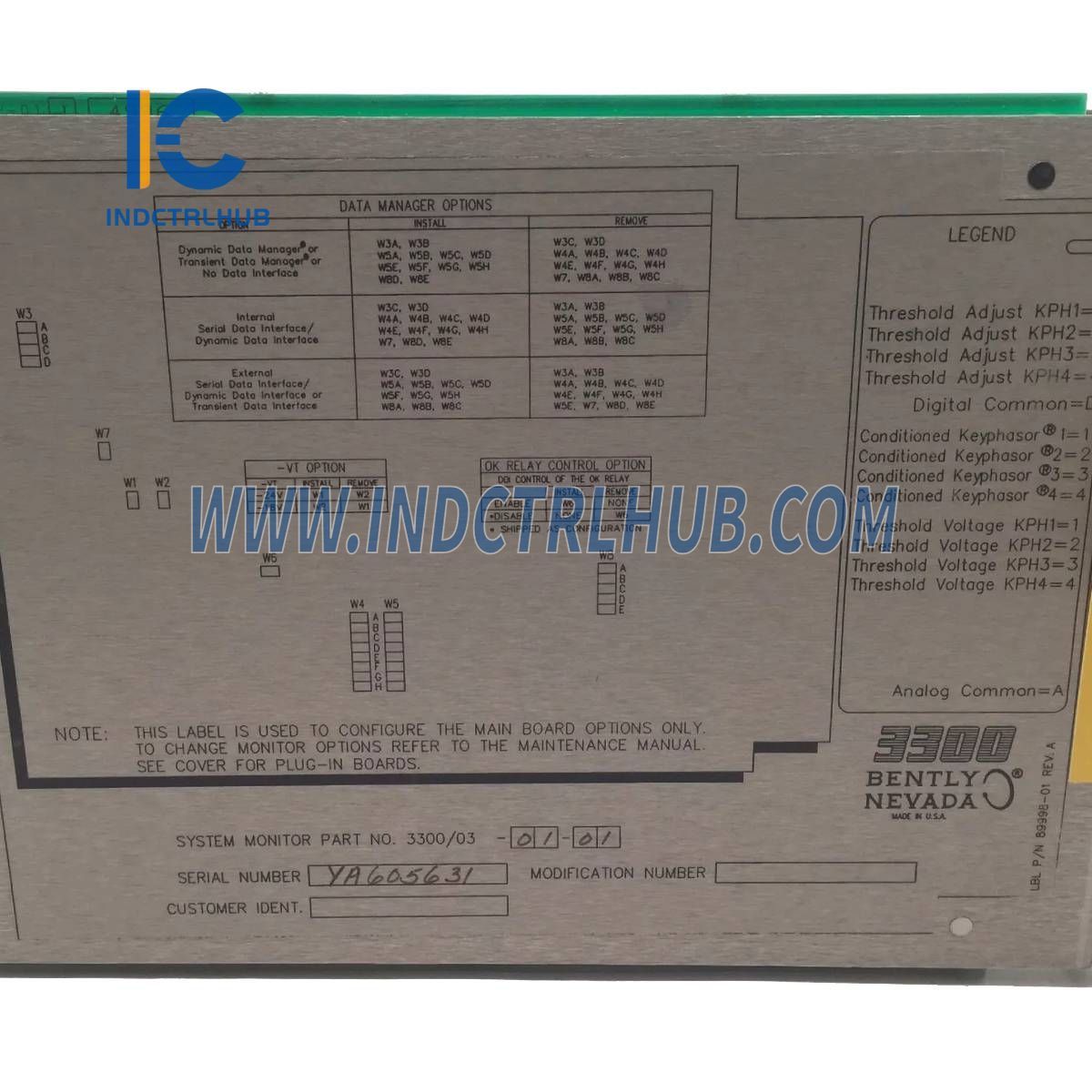

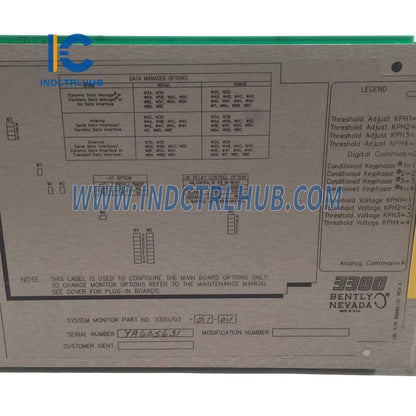

- Model/Part Number: 3300/03-01-01
- Configuration Details:
- A: 01 - Standard Type
- B: 01 - CSA/NRTL/C Approval
