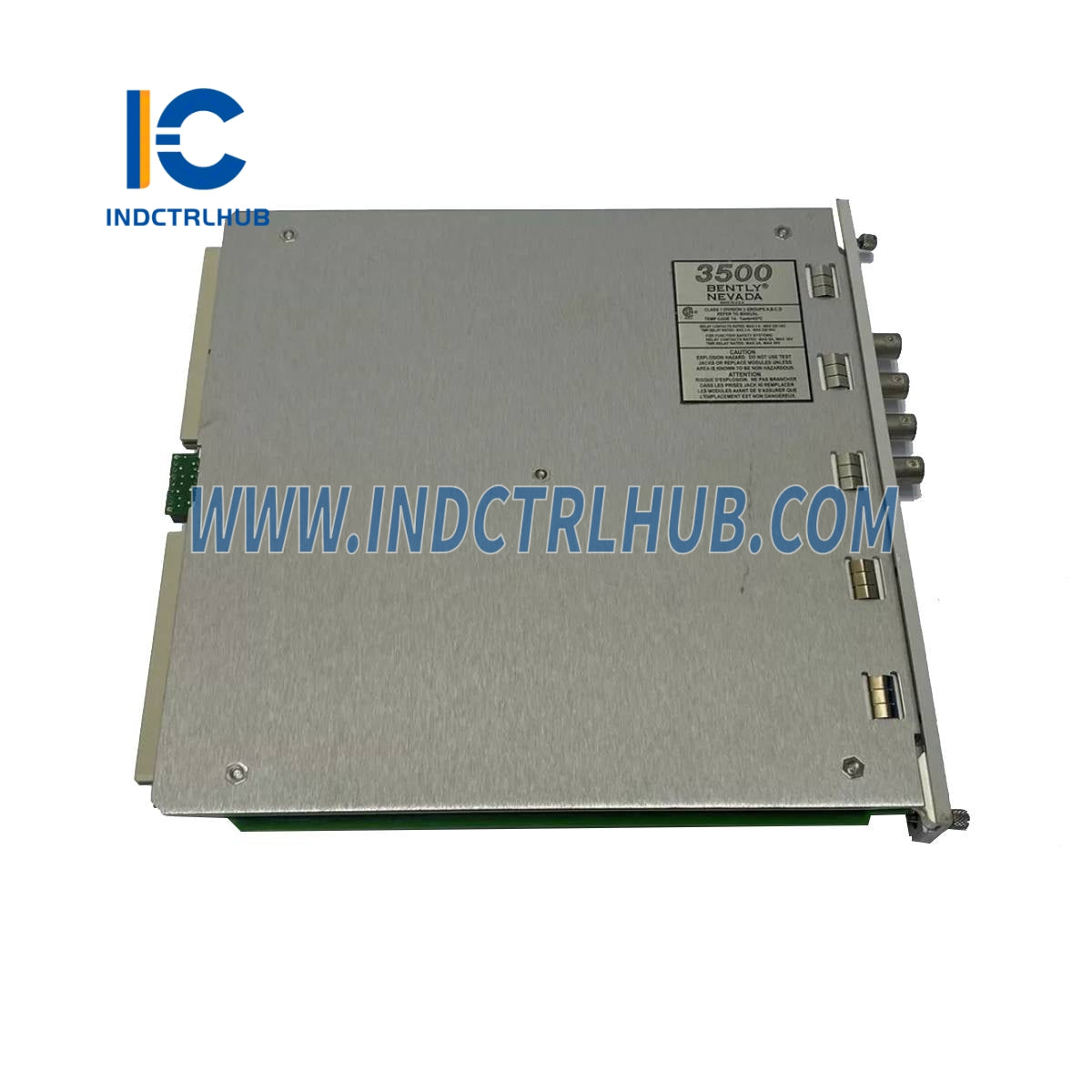

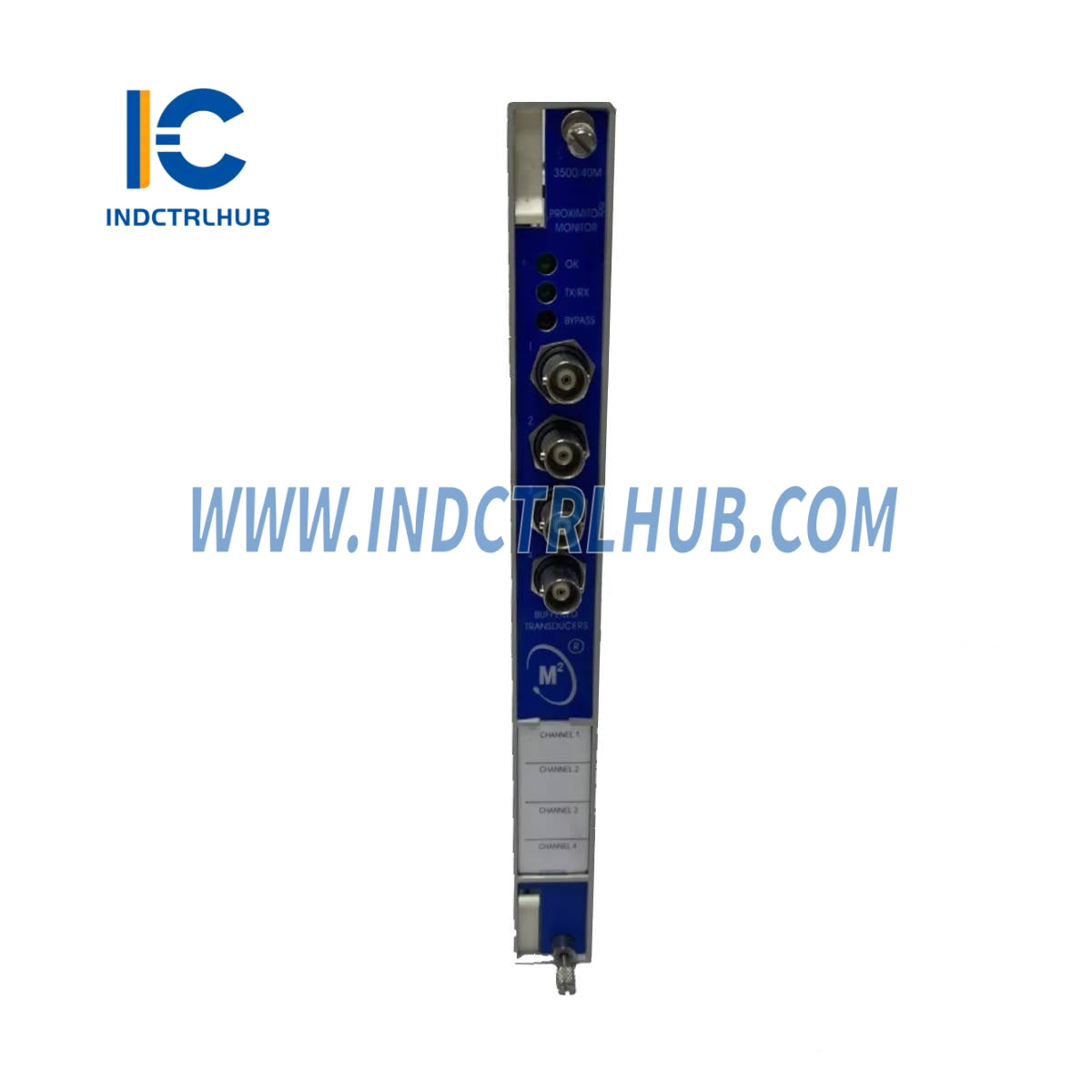

Bently Nevada 3500/40-01-00 176449-01+125680-01 3500/40M Proximitor Monitor
Bently Nevada 3500/40-01-00 176449-01+125680-01 3500/40M Proximitor Monitor
Manufacturer: Bently Nevada
Product No.: 176449-01+125680-01
Condition:1000 in stock
Product Type: Proximitor Monitor
Product Origin: USA
Payment: T/T, Western Union
Weight: 910g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/40-01-00 |
|
Spare Part Numbers |
176449-01 (Monitor), 125680-01 (I/O Module) |
|
Description |
3500/40M Proximitor Monitor |
|
Series |
3500 |
_
_
__ Description
The_3500/40M Proximitor Monitor_is a_four-channel_monitor used to process signals from Bently Nevada proximity transducers. It conditions the input to provide various measurements and compares them against programmable alarms.
Each channel can be independently configured (via the 3500 Rack Configuration Software) to perform:
_
-
Radial vibration
-
Thrust position
-
Differential expansion
-
Eccentricity
-
REBAM (Rolling Element Bearing Analysis)
_
_
__ Specifications
_
Inputs
|
Parameter |
Value |
|---|---|
|
Signal Type |
1 to 4 proximity transducer signals |
|
Input Impedance |
10 k_ (Standard I/O, Proximitor & accel. input) |
|
Power Consumption |
7.7 Watts typical |
_
_
__ Environmental Limits
|
Condition |
Range |
|---|---|
|
Operating Temp (Non-barrier I/O) |
-30°C to +65°C (-22°F to +150°F) |
|
Operating Temp (Barrier I/O) |
0°C to +65°C (32°F to +150°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95%, non-condensing |
_
_
__ Physical Specifications
|
Component |
Dimensions (H x W x D) |
Weight |
|---|---|---|
|
Monitor Module |
241.3 x 24.4 x 241.8 mm (9.50 x 0.96 x 9.52 in) |
0.91 kg (2.0 lb) |
|
I/O Module (non-barrier) |
241.3 x 24.4 x 99.1 mm (9.50 x 0.96 x 3.90 in) |
0.20 kg (0.44 lb) |
|
I/O Module (barrier) |
241.3 x 24.4 x 163.1 mm (9.50 x 0.96 x 6.42 in) |
0.46 kg (1.01 lb) |
_
_
__ Ordering Information
3500/40M-AA-BB
|
Field |
Option |
Description |
|---|---|---|
|
A |
01 |
I/O Module with Internal Termination |
|
02 |
I/O Module with External Terminations |
|
|
03 |
I/O Module with Internal Barriers and Internal Terminations |
|
|
B |
00 |
No approvals |
|
01 |
cNRTLus (Class 1, Division 2) |
|
|
02 |
ATEX / IECEx / CSA (Class 1, Zone 2) |
_
_
__ Spares
|
Part Number |
Description |
|---|---|
|

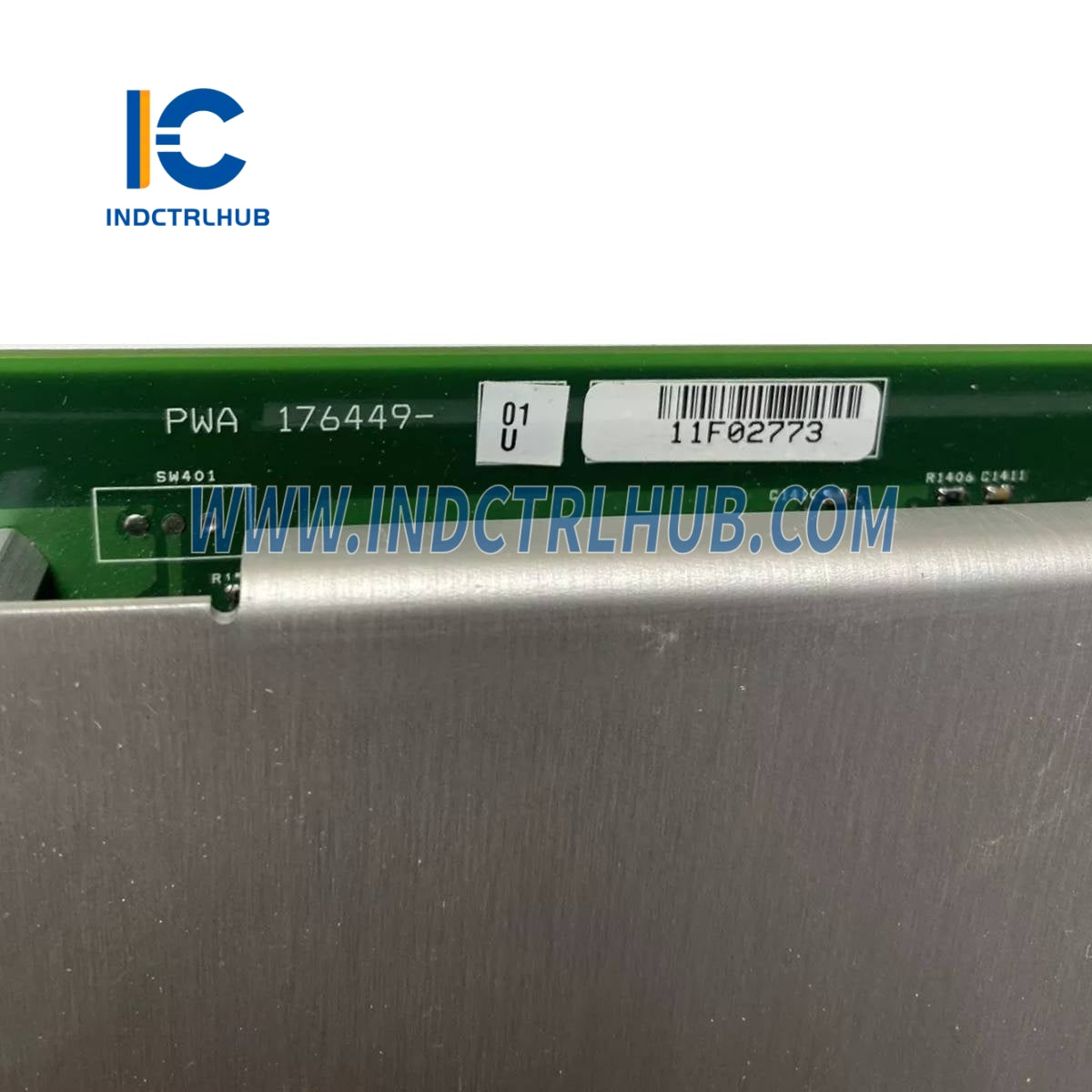

176449-01 |
3500/40M Proximitor Monitor |
|
125680-01 |

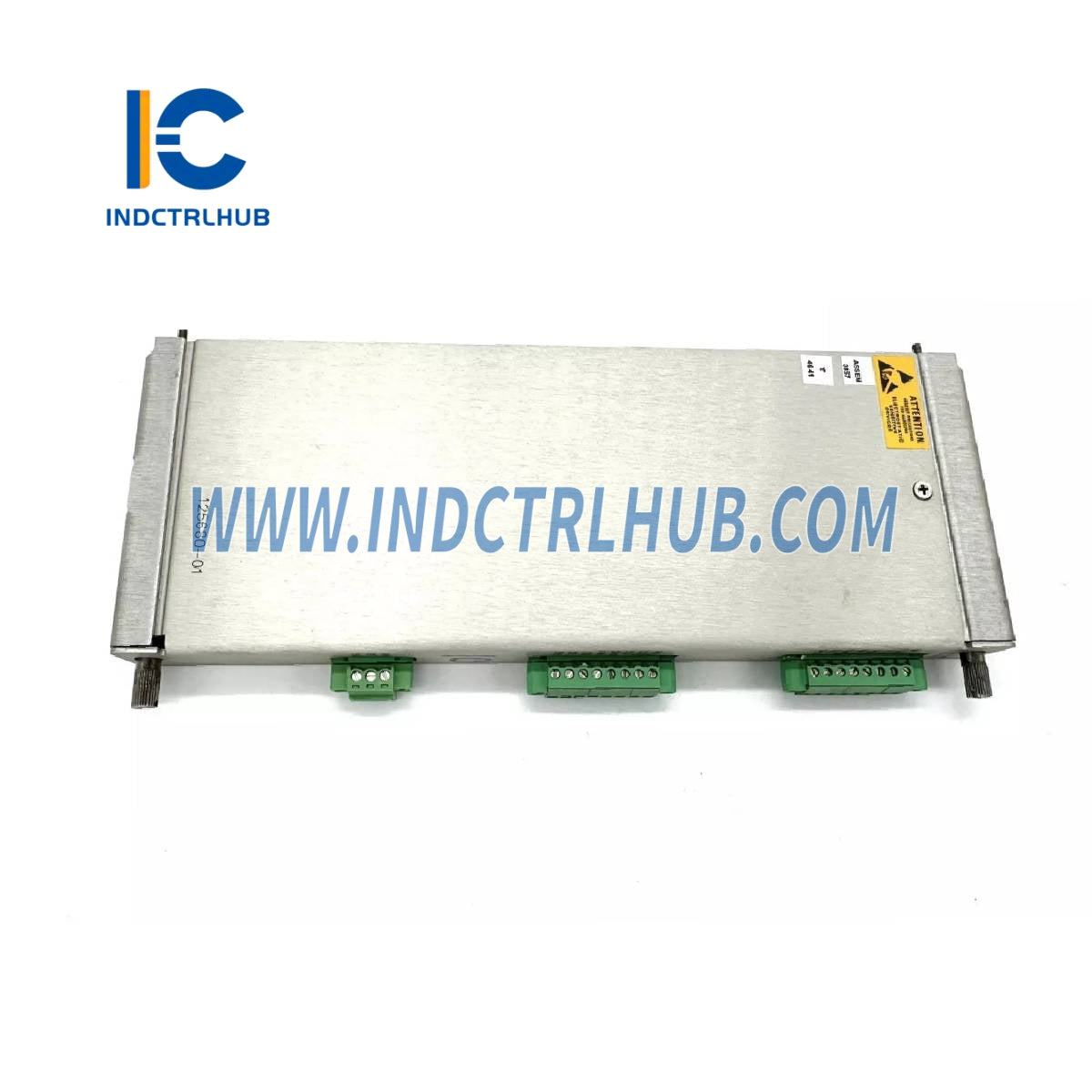

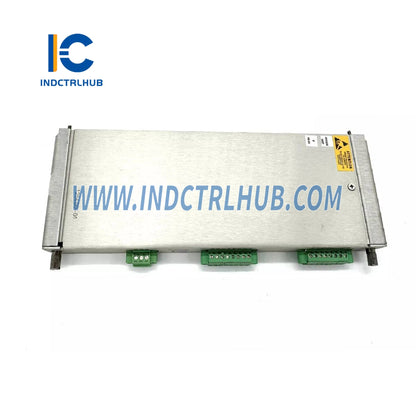

Proximitor I/O Module with Internal Terminations |
