Product Description
Product Details:
Manufacturer: Bently Nevada
Model/Part Number: 16710-12

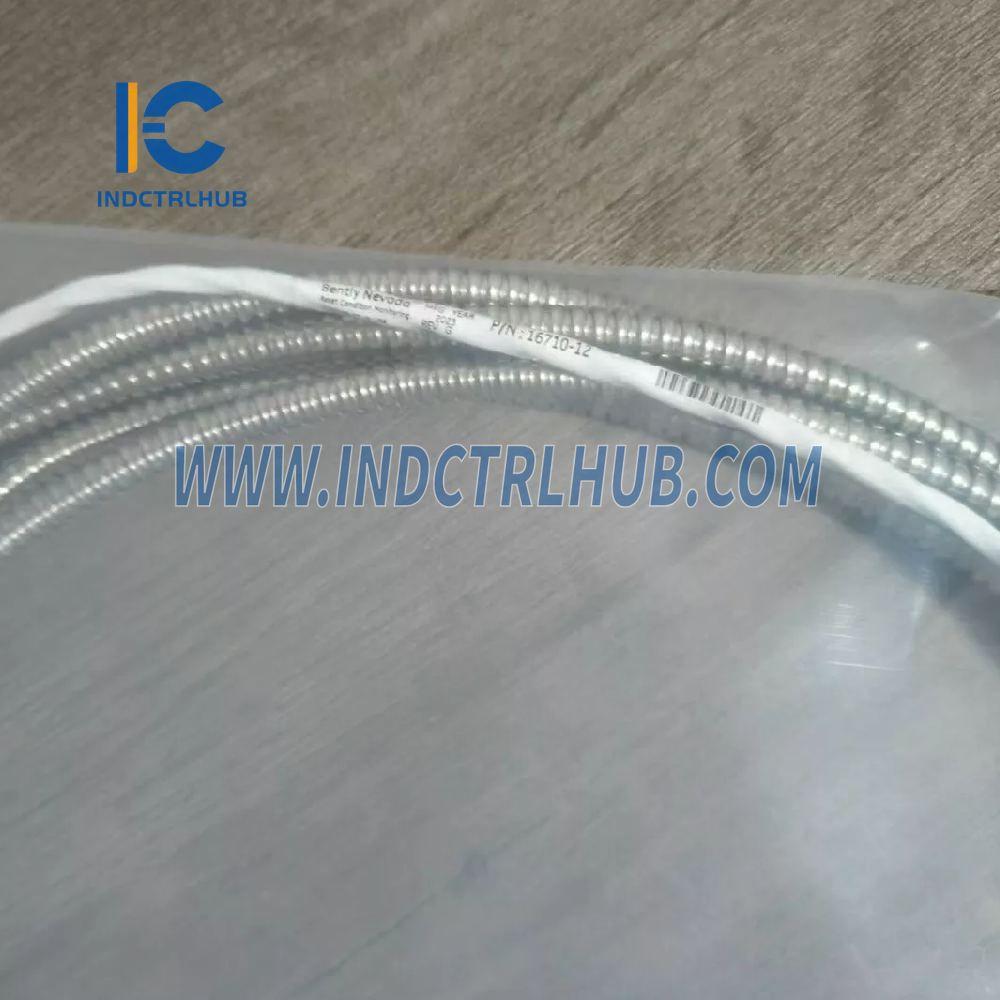

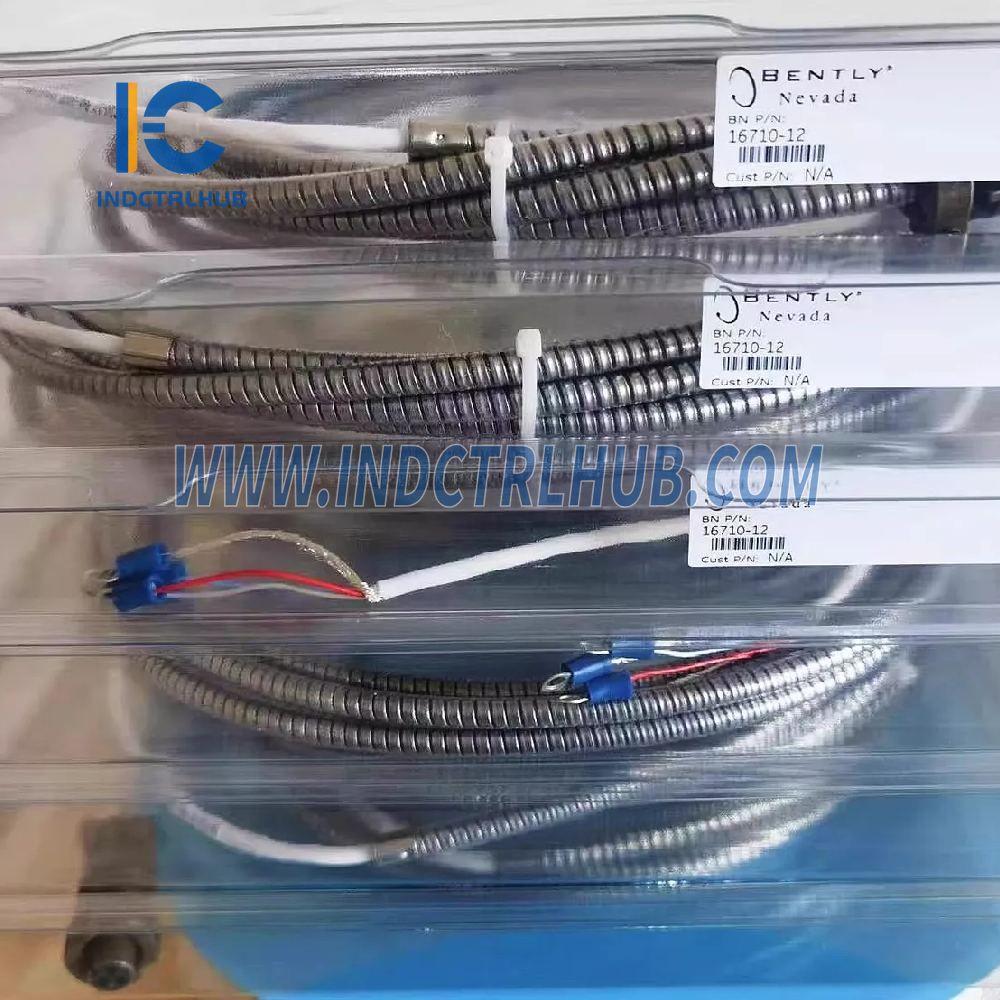

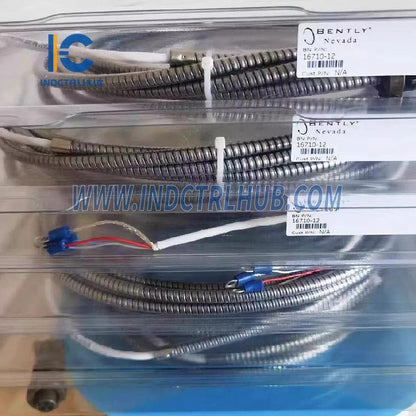

Description: Interconnect Cables
Options:
Part Number: 16710-AA
| Option | Description |
|---|---|
| A: Cable Length Option in feet | Order in increments of 1.0 ft (305 mm). Example: 1 5 = 15 ft (4.57 m), 2 0 = 20 ft (6.10 m). |
| Standard Lengths | 6 ft (1.8 m), 8 ft (2.4 m), 10 ft (3.0 m), 12 ft (3.6 m), 15 ft (4.5 m), 17 ft (5.0 m), 20 ft (6.0 m), 25 ft (7.6 m), 50 ft (15.2 m), 99 ft (30.0 m). |
| Custom Lengths | Non-standard/custom lengths can also be ordered at additional cost. |

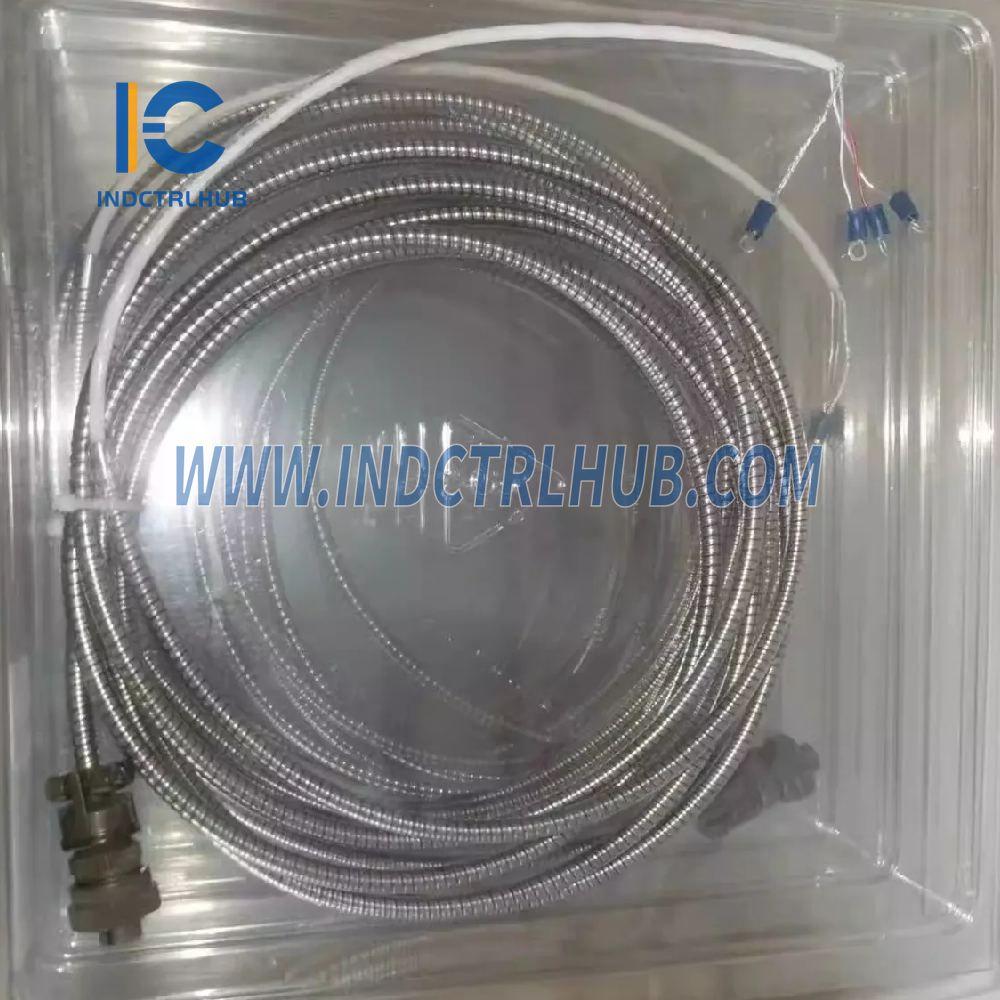

| Cable Part Numbers | 16710: 3-conductor shielded 22 AWG (0.5 mm²) armored cable with 3-socket plug at one end, terminal lugs at the other end. Minimum length of 3.0 ft (0.9 m), maximum length of 99 ft (30 m). |
Environmental Limits:
- Operating and Storage Temperature: -55°C to +121°C (-67°F to +250°F)
- Shock Survivability: 49,050 m/s² (5000 g) peak, maximum
- Relative Humidity: 100% condensing, non-submerged. Case is hermetically sealed
- Magnetic Field Susceptibility: <2.21 mm/s²/gauss (225 mg/gauss) [50 gauss, 50-60 Hz]
- IP Rating: Equivalent to IP 68 (Dust tight and watertight). Please note that this rating applies to the sensor only and does not apply to the cable.
Physical Specifications:
- Weight (no cable): 99 g (3.5 oz), typical
- Diameter: 23 mm (0.93 in)
- Height: 59 mm (2.3 in), including mounting stud
