Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/65-01-00 |
|
Description |

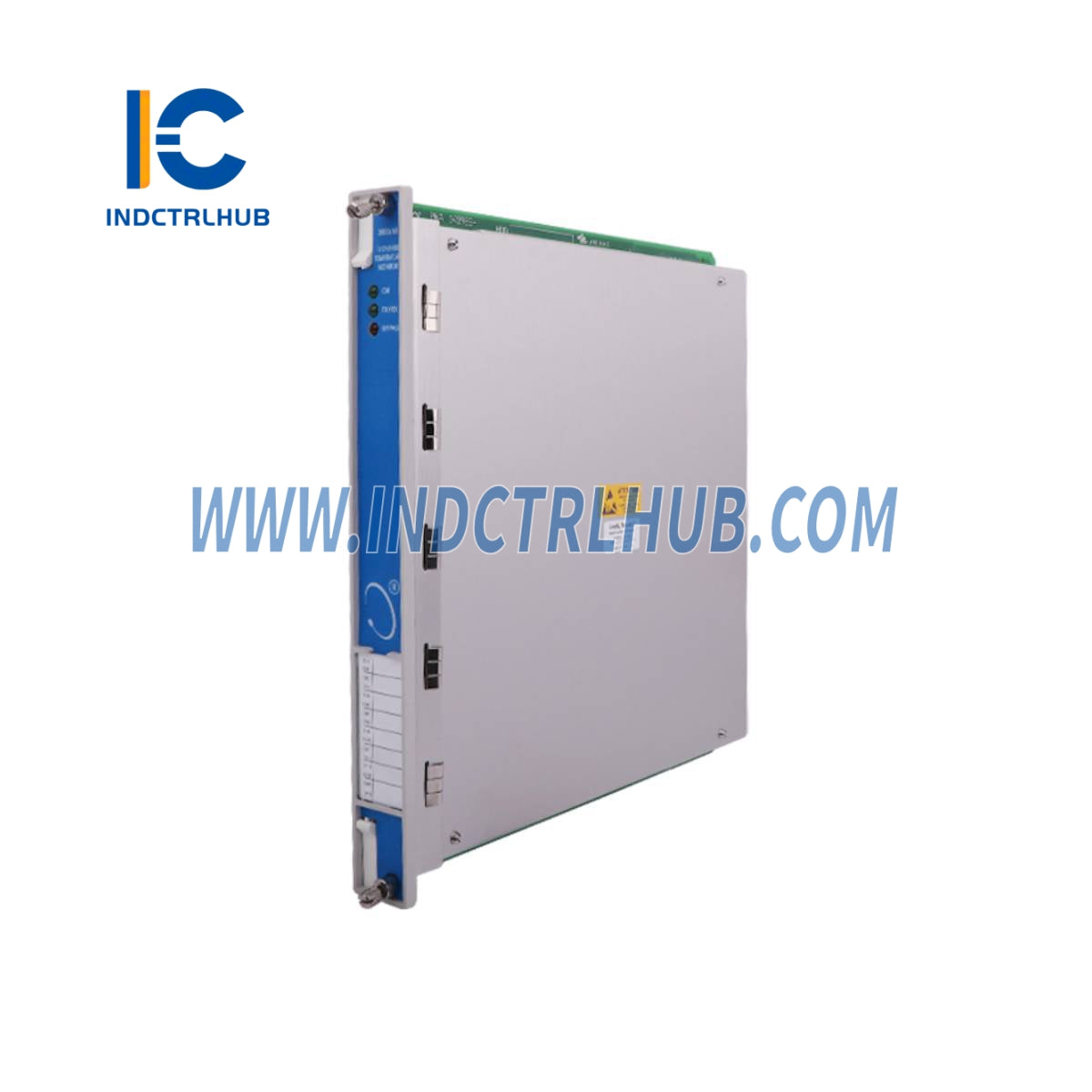

3500/65 16-Channel Temperature Monitor |
🔹 Description
The 3500/65 Temperature Monitor provides 16 channels of temperature monitoring. It supports input from both Resistance Temperature Detectors (RTD) and Isolated Tip Thermocouples (TC).
The monitor conditions these inputs and compares them against user-programmable alarm setpoints, ensuring accurate temperature monitoring in industrial applications.
🔹 Specifications
Inputs
|
Attribute |
Value |
|---|---|
|
Power Consumption |
3 Watts nominal |
|
Signal Input |
Accepts 1 to 16 RTD or isolated tip TC transducer signals |
|
Input Impedance |
Greater than 1 MΩ for each lead input |
🔹 Environmental Limits
|
Attribute |
Value |
|---|---|
|
Operating Temperature |
-30°C to +65°C (-22°F to +150°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
🔹 Physical Specifications
Main Module (Monitor Module)
|
Attribute |
Value |
|---|---|
|
Dimensions (H x W x D) |
241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
|
Weight |
0.91 kg (2.0 lbs.) |
I/O Modules
|
Attribute |
Value |
|---|---|
|
Dimensions (H x W x D) |
241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
|
Weight |
0.45 kg (1.0 lb.) |
🔹 Ordering Information
|
Part Number |
Description |
|---|---|
|
3500/65 |
16-Channel Temperature Monitor |
Customization Options
|
Code |
I/O Module Type |
|---|---|
|
01 |
RTD/Isolated Tip TC with Internal Terminations |
|
02 |
RTD/Isolated Tip TC with External Terminations |
|
Code |
Agency Approval Option |
|---|---|
|
00 |
None |
|
01 |
CSA/NRTL/C |
|
02 |
CSA/ATEX |
