Product Description
Product Details
Manufacturer: Allen-Bradley

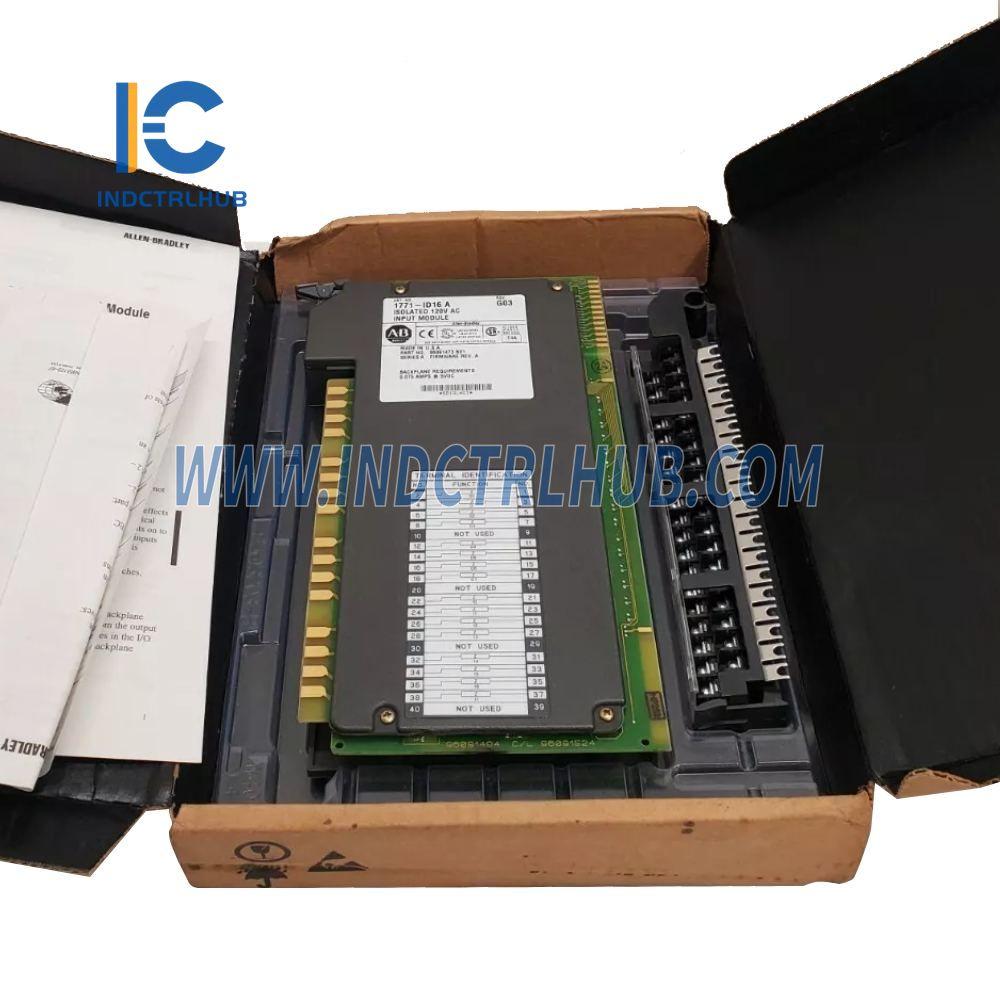

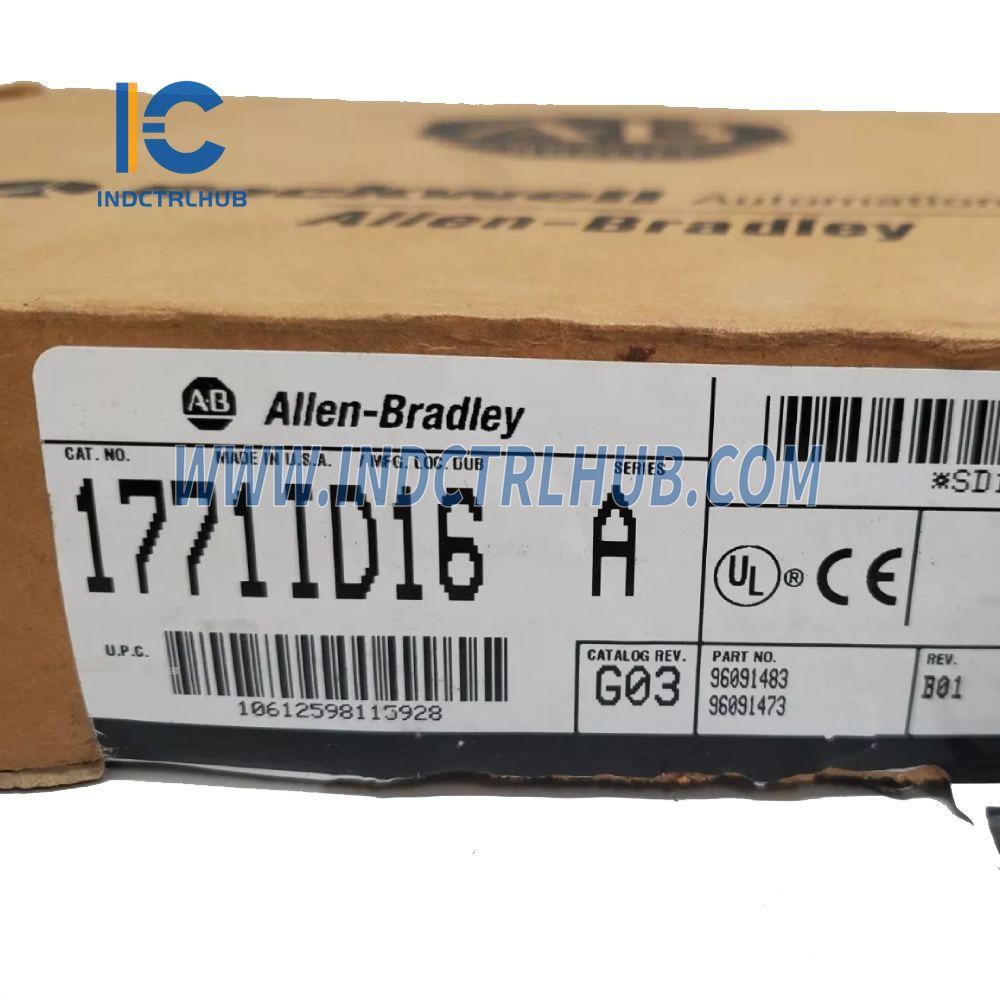

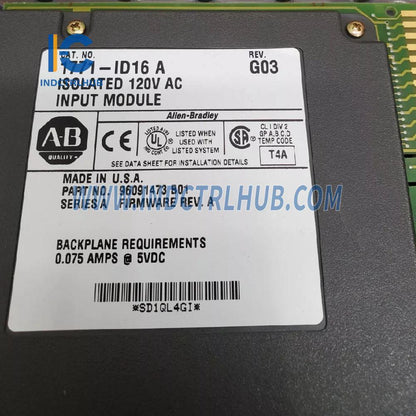

Model/Part Number: PLC5 1771-ID16
Description: Isolated AC/Dc input Module
Specifications
| Field | Information |
|---|---|
| Inputs per Module | 16 |
| Module Location | 1771-A1B thru -A4B or later I/O chassis, 1771-AM1, -AM2 chassis |
| Input Voltage Range | 74-138V AC, 47-63Hz; 105-138V DC |
| Nominal Input Voltage | 120V AC/DC |
| Nominal Input Current | 120V AC: 12.4mA @ 50Hz, 14.9mA @ 60Hz; 120V DC: 2.5mA |
| On-state Voltage (Minimum) | 74V AC; 105V DC |
| On-state Current (Minimum) | 6.0mA @ 74V AC, 47-63Hz; 2.0mA @ 105V DC |
| Off-state Voltage (Maximum) | 45V AC; 66V DC |
| Off-state Current (Minimum) | 4mA @ 45V AC, 47-63Hz; 0.8mA @ 63V DC |
| Input Signal Delay | 1.0ms for AC; 1.0ms for DC, Selectable: 9ms or 18.0ms for AC; 9ms for DC |
| Input Impedance (Minimum) | AC: 9.3K ohms @ 47Hz; 6.9K ohms @ 63Hz, DC: 75K ohms off; 48K ohms on |
| Power Dissipation | 7.0 Watts (max.), 0.3 Watts (min.) |
| Thermal Dissipation | 23.8 BTU/hr (max.), 1.0 BTU/hr (min.) |
| Backplane Current | 75mA maximum |
| Isolation Voltage | Meets or exceeds UL Standard 508, and CSA Standard C22.2 No. 142 |
| Maximum Cable Length | 1000ft (304.8m) |
| Operational Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% (without condensation) |
| Wire Size | 14 gauge (2mm) stranded maximum, 3/64 inch (1.2mm) insulation maximum |
| Category | Keying, Field Wiring Arm |
| Wiring Arm Screw Torque | 7-9 inch-pounds |
| Agency Certification | CSA certified, CSA Class I, Division 2, Groups A, B, C, D certified |
| UL Listing | UL listed |
| CE Mark | CE marked for all applicable directives |
| Installation Instructions | 1771-2.189 |
