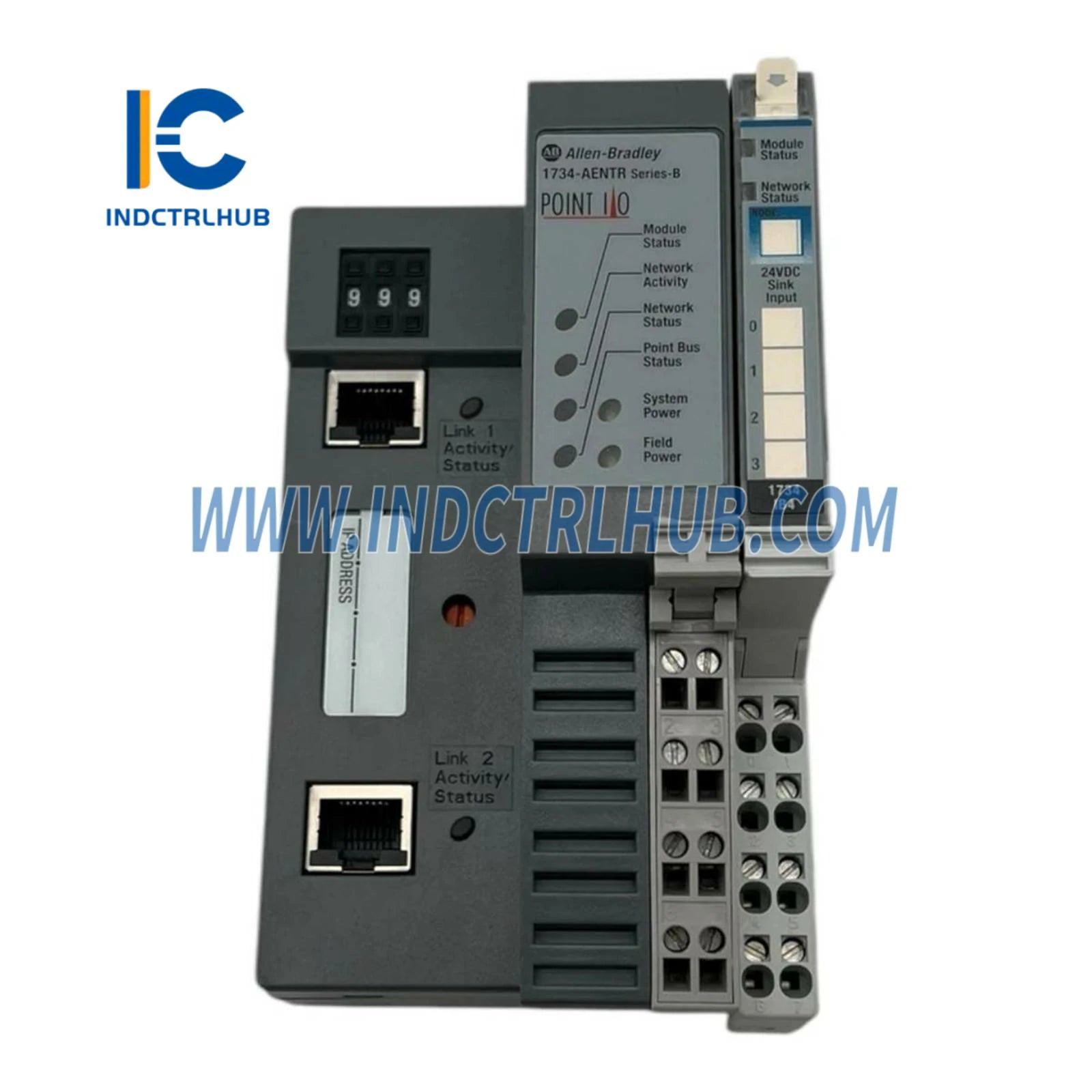

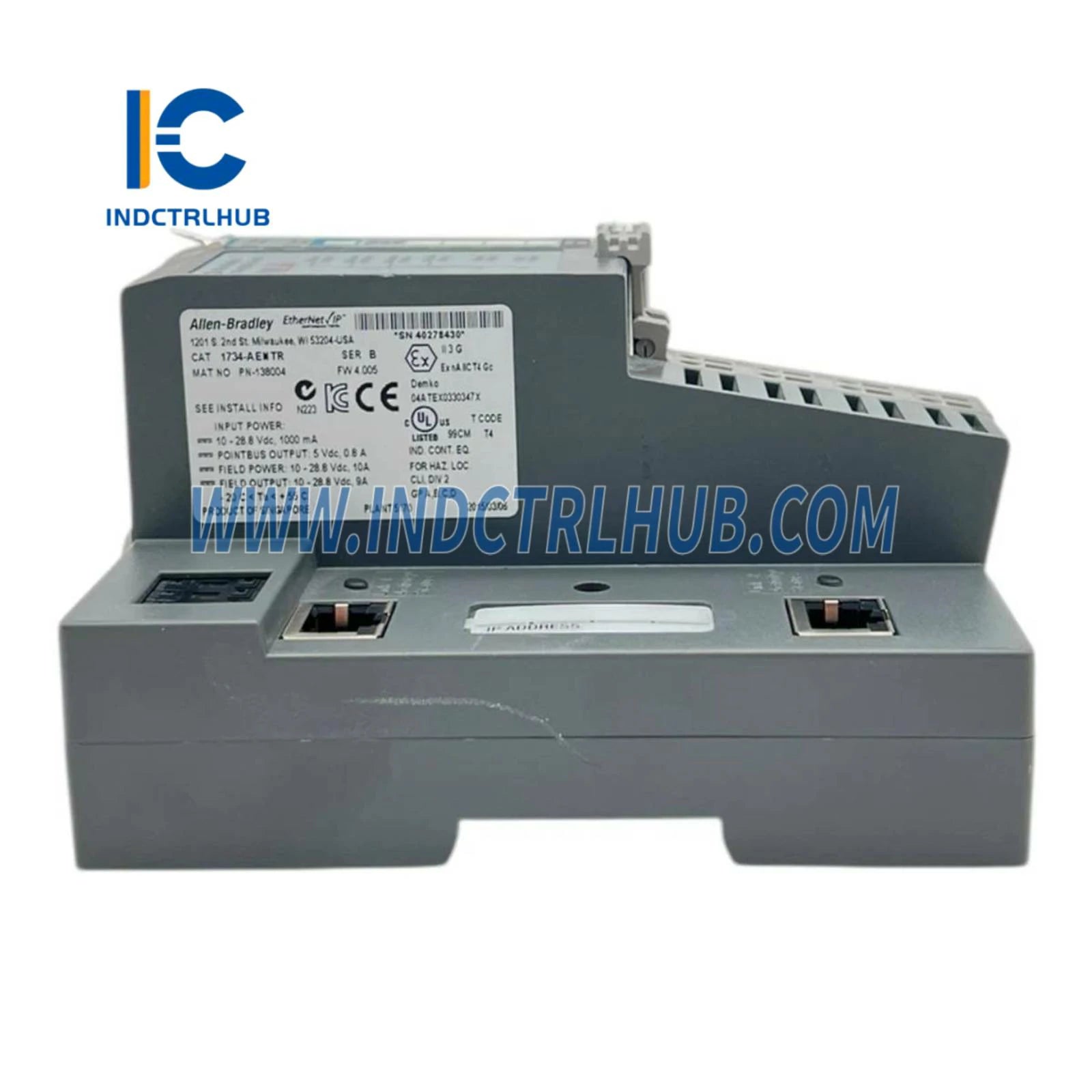

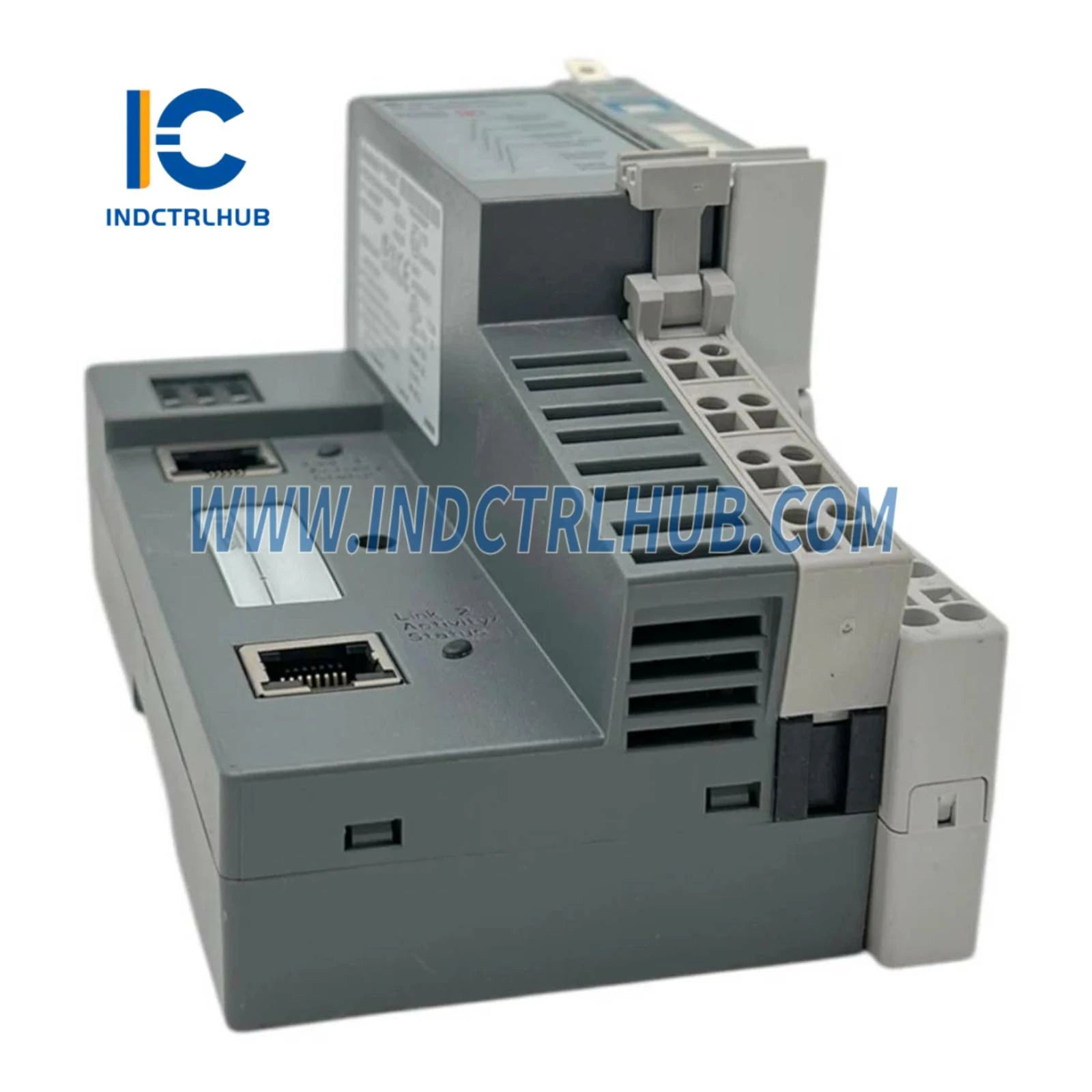

ALLEN BRADLEY 1734-AENTR/B POINT I/O Ethernet Adapter

Model/Part Number

1734-AENTR/B

Description

POINT I/O Ethernet Adapter

Indicators

- 3 red/green status indicators (Module, Network, POINTBus)   - 1 green/yellow status indicator (Network activity)   - 2 green/yellow indicators (Link 1 & Link 2 activity/status)   - 2 green power supply indicators (System power & Field power)

Power Consumption (Max)

10.4 W @ 28.8V DC

Power Dissipation (Max)

6.3 W @ 28.8V DC

Thermal Dissipation (Max)

21.5 BTU/hr @ 28.8V DC

Input Overvoltage Protection

Reverse polarity protected

Isolation Voltage

50V (continuous), Reinforced Insulation Type, between all circuits  Type tested @ 500V AC for 60s

Field Power Supply

10…28.8V DC @ 10A

Field Power Output

10…28.8V DC @ 9A

Module Input

10…28V DC @ 1000 mA

POINTBus Output (Max)

5V DC @ 0.8A

Dimensions (HxWxD), Approx.

76.2 x 73.0 x 133.4 mm (3.0 x 2.87 x 5.25 in.)

Weight, Approx.

0.28 Kg (0.62 lb)

Enclosure Type Rating

None (Open-Style)

Terminal Base Screw Torque

0.8 Nm (7 lb-in)

Wire Category

1 – on power ports  1 – on communications ports

Wire Size (Power Connections)

0.34…2.1 mm² (22…14 AWG) solid or stranded copper wire rated at 75°C (167°F) or greater, 1.2 mm (3/64 in.) insulation max  90°C (194°F) for ControlLogix

Ethernet Wiring

RJ45 connector according to IEC 60603-7  2 or 4 pair Category 5e min cable (TIA 568-B.1)  Category 5 cable (ISO/IEC 24702)

North American Temp Code

T4

ATEX Temp Code

T4

Input Voltage Rating

24V DC @ 10A

Input Voltage Range

10…28.8V DC

Field Side Power (Max)

24V DC @ 400 mA

Inrush Current (Max)

6 A for 10 ms

Input Overvoltage Protection

Reverse polarity protected

POINTBus Output Current (Max)

5V DC @ 0.8A

Interruption Protection

Output voltage stays within specifications when input drops out for 10 ms @ 10V with max load
